AhaDiff (知返)

Ship with AI. Learn it back.

Every AI-written git diff becomes a verified Aha lesson, with code-linked evidence, active-recall quizzes, spaced review, and a self-improving quality ratchet.

中文 · Landing page · User Guide · English tutorial video (YouTube) · Chinese tutorial video (Bilibili)

Install with pip install ahadiff. The English video shows this step; the Chinese Bilibili cut is being refreshed to match.

What it is

AhaDiff is a local-first learning layer for AI coding.

It is not a PR summary or a repo wiki. It reads a single git diff and turns that change into:

• A lesson that teaches what changed and why
• A claims ledger where conclusions trace back to file:line evidence
• A quiz and review loop so the knowledge comes back later
• A quality history that makes runs comparable over time

All repo-local state lives in .ahadiff/: run artifacts under runs/, and SRS / result history in review.sqlite.

Code Wiki explains a repo. AhaDiff teaches you what changed, and verifies every claim against the diff.

Why

AI writes code faster, but developers can understand less of what actually changed. AhaDiff exists to close that loop:

1. AI ships, understanding returns to humans: a commit message is not enough.
2. Every claim needs evidence: no hallucinated functions, no fabricated causality.
3. Knowledge should compound: repeated concepts should build history and backlinks.
4. Quality should be comparable: replace "looks fine" with a stable score and ratchet.

Prerequisites

• Python 3.11+ with Python's sqlite3 runtime at SQLite 3.51.3+; patched backport branches 3.50.4+ and 3.44.6+ are also accepted. Run ahadiff doctor to check the runtime Python actually uses.
• git (on PATH)
• An LLM provider: remote (OpenAI / Anthropic / Gemini / Azure / any OpenAI-compatible) with API key, or local (LM Studio / Ollama, no key needed)

Install

pip install ahadiff
ahadiff --version   # should print ahadiff 1.3.4

This ships a working WebUI out of the box, and all default features work with no extras.

pip install 'ahadiff[optimizer]' is only needed for FSRS parameter auto-optimization, which pulls in a heavy torch dependency. Base review and scheduling work without it.

From source (contributors)

Contributors building from source also need uv (curl -LsSf https://astral.sh/uv/install.sh | sh or brew install uv) and pnpm. The pip install path above needs neither.

git clone https://github.com/AGI-is-going-to-arrive/ahadiff.git
cd ahadiff
uv tool install --editable .
cd viewer && pnpm install && pnpm build   # builds the dev WebUI

Configure a provider

AhaDiff needs an LLM to generate lessons. Set up once per repo:

ahadiff init

# Register and test a provider (OpenAI-compatible example)
export OPENAI_API_KEY="<your-provider-api-key>"
export AHADIFF_PROVIDER_BASE_URL="<provider-base-url>"
ahadiff provider test \
  --name default \
  --provider-class openai \
  --base-url "$AHADIFF_PROVIDER_BASE_URL" \
  --api-key-env OPENAI_API_KEY

provider test sends a small probe request. If it succeeds, the provider is saved to .ahadiff/config.toml. When the provider exposes model limits, AhaDiff records split input / output limits; otherwise auto capture falls back to the bundled model registry or conservative defaults.

On this CLI path, api_key_env is the environment variable name, not the secret. Repo config accepts AHADIFF_* names and the common provider names (OPENAI_API_KEY, ANTHROPIC_API_KEY, GEMINI_API_KEY, AZURE_OPENAI_API_KEY). Identifier-shaped values are treated as environment-variable names and fail closed when unset, so a missing variable is not sent as a literal bearer token. ahadiff provider test --api-key-env NAME still uses an environment variable name, and now also resolves reference names defined in .ahadiff/.env.

In the Settings WebUI, you paste the plaintext API key directly instead of supplying an environment variable name. Here is what AhaDiff does with it:

• Plaintext goes to one local file only. It writes the key into the repo-local .ahadiff/.env, and stores only a reference name in config.toml (api_key_env is set to AHADIFF_<UPPERCASE_ALIAS>_KEY, with a numeric suffix like AHADIFF_DEMO_2_KEY if that name is already taken). The plaintext never lands in config.toml.
• The key file stays out of Git. AhaDiff makes sure the secret patterns (.env, .env.*, audit.private.jsonl, *.lock, *.log) stay git-ignored: it creates .ahadiff/.gitignore if it is missing, and if you already have one it appends only the missing secret lines (your existing lines are preserved). Either way the key file is ignored by a normal git add (a forced git add -f could still override it).
• File permissions. On POSIX the file is chmod 0600. On Windows that mode isn't a POSIX owner-only ACL, so it's best-effort only — see the Windows note below.
• A real OS env var wins. At startup both serve and the CLI load .ahadiff/.env into the process environment, but a system variable of the same name takes precedence and is never overwritten.
• Saving with a key entered runs a quick probe. When you save with an API key in the field, AhaDiff checks provider connectivity; this is best-effort, so a failed probe does not block saving and the UI shows the result. Updating an existing provider with the key field left blank keeps the current key and skips the probe (verification is empty).
• Delete cleans up after itself. Removing a provider drops its .ahadiff/.env entry, but only unreferenced entries under the reserved AHADIFF_ prefix. Shared names like OPENAI_API_KEY, and names another provider still uses, are left alone. Cleanup keys off the AHADIFF_ prefix and reference count, so keep that prefix for AhaDiff and don't hand-author your own AHADIFF_* variables in .ahadiff/.env.

Windows note: the local .ahadiff/.env is protected by NTFS folder permissions rather than POSIX 0600. For stricter handling, point api_key_env at a real OS environment variable (it takes precedence and is never written to .ahadiff/.env). For at-rest protection, use full-disk encryption such as BitLocker (or FileVault on macOS).

Supported provider classes: openai, openai_responses, gemini, anthropic, azure, newapi, lmstudio, ollama. Advanced OpenAI-compatible or local setups can use providers.<name>.capability_overrides for known boolean capabilities such as native JSON schema support; invalid keys or non-boolean values are rejected. NewAPI disables supports_native_json_schema by default; if your NewAPI gateway backend actually supports native JSON schema, you can add capability_overrides = { supports_native_json_schema = true } in the provider config. See User Guide for details.

The Settings provider card can also preview model limits before you save, using only the draft provider class, model, and optional limits profile. It does not call the remote provider or read the API key for that preview. Leaving max_output_tokens empty means Auto; when a known trusted output max is exceeded, save-time config clamps it and returns a warning. Unknown, low-confidence, route-specific, or local-runtime limits are shown as warnings instead of being presented as hard facts.

For GPT-5.5 specifically, the bundled registry keeps two profiles: ordinary openai access budgets 400k context, while openai_responses / API access budgets 1.05M. A live probe can still override the registry when the endpoint reports a trustworthy total context.

AhaDiff defaults to strict_local privacy: nothing leaves your machine unless you explicitly configure a remote provider.

Your first lesson

# Learn from your latest commit
ahadiff learn --last

# Open the local web UI to read your lesson
ahadiff serve

ahadiff serve opens http://127.0.0.1:8765 automatically. Pass --no-browser to stay in the terminal. You'll see the Dashboard with your first run, then click through to Lesson, Diff, and Quiz.

To run this after every commit, see ahadiff install hooks --auto-learn.

Two more things to try:

ahadiff quiz <run_id>    # test yourself on what you just learned
ahadiff review           # spaced-repetition review of past cards

See the User Guide for all 10 diff capture sources, export options, concept graphs, and advanced commands.

Features

• Learn: ahadiff learn supports 10 diff capture sources: working tree (--staged --unstaged --include-untracked), unstaged (--unstaged), staged (--staged), last commit (--last, or omit a capture-source flag), revision/range (REVISION), time-window (--since; optional --author focuses on one author and expects a single matching commit, otherwise it stops with a clear error), patch file/stdin (--patch FILE|-), patch URL (--patch-url), file compare (--compare), and directory compare (--compare-dir, macOS/Linux only). Recursive directory compare requires the secure directory file descriptor available on macOS/Linux. Patch files are resolved inside the repo root; use stdin for external generated patches. Patch file/stdin and patch URL runs do not have a repository symbol index; when only hunk evidence is available, AhaDiff can still generate a lesson from weak diff-anchored claims instead of claiming symbol-level proof.
• Evidence-linked claims: every lesson conclusion is tied to file:line evidence, with verification states such as verified, weak, not proven, contradicted, and rejected.
• Structured LLM output: generation uses schema-aware JSON contracts where supported, defaults to JSON object mode with one bounded validation retry, and keeps the existing parser, repair, and degraded fallback paths. Truncated or malformed fallback JSON is retried instead of being accepted.
• Adaptive capture limits: fresh configs default to auto capture sizing; existing customized capture settings stay manual. Auto mode uses provider probes, the bundled model registry, output reserves, safety reserves, and CJK diff density, while runtime patch intake remains capped at 50 MiB. Settings previews provider limits from the current draft provider class, model, and optional limits profile before saving, without remote probing on every edit.
• Quiz and review: ahadiff quiz tests the run you just learned; source evidence stays locked until you answer. ahadiff review brings back older cards with spaced repetition. Quiz count is fixed by default (3 questions, configurable from 1 to 30) and can adapt to diff size when enabled (default range 3-12).
• Scoring: each run gets an 8-dimension deterministic score, with an optional advisory LLM judge when configured. No-spec spec_alignment is shown as N/A / 0/0 and excluded from the overall score; judge results never override score.json.verdict. Diff Coverage is based on visible line_map.json files and line-weighted hunks, and hard-gate details show the adaptive claim-anchor threshold used for that run. If the optional judge fails, the deterministic score is still kept and the failure is saved as a redacted judge_failure.json.

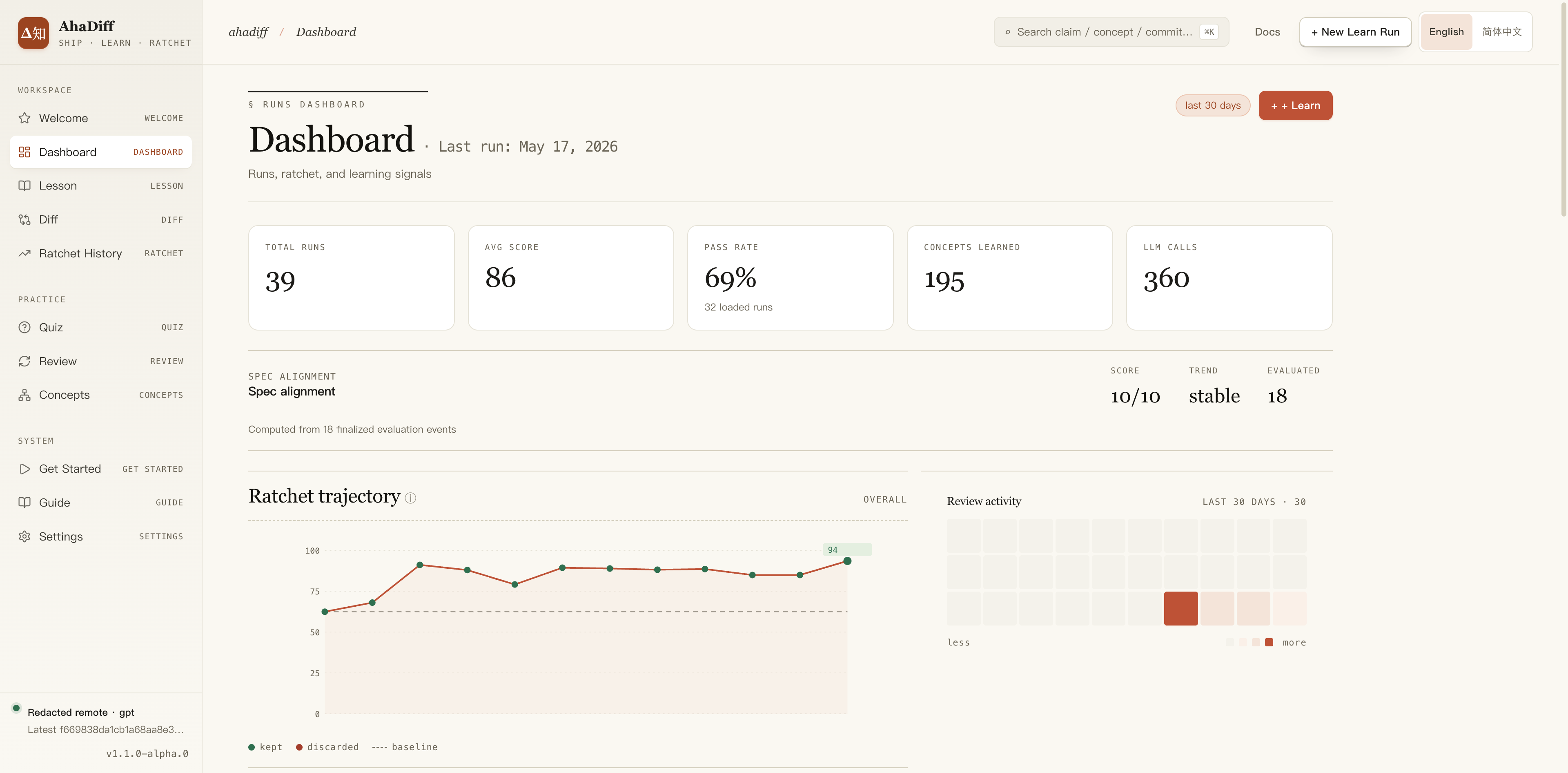

• WebUI: ahadiff serve opens Welcome, Dashboard, Lesson, Diff, Quiz, Review, Concepts, Run Detail, Settings, and Guide. The viewer uses a light, editorial paper-style theme, with fonts bundled locally so nothing loads from a CDN. Run Detail shows Score, Judge, Artifacts, and a sanitized judge-failure panel when the optional LLM judge could not complete. The Welcome Before/After demo keeps long raw diffs collapsed with a line count and a Show all / Collapse control; short or empty diffs stay simple.
• New Run dialog: Dashboard can start quick learn runs for working tree, unstaged, staged, or last commit changes, with advanced cards for --since, revision/range, patch URL, pasted patch text, file compare, and directory compare.
• Export: from the CLI, ahadiff export-results writes results.tsv and ahadiff export preview writes a local static preview bundle. The WebUI (and the serve API) also export TSV / JSON and Anki .apkg; .apkg export uses the bundled genanki, available by default.
• Concept graph: AhaDiff extracts cross-diff concepts and shows them in a Canvas graph with health checks.
• AI tool integration: project-level guidance for 15 CLI / IDE / CI targets. Settings groups the targets, shows localized usage hints and a provider-free local demo, and keeps write/remove behind confirmation. Guide shows commands plus read-only cards that explain usage and preview the files AhaDiff would write. Supported targets include Claude, Codex, Gemini, Antigravity IDE, Antigravity CLI, Copilot, OpenCode, Cursor, Cline, Continue, Roo, Windsurf, Aider, GitHub Actions, and Git hooks (Git hooks stay reminder-only; add --auto-learn for background learn after each commit).
• Auto-iteration: ahadiff improve-run <run_id> regenerates a lesson on an existing run and keeps the new copy only when the deterministic score strictly improves, saving it as a separate run and leaving the original untouched — this works in any install, including pip. The separate ahadiff improve command tunes AhaDiff's own generation prompts and only runs inside an AhaDiff source checkout.
• Privacy: three tiers: strict_local, redacted_remote, explicit_remote. The default is strict_local.
• i18n: English and Chinese for the WebUI and prompt output language. CLI help and most CLI diagnostics are in English.
• Cross-platform: macOS and Linux are the primary tested platforms; Windows is supported for the core CLI and serve flows. --compare-dir and the hooks install target are macOS/Linux only. Installer writes and rollbacks use atomic replacement; POSIX restores file mode before replace, while Windows uses a best-effort mode restore after replace.
• Validation scope: the latest local release audit covered backend unit/integration/eval tests, ruff/pyright, wheel build, viewer Vitest/typecheck/build, real-serve smoke, Guide browser checks, i18n parity, and live learn runs for the documented capture sources. A clean full Playwright matrix, remote CI, and a real Windows runner remain separate release gates.
• Security: URL secret redaction, provider URL validation, provider API-key environment validation, input validation, prompt injection detection, safety hard gates, and redacted judge-failure reporting. WebUI-pasted keys are stored by reference: the plaintext is written only to .ahadiff/.env (POSIX chmod 0600; Windows best-effort) while config.toml keeps only the reference name, and AhaDiff makes sure the secret patterns stay git-ignored (creating .ahadiff/.gitignore if missing, or appending only the missing secret lines to an existing one) so the key file is ignored by a normal git add (a forced git add -f could still override it).

Screenshots

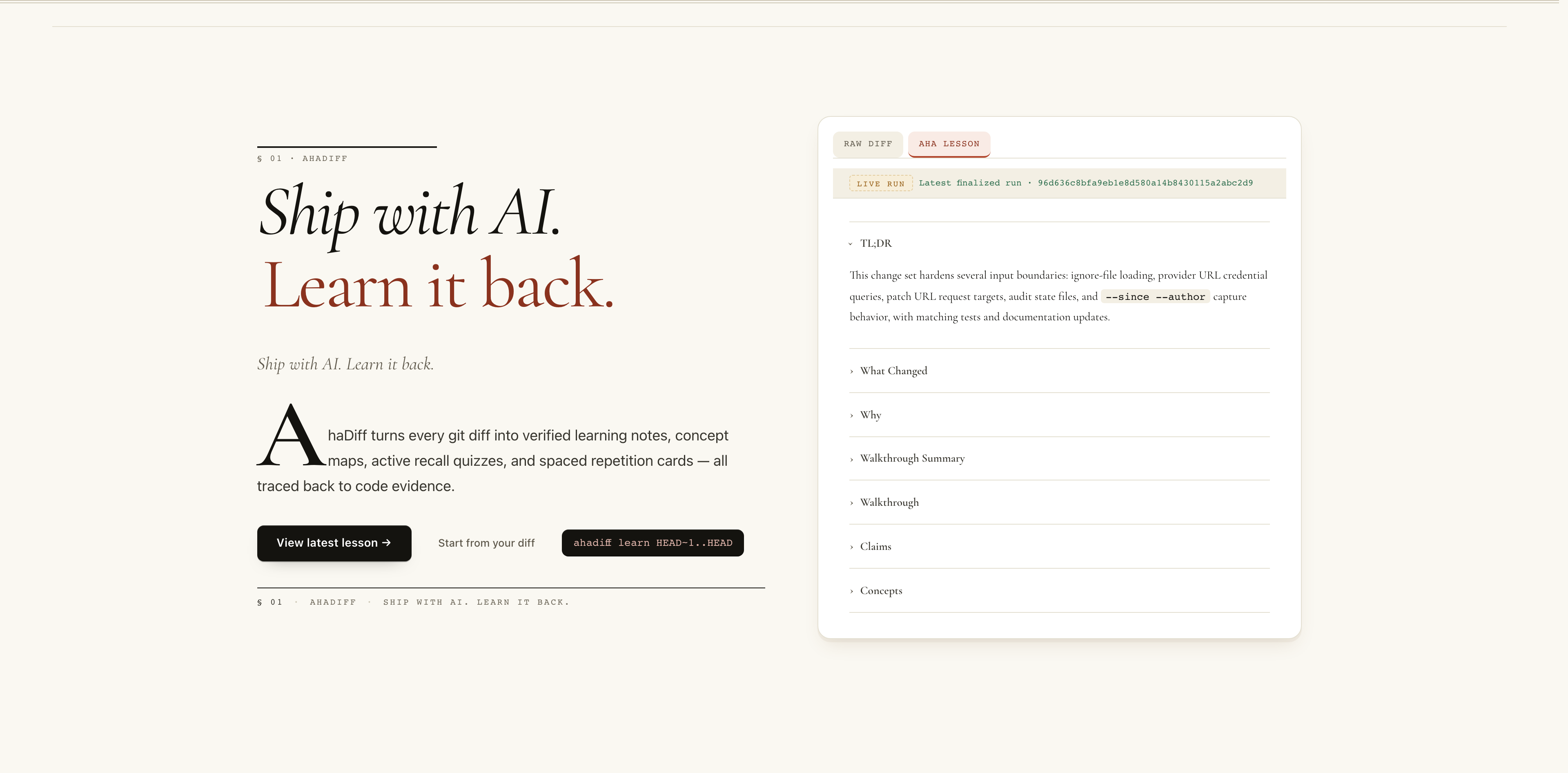

Welcome: first-run entry point

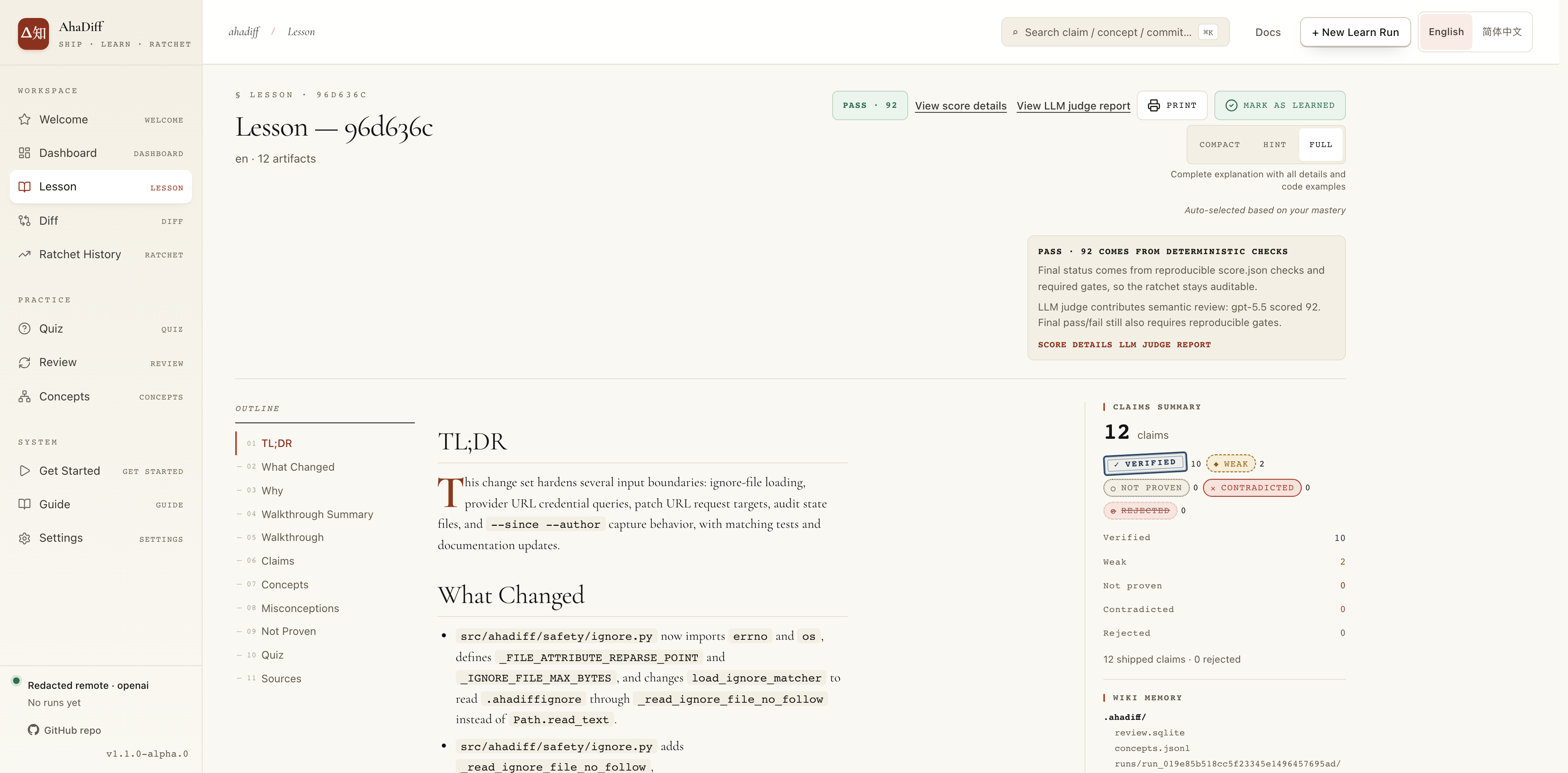

Lesson: AI-generated lesson from your diff

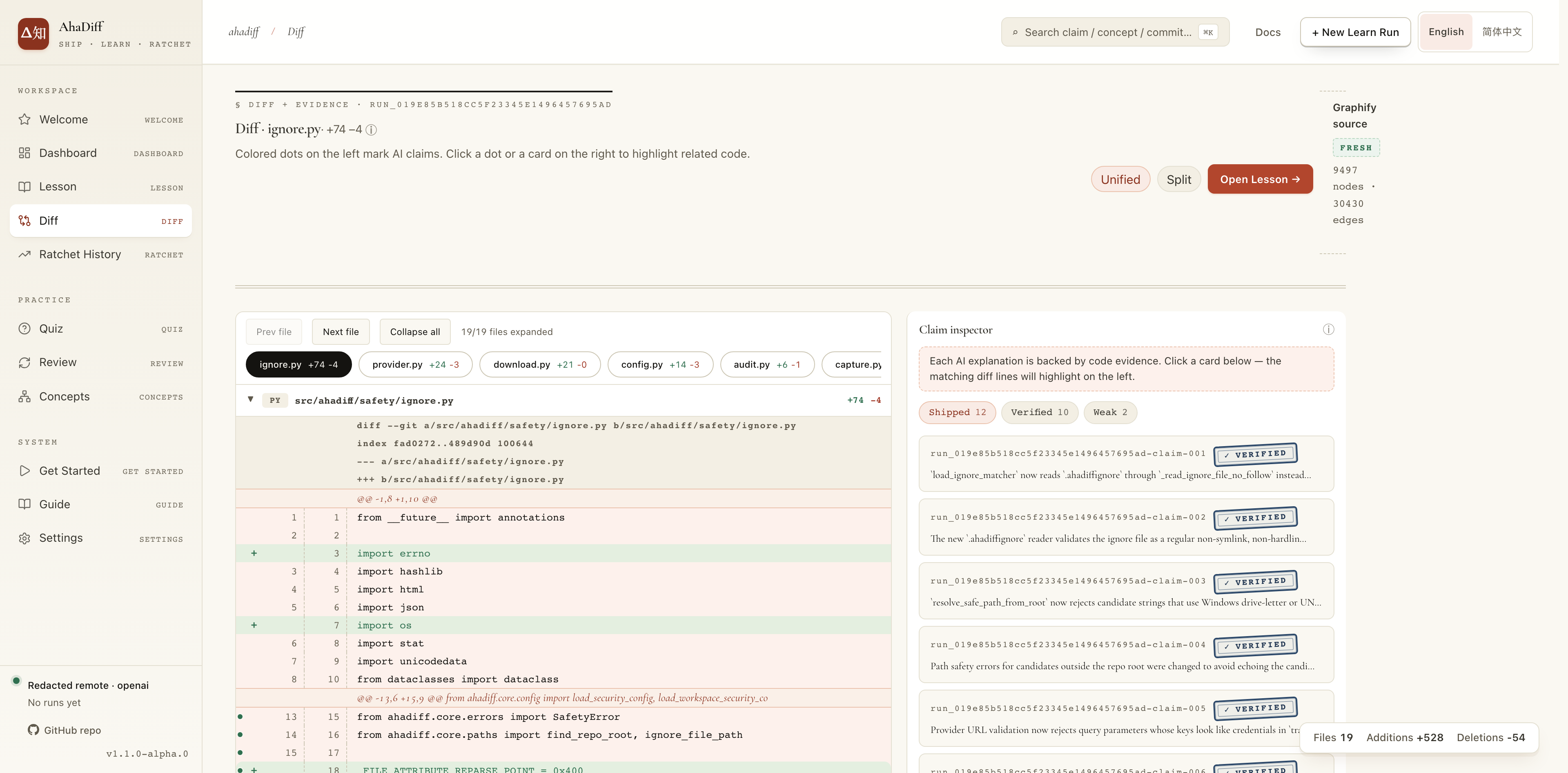

Diff Viewer: claim-linked code evidence

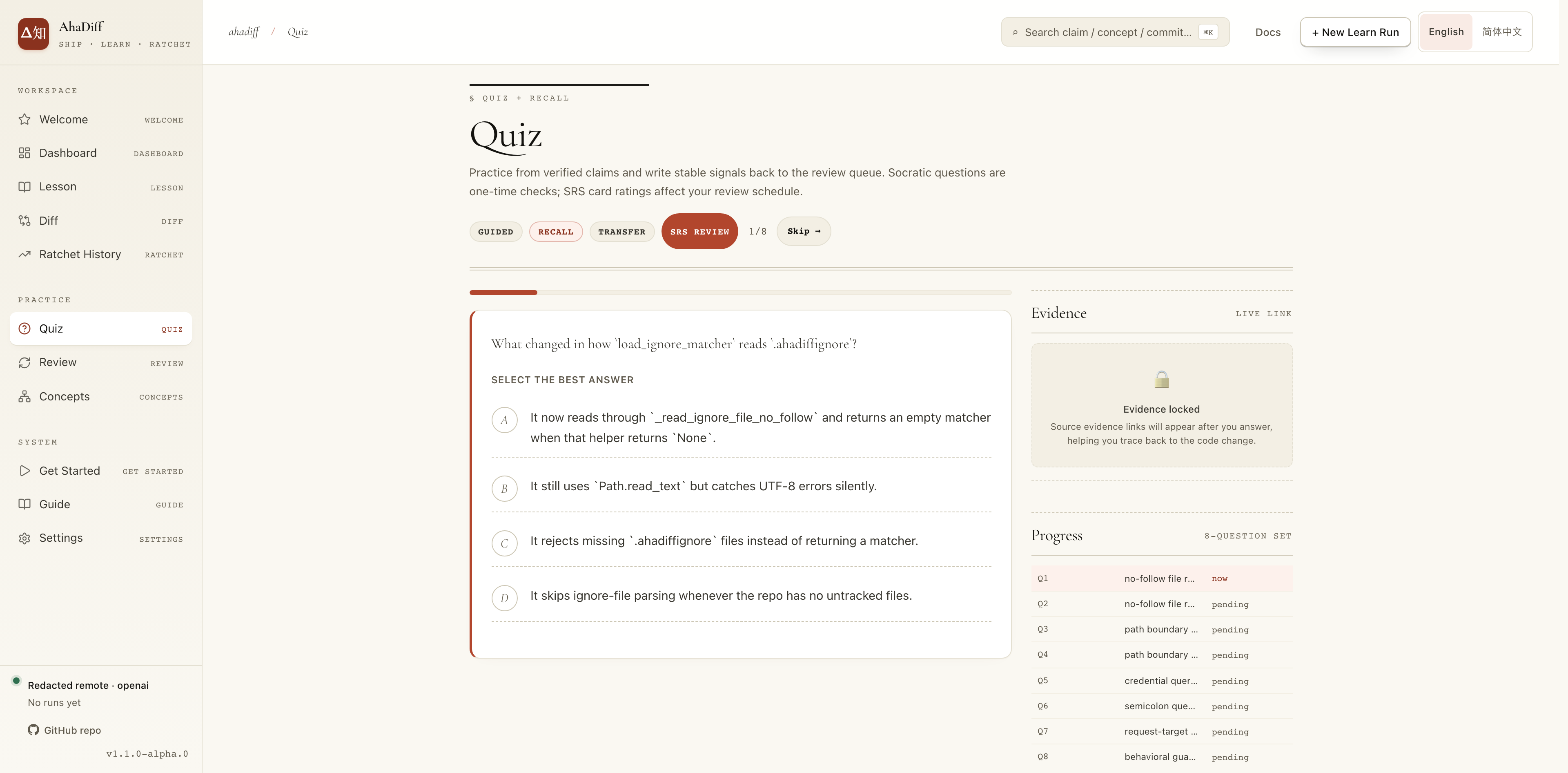

Quiz: active recall from the lesson

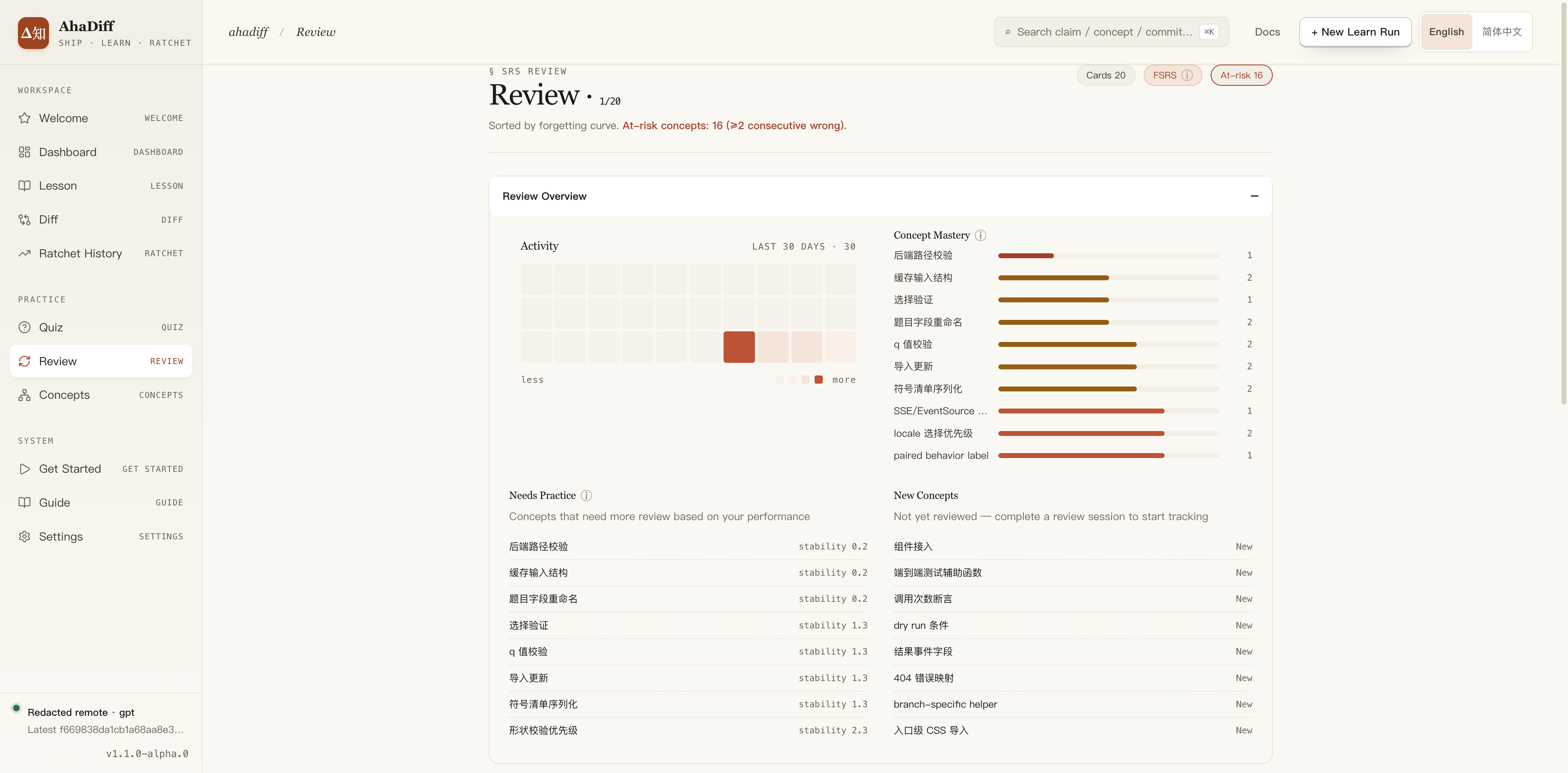

Review: spaced repetition cards

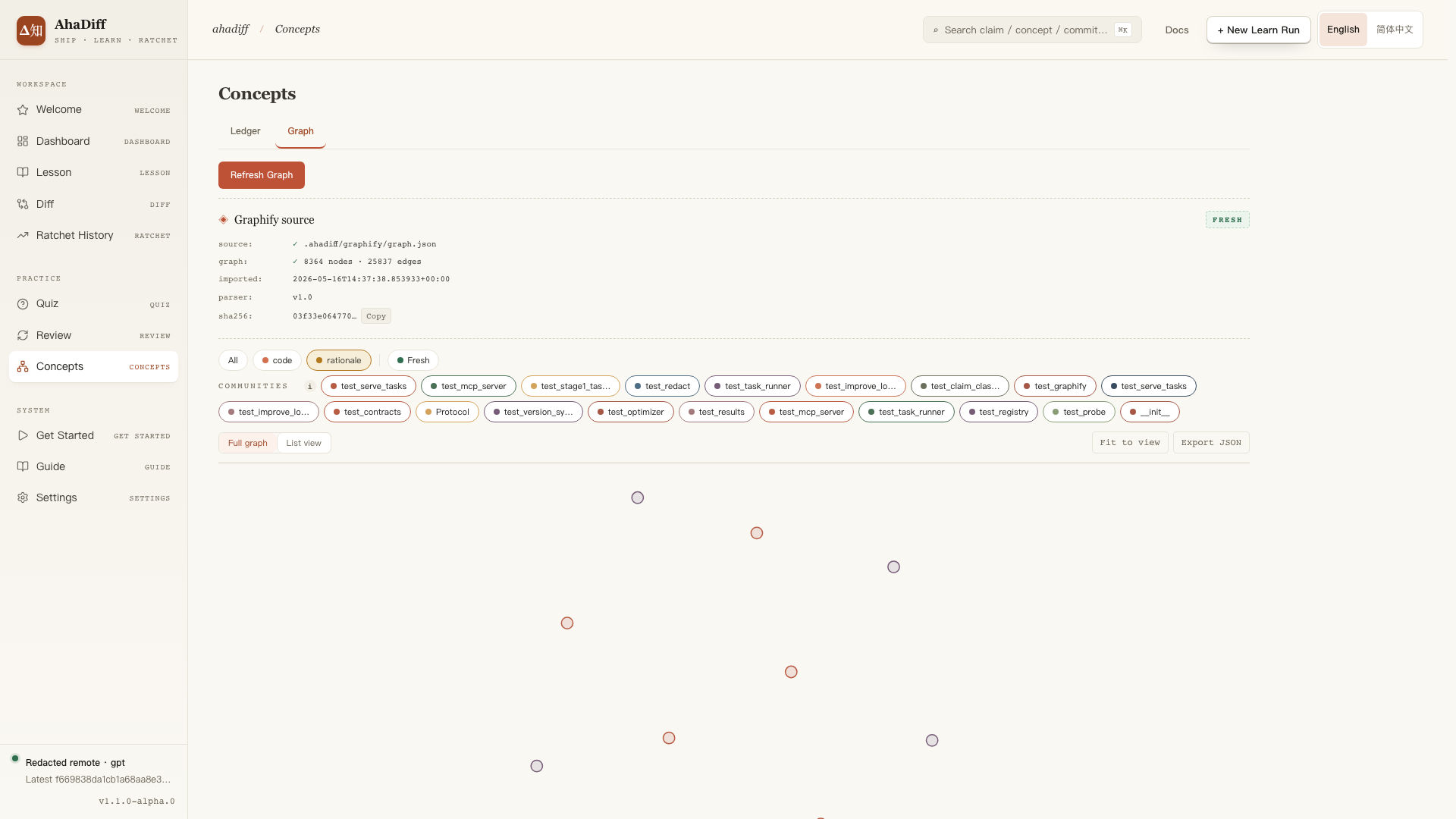

Concept Graph: cross-diff knowledge map

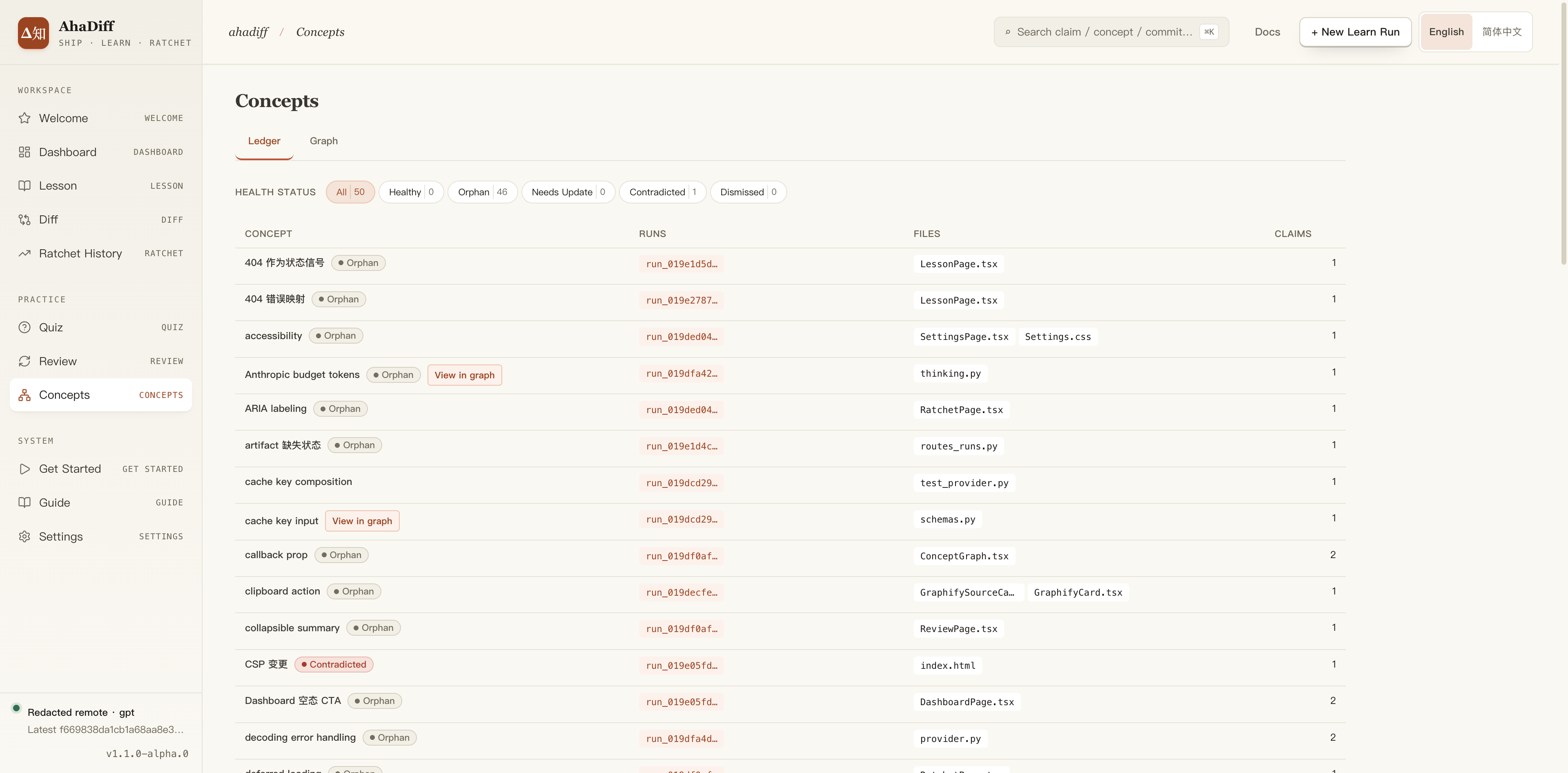

Concepts Ledger: learned concepts table

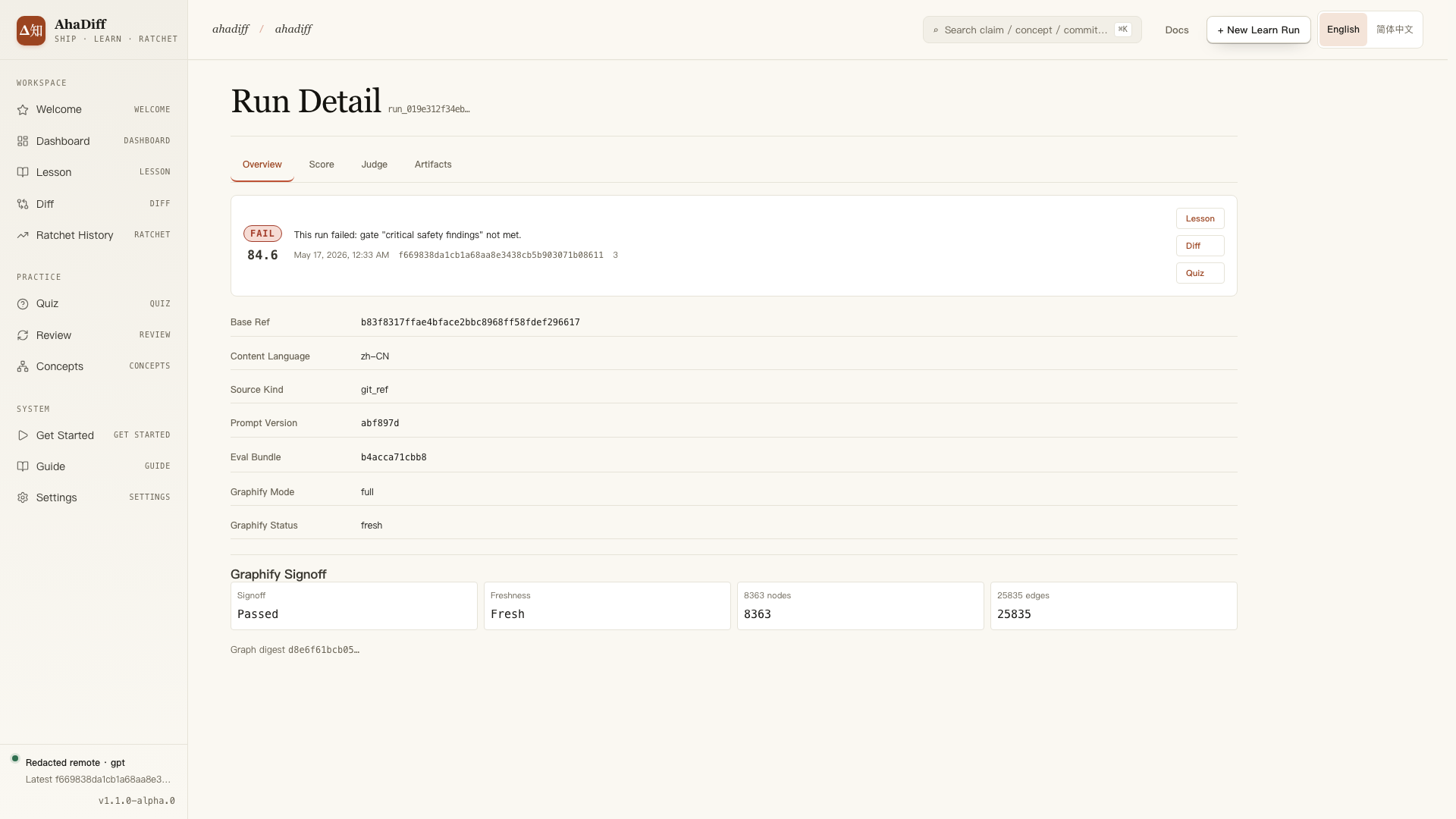

Run Detail: scores and evaluation breakdown

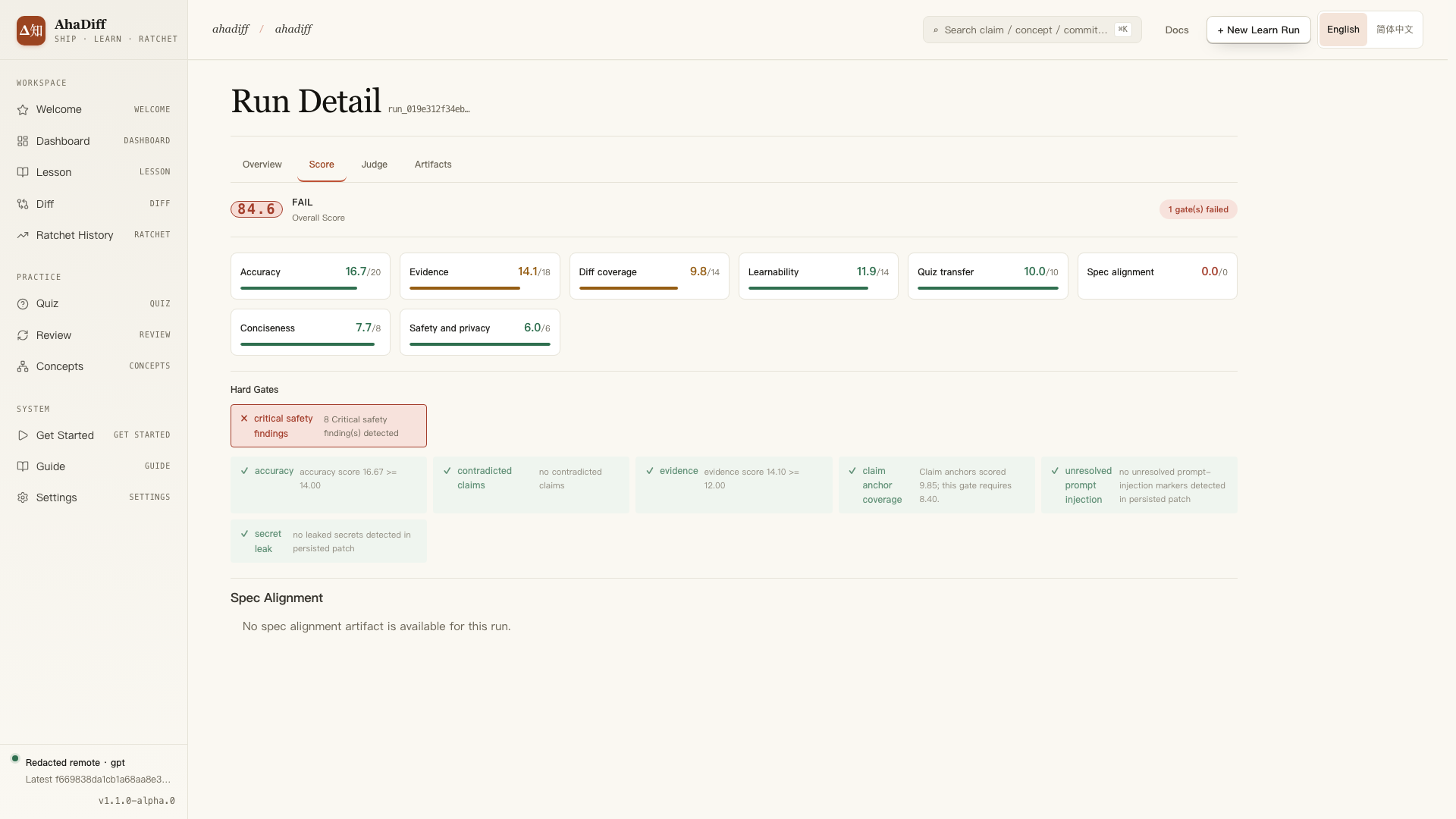

Run Detail Score: 8-dimension score breakdown

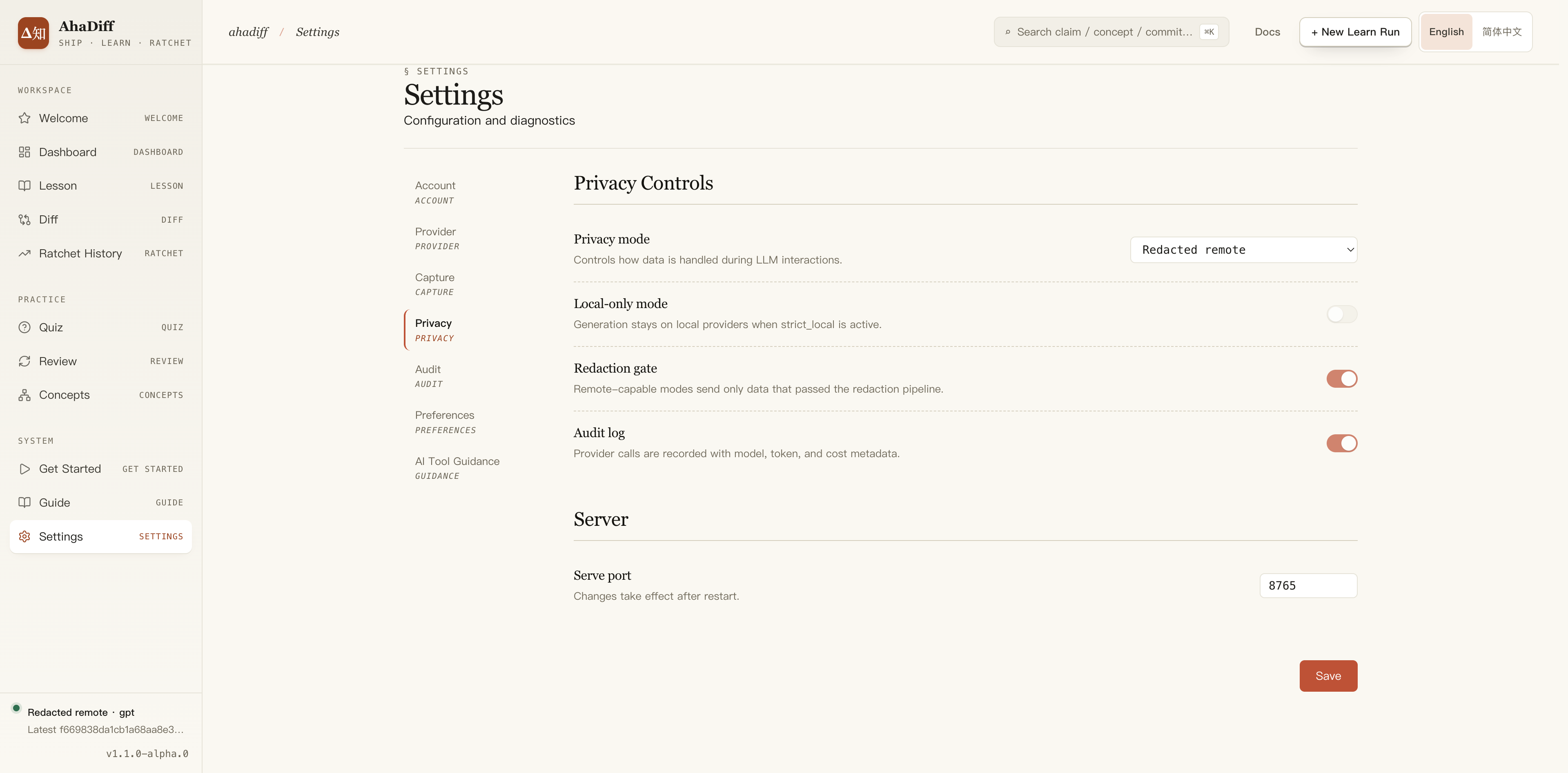

Settings: provider, preferences, and AI tool guidance

AI tool integration

AhaDiff writes repo-local guidance files for the current project; it does not install the AhaDiff CLI again or write global user directories:

ahadiff install --detect        # auto-detect your tools
ahadiff install claude          # also: cursor, copilot, codex, gemini, antigravity, antigravity-cli, aider, windsurf, cline, roo, continue, ...

15 targets supported. Run ahadiff install --help for the full list, or configure in the WebUI under Settings → AI Tool Guidance.

Git hooks stay reminder-only by default. ahadiff install hooks --auto-learn switches the post-commit hook to run ahadiff learn --last in the background (log: .ahadiff/hooks.log). GUI-client commits work too: the hook falls back to the install-time path, logs a skip if ahadiff is unreachable, and never blocks the commit. Prefer learning from saves instead of commits? ahadiff watch auto-learns on working-tree changes (2s debounce, 30s cooldown); ahadiff serve --watch runs the same watcher with the WebUI attached. Register the read-only MCP server (7 tools) with your agent:

claude mcp add ahadiff -- ahadiff mcp-server --repo-root <path>   # Claude Code
codex mcp add ahadiff -- ahadiff mcp-server --repo-root <path>    # Codex CLI

Settings groups targets into CLI / IDE / CI, shows quick-start steps, example prompts, expected behavior, platform notes, and a provider-free local demo. Guide uses the same usage hints inside default-collapsed tool cards and shows what files would be written before you apply changes; actual write/remove stays in Settings.

Guide and the New Run dialog keep cards, note markers, and footer actions readable in Windows high-contrast / forced-colors mode; usage hints use the same tokenized type scale as the rest of the viewer.

Some targets write tool-native generated files. Examples include .claude/skills/ahadiff/SKILL.md, .agents/skills/ahadiff/SKILL.md, .gemini/skills/ahadiff/SKILL.md, .agents/skills/ahadiff-antigravity/SKILL.md, .agents/skills/ahadiff-antigravity-cli/SKILL.md, .agents/rules/ahadiff.md, .github/instructions/ahadiff.instructions.md, .opencode/agents/ahadiff.md, .clinerules/ahadiff.md, .continue/rules/ahadiff.md, .cursor/rules/ahadiff.mdc, .roo/rules/ahadiff.md, and .windsurf/rules/ahadiff.md. Repo guidance sections stay in user-managed files such as CLAUDE.md, AGENTS.md, GEMINI.md, and .github/copilot-instructions.md. Uninstall only removes AhaDiff-generated files and AhaDiff marked sections.

This repository ignores generated .agents/ installs, so repo-local Codex / Antigravity skill output remains local unless a user explicitly tracks it.

8-Dimension Rubric

Three verdicts: PASS ≥ 80 / CAUTION 60–80 / FAIL < 60. Hard gates can still force FAIL even when the overall score is high; contradicted claims require zero tolerance, and unmitigated Critical safety findings fail the run.

Repository Layout

ahadiff/
├─ src/ahadiff/         # Python source
├─ viewer/              # React 19 frontend
├─ tests/               # Test suite
├─ prompts/             # LLM prompt templates
├─ benchmarks/          # Eval benchmark fixtures
├─ docs/                # Landing page, user guides, tutorial videos
├─ .github/workflows/   # CI/CD
├─ pyproject.toml       # Python package config
└─ LICENSE              # MIT

Core Philosophy (N-File Contract)

AhaDiff extends the Karpathy / autoresearch three-file contract into an N-file variant:

Loop: edit → commit → evaluate → keep if better, reset if worse → record the result for review and future runs.

Inspirations, Design Axioms, and License

Inspirations

• karpathy/autoresearch: N-file contract and git ratchet
• alchaincyf/darwin-skill: 8-dimension rubric and Phase 2.5 rewrite
• Evol-ai/SkillCompass: PASS / CAUTION / FAIL and weakest-dimension-first
• ZJU-REAL/SkillZero: helpfulness-driven retention and compact context
• safishamsi/graphify: repo-level graph overlay
• karpathy/llm-wiki gist: persistent compounding wiki

Design Axioms

1. Evidence first: every claim must trace back to file:line
2. Learning over summary: quizzes and review beat pretty summaries
3. Local-first trust: privacy tiers are explicit, and local stays local by default
4. Paper-like seriousness: academic feel, not a loud SaaS landing page
5. One accent per style: warm paper background plus a single accent color

Acknowledgements

Thanks to the linux.do community for feedback and support.

License

MIT

AhaDiff / 知返: Δ知 ↺
