ComfyUI-JoyCaption

Joy Caption is a ComfyUI custom node powered by the LLaVA model for efficient, stylized image captioning. Caption Tools nodes handle batch image processing and automatic separation of caption text.

News & Updates

• 2025/10/27: Added Custom Models v2.0.2 ( update.md )

• 2025/10/20: Update and bug fix ComfyUI-JoyCaption to v2.0.1 ( update.md )

• 2025/08/22: Update ComfyUI-JoyCaption to v2.0.0 ( update.md )

  • Added GGUF model support for better performance and compatibility
  • Fixed critical parameter handling issues (top_k, image format)
  • Improved console output (no more base64 spam)
  • Enhanced error handling and stability
  • Added JoyCaption GGUF and JoyCaption GGUF (Advanced) nodes
  • Enhanced GGUF Support: Comprehensive support for 12 quantization levels (Q2_K to F16)
  • llama_cpp_install folder: Complete installation guides and automated scripts for llama-cpp-python
  • Simplified Installation: One-click llama-cpp-python installation with automatic CUDA support
  • Cross-Platform Support: Windows, macOS, and Linux installation guides
  • Performance Improvements: Optimized model loading and memory management

• 2025/06/15: Update ComfyUI-JoyCaption to v1.2.0 ( update.md )

  • Enhanced CUDA performance optimization
  • Improved memory management strategies
  • Added Global Cache mode for faster processing

• 2025/06/07: Update ComfyUI-JoyCaption to v1.1.1 ( update.md )

• 2025/06/05: Update ComfyUI-JoyCaption to v1.1.0 ( update.md )

• Add Caption tools

Features

• Simple and user-friendly interface
• Multiple caption types support
• Flexible length control
• Memory optimization options
• GGUF model support - Efficient quantized models for better performance and lower memory usage
• Automatic model download - Models will be downloaded automatically and properly renamed on first use
• Support for multiple caption types
• Support for advanced customization options
• Multiple precision options (fp32, bf16, fp16, 8-bit, 4-bit)
• Enhanced memory management with Global Cache mode
• Clean console output (no debug spam)
• Robust error handling and parameter validation
• llama_cpp_install folder - Complete installation guides and automated scripts for llama-cpp-python

Installation

1. Clone this repository to your ComfyUI/custom_nodes directory:

   cd ComfyUI/custom_nodes
   git clone https://github.com/1038lab/ComfyUI-JoyCaption.git

2. Install the required dependencies:

   cd ComfyUI/custom_nodes/ComfyUI-JoyCaption
   pip install -r requirements.txt

3. For GGUF Models (Recommended): Install llama-cpp-python with CUDA support:


   # Option 1: Automated installation (Recommended)
   python llama_cpp_install/llama_cpp_install.py

Option 2: Manual installation

pip install -r requirements_gguf.txt

**Installation Guides Available:**
- **English**: [llama_cpp_install/llama_cpp_install.md](llama_cpp_install/llama_cpp_install.md)
- **中文**: [llama_cpp_install/llama_cpp_install_zh.md](llama_cpp_install/llama_cpp_install_zh.md)

## Download Models
The models will be automatically downloaded and renamed on first use, or you can manually download them:

### Standard Models (HuggingFace Format)
| Model | Link | Memory Usage |
| ----- | ---- | ------------ |
| JoyCaption Beta One | [Download](https://huggingface.co/fancyfeast/llama-joycaption-beta-one-hf-llava) | ~8-16GB |
| JoyCaption Alpha Two | [Download](https://huggingface.co/fancyfeast/llama-joycaption-alpha-two-hf-llava) | ~8-16GB |

### GGUF Models (Quantized, Recommended)
| Model | Size | Memory Usage | Quality | Recommended For | Link |
| ----- | ---- | ------------ | ------- | --------------- | ---- |
| JoyCaption Beta One (Q2_K) | 3.18GB | ~4GB | Good | Low VRAM (6GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q2_K.gguf) |
| JoyCaption Beta One (Q3_K_S) | 3.66GB | ~5GB | Good+ | Budget systems (8GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q3_K_S.gguf) |
| JoyCaption Beta One (Q3_K_M) | 4.02GB | ~5GB | Better | Balanced performance | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q3_K_M.gguf) |
| JoyCaption Beta One (Q3_K_L) | 4.32GB | ~6GB | Better+ | Good quality/size ratio | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q3_K_L.gguf) |
| JoyCaption Beta One (IQ4_XS) | 4.48GB | ~6GB | Very Good | **Recommended** (8GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.IQ4_XS.gguf) |
| JoyCaption Beta One (Q4_K_S) | 4.69GB | ~6GB | Very Good | Quality focused | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q4_K_S.gguf) |
| JoyCaption Beta One (Q4_K_M) | 4.92GB | ~7GB | Very Good+ | Balanced choice | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q4_K_M.gguf) |
| JoyCaption Beta One (Q5_K_S) | 5.60GB | ~7GB | Excellent | High quality (10GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q5_K_S.gguf) |
| JoyCaption Beta One (Q5_K_M) | 5.73GB | ~8GB | Excellent+ | Premium quality | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q5_K_M.gguf) |
| JoyCaption Beta One (Q6_K) | 6.60GB | ~8GB | Near Original | Maximum quality (12GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q6_K.gguf) |
| JoyCaption Beta One (Q8_0) | 8.54GB | ~10GB | Original- | Full precision alternative | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.Q8_0.gguf) |
| JoyCaption Beta One (F16) | 16.1GB | ~18GB | Original | Full precision (24GB+) | [Download](https://huggingface.co/mradermacher/llama-joycaption-beta-one-hf-llava-GGUF/resolve/main/llama-joycaption-beta-one-hf-llava.f16.gguf) |

#### Alternative GGUF Sources
| Model | Size | Source | Link |
| ----- | ---- | ------ | ---- |
| JoyCaption Beta One (Q4_K) | 4.92GB | concedo | [Download](https://huggingface.co/concedo/llama-joycaption-beta-one-hf-llava-mmproj-gguf/resolve/main/Llama-Joycaption-Beta-One-Hf-Llava-Q4_K.gguf) |
| JoyCaption Beta One (Q8_0) | 8.54GB | concedo | [Download](https://huggingface.co/concedo/llama-joycaption-beta-one-hf-llava-mmproj-gguf/resolve/main/Llama-Joycaption-Beta-One-Hf-Llava-Q8_0.gguf) |
| JoyCaption Beta One (F16) | 16.1GB | concedo | [Download](https://huggingface.co/concedo/llama-joycaption-beta-one-hf-llava-mmproj-gguf/resolve/main/Llama-Joycaption-Beta-One-Hf-Llava-F16.gguf) |

**Note**: GGUF models also require the vision projection model:
- [llama-joycaption-beta-one-llava-mmproj-model-f16.gguf](https://huggingface.co/concedo/llama-joycaption-beta-one-hf-llava-mmproj-gguf/resolve/main/llama-joycaption-beta-one-llava-mmproj-model-f16.gguf)

After downloading, place the model files in your `ComfyUI/models/LLM/GGUF` directory.

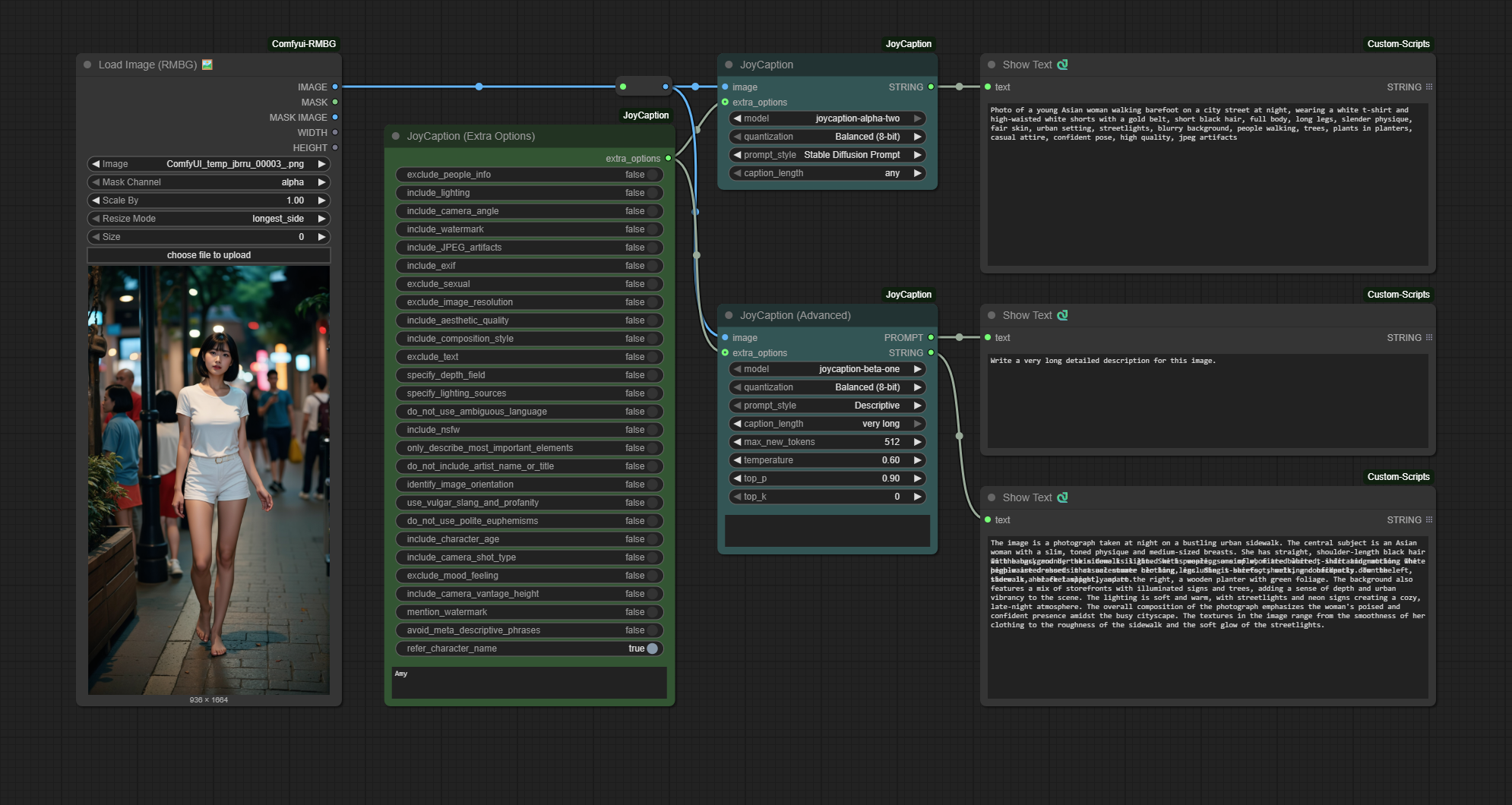

## Basic Usage

### Standard Nodes (HuggingFace Models)

#### Basic Node
1. Add the "JoyCaption" node from the `🧪AILab/📝JoyCaption` category
2. Connect an image source to the node
3. Select the model file (defaults to `llama-joycaption-beta-one-hf-llava`)
4. Adjust the parameters as needed
5. Run the workflow

#### Advanced Node
1. Add the "JoyCaption (Advanced)" node from the `🧪AILab/📝JoyCaption` category
2. Connect an image source to the node
3. Select the caption type
4. Adjust the parameters as needed
5. Run the workflow

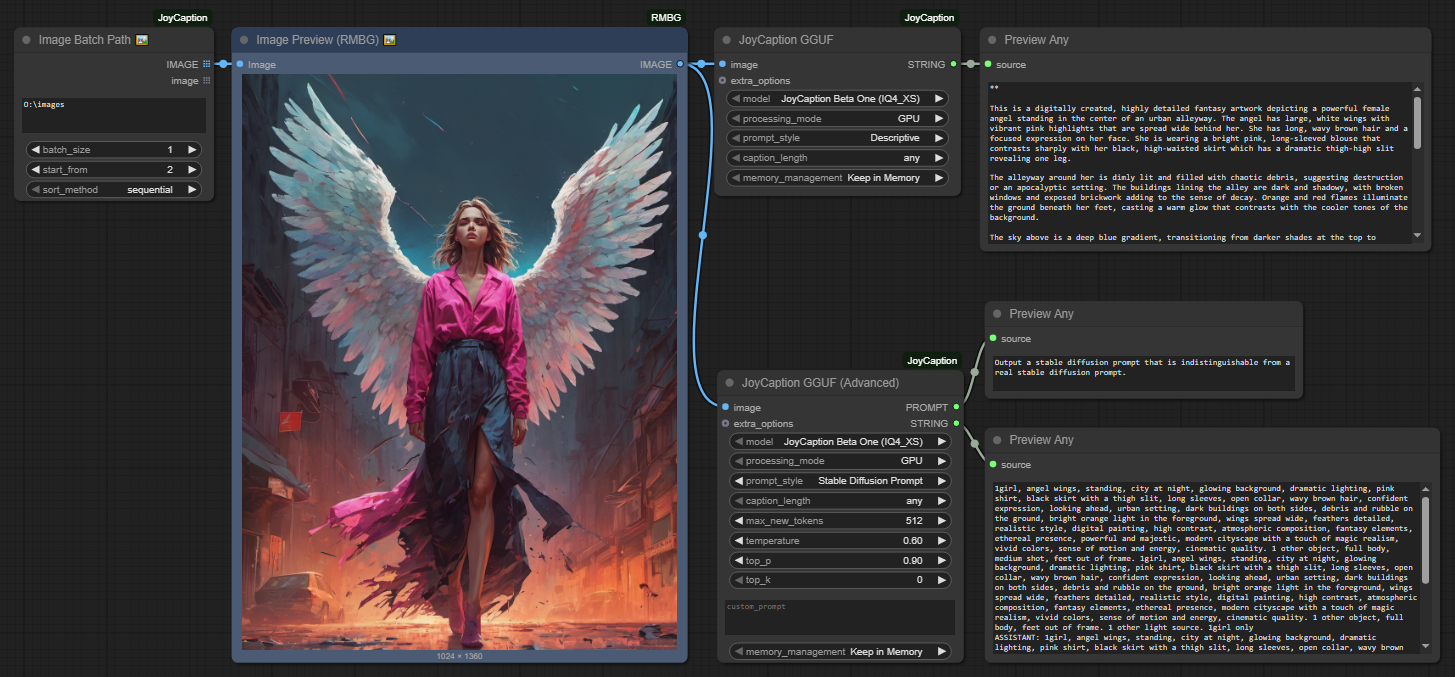

### GGUF Nodes (Recommended for Better Performance)

#### GGUF Basic Node
1. Add the "JoyCaption GGUF" node from the `🧪AILab/📝JoyCaption-GGUF` category
2. Connect an image source to the node
3. Select the GGUF model (e.g., "JoyCaption Beta One (IQ4_XS)")
4. Choose processing mode (GPU/CPU)
5. Select caption style and length
6. Run the workflow

#### GGUF Advanced Node
1. Add the "JoyCaption GGUF (Advanced)" node from the `🧪AILab/📝JoyCaption-GGUF` category
2. Connect an image source to the node
3. Configure all generation parameters (temperature, top_p, top_k, etc.)
4. Set custom prompts if needed
5. Run the workflow

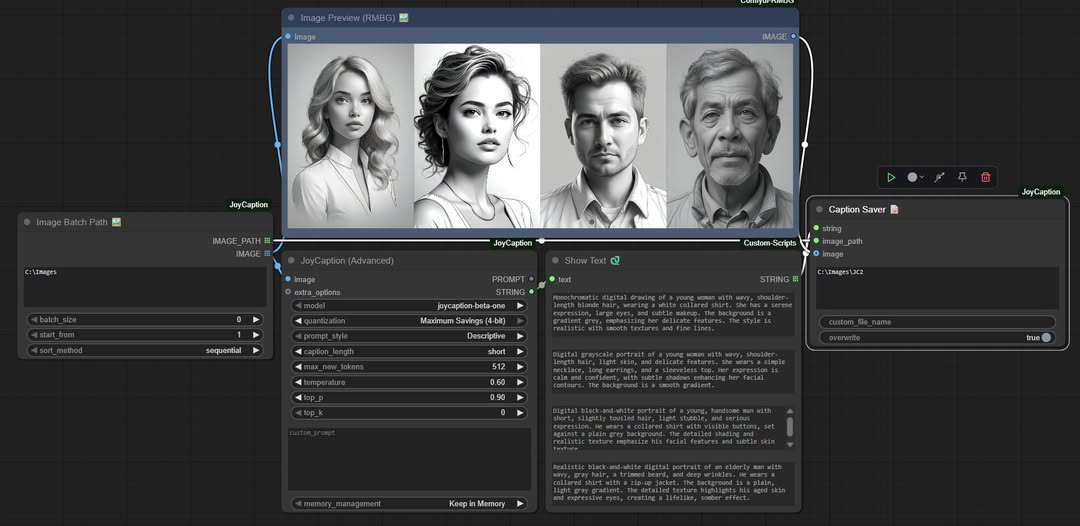

## Caption Tools

### Image Batch Path 🖼️

This node allows you to load multiple images from a directory for batch processing:

| Parameter | Description |
| --------- | ----------- |
| **image_dir** | Directory path containing images |
| **batch_size** | Number of images to load (0 = all images) |
| **start_from** | Start from Nth image (1 = first image) |
| **sort_method** | Image loading order: sequential/reverse/random |

### Caption Saver 📝

This node saves generated captions to text files:

| Parameter | Description |
| --------- | ----------- |
| **string** | Caption text to save |
| **image_path** | Path to the image being captioned |
| **image** | (Optional) Image to save alongside the caption |
| **custom_output_path** | (Optional) Custom output directory path |
| **custom_file_name** | (Optional) Custom filename (without extension) |
| **overwrite** | If true, will overwrite existing files; if false, will add a number to make the filename unique |

### Parameters

#### Standard Nodes

##### Basic Node
| Parameter | Description | Default | Range |
| --------- | ----------- | ------- | ----- |
| **Model** | The JoyCaption model to use | `llama-joycaption-beta-one-hf-llava` | - |
| **Memory Control** | Memory optimization settings | Default | Default (fp32), Balanced (8-bit), Maximum Savings (4-bit) |
| **Caption Type** | Caption style selection | Descriptive | Descriptive, Descriptive (Casual), Straightforward, Tags, Technical, Artistic |
| **Caption Length** | Output length control | medium | any, very short, short, medium, long, very long |

#### GGUF Nodes

##### GGUF Basic Node
| Parameter | Description | Default | Range |
| --------- | ----------- | ------- | ----- |
| **Model** | GGUF model to use | JoyCaption Beta One (IQ4_XS) | Q2_K, IQ4_XS, Q5_K_M, Q6_K |
| **Processing Mode** | Hardware acceleration | GPU | GPU, CPU |
| **Caption Type** | Caption style selection | Descriptive | Descriptive, Descriptive (Casual), Straightforward, Tags, Technical, Artistic |
| **Caption Length** | Output length control | any | any, very short, short, medium, long, very long |
| **Memory Management** | Model memory handling | Keep in Memory | Keep in Memory, Clear After Run, Global Cache |

##### GGUF Advanced Node
| Parameter | Description | Default | Range |
| --------- | ----------- | ------- | ----- |
| **Model** | GGUF model to use | JoyCaption Beta One (IQ4_XS) | Q2_K, IQ4_XS, Q5_K_M, Q6_K |
| **Processing Mode** | Hardware acceleration | GPU | GPU, CPU |
| **Max New Tokens** | Maximum tokens to generate | 512 | 1-2048 |
| **Temperature** | Generation randomness | 0.6 | 0.0-2.0 |
| **Top-p** | Nucleus sampling | 0.9 | 0.0-1.0 |
| **Top-k** | Top-k sampling | 0 | 0-100 |
| **Custom Prompt** | Custom prompt template | "" | Any text |
| **Memory Management** | Model memory handling | Keep in Memory | Keep in Memory, Clear After Run, Global Cache |


### Quantization Options

#### Standard Models (HuggingFace)
| Mode | Precision | Memory Usage | Speed | Quality | Recommended GPU |
|------|-----------|--------------|-------|---------|----------------|
| Default | fp32 | ~16GB | 1x | Best | 24GB+ |
| Default | bf16 | ~8GB | 1.5x | Excellent | 16GB+ |
| Default | fp16 | ~8GB | 2x | Very Good | 16GB+ |
| Balanced | 8-bit | ~4GB | 2.5x | Good | 12GB+ |
| Maximum Savings | 4-bit | ~2GB | 3x | Acceptable | 8GB+ |

#### GGUF Models (Recommended)
| Quantization | Model Size | Memory Usage | Speed | Quality | Recommended GPU |
|-------------|------------|--------------|-------|---------|----------------|
| Q2_K | 3.18GB | ~4GB | 4x | Good | 6GB+ |
| Q3_K_S | 3.66GB | ~5GB | 3.5x | Good+ | 8GB+ |
| Q3_K_M | 4.02GB | ~5GB | 3.5x | Better | 8GB+ |
| Q3_K_L | 4.32GB | ~6GB | 3x | Better+ | 8GB+ |
| IQ4_XS | 4.48GB | ~6GB | 3x | Very Good | 8GB+ |
| Q4_K_S | 4.69GB | ~6GB | 3x | Very Good | 8GB+ |
| Q4_K_M | 4.92GB | ~7GB | 2.5x | Very Good+ | 10GB+ |
| Q5_K_S | 5.60GB | ~7GB | 2.5x | Excellent | 10GB+ |
| Q5_K_M | 5.73GB | ~8GB | 2.5x | Excellent+ | 12GB+ |
| Q6_K | 6.60GB | ~8GB | 2x | Near Original | 12GB+ |
| Q8_0 | 8.54GB | ~10GB | 1.8x | Original- | 16GB+ |
| F16 | 16.1GB | ~18GB | 1.5x | Original | 24GB+ |

**Note**: GGUF models provide better performance and lower memory usage compared to standard models. IQ4_XS offers the best balance of quality and efficiency.

#### Advanced Node

| Parameter | Description | Default | Range |
| --------- | ----------- | ------- | ----- |
| **Extra Options** | Additional feature options | [] | Multiple options |
| **Person Name** | Name for person descriptions | "" | Any text |
| **Max New Tokens** | Maximum tokens to generate | 512 | 1-2048 |
| **Temperature** | Generation temperature | 0.6 | 0.0-2.0 |
| **Top-p** | Sampling parameter | 0.9 | 0.0-1.0 |
| **Top-k** | Top-k sampling | 0 | 0-100 |
| **Precision** | Use fp32 for best quality, bf16 for balanced performance, fp16 for maximum speed. 8-bit and 4-bit quantization provide significant memory savings with minimal quality impact |

### Memory Management Options

| Mode | Description | Recommended Use |
|------|-------------|-----------------|
| Global Cache | Keeps model in memory for fastest processing | High VRAM GPUs (16GB+) |
| Keep in Memory | Maintains model in memory until workflow ends | Medium VRAM GPUs (8GB+) |
| Clear After Run | Clears model after each generation | Low VRAM GPUs (<8GB) |

## Setting Tips

| Setting | Recommendation |
| ------- | -------------- |
| **Model Choice** | Use GGUF models for better performance and lower memory usage. IQ4_XS offers the best balance of quality and efficiency |
| **Memory Mode** | Based on GPU VRAM: 24GB+ use Global Cache, 12GB+ use Keep in Memory, 8GB+ use Clear After Run |
| **Processing Mode** | Use GPU mode for faster processing, CPU mode for systems with limited VRAM |
| **Input Resolution** | The model works best with images of 512x512 or higher resolution |
| **Memory Usage** | If you encounter memory issues, try GGUF Q2_K model or use Clear After Run mode |
| **Performance** | For batch processing, consider using Global Cache mode with GGUF models if you have sufficient VRAM |
| **Temperature** | Lower values (0.6-0.7) for more stable results, higher values (0.8-1.0) for more diverse results |
| **Top-k Parameter** | Set to 0 to disable, or use values like 40-50 for more focused generation |

## About Model

This implementation uses LLaVA-based image captioning models, optimized to provide fast and accurate image descriptions.

Model features:
* Free and open weights
* Uncensored content coverage
* Broad style diversity (digital art, photoreal, anime, etc.)
* Fast processing with bfloat16 precision
* High-quality caption generation
* Memory-efficient operation
* Consistent results across various image types
* Support for multiple caption styles
* Optimized for training diffusion models

The models are trained on diverse datasets, ensuring:
* Balanced representation across different image types
* High accuracy in various scenarios
* Robust performance with complex scenes
* Support for both SFW and NSFW content
* Equal coverage of different styles and concepts

## Roadmap

### ✅ Completed (v1.3.0)
* ✅ GGUF model support for better performance
* ✅ Support for 12 GGUF quantization formats (Q2_K to F16)
* ✅ Enhanced error handling and parameter validation
* ✅ Clean console output (no debug spam)
* ✅ Improved memory management options
* ✅ Batch processing support (Caption Tools)
* ✅ Performance optimizations for CPU processing (GGUF CPU mode)
* ✅ Enhanced batch processing features with memory management

### 🔄 Future Plans
* More caption style options and custom prompts
* Advanced fine-tuning support for custom models
* Real-time processing optimizations
* Multi-language caption support
* Integration with more vision-language models

## Credits

* **Original JoyCaption Model**: [fancyfeast](https://huggingface.co/fancyfeast) - Creator of the base JoyCaption models
* **GGUF Quantized Models**: [mradermacher](https://huggingface.co/mradermacher) - Provider of comprehensive GGUF quantized models (Q2_K to F16)
* **Alternative GGUF Models**: [concedo](https://huggingface.co/concedo) - Provider of alternative GGUF models with vision projection
* **ComfyUI Integration**: [1038lab](https://github.com/1038lab) - Developer of this ComfyUI custom node
* **LLaVA Framework**: Microsoft Research - Base vision-language model architecture
* **llama-cpp-python**: [abetlen](https://github.com/abetlen/llama-cpp-python) - Python bindings for llama.cpp

## License


This repository's code is released under the GPL-3.0 License.
