Designing Cloud Native Microservices on AWS (via DDD/EventStormingWorkshop)
Picture license-free from Pexels
Building software is hard. Understanding the business needs of the software is even harder. In almost every software development project, there will always be some form of gap between the requirements of the business users and the actual implementation.

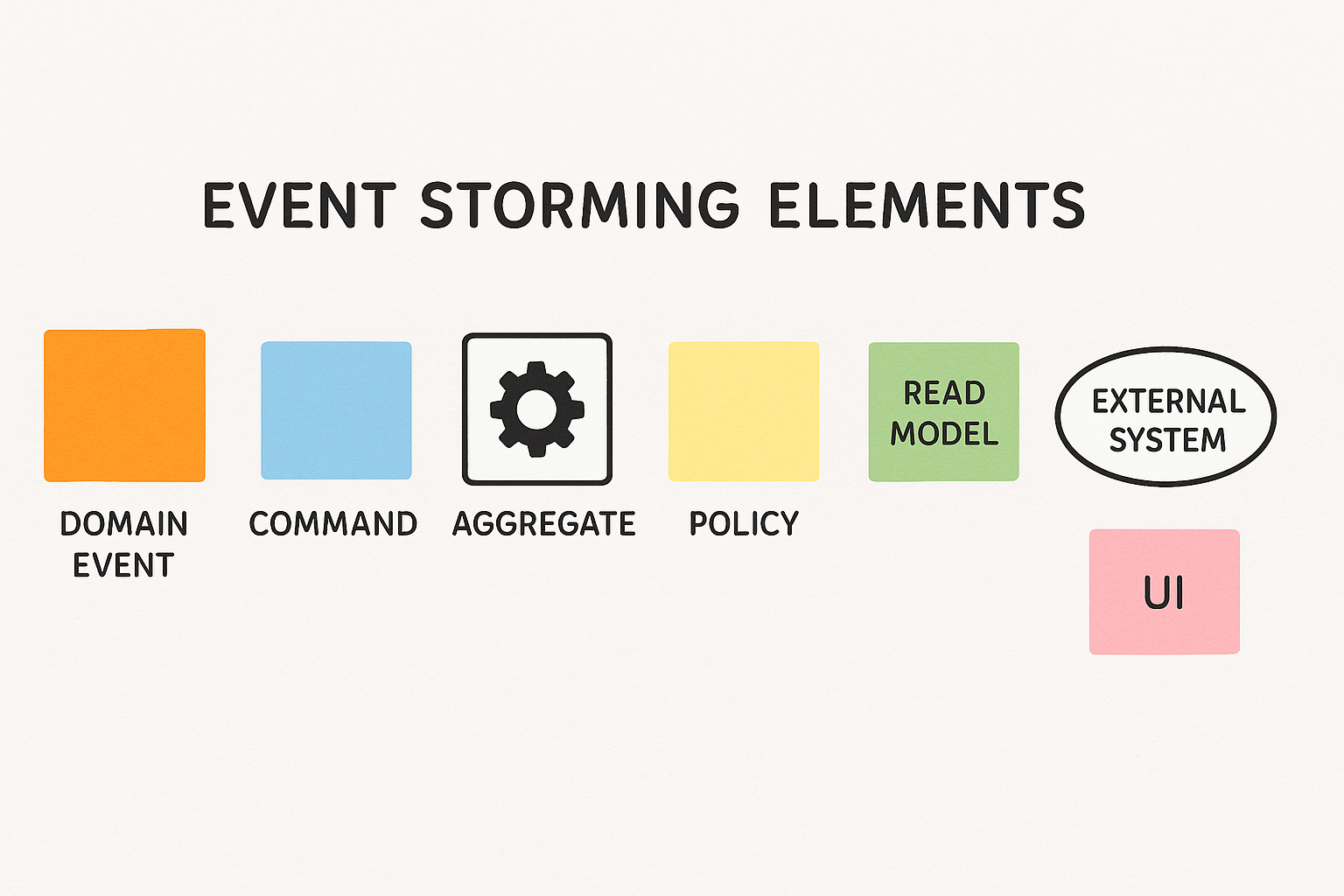

As a developer, knowing how to narrow this gap can help you go a long way to building applications that are relevant for the users. Using a Domain Driven Design approach, delivered via Event Storming, it can help to reduce the time it takes for everyone in the project team to understand a business domain model.
Theory and Practice: Learning in the Real world cases
Go through all of the learning journey, develop-->build-->deploy artifacts on AWS
🏗️ Modern Cloud-Native Architecture on Amazon EKS

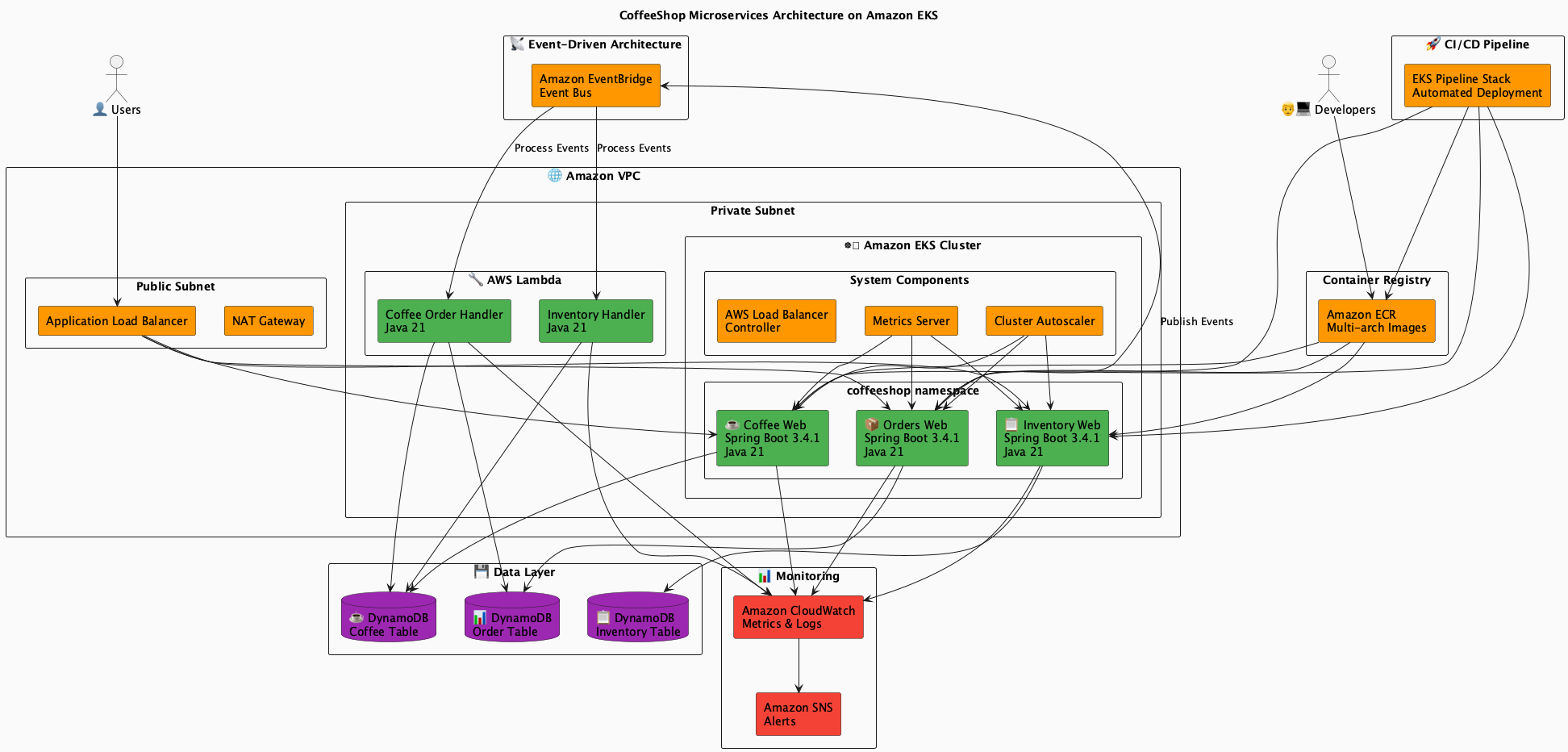

AWS cloud-native microservices architecture using EKS + Lambda hybrid computing model with event-driven service communication via EventBridge
📋 Click to view Mermaid source code
graph TB
%% External Users and Systems
User[👤 Users] --> ALB[Application Load Balancer]
Developer[👨💻 Developers] --> ECR[Amazon ECR<br/>Container Registry]
%% Network Layer
subgraph VPC["🌐 Amazon VPC (10.0.0.0/16)"]
subgraph PublicSubnet["Public Subnet"]
ALB
NAT[NAT Gateway]
end
subgraph PrivateSubnet["Private Subnet"]
%% EKS Cluster
subgraph EKS["☸️ Amazon EKS Cluster"]
subgraph Namespace["coffeeshop namespace"]
OrdersPod[📦 Orders Web<br/>Spring Boot 3.4.1<br/>Java 21]
CoffeePod[☕ Coffee Web<br/>Spring Boot 3.4.1<br/>Java 21]
InventoryPod[📋 Inventory Web<br/>Spring Boot 3.4.1<br/>Java 21]
end
subgraph SystemPods["System Components"]
ALBController[AWS Load Balancer Controller]
ClusterAutoscaler[Cluster Autoscaler]
MetricsServer[Metrics Server]
EBSCSIDriver[EBS CSI Driver]
end
end
%% Lambda Functions
subgraph Lambda["🔧 AWS Lambda"]
CoffeeOrderHandler[Coffee Order Handler<br/>Java 21]
InventoryHandler[Inventory Handler<br/>Java 21]
end
end
end
%% Data Layer
subgraph DataLayer["💾 Data Layer"]
DynamoOrder[(📊 DynamoDB<br/>Order Table)]
DynamoCoffee[(☕ DynamoDB<br/>Coffee Table)]
DynamoInventory[(📋 DynamoDB<br/>Inventory Table)]
end
%% Event-Driven Architecture
subgraph EventDriven["📡 Event-Driven Architecture"]
EventBridge[Amazon EventBridge<br/>Event Bus]
end
%% API Gateway
subgraph APILayer["🌐 API Layer"]
APIGateway[Amazon API Gateway<br/>REST API]
end
%% Monitoring and Observability
subgraph Monitoring["📊 Monitoring & Observability"]
CloudWatch[Amazon CloudWatch<br/>Metrics & Logs]
Dashboard[CloudWatch Dashboard]
SNS[Amazon SNS<br/>Alarm Notifications]
end
%% CI/CD Pipeline
subgraph CICD["🚀 CI/CD Pipeline"]
Pipeline[EKS Pipeline Stack<br/>Automated Deployment]
end
%% Connections
ALB --> OrdersPod
ALB --> CoffeePod
ALB --> InventoryPod
%% Microservices to Data
OrdersPod --> DynamoOrder
OrdersPod --> EventBridge
CoffeePod --> DynamoCoffee
InventoryPod --> DynamoInventory
%% Lambda connections
APIGateway --> CoffeeOrderHandler
APIGateway --> InventoryHandler
CoffeeOrderHandler --> DynamoOrder
CoffeeOrderHandler --> DynamoCoffee
InventoryHandler --> DynamoCoffee
%% Event-driven flow
EventBridge --> CoffeeOrderHandler
OrdersPod -.->|Send Events| EventBridge
%% ECR to EKS
ECR --> OrdersPod
ECR --> CoffeePod
ECR --> InventoryPod
%% Monitoring connections
OrdersPod --> CloudWatch
CoffeePod --> CloudWatch
InventoryPod --> CloudWatch
CoffeeOrderHandler --> CloudWatch
InventoryHandler --> CloudWatch
EKS --> CloudWatch
CloudWatch --> Dashboard
CloudWatch --> SNS
%% CI/CD
Pipeline --> ECR
Pipeline --> EKS
%% Auto-scaling
MetricsServer --> OrdersPod
MetricsServer --> CoffeePod
MetricsServer --> InventoryPod
ClusterAutoscaler --> EKS
%% Styling
classDef userClass fill:#e1f5fe,stroke:#01579b,stroke-width:2px
classDef awsService fill:#ff9800,stroke:#e65100,stroke-width:2px,color:#fff
classDef microservice fill:#4caf50,stroke:#1b5e20,stroke-width:2px,color:#fff
classDef database fill:#9c27b0,stroke:#4a148c,stroke-width:2px,color:#fff
classDef monitoring fill:#f44336,stroke:#b71c1c,stroke-width:2px,color:#fff
class User,Developer userClass
class ALB,ECR,EKS,Lambda,EventBridge,APIGateway,CloudWatch,SNS,Pipeline awsService
class OrdersPod,CoffeePod,InventoryPod,CoffeeOrderHandler,InventoryHandler microservice
class DynamoOrder,DynamoCoffee,DynamoInventory database
class Dashboard,SNS monitoring🎯 Architecture Highlights
Container Orchestration (Amazon EKS)
- Kubernetes Cluster: Managed EKS with ARM64 Graviton3 nodes for cost optimization
- Microservices: Orders, Coffee, and Inventory services running as containers
- Auto-scaling: Horizontal Pod Autoscaler (HPA) for dynamic scaling
- Load Balancing: Application Load Balancer (ALB) for traffic distribution
Event-Driven Architecture
- Amazon EventBridge: Central event bus for asynchronous service communication
- Domain Events: OrderCreated, CoffeeRequested, InventoryUpdated events
- Loose Coupling: Services communicate via events, not direct API calls
- Event Sourcing: Complete audit trail of all business events
Modern Technology Stack
- Runtime: Java 21 LTS with enhanced performance features
- Framework: Spring Boot 3.4.1 with cloud-native optimizations
- Architecture: Hexagonal Architecture with Domain-Driven Design (DDD)
- Data Storage: Amazon DynamoDB with pay-per-request billing
Cloud-Native Benefits
- Scalability: Independent scaling of each microservice
- Resilience: Fault isolation and automatic recovery
- Cost Optimization: ARM64 Graviton3 instances reduce compute costs by up to 20%
- Developer Experience: Modern Java features and Spring Boot productivity
