Dim0 - The Thinking Canvas

🌐 Website · 🚀 Live App · 🔒 Privacy-first · 📄 MIT License

Notes, code, widgets, and documents on one board - and an agent that can read what's on it and write back into it. Your work is yours: privacy-first, your data stays yours.

⭐ Star if Dim0 is useful to you. It helps others find the project.

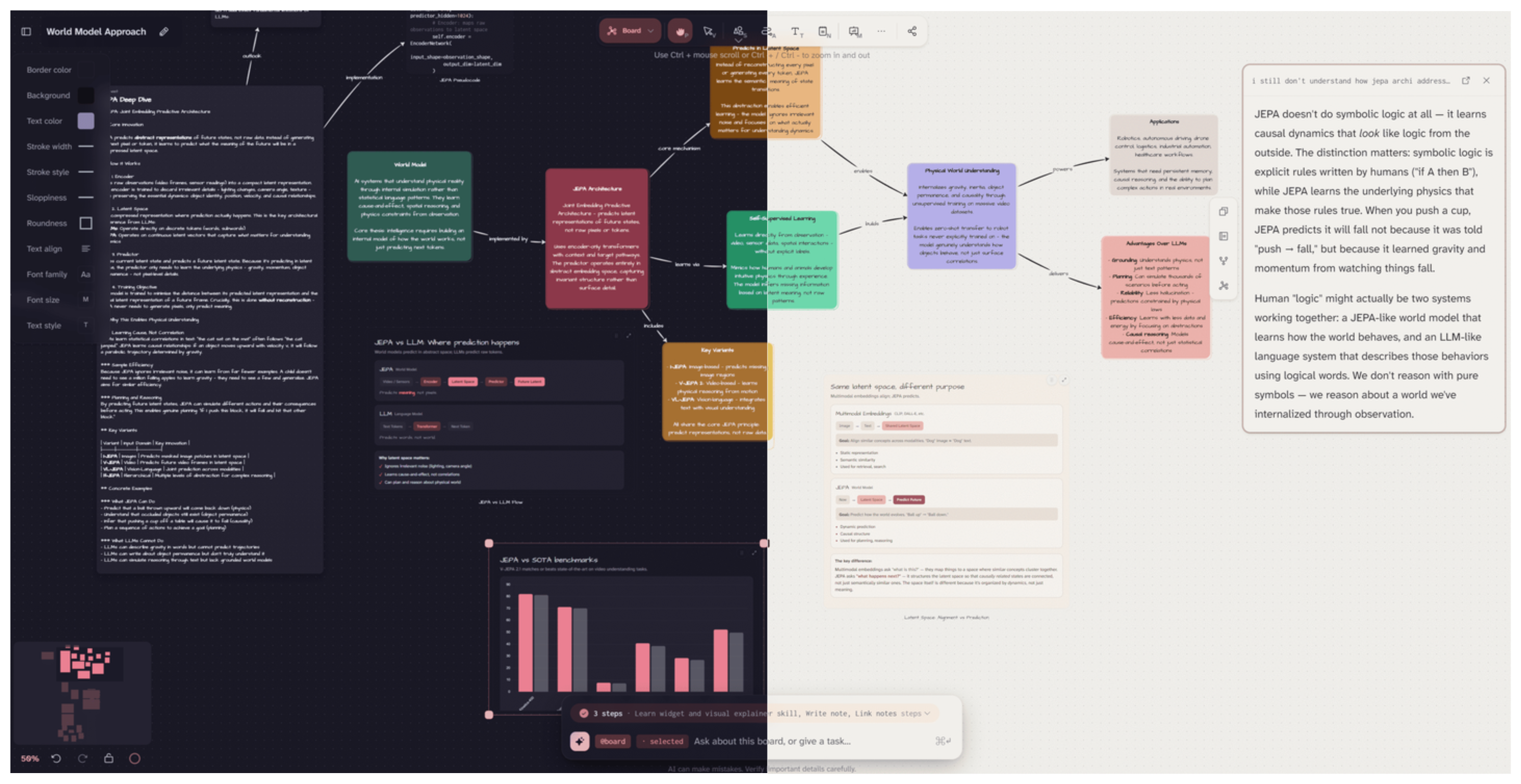

A board with notes, charts, visual explainers, and the agent - all in the same workspace, in light and dark.

https://github.com/user-attachments/assets/cdc7d3d4-eb59-4d7d-a9ff-6f0206ba82df

What it is

Most AI tools start with a chat box and bolt the rest of the product on around it. Dim0 goes the other way - the board is the workspace, and the agent is one of the things living on it.

The board holds notes, code sandboxes, widgets, documents, nested boards, and presentation frames, all sitting next to each other. The agent can see what's there, take multiple steps with tools, and drop its results back onto the same canvas.

Things it can do:

• Read the current board and any selected nodes
• Search the web and fetch pages
• Run code in a sandbox
• Create and edit notes
• Generate widgets and small visual explainers
• Save and recall semantic memory

Node types

Everything on the board is a node:

• Shapes - diagrams and spatial structure
• Notes - rich text, edited in place
• Code sandboxes - write code, run it
• Widgets - embedded HTML/JS, charts, visual explainers, interactive tools
• Documents - uploaded files, also fed into retrieval
• Nested boards - for when one board isn't enough
• Frames - turn the canvas into a presentation

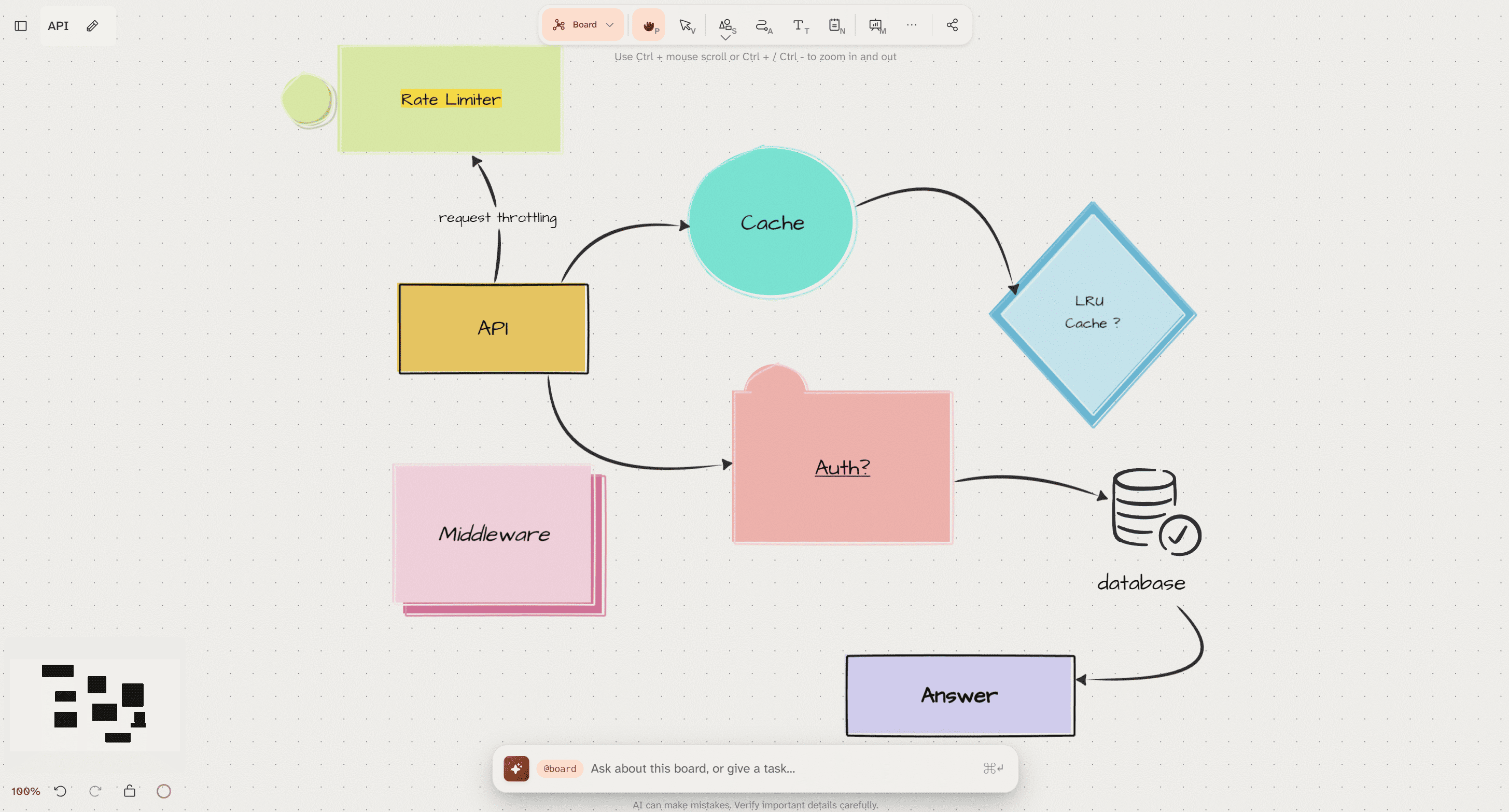

Shapes for diagrams, flowcharts, and spatial layout.

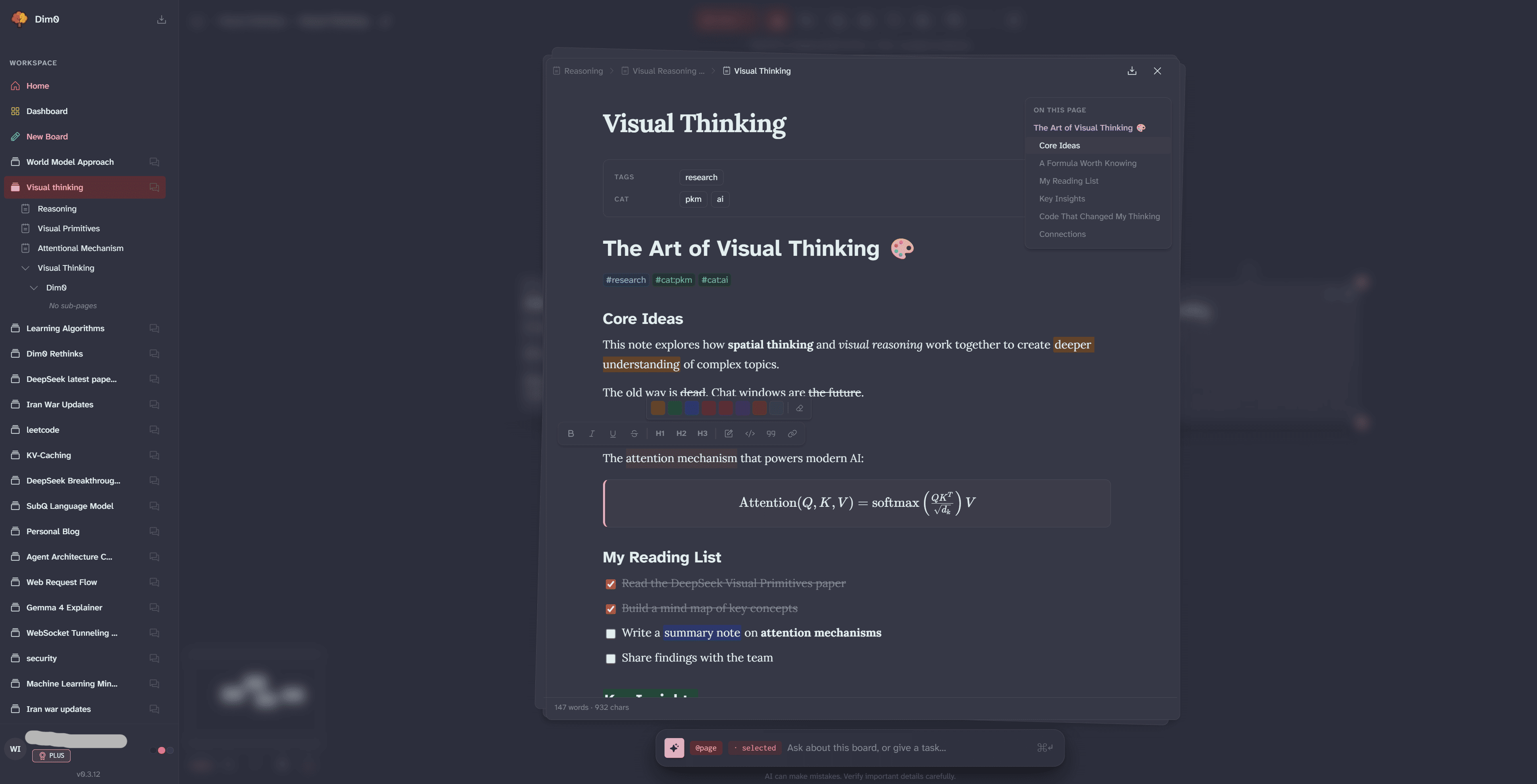

Notes are first-class - rich text, math, code, edited in place.

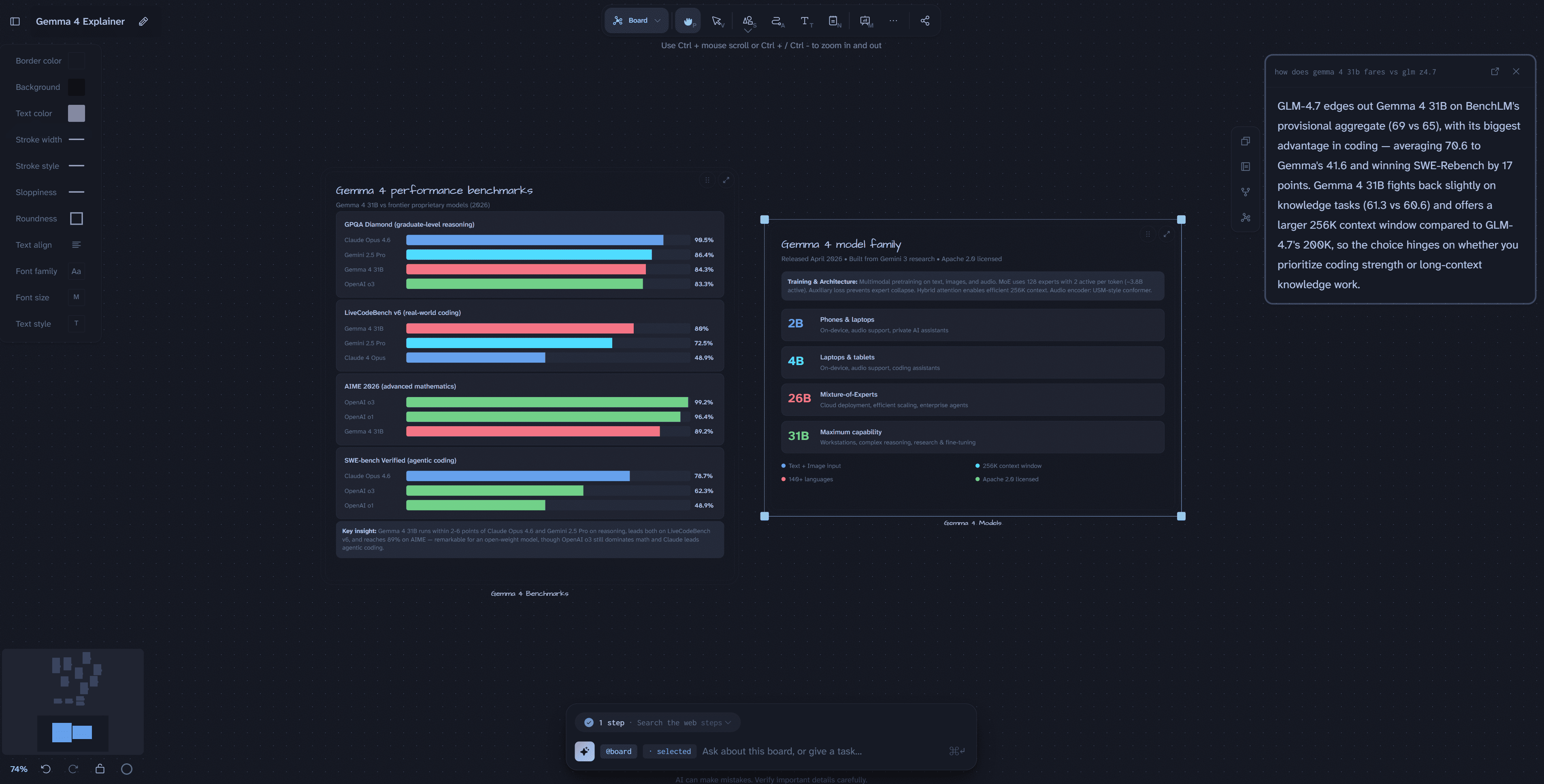

Widgets render charts and interactive explainers right on the canvas.

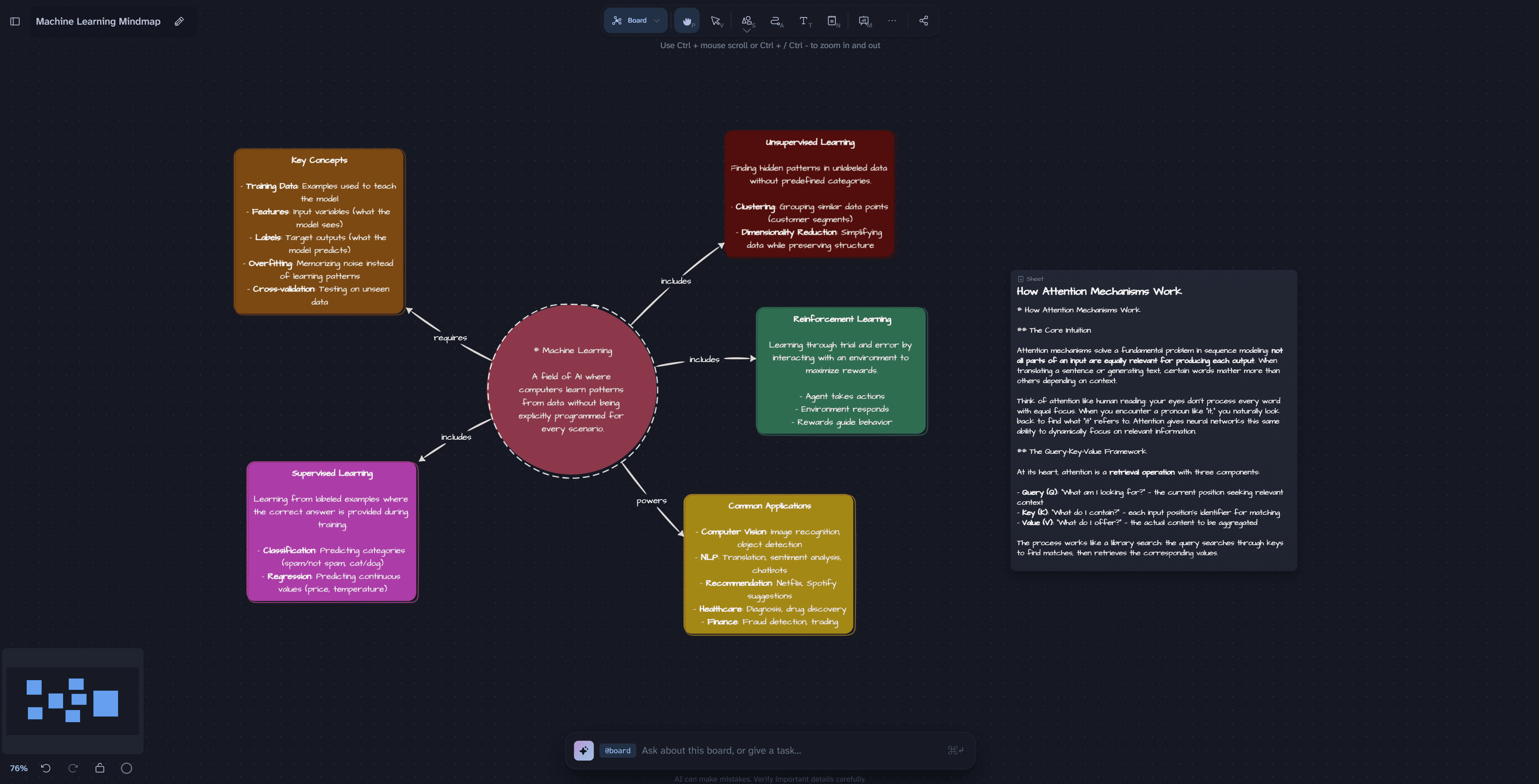

Mix shapes and notes to think through a topic spatially.

https://github.com/user-attachments/assets/ad5de9f4-6f44-43a2-b59a-5279232d7f60

Canvas engine

The board is built on canvas-harness, a canvas-rendered node-graph library we maintain separately. Boards can hold thousands of nodes and still pan, zoom, and edit smoothly — comparable to tldraw and Excalidraw, and on par with hosted tools like Miro or FigJam.

Agent layer

Built on the OpenAI Agents SDK, with board-aware tools wired in:

• Board context - current graph and selected nodes
• Notes - create, edit, link
• Web - search and fetch
• Code - run in Daytona-backed sandboxes
• Widgets - generate inline visual outputs
• Memory - semantic store and recall, via Qdrant

Models: OpenAI, Anthropic, Google Gemini, Mistral, Moonshot, DeepSeek, Qwen, Z.ai.

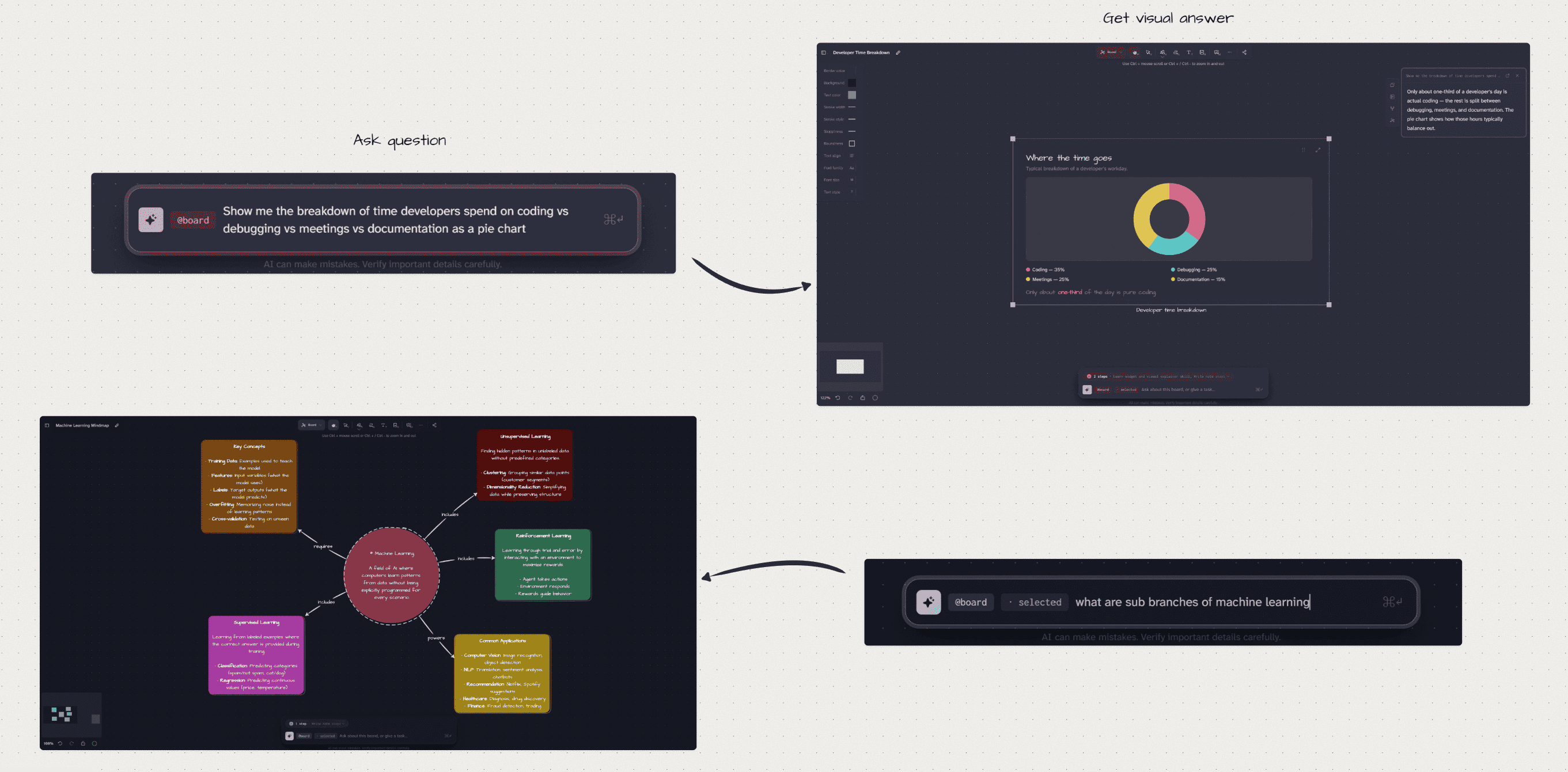

Ask a question on the board - the agent answers with a widget, a mindmap, or a note, dropped back where you're working.

Themes

Light, dark, and a set of paper-and-ink variants. The canvas adapts; so do notes, widgets, and shapes.

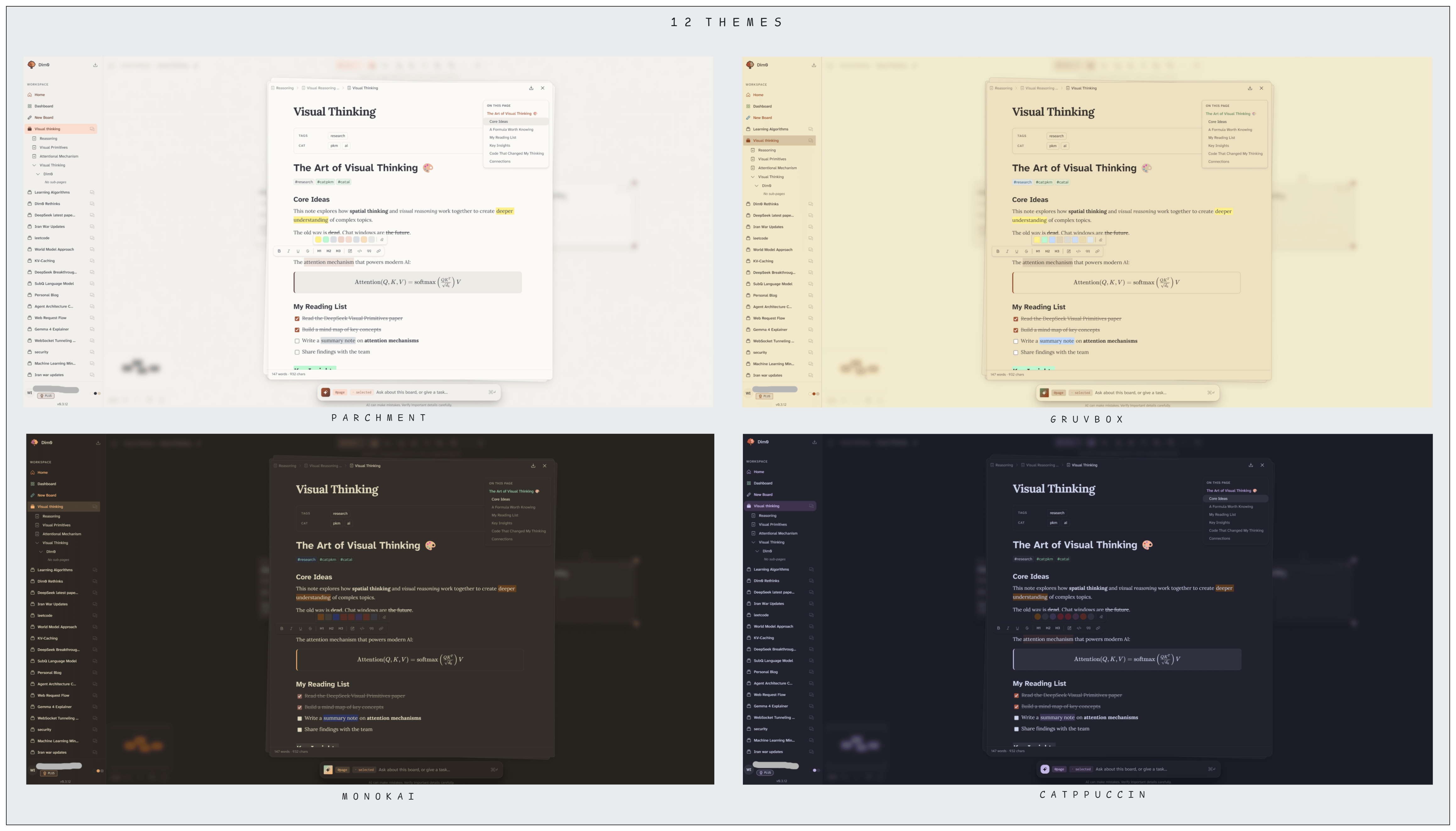

A few of the available themes.

Try it

• Hosted: https://app.dim0.net
• Site: https://dim0.net
• Self-host: see below

Repo layout

• backend/ - API, agent logic, prompts, model integrations, persistence
• webui/ - React frontend (canvas, chat, board UX)
• build/ - Docker Compose and build helpers

Getting started

Prerequisites

• Node.js (LTS)
• uv for Python deps
• Docker + Docker Compose (recommended for local services)

Environment

Copy .env.sample to .env and fill in the keys.

cp .env.sample .env

At minimum, set:

• OPENAI_API_KEY
• MISTRAL_API_KEY
• OPENROUTER_API_KEY
• LINKUP_API_KEY

The rest of .env.sample covers additional providers and tools.

A couple of things worth knowing:

• Backend and frontend both read the root .env
• Only variables prefixed with VITE_ reach the frontend

Run published images

make pull
make run

Then open http://localhost:3000.

Stop it:

make down-run

Stop it and wipe volumes:

make kill-run

Run from source

If you'd rather run the source instead of the published images:

Local databases

make up-db

Backend

cd backend
uv sync
uv run python -m topix.api.app

Port comes from API_PORT in .env (defaults to 8081).

Frontend

cd webui
npm install
npm run dev

Port comes from APP_PORT in .env (defaults to 5175).

Environment variables

.env.sample is the canonical list - ports and origins, model provider keys, search and image provider keys, local service settings, backend auth and tracing. Use it as a checklist when setting things up.

Docker

Compose stack with Makefile shortcuts.

Core commands

Services and debugging

Databases

Overrides

Override the profile and env file at invocation:

make up PROFILE=local ENVFILE=.env

Or override ports and origins for quick tests:

make up PROFILE=dev API_PORT=9090 API_HOST_PORT=9090 API_ORIGIN=http://localhost:9090

Images

Public Docker Hub images, for self-hosting:

• winlp4ever/dim0-backend
• winlp4ever/dim0-webui

docker pull winlp4ever/dim0-backend:0.1.5
docker pull winlp4ever/dim0-webui:0.1.5

To run them locally, use the make pull / make run flow above.

Versioning

One semver for the whole product. The repo-root VERSION file is the source of truth, and release tooling syncs it into:

• backend/pyproject.toml
• webui/package.json
• webui/src-tauri/Cargo.toml

Bumps use Commitizen with Conventional Commits.

make version-check
make version-sync
make version-bump

GitHub Actions handle the version check, releases, and Docker publishing.

Troubleshooting

• Frontend can't reach the API? Check VITE_API_URL in .env.
• Port already in use? Change API_PORT or APP_PORT.
• Env change not picked up? Restart backend and frontend after editing .env.
• Want to see the resolved Compose config? make config.

License

MIT.
