Embedded Test

The embedded-test library provides a test harness for embedded systems (riscv, arm and xtensa). Use this library on the target together with probe-rs on the host to run unit + integration tests on your embedded device.

probe-rs together with embedded-test provide a (libtest compatible) test runner, which will:

1. Read information about the available tests directly from the ELF file
2. Flash all the tests to the device in one go (via the probe-rs run command)
3. In turn for each testcase:
   • Reset the device
   • Signal to the device (via semihosting SYS_GET_CMDLINE) which test to run
   • Wait for the device to signal that the test completed successfully or with error (via semihosting SYS_EXIT)
4. Report the results

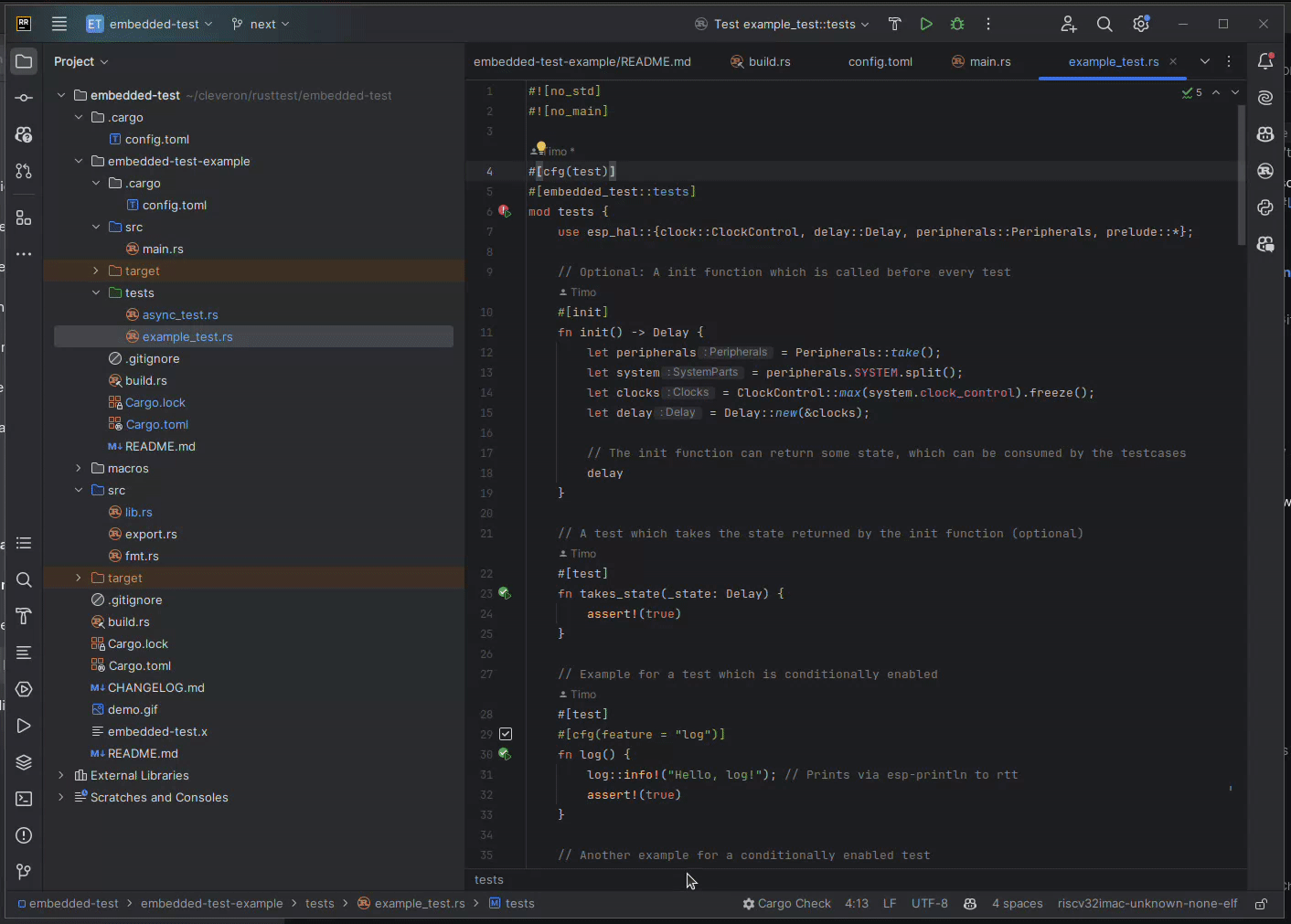

Since the test runner (probe-rs run) is libtest compatible ( using libtest-mimic), you can use intellij or vscode to run individual tests with the click of a button.

Features

• Runs each test case individually, and resets the device between each test case
• Supports an init function which will be called before each test case and can pass state to the test cases
• Supports async test and init functions (needs feature embassy)
• Support #[should_panic], #[ignore] and #[timeout(<seconds>)] attributes for each test case

Usage

Add the following to your Cargo.toml:

[dependencies]
embedded-test = { version = "0.7.0" }

[lib]
harness = false # Important: As we bring our own test harness for all tests

[[test]]
name = "example_integration_test"
harness = false

[[bin]]
name = "example_binary"
test = false # Unless you want to add unit tests to the binary

^{Want to move embedded-test to [dev-dependencies]? Look at embedded-test-linker-script.}

Install the runner on your system:

cargo install probe-rs-tools

Setup probe-rs as the runner in your .cargo/config.toml. For example:

[target.thumbv7em-none-eabihf]
runner = "probe-rs run --chip STM32F767ZITx"
# `probe-rs run` will autodetect whether the elf to flash is a normal firmware or a test binary

Add the following to your build.rs file:

fn main() {
    println!("cargo::rustc-link-arg=-Tembedded-test.x");
}

Then you can run your tests with cargo test or use the button in vscode/intellij.

Having trouble setting up? Checkout out the FAQ and common Errors Wiki page.

Example Test (e.g. tests/example_test.rs)

Check the example folder for a complete example project for stm32/esp32.

#![no_std]
#![no_main]

#[cfg(test)]
#[embedded_test::tests]
mod tests {
    use stm32f7xx_hal::pac::Peripherals;

    // An optional init function which is called before every test
    // Asyncness is optional, so is the return value
    #[init]
    async fn init() -> Peripherals {
        Peripherals::take().unwrap()
    }

    // Tests can be async (needs feature `embassy`)
    // Tests can take the state returned by the init function (optional)
    #[test]
    async fn takes_state(_state: Peripherals) {
        assert!(true)
    }

    // Tests can be conditionally enabled (with a cfg attribute)
    #[test]
    #[cfg(feature = "log")]
    fn log() {
        rtt_target::rtt_init_log!();
        log::info!("Hello, log!");
        assert!(true)
    }

    // Tests can be ignored with the #[ignore] attribute
    #[test]
    #[ignore]
    fn it_works_ignored() {
        assert!(false)
    }

    // Tests can fail with a custom error message by returning a Result
    #[test]
    fn it_fails_with_err() -> Result<(), &'static str> {
        Err("It failed because ...")
    }

    // Tests can be annotated with #[should_panic] if they are expected to panic
    #[test]
    #[should_panic]
    fn it_passes() {
        assert!(false)
    }

    // Tests can be annotated with #[timeout(<secs>)] to change the default timeout of 60s
    #[test]
    #[timeout(10)]
    fn it_timeouts() {
        loop {} // should run into the 10s timeout
    }
}

Configuration features

Please also note the doc for the Attribute Macro embedded_test::tests.
