Excalidraw to Miro Converter

Convert Excalidraw diagrams to editable Miro board objects. Import .excalidraw files into Miro with full support for shapes, connectors, text, images, freedraw, and frames — preserving styles, colors, and layout. Available as a CLI tool, Node.js library, and web UI.

Looking for an Excalidraw-to-Miro importer? This is the only tool that converts Excalidraw drawings into native, editable Miro items via the Miro REST API — not screenshots or static images, but real shapes, connectors, and text you can edit on your board.

Demo

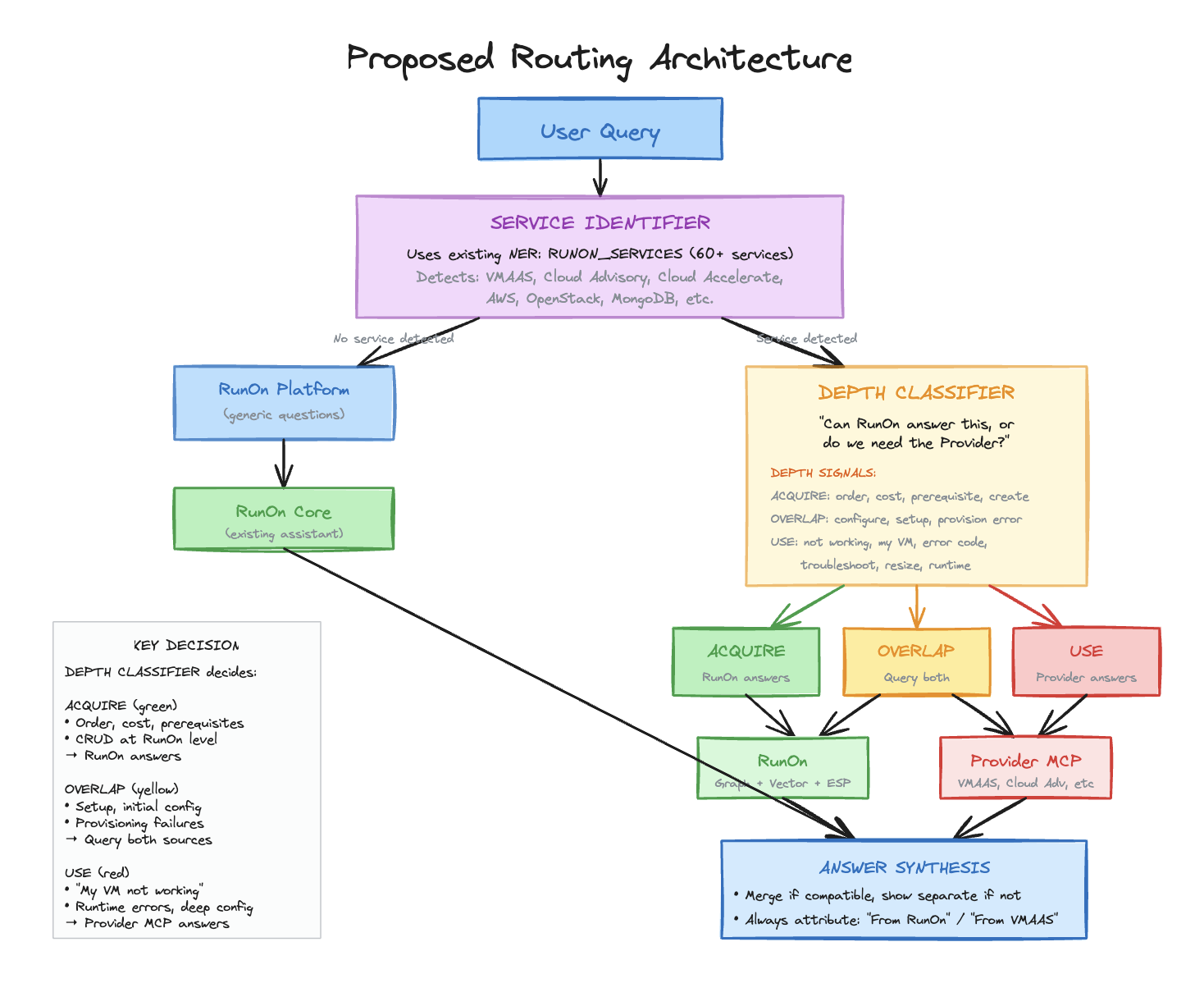

Excalidraw (input) to Miro (output)

Excalidraw	Miro

Shapes, colors, text, connectors, and layout are preserved. Text inside shapes is automatically merged into shape content rather than created as separate overlapping items.

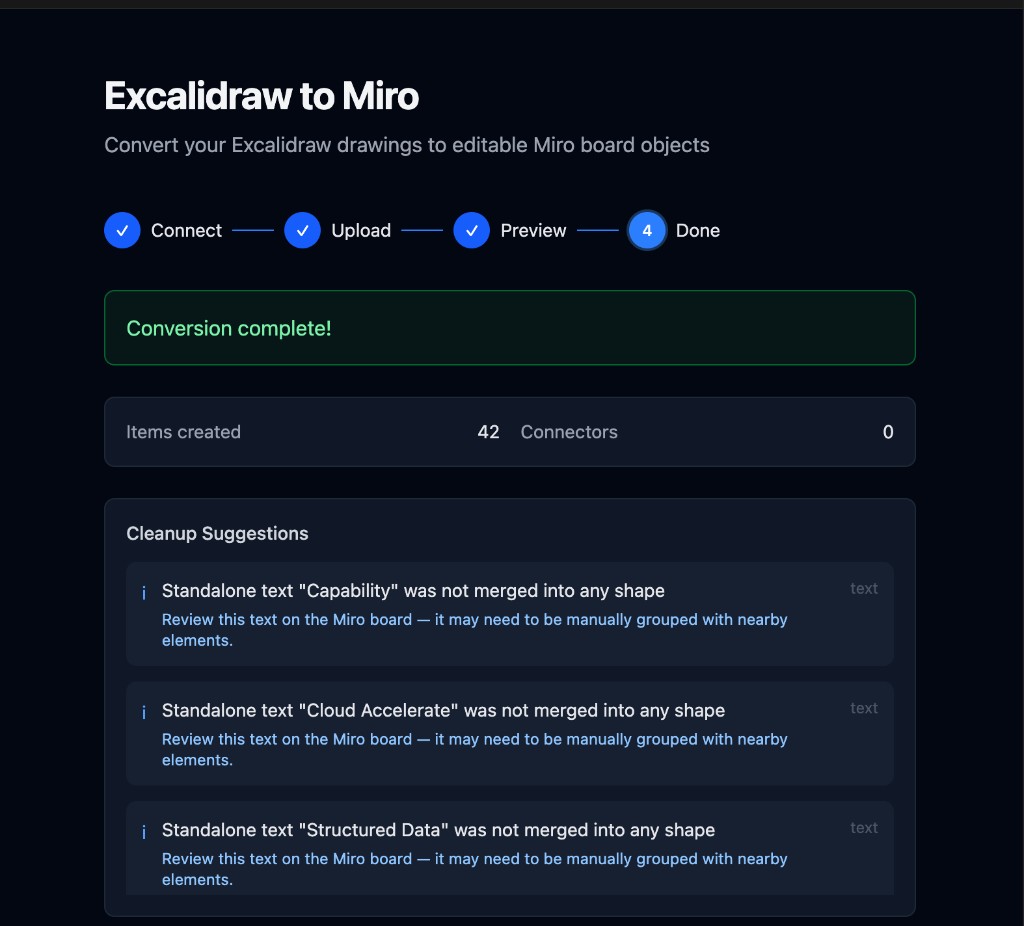

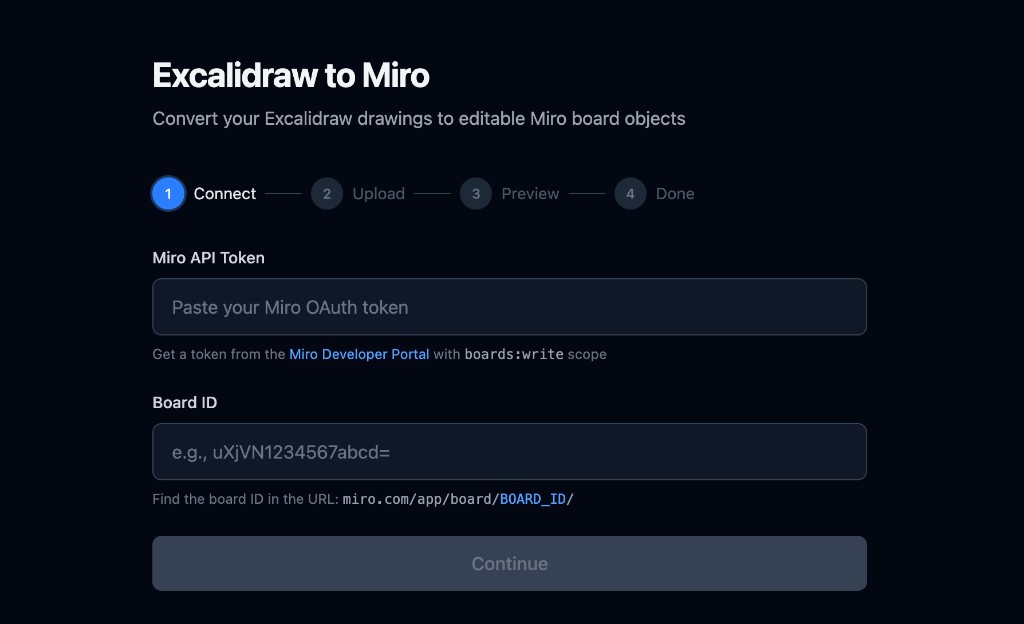

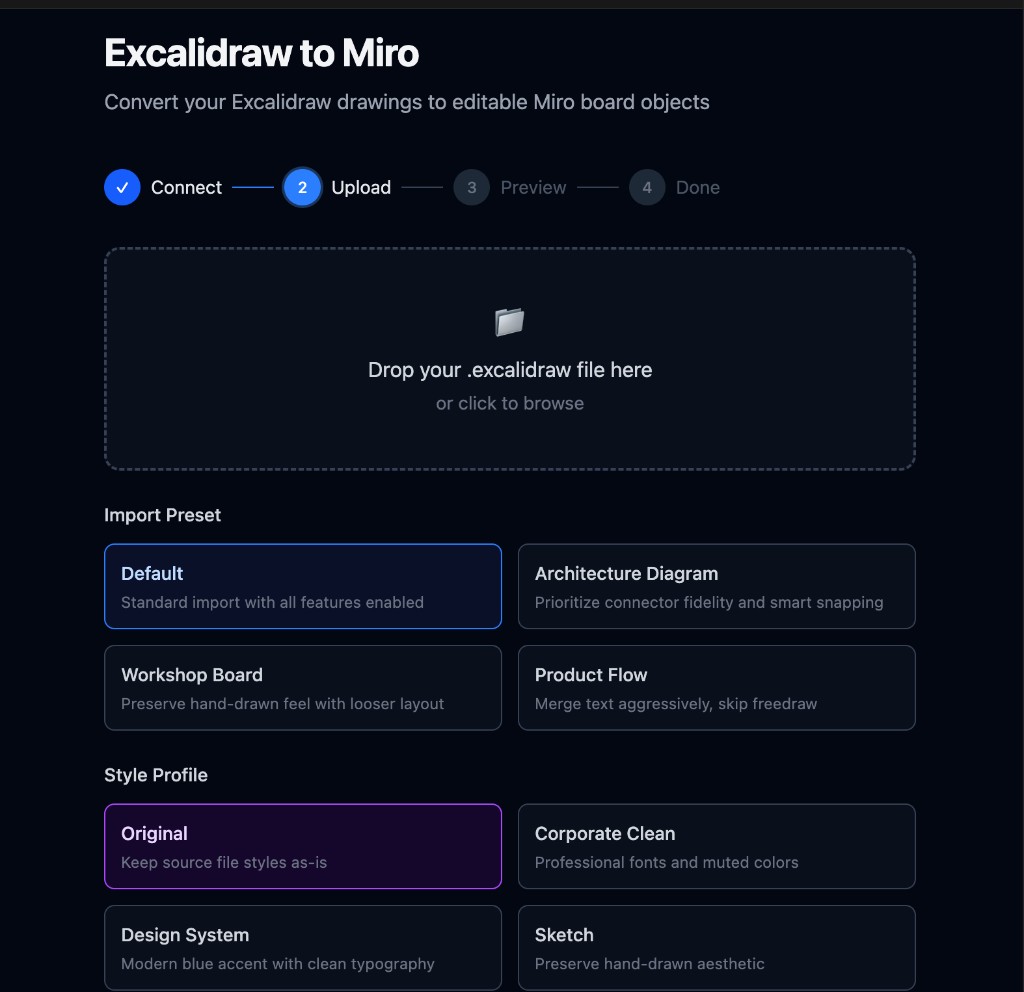

Web UI — Upload, Configure & Convert

Web UI - Add MIRO Board	Upload & Configure	Conversion Results

Guided 4-step web interface with drag-and-drop upload, import presets, style profiles, and post-conversion cleanup suggestions.

Why excalidraw-to-miro?

• Native Miro objects — Not screenshots. Your Excalidraw shapes, text, and connectors become real, editable Miro items.
• Full element support — Rectangles, ellipses, diamonds, arrows, lines, images, freedraw strokes, and frames all convert.
• Style fidelity — Colors, fonts, stroke styles, opacity, and fill patterns carry over.
• Smart layout — Auto-centering, arrow snapping, table/grid detection, and text-shape merging.
• Multiple interfaces — CLI for automation and scripting, web UI for one-off imports, Node.js API for integration.
• Obsidian compatible — Import .excalidraw.md files directly from your Obsidian vault.

Features

Core Conversion

• Shapes: Rectangles, ellipses, and diamonds become editable Miro shapes
• Text: Standalone text and text bound to shapes
• Connectors: Arrows and lines become Miro connectors with proper endpoint binding
• Images: Embedded images are extracted and uploaded to Miro
• Freedraw: Hand-drawn strokes are converted to SVG and uploaded as images
• Frames: Excalidraw frames become Miro frames with children properly attached
• Groups: Excalidraw visual groups (groupIds) are preserved as native Miro groups, including nested groups
• Styles: Stroke colors, fill colors, border styles, and opacity
• Auto-centering: Content is automatically centered on the Miro board
• Smart snapping: Unbound arrow endpoints snap to nearby shapes
• Table layout detection: Wide background shapes (table rows, banners) are kept separate from overlapping text, preserving grid/column layouts

Web UI

• Guided 4-step flow: Connect, Upload, Preview, and Convert with drag-and-drop
• Import Preview: See exactly what will be created, skipped, or degraded before writing to Miro
• Presets: Architecture Diagram, Workshop Board, and Product Flow import presets
• Style Profiles: Apply Corporate Clean, Design System, or Sketch visual overrides
• Cleanup Suggestions: Post-conversion actionable feedback for elements that may need manual review
• Summary Card: Copy a Markdown summary to share in Slack, Notion, or Jira

CLI

• Multiple commands: convert, preview, guided, batch, repair
• Output formats: Text, Markdown, and JSON output for summaries and previews
• Interactive guided mode: Step-by-step wizard with readline prompts for beginners
• Batch import: Import multiple .excalidraw files from a directory (supports Obsidian vaults)
• Connector repair: Interactive flow to re-establish broken connectors from a previous import
• Smart re-import: create, update, and upsert modes with persistent ID mapping across runs
• Style profiles: Built-in and custom JSON profiles for visual overrides
• Metadata preservation: Excalidraw link and customData fields carry over into Miro item content

Installation

npm install
npm run build

Or for development:

npm install
npm run dev -- --help

Prerequisites

1. Get a Miro OAuth Token

1. Go to Miro Developer Portal
2. Create a new app or use an existing one
3. Add the boards:write scope
4. Generate an access token

2. Get Your Board ID

The board ID is in the URL when viewing a board:

https://miro.com/app/board/uXjVN1234567=/
                          ^^^^^^^^^^^^^^^ this is the board ID

Usage

Web UI

# Start the API server
npm run dev:server

# In another terminal, start the web UI
npm run dev:web

Open http://localhost:5173 and follow the guided flow:

1. Connect — Enter your Miro API token and board ID
2. Upload — Drop your .excalidraw file and pick an import preset
3. Preview — Review what will be created, skipped, or imported with reduced fidelity
4. Convert — Run the import and get results with a copyable summary card

For production, npm run build compiles everything, then npm run start:server serves the API and static frontend together on port 3000.

CLI

# Basic conversion
excal2miro convert --in drawing.excalidraw --board uXjVN1234567abcd= --token YOUR_TOKEN

# With options
excal2miro convert \
  --in drawing.excalidraw \
  --board uXjVN1234567abcd= \
  --token YOUR_TOKEN \
  --scale 1.5 \
  --output-format markdown \
  --verbose

# Dry-run preview
excal2miro preview --in drawing.excalidraw

# Interactive guided mode
excal2miro guided

# Batch import from a directory (Obsidian vault support)
excal2miro batch --dir ./vault --board uXjVN1234567abcd= --token YOUR_TOKEN

# Smart re-import (update existing items)
excal2miro convert --in drawing.excalidraw --board uXjVN1234567abcd= \
  --token YOUR_TOKEN --import-mode upsert --mapping-file mapping.json

# Using environment variable for token
export MIRO_TOKEN=YOUR_TOKEN
excal2miro convert --in drawing.excalidraw --board uXjVN1234567abcd=

Options (convert command)

Programmatic API

import { Converter } from 'excalidraw-to-miro';

const converter = new Converter({
  miroToken: 'YOUR_TOKEN',
  boardId: 'YOUR_BOARD_ID',
  options: {
    scale: 1,
    convertImages: true,
    convertFreedraw: true,
    convertFrames: true,
    verbose: true,
  },
});

const result = await converter.convert('drawing.excalidraw');

console.log(`Items created: ${result.itemsCreated}`);
console.log(`Connectors created: ${result.connectorsCreated}`);
console.log(`Frames created: ${result.framesCreated}`);
console.log(`Images uploaded: ${result.imagesCreated}`);
console.log(`Freedraw converted: ${result.freedrawConverted}`);

Element Mapping

Text Handling

Text elements are handled intelligently:

• Text inside shapes: If a standalone text element's center falls within a shape's bounds, it is merged into the shape's content rather than created as a separate overlapping text item. Multiple texts in the same shape are joined with line breaks, ordered top-to-bottom.
• Table layout detection: Shapes with a wide aspect ratio (> 6:1) are recognized as table rows or background strips. Their overlapping text elements are kept as independent items at their original positions, preserving column/grid layouts.
• Bound text: Text with a containerId is automatically included in the parent shape (standard Excalidraw binding).
• Standalone text: Text that doesn't overlap any shape is created as a separate Miro text item.

Font Mapping

Image Support

Embedded images in .excalidraw files are automatically extracted, decoded from base64, and uploaded to Miro via the image API. Limitations:

• Maximum upload size is 6 MB per image (Miro API limit)
• Images must have status: "saved" in the Excalidraw file
• The scale property on images is applied to the output dimensions

Freedraw Conversion

Freedraw (hand-drawn) elements are converted to SVG paths and uploaded as images:

• Points are smoothed using quadratic bezier curves for natural-looking strokes
• Paths with 500+ points are simplified using Douglas-Peucker decimation
• Stroke color, width, style (dashed/dotted), and opacity are preserved
• Use --no-freedraw to disable this and skip freedraw elements

Frame Support

Excalidraw frames are converted to Miro frames:

• Frames are created first, then child items are attached via the Miro API
• Children are identified by their frameId property in the Excalidraw data
• Frame title/name is preserved
• Miro frames don't support rotation; rotated frames are created without rotation

Group support: Excalidraw groupIds (visual selection groups) are converted to native Miro groups via the Miro Groups API. Nested groups (elements with multiple groupIds) are created innermost-first. Groups require at least 2 successfully created items; groups with fewer members are skipped with a cleanup suggestion.

Connector Behavior

Connectors (arrows/lines) are handled as follows:

1. Bound arrows: If an arrow is bound to shapes in Excalidraw, the connector attaches to those Miro items
2. Unbound arrows: Endpoints snap to the nearest shape within the snap threshold
3. Unresolvable arrows: If either endpoint can't be matched to a shape, the connector is skipped (Miro requires both endpoints to reference board items)
4. Self-referencing: Arrows where both endpoints resolve to the same shape are skipped

Arrowhead Mapping

Conversion Phases

The converter processes elements in a specific order to maintain references:

1. Phase 0: Create frames (so children can be attached later)
2. Phase 1: Create shapes, text, images, and freedraw SVGs
3. Phase 1d: Attach child items to their parent frames
4. Phase 2: Create connectors (which reference shapes by Miro ID)
5. Phase 3: Create groups from groupIds (all items must exist first)

Coordinate System

• Excalidraw uses top-left origin with Y increasing downward
• Miro uses center-based positioning for shapes
• By default, content is auto-centered at (0, 0) on the Miro board
• Use --offset-x and --offset-y to position content elsewhere

Rate Limiting

The converter includes a 100ms delay between API calls to respect Miro's rate limits. For large drawings, the conversion may take some time.

Development

# Install dependencies
npm install

# Build
npm run build

# Run in development mode
npm run dev -- --in test.excalidraw --board BOARD_ID --token TOKEN

# Run tests
npm test

Project Structure

src/
├── api/                 # Miro API client
│   └── miro-client.ts
├── converter/           # Main conversion orchestrator
│   └── converter.ts
├── mappers/             # Element type mappers
│   ├── shape-mapper.ts
│   ├── text-mapper.ts
│   ├── connector-mapper.ts
│   ├── image-mapper.ts
│   ├── freedraw-mapper.ts
│   ├── frame-mapper.ts
│   ├── style-mapper.ts
│   └── coordinate-transformer.ts
├── parser/              # Excalidraw JSON parser
│   └── excalidraw-parser.ts
├── types/               # TypeScript types
│   ├── excalidraw.ts
│   └── miro.ts
├── server.ts            # Express API server for web UI
├── cli.ts               # CLI entry point
└── index.ts             # Library exports
web/
├── src/
│   ├── App.tsx          # Main React component (4-step guided flow)
│   ├── main.tsx         # React entry point
│   └── index.css        # Tailwind styles
├── index.html           # HTML entry point
└── vite.config.ts       # Vite + Tailwind config

License

MIT
