FreeDrive

Self-hosted cloud storage with a familiar Drive-like UX.
Single Go binary, embedded SQLite, disk-backed storage, admin panel, and modern web UI.

Licensed under MIT

Table of Contents

• Overview
• Screenshots
• Core Features
• Admin Capabilities
• Architecture
• Security Model
• Quick Start
• Production Install (systemd)
• Configuration
• API Reference
• Project Structure
• Deployment Options
• Operations
• Star History
• Troubleshooting
• Contributing
• License

Overview

FreeDrive is an open-source, self-hosted storage platform designed to feel instantly familiar for users coming from mainstream cloud drives.

What makes it practical:

• Single binary backend (Go) with embedded web assets
• Embedded SQLite database (no external DB required)
• Local disk storage backend
• JWT access + refresh-token authentication
• User and admin workspaces in one application
• Simple deployment with direct binary run or systemd

FreeDrive is ideal for:

• Developers wanting full ownership of files and auth
• Small teams needing private internal storage
• Self-hosting enthusiasts who want low operational overhead

Screenshots

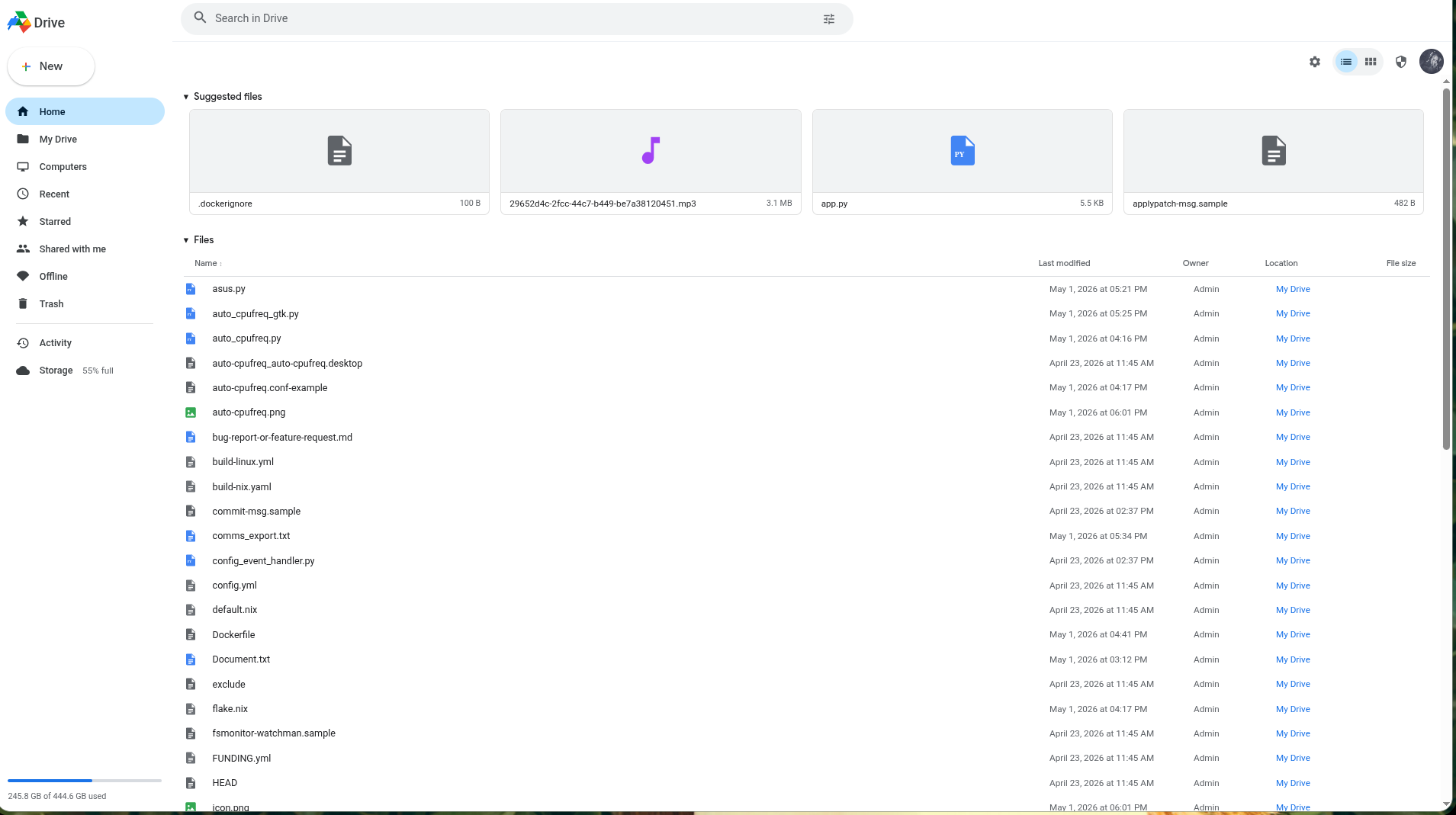

User Workspace

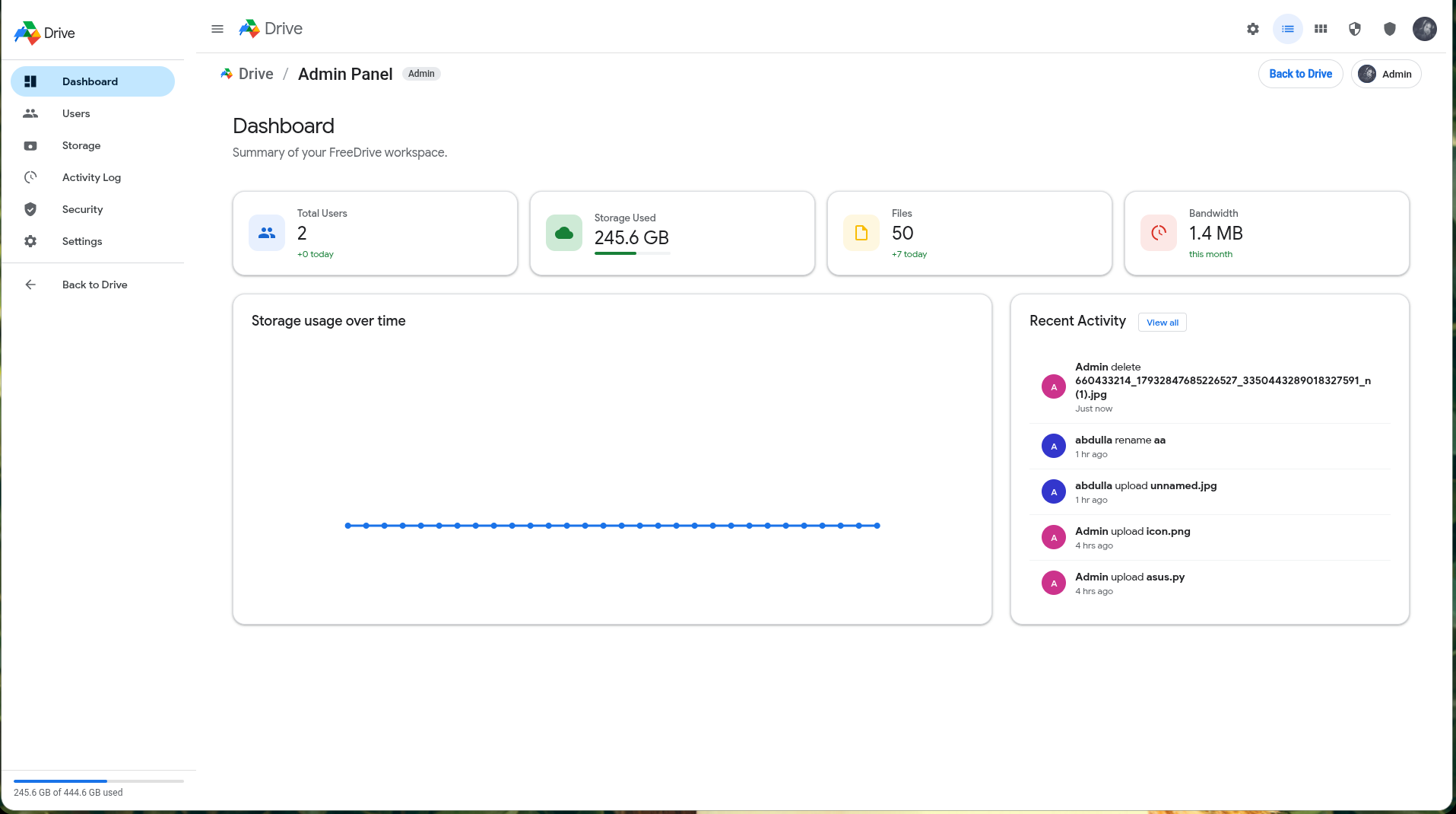

Admin Workspace

Core Features

1. Drive-like File Management UX

• Folder-based navigation and root view
• Suggested/recent style listings
• List/grid view switching
• Search and search filters
• Context menus and keyboard shortcuts

2. File Lifecycle

• Upload files via web UI
• Download encrypted blob payloads with metadata headers
• Rename and move files between folders
• Soft delete to Trash
• Restore from Trash
• Permanent delete

3. Versioning Support

• File version records are kept when content is updated
• List versions per file
• Restore an earlier version

4. Sharing Model

• User-to-user sharing data model (user_shares)
• Share-link data model (share_links)
• "Shared with me" and "Shared by me" listing paths

5. Storage & Quota Awareness

• Per-user quota enforcement during uploads/content updates
• Used-bytes accounting on delete/restore/permanent-delete paths
• Disk usage endpoint for runtime visibility

6. Activity Logging

• File/folder actions are recorded in activity logs
• User and admin activity listing endpoints

7. Embedded App Delivery

• Frontend is embedded with go:embed
• Single process serves API + SPA + static assets

Admin Capabilities

Admin routes are role-protected and available under /api/v1/admin/*.

User Management

• List users
• Create users
• Update role/quota/username
• Delete users (with self-delete protection)
• Trigger password reset email flow

Invite System

• Create invite links with:
  • role
  • max uses
  • quota bytes
• List invites
• Invite usage tracking and expiration checks

Operational Controls

• View aggregate stats (total_users, total_used, total_quota)
• View global activity feed
• Save/retrieve admin settings
• Run backup snapshot for admin settings

Email / SMTP

• SMTP test endpoint
• Password reset email dispatch
• Configurable sender and TLS behavior

Architecture

FreeDrive follows a clean layered structure:

• api layer: HTTP routes, handlers, middleware
• service layer: business logic (auth, file, folder)
• repository layer: persistence interfaces + SQLite implementations
• storage layer: disk blob IO

Runtime flow summary:

1. Request hits chi router
2. Global middleware stack executes (CORS, rate-limit, recover, logger)
3. Auth middleware validates JWT when required
4. Handler validates input and calls service/repo
5. Service applies policy (quota/ownership/versioning/activity)
6. Response serialized as JSON

Security Model

Authentication

• Access token: JWT
• Refresh token: random token, stored hashed in DB
• Token rotation on refresh
• Logout revokes refresh token

Authorization

• Protected API group requires valid access token
• Admin routes use explicit admin-role middleware
• User-scoped operations enforce ownership checks in services

Secrets

• FREEDRIVE_JWT_SECRET can be provided via env
• If omitted, it is generated and stored in data/jwt_secret.key

Rate Limiting

Global limiter enabled in router:

• 100 req/sec
• burst 200

Storage Note

Frontend transmits encrypted payload metadata (iv, encrypted size), and backend stores encrypted blob data and file metadata. If your threat model requires strict end-to-end guarantees, review the current crypto/key flow before production rollout.

Quick Start

Prerequisites

• Go (matching go.mod requirements)
• Linux/macOS/WSL recommended for local development

Run Locally

go mod download
go run ./cmd/freedrive

Open:

• http://localhost:8080

Default bootstrap admin (if first user is auto-created):

• Email: [email protected]
• Password: admin123

Important: change defaults immediately in non-dev environments.

Run Published Docker Image

docker pull ghcr.io/abdullaabdullazade/freedrive:latest
docker run -d \
  --name freedrive \
  -p 8080:8080 \
  -e [email protected] \
  -e FREEDRIVE_ADMIN_PASSWORD=change-me-now \
  -v freedrive-data:/app/data \
  ghcr.io/abdullaabdullazade/freedrive:latest

Docker Hub image tags are published as docker.io/metalninjasabdulla/freedrive:<tag>.

Run With Docker Compose

cp .env.example .env
docker compose up -d --build

Open:

• http://localhost:8080

Runtime data is stored in the freedrive-data Docker volume. Update .env before first start to set a strong admin password and optional JWT secret.

Production Install (systemd)

The repository includes scripts/install.sh for Linux host installation.

chmod +x scripts/install.sh
./scripts/install.sh

What it does:

• Prompts for admin credentials
• Downloads the latest release binary
• Installs binary to /opt/freedrive/freedrive
• Writes env file at /etc/freedrive/freedrive.env
• Creates/starts freedrive.service

To update an existing systemd installation to the latest release:

curl -fsSL https://abdullaabdullazade.github.io/freedrive/update.sh -o update.sh
chmod +x update.sh
./update.sh

The updater verifies the release checksum, keeps your existing data and /etc/freedrive/freedrive.env, backs up the current binary to /opt/freedrive/freedrive.bak, installs the new binary, and restarts freedrive.service.

Operational commands:

sudo systemctl status freedrive
sudo systemctl restart freedrive
sudo journalctl -u freedrive -f

Browser encryption note: uploads use WebCrypto when the browser allows it. Use http://localhost:8080 or HTTPS for encrypted uploads; on plain HTTP server addresses, FreeDrive warns first and uploads without browser-side encryption.

Note: current systemd template runs service as root. For hardened production setups, consider a dedicated system user and tighter filesystem permissions.

Configuration

Environment variables loaded by internal/config/config.go:

API Reference

Base path: /api/v1

Public Auth

• POST /auth/register
• POST /auth/login
• POST /auth/refresh
• POST /auth/logout
• POST /auth/reset-password

Protected (Authenticated)

• GET /me/storage
• GET /activity
• GET /disk-stats

Files

• POST /files/upload
• GET /files
• GET /files/trash
• GET /files/{id}
• GET /files/{id}/download
• PATCH /files/{id}
• POST /files/{id}/content
• DELETE /files/{id}
• POST /files/{id}/restore
• DELETE /files/{id}/permanent
• GET /files/{id}/versions
• POST /files/{id}/versions/{version}/restore

Folders

• POST /folders
• GET /folders/root
• GET /folders/{id}
• PATCH /folders/{id}
• DELETE /folders/{id}
• GET /folders/{id}/breadcrumb

Admin (Requires admin role)

• GET /admin/users
• POST /admin/users
• PATCH /admin/users/{id}
• DELETE /admin/users/{id}
• POST /admin/users/{id}/reset-password
• GET /admin/stats
• POST /admin/invites
• GET /admin/invites
• GET /admin/activity
• GET /admin/settings
• POST /admin/settings
• POST /admin/test-email
• POST /admin/backup/run

Health

• GET /health

Project Structure

cmd/freedrive/
  main.go                 # app bootstrap
  web/                    # embedded frontend (HTML/CSS/JS)

internal/
  api/
    router.go             # route graph + middleware wiring
    handlers/             # HTTP handlers
    middleware/           # auth, CORS, rate limit
  config/                 # env config + secret generation
  domain/                 # core entities
  repository/             # interfaces
  repository/sqlite/      # sqlite repos + migrations
  service/                # business logic
  storage/                # local disk blob storage

scripts/
  install.sh              # systemd installation helper

docs/
  index.html              # project landing page
  screenshots/            # marketing screenshots

Deployment Options

Typical demo/production options:

• VPS (Hetzner, DigitalOcean, AWS EC2) with systemd
• Containerized self-managed deployment (custom Dockerfile)
• PaaS for demo environments (Railway, Render, Fly.io)

Recommended production baseline:

• Reverse proxy (Caddy or Nginx) with HTTPS
• Periodic backup for FREEDRIVE_DATA_DIR
• Strong admin password and rotated JWT secret policy
• Non-root runtime user when possible

Operations

Data You Should Back Up

At minimum:

• SQLite DB ($FREEDRIVE_DATA_DIR/*.db)
• Blob storage ($FREEDRIVE_DATA_DIR file hierarchy)
• JWT secret ($FREEDRIVE_DATA_DIR/jwt_secret.key if auto-generated)
• Admin settings snapshot (data/settings.json and optional backup output)

Upgrading

1. Stop service
2. Replace binary
3. Start service
4. Check logs and health endpoint

sudo systemctl stop freedrive
# replace binary
sudo systemctl start freedrive
curl -s http://localhost:8080/api/v1/health

Star History

Troubleshooting

Service starts but UI fails

• Confirm process is running: systemctl status freedrive
• Check logs: journalctl -u freedrive -f
• Validate port mapping / firewall

Login fails unexpectedly

• Verify JWT secret consistency across restarts
• Ensure system clock is correct
• Confirm refresh token table integrity

Upload returns size/form errors

• Check FREEDRIVE_MAX_UPLOAD_MB
• Ensure reverse proxy request body limits are aligned

SMTP test/reset mail fails

• Re-check server/port/auth/TLS settings
• Verify sender domain policy (SPF/DKIM/relay restrictions)

Contributing

Contributions are welcome.

Suggested workflow:

1. Fork repository
2. Create feature branch
3. Add/adjust tests where applicable
4. Submit focused PR with clear change summary

If you are proposing architecture-level changes, open an issue first for design alignment.

License

MIT License. See LICENSE.
