gtex62-clean-suite

License: MIT GitHub stars GitHub issues Last commit

A modular, minimalist Conky desktop suite for Linux Mint (and other distros), inspired by several Rainmeter skins and rebuilt for Conky using Lua, custom widgets, themed slash bars, GPU/VRAM bars, weather arc, calendar, notes, and more.

This is a complete desktop system monitor and information panel set while keeping everything text-first, elegant, and unobtrusive.

Table of Contents

Screenshots

Full Suite

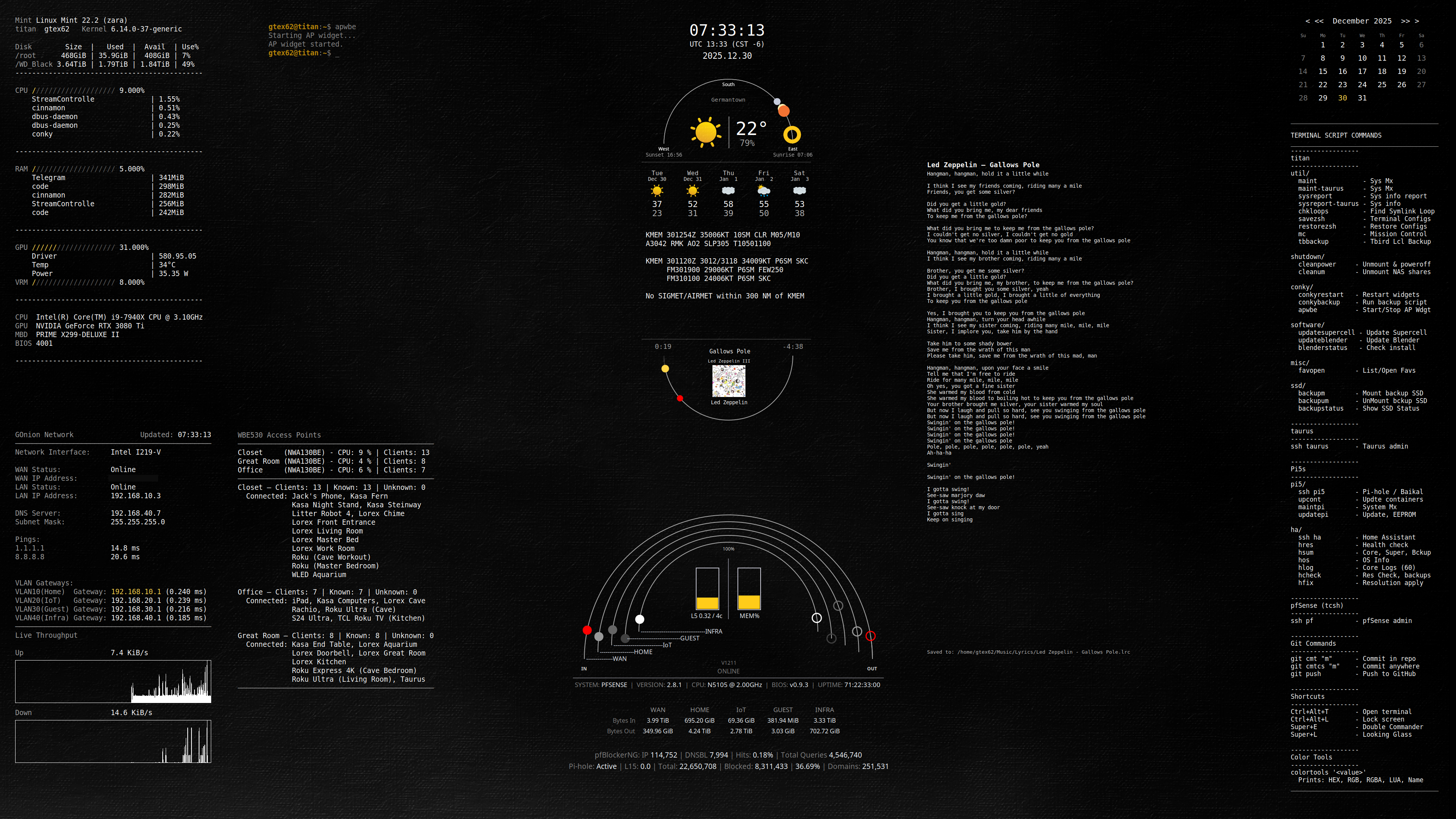

Clean Conky Suite

Weather + Horizon Arc

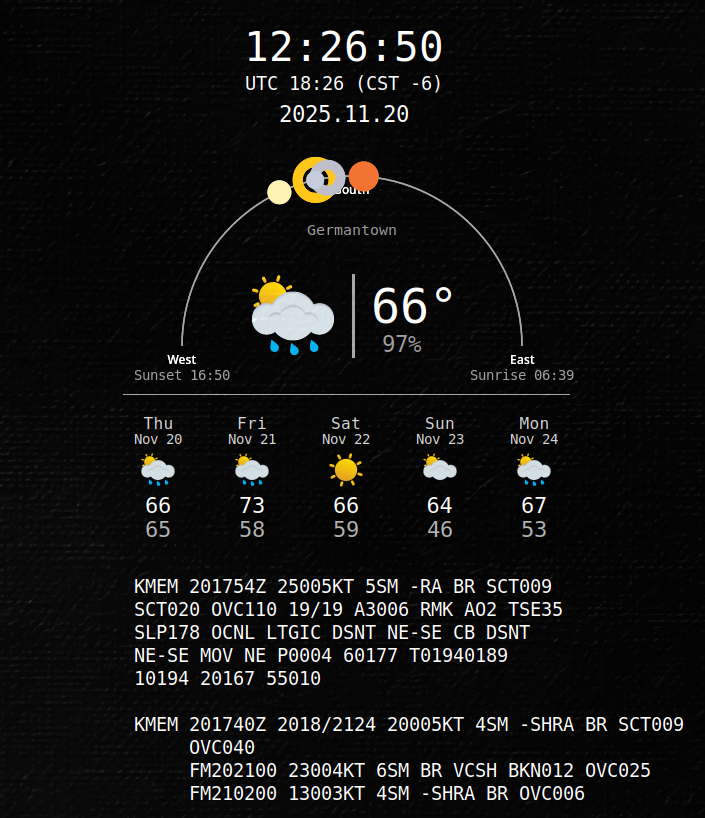

Time and Weather

System Info

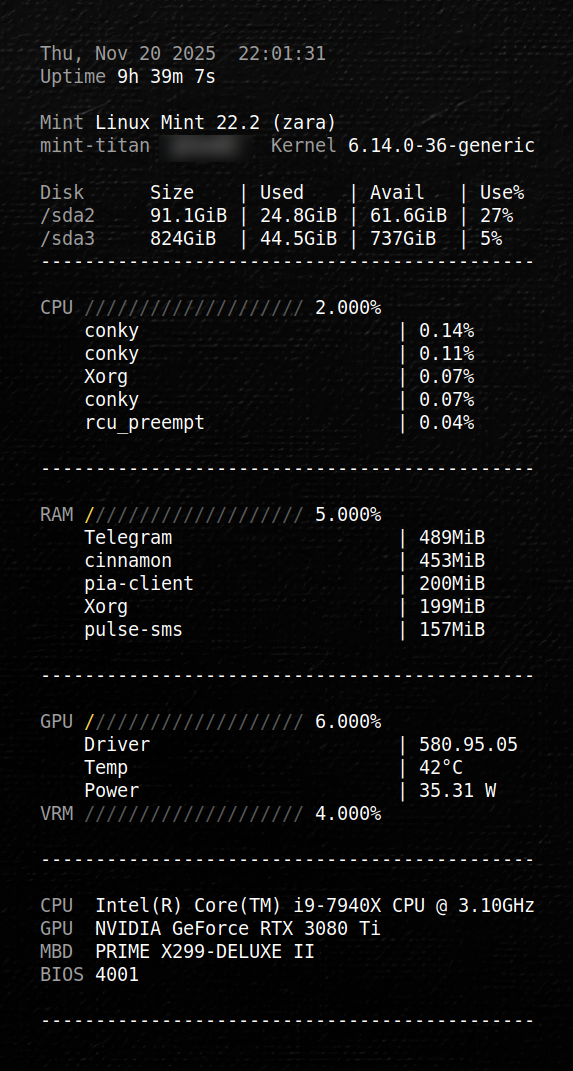

System Info

Network Info

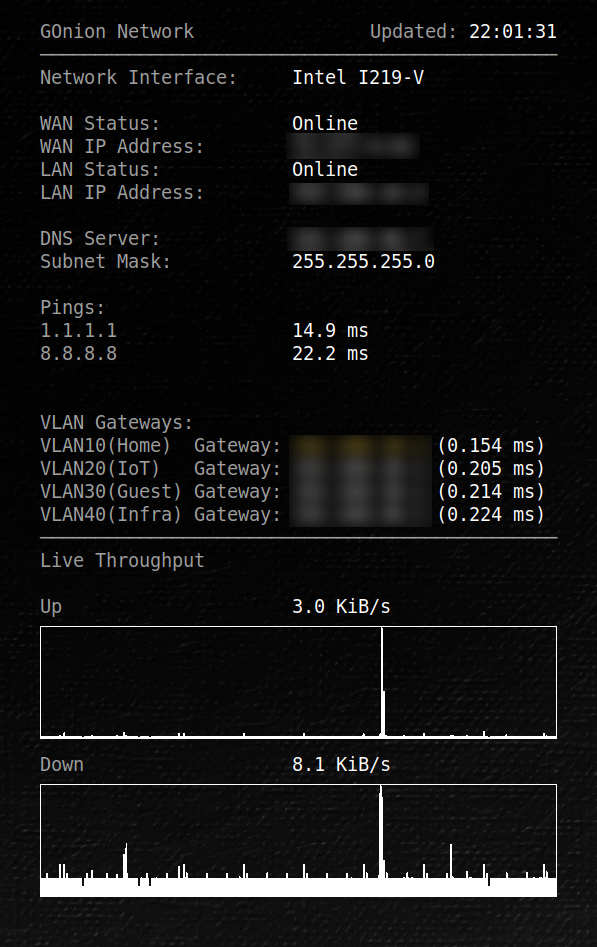

Network Info

Notes Screenshot

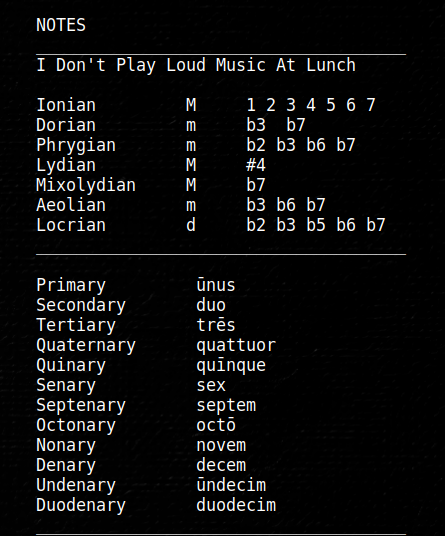

Notes

Calendar Screenshot

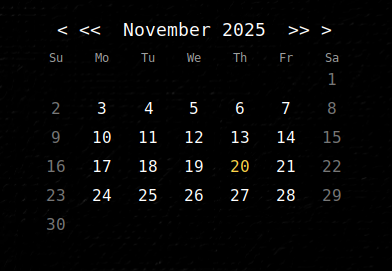

Calendar

Music Screenshot

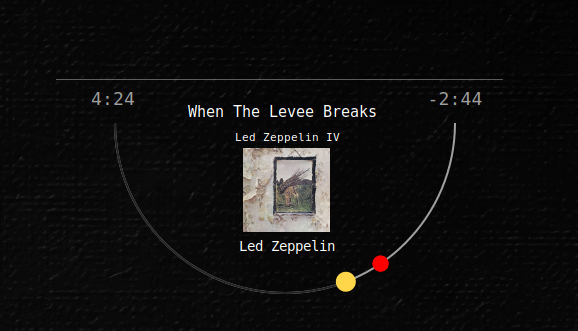

Music

Additional states:

  • music1.png
  • music2.png

Wallpapers

This Conky suite includes original wallpapers created by Geoffrey Greene. They are optional, but recommended to match the aesthetic shown in screenshots. Resolution: 7680x2170.

Files:

  • wallpapers/painted-canvas-bw-01.png – Black & White
  • wallpapers/painted-canvas-db-01.png – Dark Blue
  • wallpapers/painted-canvas-g-01.png – Green

These wallpapers are licensed for personal, non-commercial use.

Features

System Information (sys-info.conky.conf)

  • CPU usage, load, and temperatures
  • RAM usage
  • Disk usage per mount
  • OS, kernel, uptime, hostname
  • System firmware info
  • Logging of network interfaces
  • Live throughput graph
  • Fully configurable via theme.lua

GPU Widget

  • GPU usage slash bar
  • VRAM usage slash bar
  • Temperature
  • Fan percentage
  • Power draw (W)
  • Driver version
  • Automatic detection for NVIDIA (via nvidia-smi)

Weather Widget

  • Weather arc inspired by ASTROweather
  • Current METAR, TAF, AIRMET/SIGMET + OWM blended
  • 5-day forecast
  • Sunrise/sunset
  • Wind, humidity, pressure
  • Icons + text
  • Icon cache dir override via theme.weather.icon_cache_dir
  • Everything styled through Lua

Calendar Widget

  • Month calendar with current day highlight
  • Clean typography
  • Minimalist layout

Notes Widget

  • Simple and elegant notes panel
  • Readable right-hand column
  • Monospaced or themed fonts

Music / Now-Playing Widget

  • Track title/artist/album with marquee scrolling
  • Arc progress + time labels
  • HR baseline line drawn in Lua (tweak with theme.music.baseline.dy)
  • Album art (cached cover; anchor is theme.music.center, offsets in theme.music.art, fallback theme.music.art_fixed)

Network & Infrastructure Widgets

pfSense Widget

  • Dedicated pfSense monitoring widget (traffic arcs, totals, pfBlockerNG, Pi-hole status)
  • Configured via theme-pf.lua and environment variable PFSENSE_HOST
  • Built-in SSH safety and self-protection to prevent sshguard lockouts
  • See: README-pfsense-widget.md

Access Point (Zyxel WBE530) Widget

  • Live status and client summaries for Zyxel APs
  • Configured via environment variables AP_IPS and AP_LABELS
  • Uses helper scripts in scripts/
  • AP polling uses SSH and is protected by the shared circuit breaker (pf-ssh-gate.sh)
  • When SSH is paused, the widget/scripts may show SSH PAUSED - AP
  • This is intentional to prevent sshguard lockouts and clears automatically
Optional: IP-to-label map (ap_ipmap.csv)

The optional scripts/ap_ipmap.csv.example file is an IP-to-label map used by the AP scripts/widget to keep AP ordering and labels consistent. To use it, copy scripts/ap_ipmap.csv.example to scripts/ap_ipmap.csv and edit as needed (scripts/ap_ipmap.csv is gitignored). The expected format is a simple CSV with columns like IP,label (one AP per line).

Lyrics Window

  • Copy widgets/lyrics.vars.example to widgets/lyrics.vars and adjust paths and providers

Provider tiers:

  • NOAPI — default, no keys required Default providers: lrclib, lyrics_ovh, lololyrics, chartlyrics

  • SCRAPE — optional, may break, use at your own risk Optional providers: azlyrics, songlyrics, elyrics, letras, lyricfind, musixmatch

  • API — requires keys Providers: genius (token required)

  • The order listed in lyrics.vars is the order searched

  • widgets/lyrics.vars is gitignored to protect secrets

Manual lyrics:

  • Create Artist - Title.txt or .lrc files
  • Store them in ~/Music/lyrics/
  • Copy/paste lyrics from a website
  • The widget picks them up automatically on the next track

Shared Theme System

The theme.lua file controls:

  • Font family
  • Font size
  • Colors
  • Slash bar width & style
  • Column positions
  • Spacing and separators
  • Optional per-widget tweaks

Folder Structure

Installed under your home config (or ${CONKY_SUITE_DIR:-~/.config/conky/gtex62-clean-suite} if overridden):

${CONKY_SUITE_DIR:-~/.config/conky/gtex62-clean-suite}/
├── theme.lua
├── theme-pf.lua
├── widgets/
│   ├── ap-wbe530.conky.conf
│   ├── sys-info.conky.conf
│   ├── weather.conky.conf
│   ├── calendar.conky.conf
│   ├── date-time.conky.conf
│   ├── notes.conky.conf
│   ├── lyrics.vars.example
│   ├── net-sys.conky.conf
│   ├── music-lyrics.conky.conf
│   ├── owm.env              # your OpenWeather API key (user-provided; not in git)
│   ├── owm.vars             # your OWM config/paths (user-provided; not in git)
│   └── pfsense.conky.conf
├── lua/                     # shared Lua modules for all widgets
├── scripts/                 # helper scripts (data fetch, SSH polling, safety gate, startup)
├── icons/
├── wallpapers/
├── screenshots/
├── AGENTS.md
├── CHANGELOG.md
├── CONTRIBUTING.md
├── LICENSE
├── README-pfsense-widget.md
└── README.md

Requirements

  • Conky (with Lua support) — e.g. conky-all on Debian/Ubuntu/Mint
  • curl
  • jq
  • lm-sensors (for temperatures)
  • playerctl (music metadata/status)
  • pactl (optional; volume/mute via PulseAudio/PipeWire)
  • For GPU widget:
    • NVIDIA GPU
    • Working nvidia-smi command

Installation

1. Install Conky + dependencies

sudo apt install conky-all curl jq lm-sensors playerctl pulseaudio-utils
sudo sensors-detect

2. Clone this repo

mkdir -p ~/.config/conky
cd ~/.config/conky
git clone https://github.com/GTex62/gtex62-clean-suite.git

Optional: Override suite/cache paths

By default the suite uses:

  • Suite: ${CONKY_SUITE_DIR:-~/.config/conky/gtex62-clean-suite}
  • Cache: ${XDG_CACHE_HOME:-~/.cache}/conky

You can override these before launching Conky:

export CONKY_SUITE_DIR="$HOME/.config/conky/gtex62-clean-suite"
export CONKY_CACHE_DIR="${XDG_CACHE_HOME:-$HOME/.cache}/conky"
export CONKY_THEME_PATH="$CONKY_SUITE_DIR/theme.lua"
export CONKY_THEME_PF_PATH="$CONKY_SUITE_DIR/theme-pf.lua"

If you source scripts/conky-env.sh, you can also set these there.

3. Configure OpenWeather variables

There are two files involved:

  • owm.env — holds your OpenWeather API key (and optionally some settings)
  • owm.vars — holds cache paths and other variables for the forecast logic

Start from the provided examples:

cd "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/"
cp owm.env.example  owm.env
cp owm.vars.example owm.vars

Then edit them:

xed owm.env
xed owm.vars

In owm.env:

  • Replace YOUR_OPENWEATHER_API_KEY_HERE with your actual API key. (Do not commit the real key to Git.)

In owm.vars:

  • Set OWM_DAILY_CACHE to match your cache directory (or full path): OWM_DAILY_CACHE="${CONKY_CACHE_DIR:-${XDG_CACHE_HOME:-$HOME/.cache}/conky}/owm_forecast.json"
  • Optionally adjust LAT/LON/UNITS/LANG to match your location.

4. Start widgets

The suite includes a helper script to start all widgets at once:

${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/scripts/start-conky.sh &

If you set CONKY_SUITE_DIR, use $CONKY_SUITE_DIR/scripts/start-conky.sh instead.

Optional: Toggle a single widget with a launcher script

Some widgets (like the Zyxel WBE530 AP widget) may require environment exports from scripts/conky-env.sh. You can create a personal launcher in ~/.local/bin (e.g., apwbe) that sources that file and starts/stops Conky using widgets/ap-wbe530.conky.conf. This launcher is intentionally not included in the repo because it’s user-specific.

CFG="${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/ap-wbe530.conky.conf"
source "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/scripts/conky-env.sh"
if pgrep -f "conky .*${CFG}" >/dev/null; then
  pkill -f "conky .*${CFG}"
else
  conky -c "$CFG" &
fi

You can also start individual widgets manually if you prefer (use $CONKY_SUITE_DIR if set):

conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/sys-info.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/weather.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/calendar.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/date-time.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/notes.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/music.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/music-lyrics.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/net-sys.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/ap-wbe530.conky.conf" &
conky -c "${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/widgets/pfsense.conky.conf" &

Add the script to your desktop environment’s startup applications to launch the suite automatically on login.

Screen alignment and positioning

Each .conky.conf file has its own alignment, gap_x, and gap_y settings tuned for a dual-monitor setup on the original system (right-side secondary display).

You can also set monitor_head in theme.lua to target a specific monitor ("0" = primary, "1" = secondary). Each widget reads this value and applies it via xinerama_head.

If widgets appear off-screen or stacked incorrectly:

  1. Open the .conky.conf file for the widget you want to move.

  2. Look for these lines near the top:

    alignment = 'top_right',
gap_x = 2780,
gap_y = 50,

  3. Adjust alignment (top_left, top_right, bottom_left, bottom_right, etc.) and gap_x / gap_y until the widget sits where you want it.

  4. Save and reload that widget:

    pkill conky
${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/scripts/start-conky.sh &

Tip: You can experiment interactively by changing the numbers in small steps (e.g., ±50 px).

Customization

Most of the visual behavior is controlled from:

${CONKY_THEME_PATH:-~/.config/conky/gtex62-clean-suite/theme.lua}

Things you can change there:

  • Fonts (family, size)
  • Colors (main text, accents)
  • Slash bar style and width
  • Column positions (for labels and values)
  • Spacing for separators and sections
  • Calendar spacing and padding
  • Weather arc and planet styling options (if you enable planets)
  • Weather main block positioning (weather.center + weather.main.* offsets for icon/city/temp/humidity)
  • Weather city label is centered on weather.center (use weather.main.city_dx to offset)
  • Weather arc centering (weather.center_mode + weather.center_offset for auto X centering)
  • Aviation block offsets (weather.metar/taf/advisories.offset_x, offset_y)
  • Aviation text width tuning (weather.aviation.char_px for pad_cols alignment)
  • Music widget arc alignment uses weather.center_mode/center_offset to match the weather apex
  • Music album art anchors to the apex via theme.music.art (cover_line.lua; art_fixed is a fallback)
  • Music album art centering (theme.music.widget_w for auto-x centering in cover_line.lua)
  • Music widget arc/bars, volume marker, and album art placement (theme.music.art, with theme.music.art_fixed as fallback)

Each .conky.conf file uses the same shared theme, so adjusting theme.lua lets you redesign the look of the entire suite without editing each widget individually.

Astronomy: Moon & Planet Positions

The weather widget can optionally display the Moon and visible planets (Mercury, Venus, Mars, Jupiter, Saturn) along the horizon arc.

These positions are generated externally and cached in:

${CONKY_CACHE_DIR:-${XDG_CACHE_HOME:-~/.cache}/conky}/sky.vars

Dependency

Planet and moon calculations require PyEphem:

sudo apt install python3-ephem

Note: On Linux Mint / Ubuntu, installing via pip may fail due to Python's externally managed environment (PEP 668). The python3-ephem system package is the supported method.

Generator script

This repository includes:

scripts/sky_update.py

This script:

  • Calculates current azimuth / altitude for the Moon and planets
  • Converts positions to horizon-arc angles
  • Writes values into ${CONKY_CACHE_DIR:-${XDG_CACHE_HOME:-~/.cache}/conky}/sky.vars for owm.lua to consume

You can test it manually:

${CONKY_SUITE_DIR:-$HOME/.config/conky/gtex62-clean-suite}/scripts/sky_update.py

Automatic updates (recommended)

For live tracking, the generator should be run periodically. A systemd user timer is recommended so updates continue across restarts and Conky reloads.

Credits & Inspirations

License

This project is licensed under the MIT License.
