isUpMap — Service Status Heatmap

Live: isUpMap (Official) Live: map.warmindex.com (Backup)

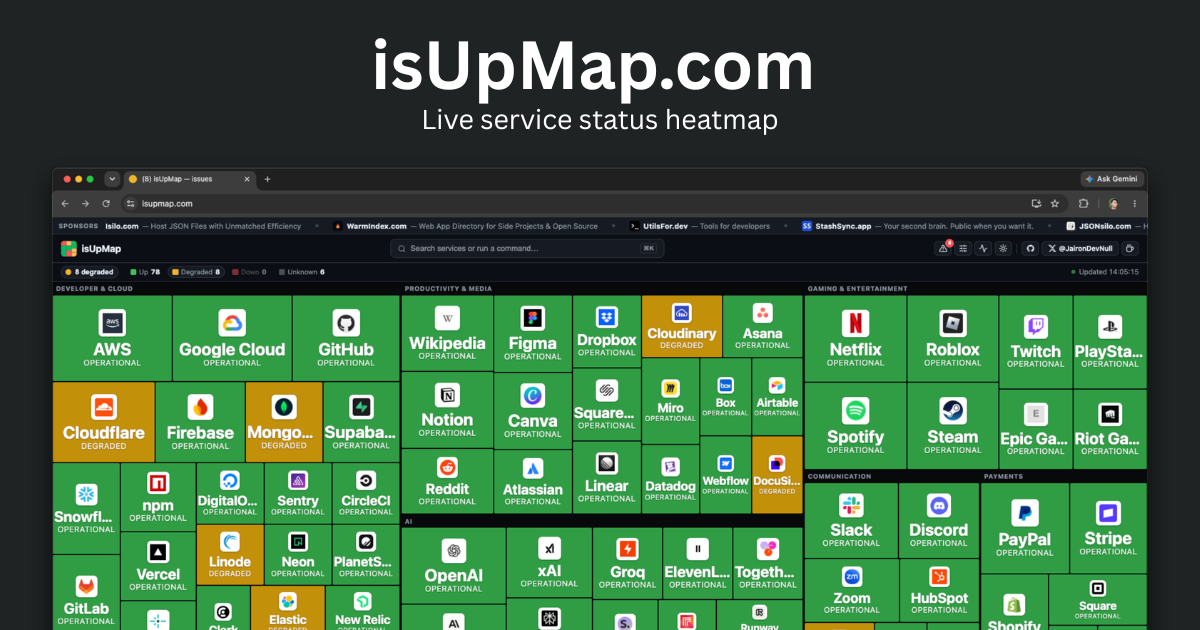

A live up / down heatmap for 80+ popular internet services, rendered as a stock-map style treemap with brand logos. Built on a single Cloudflare Worker: a Cron Trigger polls each service's official status and persists snapshots + an incident log to D1, and a static frontend renders the treemap with per-service uptime, an incident history, a command palette, light/dark themes, and a mobile-friendly detail sheet.

Features

• Treemap heatmap — services grouped into category "sectors", tiles sized by prominence and colored by status, each with a brand logo.
• Per-service detail — tap a tile (mobile) or click it (desktop) for status, 24h/7d uptime, component rollup, active incident, status-page host, and a "Visit status page" link.
• Incident history — server-recorded incidents (open/close/duration), persisted in D1 and shown in a side panel and per-service (last 2 shown).
• Community "report it's down" — users can vote a service is down with a reason (Can't connect, Errors, Can't log in, Slow, Other). Votes are deduplicated per IP-hash per 24 h, buffered through a Cloudflare Queue, and persisted in a separate D1. The per-service detail page shows aggregate counts, a 7-day volume chart, per-country and per-reason breakdowns, and a Protomaps world map of recent report origins.
• Command palette (⌘K) — fuzzy-search services and run commands.
• Local customization — show/hide services or categories and a "problems only" filter, persisted in localStorage.
• Notifications — in-page toasts on status changes, plus optional opt-in desktop notifications.
• Light / dark theme, deep links (?service=, ?filter=problems), and a favicon/title that reflect overall state.

How it works

Cron (every 5m) ─▶ scheduled() ─▶ resolveStatus() × N      ┌─▶ Statuspage JSON   ({base}/api/v2/summary.json)
                       │           (1 retry on a blip)      ├─▶ RSS / Atom feed   (fast-xml-parser)
                       │   (src/sources.ts) ────────────────┘
                       │                                    └─▶ HTTP reachability ping
                       │       each fetch attempt ──────────────▶ Analytics Engine (FETCH_ANALYTICS)
                       │                                          (service id, url, latency, status code, attempt)
                       ├─▶ persist to D1 (src/db.ts): flap-dampen → upsert `current`,
                       │   open/close `incidents`; daily retention sweep
                       └─▶ publish finished snapshot to KV (SNAPSHOT_KV)
Browser (public/) ─poll /api/status every 45s─▶ Worker reads KV (Cache-API fronted) ─▶ treemap + uptime
                  └─open detail / panel ───────▶ GET /api/incidents (D1, cached)     ─▶ incident history

Community reports:
User taps "Report it's down" ─▶ POST /api/report/:id (VOTE_RATE_LIMITER: 10/60s per IP)
                                        │  hash IP → VOTE_QUEUE (Cloudflare Queue)
                                        └─▶ queue consumer → batch-insert into REPORTS_DB (D1)
GET /api/report/:id ─▶ KV hit (10-min TTL) → or D1 aggregate query → report JSON
                                                                       (total, countries, reasons,
                                                                        recent 10, 7-day timeline)
/status/:id page ─▶ server-rendered with Protomaps world map (report locations) + analytics panel

• A Cron Trigger (*/5 * * * *) invokes scheduled(), which resolves every service concurrently (Promise.allSettled, each upstream guarded by a 15s timeout + edge caching, with one retry on a transient blip so a flaky connection doesn't read as unknown). It persists the result to D1, then publishes the finished snapshot to KV for the read path.
• Flap-dampening (src/db.ts) — a non-up status must hold for 2 consecutive polls before it is committed to current or opens an incident; recovery to up is immediate, and an unknown (timed-out) probe holds the last status rather than resolving a real incident. A single glitchy upstream read therefore never paints a false outage. Resolved incidents older than 90 days are pruned once a day (~03:00 UTC).
• GET /api/status is a fast KV read of the snapshot the cron publishes (no D1 query on the hot path), with per-service uptime (24h / 7d). It's fronted by the Cache API; before the first cron run it serves a "warming" snapshot (never a live fan-out). The response carries a stale flag (older than 3 cron cycles) so the UI warns instead of showing frozen data.
• GET /api/incidents returns the recent incident log from D1 (Cache-API fronted). An optional ?service=<id> filter scopes it to a single service.
• POST /api/report/:id accepts a community down-report ({ reason }) for a known service. The IP is hashed with VOTE_SALT (SHA-256; never stored raw), deduplicated per IP-hash per 24 h, and enqueued to VOTE_QUEUE for async batch-insert into REPORTS_DB. Tighter rate limit: 10 req / 60s per IP (VOTE_RATE_LIMITER). Returns 503 if VOTE_SALT is not set.
• GET /api/report/:id returns aggregated community-report data for a service: 7-day total, per-country and per-reason breakdowns, up to 10 most-recent individual reports, and a 7-day daily volume timeline. Cached in SNAPSHOT_KV (reportcount:<id>) with a 10-min TTL.
• GET /api/summary returns a single overall-status rollup (worst status wins) plus a headline ("All systems operational" / "2 down, 1 degraded"), per-status counts, and the same stale flag — handy for compact embeds, badges, or a status banner. Add ?format=shields for a shields.io endpoint badge payload (status-colored), which powers the live badge at the top of this README. Same KV-read + Cache-API fronting as /api/status.
• All API routes are rate-limited per IP (60 req / 60s) via a Workers rate-limit binding.
• Crawlable pages — the dashboard is a client-rendered SPA, so for SEO the Worker also server-renders (no-JS) GET /status/<id> (per-service status + uptime + community report summary + Protomaps world map) and GET /status (a directory), plus a generated /sitemap.xml and a static robots.txt. These give crawlers real content for queries like "is GitHub down?". See src/pages.ts. The map and report widget assets are only shipped when the service actually has community report data (showMap flag).
• The frontend (public/app.js) lays services out with a squarified treemap; tiles are sized by a per-service weight (layout only).

Status model

Every service is normalized to one of: up · degraded · down · unknown.

Statuspage JSON is authoritative where available. RSS-based status is a best-effort heuristic, since incident feeds describe history rather than a current-state field.

Data sources

All data comes from each service's own public status page / feed. IsUpMap is a read-only aggregator and is not affiliated with any of these services. The list lives in src/services.ts; for Statuspage entries the /api/v2/summary.json path is appended to the base shown below.

Rows marked ⊘ disabled have an upstream that no longer publishes a usable machine-readable feed, so their status can't be resolved. They are shown as permanently unknown (grey), hidden from the heatmap, and appear locked in the Customize panel with the reason on hover — see Disabled services below.

Disabled services

A service is disabled when its upstream no longer provides a status feed we can trust — it stopped publishing a machine-readable feed, or the feed reports stale / incorrect state. Rather than show a stale or misleading status, a disabled service is set to unknown (grey), kept out of the heatmap, and listed — locked and labelled disabled, with the reason on hover — in the Customize panel. The resolver skips disabled services entirely (no fetch). To disable one, add a disabled: "<reason>" string to its entry in src/services.ts.

Currently disabled (upstream no longer exposes a machine-readable feed, verified 2026-06-05):

To add a service, append an entry to src/services.ts with its category, a weight (tile size), and a source. Brand logos are self-hosted: add the service id to LOGO_DOMAIN (public/app.js) and drop a matching <id>.png (a ~128px favicon) in public/images/logo/services/.

Tips: Statuspage hosts often 302-redirect to a canonical domain (e.g. status.zoom.us → www.zoomstatus.com) — use the canonical host to avoid an extra hop. Some hosts (e.g. status.x.ai) put the JSON behind a Cloudflare bot challenge; use their RSS feed instead.

Security

• Rate limiting — /api/* is capped at 60 requests / 60s per IP (API_RATE_LIMITER); the vote endpoint (POST /api/report/:id) has its own tighter cap of 10 requests / 60s per IP (VOTE_RATE_LIMITER); over-limit returns 429.
• IP privacy — the vote path never stores raw IPs. The IP is SHA-256-hashed with a VOTE_SALT secret before storage; without a real salt the endpoint returns 503 rather than persisting a reversible hash.
• Vote deduplication — one vote per IP-hash per service per 24-hour bucket (enforced by a D1 primary key), so burst-voting during an outage doesn't inflate counts.
• Caching — /api/status, /api/summary, /api/incidents, and /api/report/:id are wrapped in the Cache API or KV; D1 stays off the hot read path for all of these.
• Headers / CSP — public/_headers sets a strict Content-Security-Policy (no inline scripts), X-Content-Type-Options, X-Frame-Options, Referrer-Policy, and Permissions-Policy on static assets; the Worker adds nosniff + Referrer-Policy to API responses. The /status/:id page uses a relaxed CSP (script-src 'self') only when the report widget and map are present; all other server-rendered pages use script-src 'none'.

Analytics

Frontend (GA4)

Google Analytics (GA4) is wired in public/analytics.js and loads only in production — it's gated to non-localhost hosts (so it's off during wrangler dev) and injected from a same-origin module to avoid an inline script under the CSP. Update or remove GA_ID there to change it.

Upstream fetch analytics (Workers Analytics Engine)

Every upstream fetch attempt made by the cron is logged to a Workers Analytics Engine dataset (isupmap_fetches) via the FETCH_ANALYTICS binding (see src/analytics.ts). This gives a queryable record of each HTTP call the Worker makes — useful for spotting slow status pages, tracking retry rates, and debugging unknown spikes.

Schema (query via wrangler analytics-engine sql or the AE SQL API):

Example queries:

-- Average latency per service over the last hour
SELECT index1 AS service, avg(double2) AS avg_latency_ms, count() AS fetches
FROM isupmap_fetches
WHERE timestamp > NOW() - INTERVAL '1' HOUR
GROUP BY service ORDER BY avg_latency_ms DESC;

-- Retry rate per source type
SELECT blob2 AS source_type,
       sum(double3) AS retries,
       count() AS total,
       round(sum(double3) / count() * 100, 1) AS retry_pct
FROM isupmap_fetches
WHERE timestamp > NOW() - INTERVAL '24' HOUR
GROUP BY source_type;

-- Services with the most errors in the last day
SELECT index1 AS service, count() AS errors
FROM isupmap_fetches
WHERE double4 = 0 AND timestamp > NOW() - INTERVAL '24' HOUR
GROUP BY service ORDER BY errors DESC LIMIT 20;

Development

Trigger the cron and inspect the API locally:

npm run dev:cron
curl "http://localhost:8787/__scheduled"      # runs scheduled() once → persists to D1 + publishes to KV
curl -s http://localhost:8787/api/status | jq # served from KV, includes per-service uptime + stale flag
curl -s http://localhost:8787/api/incidents | jq
curl -s http://localhost:8787/api/summary | jq # overall status rollup + headline

Local cron note: under plain wrangler dev, the documented /cdn-cgi/handler/scheduled test route currently throws a DataCloneError: ... ScheduledController (a wrangler local-shim bug). Use npm run dev:cron (--test-scheduled) and the /__scheduled route instead. Production crons invoke scheduled() natively and are unaffected.

Deploying

Deploy Button (recommended)

Click the button at the top of this README. Cloudflare will fork the repo, provision a D1 database, and deploy — no manual config needed.

After deploy, attach a custom domain / route in the Cloudflare dashboard (or add a routes entry to wrangler.jsonc), since workers_dev: false disables the *.workers.dev URL.

Manual deploy

npx wrangler d1 create isupmap                                   # status DB; paste the printed id into wrangler.jsonc
npx wrangler d1 create isupmap-reports                           # community reports DB; paste the id into wrangler.jsonc
npx wrangler kv namespace create SNAPSHOT_KV                     # snapshot cache; paste the id into wrangler.jsonc
npx wrangler queues create isupmap-votes                         # vote queue
npx wrangler queues create isupmap-votes-dlq                     # dead-letter queue
wrangler secret put VOTE_SALT                                    # random string; protects IP hashes from reversal
npm run deploy                                                   # deploys the Worker + applies schema.sql to the remote D1
npm run db:schema:reports:remote                                 # applies schema-reports.sql to REPORTS_DB

Re-run npm run db:schema:remote / db:schema:reports:remote after adding indexes/tables (CREATE … IF NOT EXISTS is idempotent).

Set PROTOMAPS_KEY (via wrangler secret put or in wrangler.jsonc) to enable the world map on /status/:id pages. A free key is available at protomaps.com. Leave it empty to skip the map.

Rate-limit binding

wrangler.jsonc declares a rate-limit binding with namespace_id: 1001. This number is an arbitrary local identifier — you do not need to create or change it; Cloudflare provisions the binding automatically on deploy.

Project structure

public/            Static frontend (served directly by Cloudflare)
  index.html         Page shell: header/toolbar, treemap, panels, detail modal, palette
  styles.css         Treemap palette, hover card, panels, command palette, bottom sheet, themes
  app.js             Poll loop, treemap, logos, detail sheet, palette, customization, toasts
  report.js          Community report widget + Protomaps world map (loaded on /status/:id only)
  report.css         Styles for the report widget and world-map layout
  analytics.js       GA4 loader, production-only
  robots.txt         Crawl rules + sitemap pointer
  _headers           Security headers / CSP for static assets
  images/            OG image + self-hosted service icons (logo/services/<id>.png)
  lib/               Vendored MapLibre GL and Protomaps basemap assets (world map rendering)
src/
  index.ts           Worker entry: scheduled() cron + rate-limited/cached /api/* + SSR /status pages & /sitemap.xml
  services.ts        Curated service list + status data sources + shared types
  sources.ts         Per-source-type fetch + normalize (Statuspage/RSS/HTTP); logs each attempt to AE
  analytics.ts       logFetch() helper — writes per-attempt fetch events to the Analytics Engine dataset
  db.ts              D1 persistence: flap-dampening, snapshot upserts, incident transitions, uptime, retention
  pages.ts           Server-rendered status pages (/status, /status/<id>) + sitemap.xml
  reports.ts         Community report write/read/aggregate logic (REPORTS_DB + SNAPSHOT_KV cache)
schema.sql           D1 schema (current / incidents / meta / probe_state) + indexes
schema-reports.sql   D1 schema for REPORTS_DB (reports table + index)
wrangler.jsonc       Worker config (main, assets, cron, D1 × 2, KV, Queues, rate limits × 2, Analytics Engine)

Notes & limitations

• Persistence lives in two D1 databases. DB (status): the current snapshot (one row per service), an incidents log (one row per non-up episode), and a meta row for the last run. Uptime is derived from incident intervals — no high-volume per-poll table — and incident queries are index-backed. REPORTS_DB (community reports): one row per vote (service_id, ip_hash, bucket PK); isolated so vote storms during an outage don't compete with status writes.
• Queue (VOTE_QUEUE) — vote POSTs are enqueued and flushed in batches (up to 100 messages, 60s max wait) by the consumer, so a burst of reports during an outage resolves to a handful of D1 inserts rather than one per request.
• History horizons — resolved incidents are pruned after 90 days (RETENTION_MS in src/db.ts); community report rows after 30 days (RETENTION_MS in src/reports.ts); raise either for longer history.
• Granularity — status/uptime update every 5 minutes (the cron cadence); the UI polls every 45s and serves cached data in between.
• RSS status is heuristic (see the status-model table).
• cf: { cacheTtl } edge caching and the Cache API are no-ops/limited under wrangler dev, so local runs hit upstreams live on each cache miss; production caches aggressively. The native rate limiter is eventually-consistent and per-location, so its cutoff is best-effort rather than an exact count.
