Jenkins Pipeline Example

Goal

The purpose of this project is to demonstrate, through a simple project, how a software delivery pipeline can be assembled using Jenkins.

Some important steps are included in this project, such as unit testing, interface testing, static code analysis, and deploying Docker images.

A pipeline can include more or fewer steps depending on your application scenario. The important thing is to understand the flow needed to deliver the application with confidence and to automate this flow.

Use this project as a basis for ideas for your own pipeline.

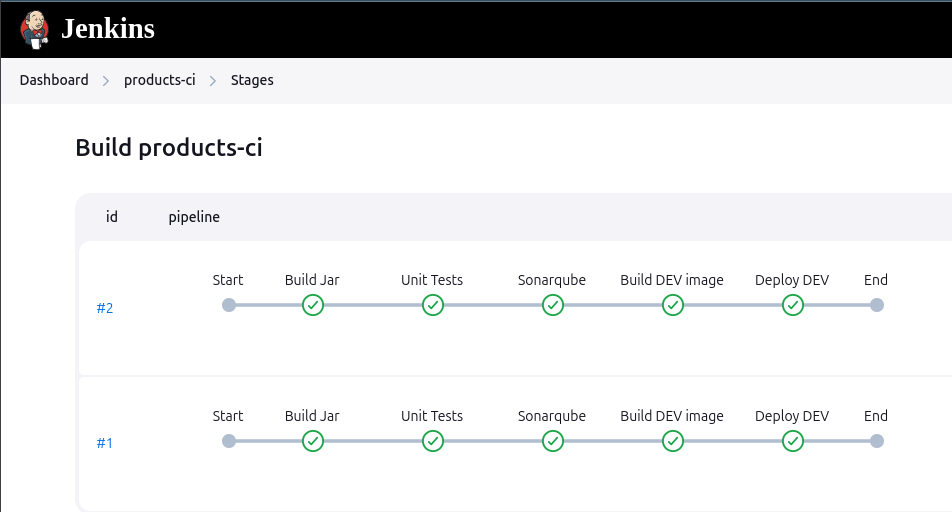

stages-ci

Setup

Having Docker, Java 21 and Gradle installed, execute the commands below:

git clone [email protected]:robsonbittencourt/jenkins-pipeline-example.git

cd jenkins-pipeline-example

./gradlew clean build

sudo chmod 666 /var/run/docker.sock

docker-compose up -d

Permission to the docker.sock file is necessary for the Docker installed in the Jenkins container to access your local Docker.

After that some services will be available:

Application URL Description
App Products DEV http://localhost:8081 Simple app in DEV environment
App Products UAT http://localhost:8085 Simple app in UAT environment
App Products PRD http://localhost:8090 Simple app in PRD environment
Docker Registry http://localhost:5000 A local Docker Registry to publish images

Jenkins

http://localhost:8080

Jenkins to run CI and CD jobs.

jenkins

Sonarqube

http://localhost:9000

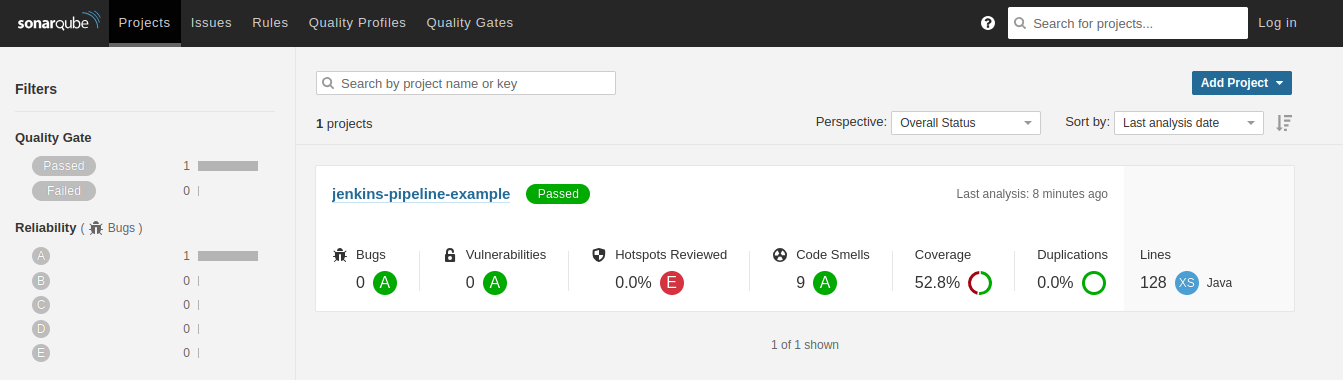

Sonarqube is a tool that performs static code analysis and points out possible problems.

sonar

Selenium Grid

http://localhost:4444/ui/index.html#/

Selenium grid allow run UI Selenium tests in a Docker environment

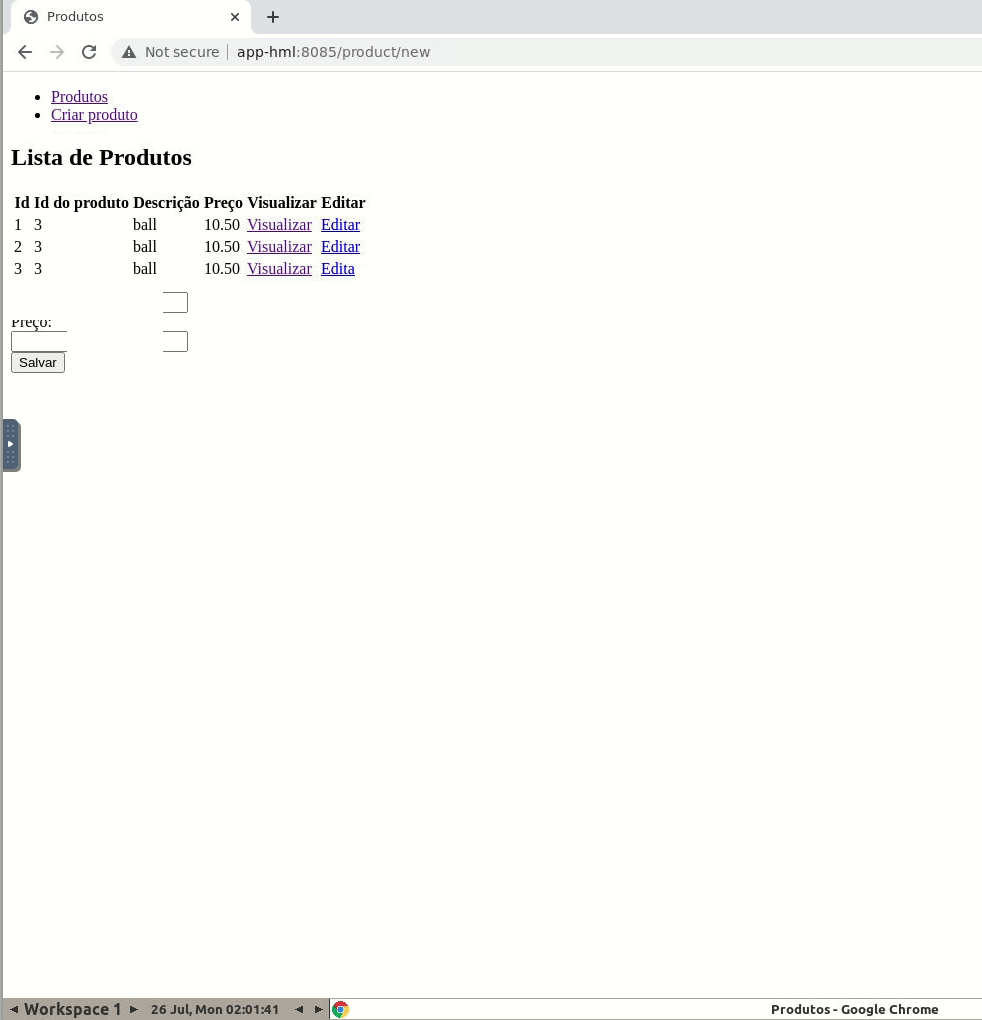

If you want to see tests running on browser access http://localhost:7900. The password is secret.

tests-running

Usage

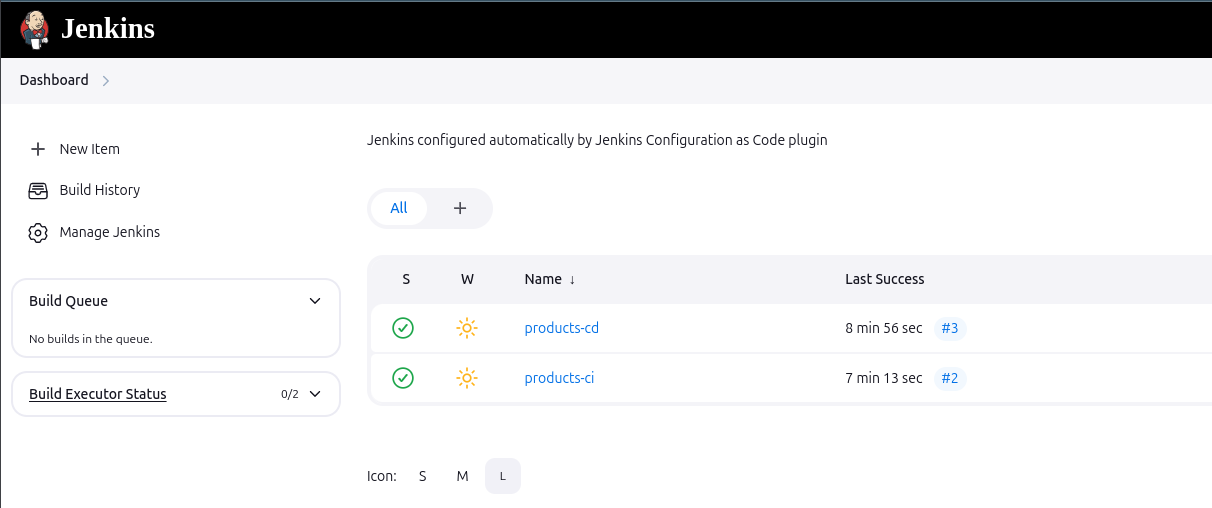

When accessing Jenkins there are two jobs already configured:

products-ci

Run this job to build, test, analyse code, and running app in DEV environment

  • Download the project from Github
  • Run unit-tests
  • Execute Sonarqube analysis
  • Build jar artifact
  • Build and deploy Docker image with DEV tag
  • Run docker container using DEV tag

products-cd

This job update UAT environment, running UI tests and make deploy on PRD environent

  • Download the project from Github
  • Build and deploy Docker image with UAT tag
  • Run docker container using UAT tag
  • Run interface tests in UAT stage
  • Build and deploy Docker image with PRD tag
  • Run docker container using PRD tag
