Leta
The name: Leta is summer in russia. It is the time that i started to make my own wrist watch.

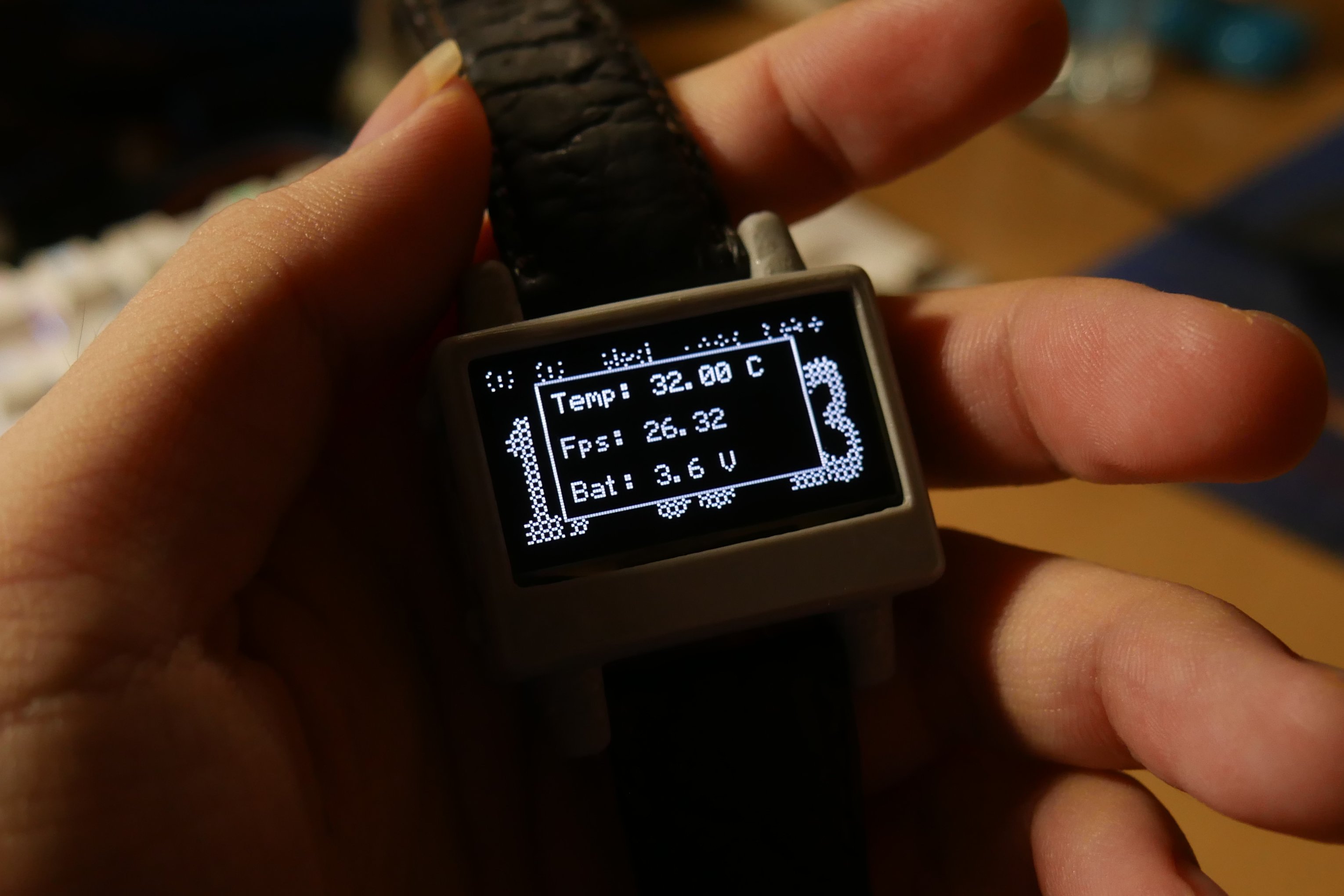

Demo
Link youtube:
https://www.youtube.com/watch?v=F7zo0RkRJ88

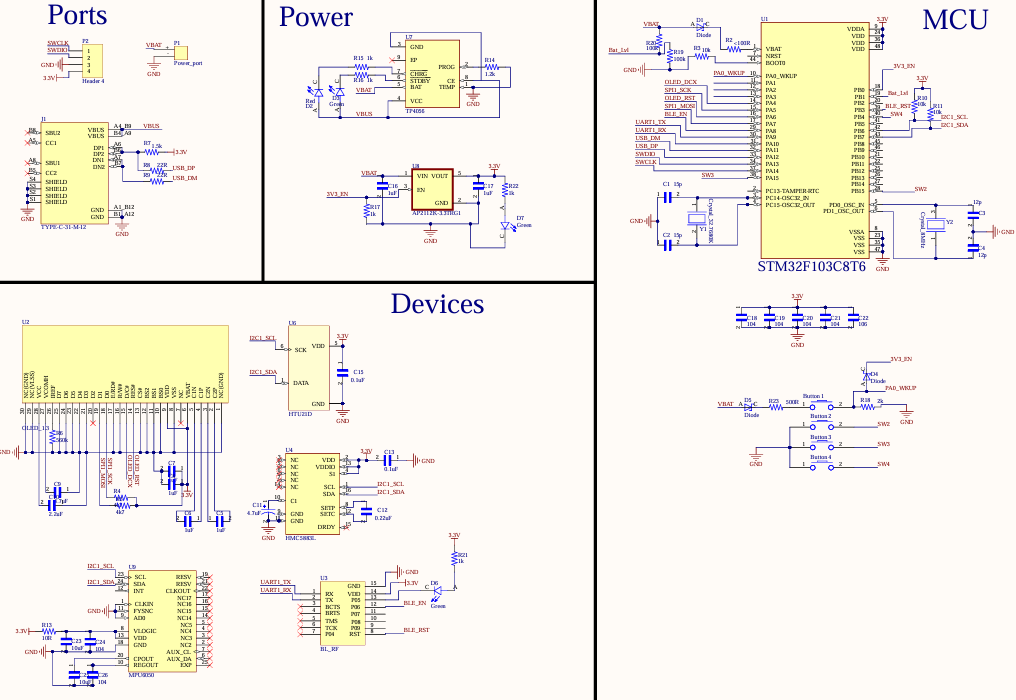

Schematic
- Microcontroller: Stm32f103xx, 128 kB ROM, 20 kB RAM. Build-int RTC.
- IMU: MPU6050, HCM5883L.
- Temp and humid: HTU21D.
- Bluetooth: RF-BM-4044B4(RF-Star).
- Display: SH1106 oled 1.3" 128x64.
- Power: TP4056 charger IC, regulator 3.3V AP2112.

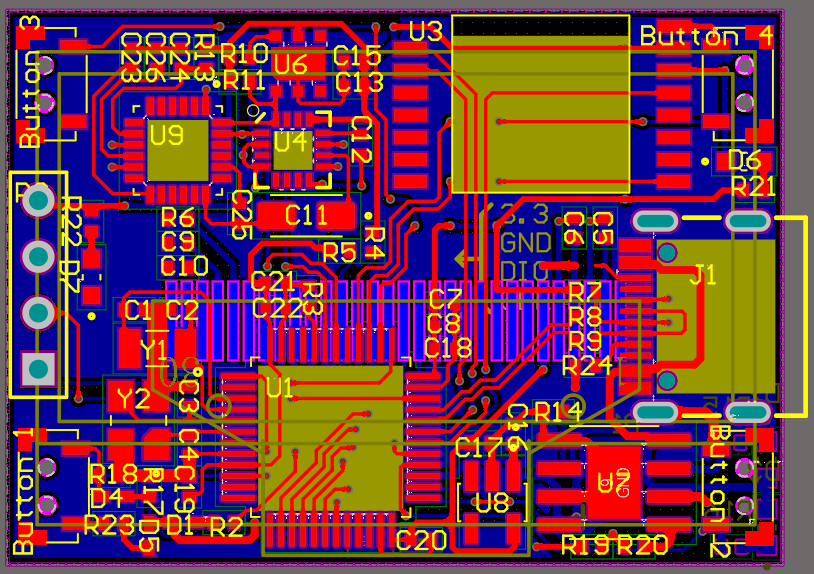

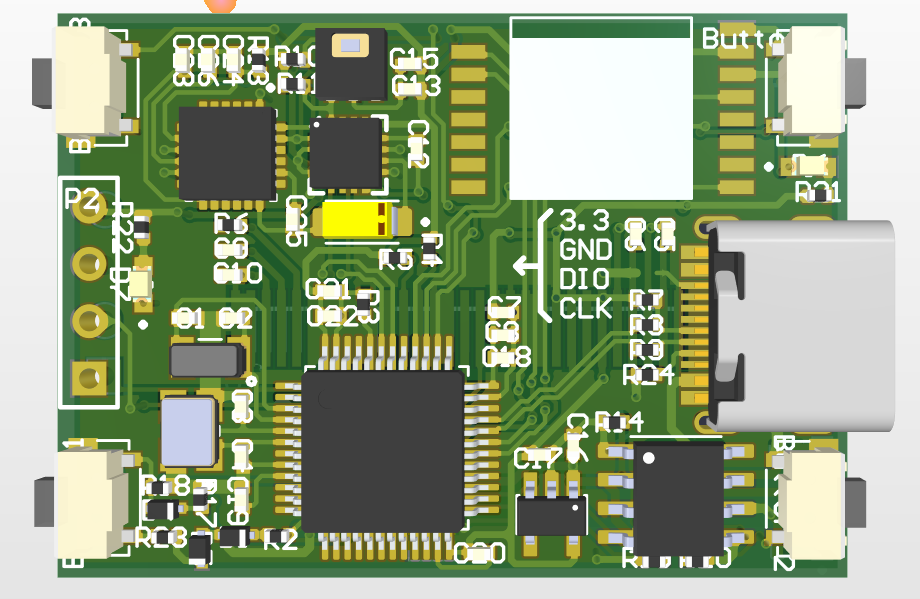

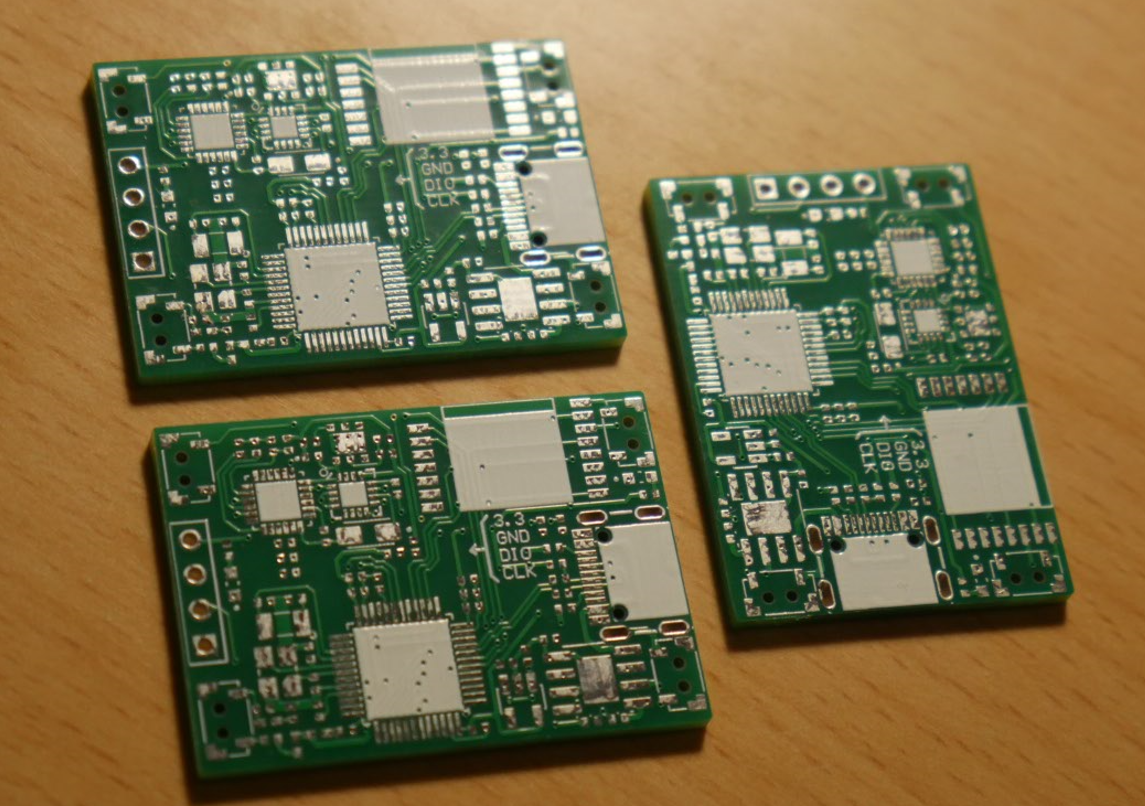

PCB
- 2 layers
- USB interface
- 1 port SWD interface
- 4 buttons

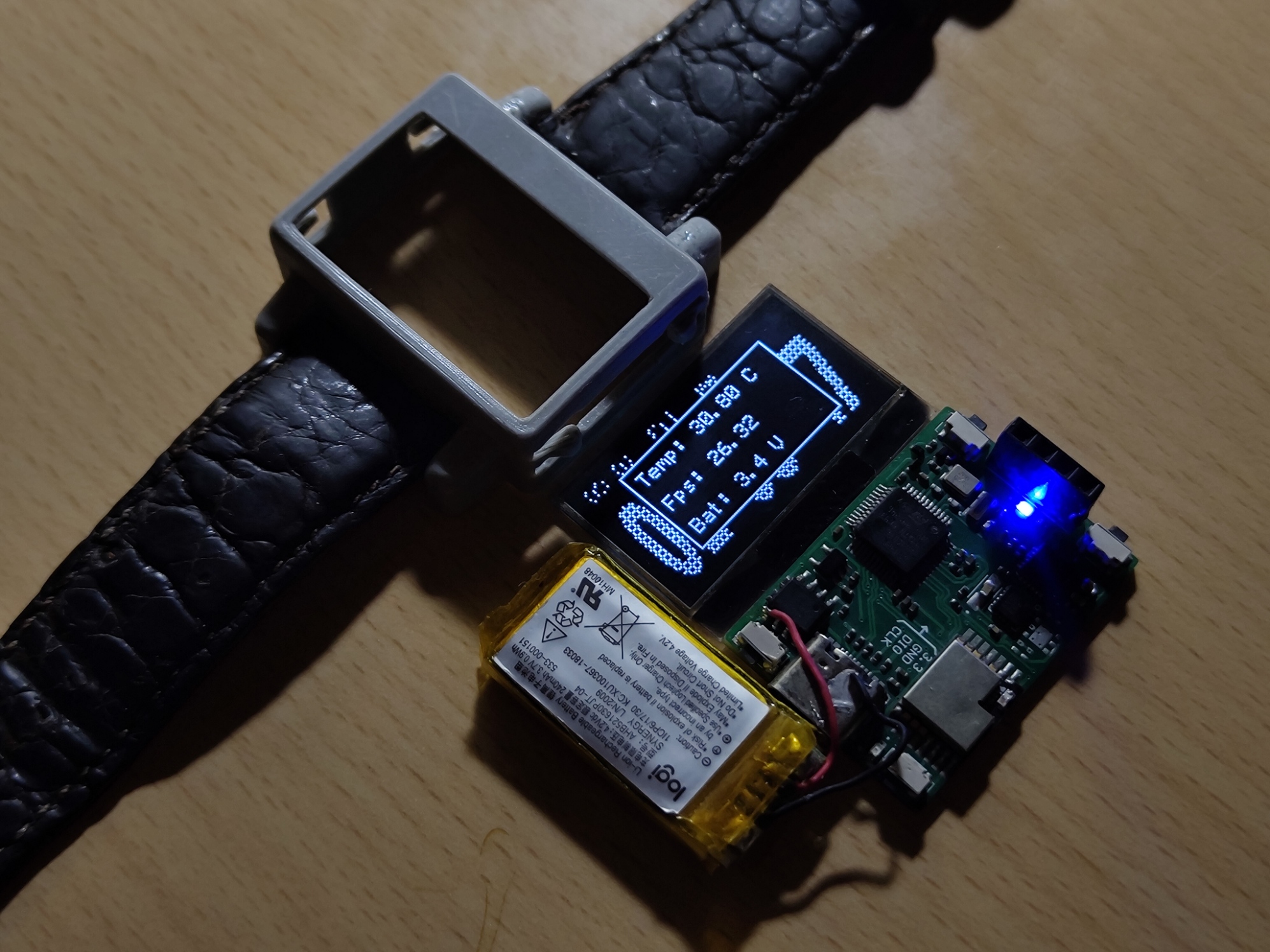

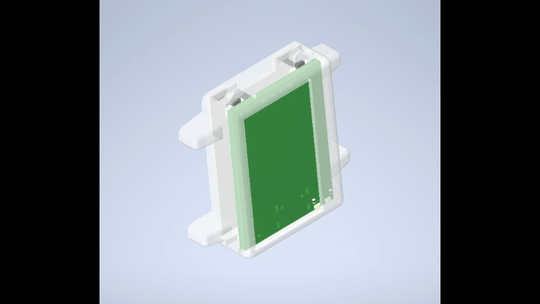

Enclosure

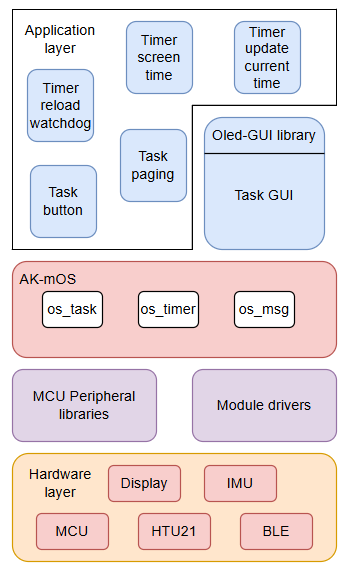

Program layers
AK-mOS
This project uses a mini RTOS (AK-mOS) which written by me for AK-base-kit (ARM cortex M3).
The kit you can check out here:
https://github.com/ak-embedded-software/ak-base-kit-stm32l151
The mini RTOS has following features:
- Preemptive scheduling
- Round-robin scheduling
- Inner tasks communiation
- Software timer
More detail about it:
https://github.com/snoopy3921/AK-mOS---The-simple-RTOS-on-AK-base-kit
This mini RTOS was created for learning purpose with context switch based on freeRTOS.
Im hoping this OS can be used more to test stability.
Oled GUI
To control oled display with rich animating. I wrote the library to increase experience on UI.
The UI has some widget like:
- Switch
- Label text
- Check box
- Bitmap
- Indicator
- Pop-up notify
- Slider
Animating can do these things to widgets:
- Fading
- Moving
- Resizing
Check out here is more detail about my GUI:
https://github.com/snoopy3921/Monochrome-Oled-GUI
References
These links below are materials which helped me a lot when bulding my project:
