Mole Widget

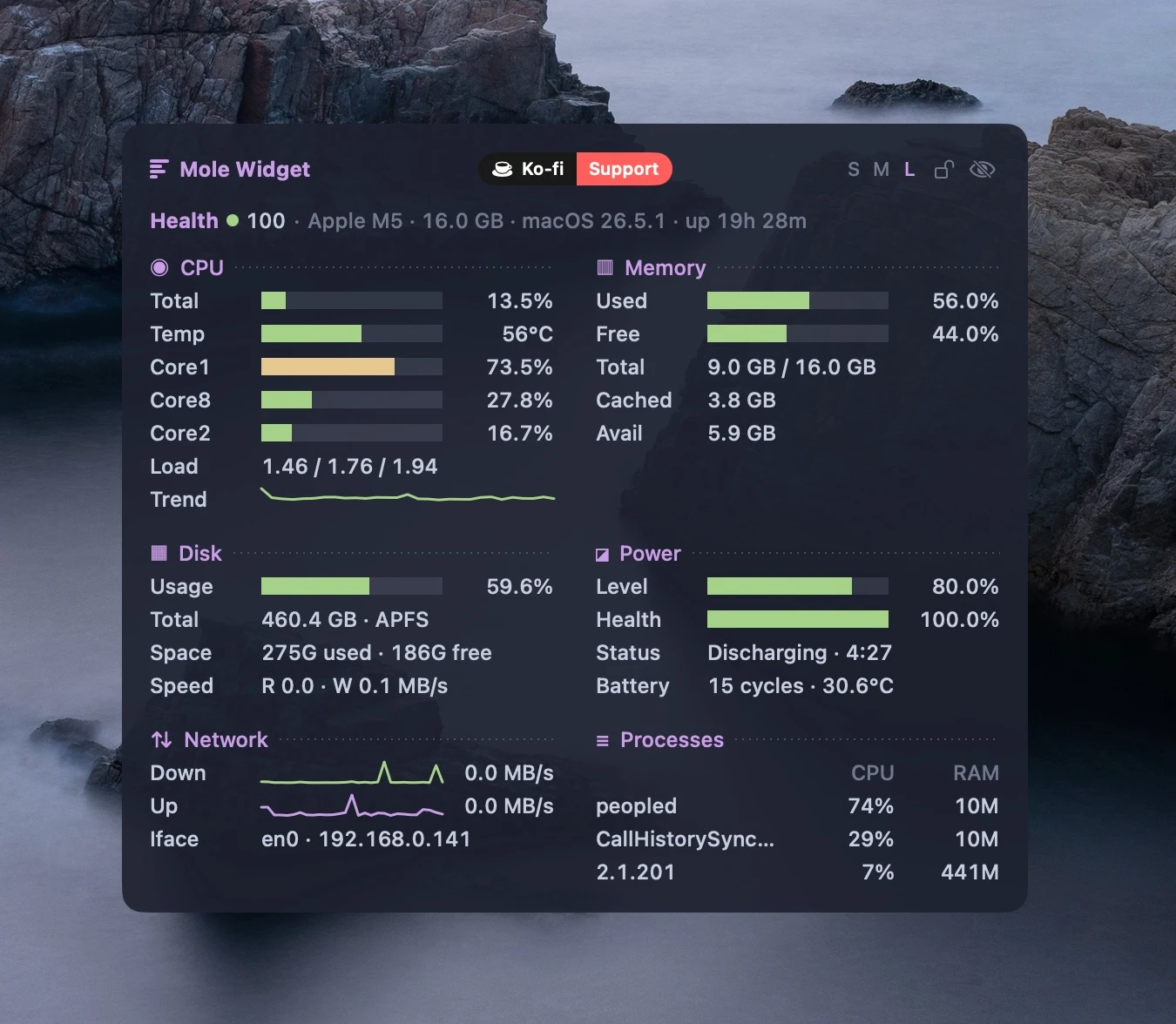

Mole Widget is a lightweight macOS desktop system monitor widget: live CPU, memory, disk, network, battery and process metrics right on your desktop. Native Swift + SwiftUI in the terminal aesthetic of the mo status CLI (mole) — a borderless window living at desktop level, above the wallpaper and below application windows.

Features

Header — chip, RAM, macOS version, uptime and a composite health score (0–100)
CPU — total usage, top-3 busiest cores, load average, usage trend sparkline
Memory — used/free, total, cached, available
Disk — root volume usage, used/free space, read/write speed
Power — charge level, battery health, status, cycle count, temperature
Network — download/upload sparklines with rates, active interface and local IP
Processes — top-3 by CPU with memory footprint
Click any section title to open Activity Monitor
Visible on all Spaces, ignored by Mission Control and ⌘Tab, stays below regular windows
Drag it anywhere with the mouse; position is remembered across launches
Resizable: drag the right edge to adjust the width (490–880 pt), saved across launches
🔒 Clickable lock icon on the widget (plus a "Lock position" menu item) pins both position and size
Hide the widget with the eye icon on it; bring it back via Show on desktop in the menu bar. The hidden state is remembered across launches
Settings in the menu bar: background opacity, visible sections, refresh rate (1/2/5 s)
Launch at login toggle; no Dock icon

Requirements

macOS 14+
Swift 6 toolchain — Command Line Tools are enough (xcode-select --install), full Xcode is not required

Install

Direct download

Download the latest MoleWidget.dmg from the Releases page, open it, drag Mole Widget into Applications, and launch it from there.

The app is signed and notarized — Gatekeeper will not block it.

Homebrew

brew install bsnkhua/tap/mole-widget
mole-widget   # launch the widget

The formula builds the widget from source on your machine (~30 s; needs only the Command Line Tools that Homebrew already requires). Because the app is built locally, Gatekeeper has no objections to the unsigned bundle.

Quit it any time from the menu bar icon → Quit Mole Widget.

From source

make app
open "dist/Mole Widget.app"   # or move it to /Applications

Update

If you installed the DMG into Applications, the widget keeps itself up to date via Sparkle: it checks in the background and, when a new signed release is available, offers to download and install it in place. You can also check on demand from the menu bar icon → Check for Updates….

If you installed via Homebrew, update through brew instead:

brew update && brew upgrade mole-widget && (pkill -f "Mole Widget.app"; sleep 1; mole-widget)

(brew update first — third-party taps refresh only during a full update. The trailing part restarts the widget: brew replaces the files on disk, but the old version keeps running until relaunched.)

Uninstall

Toggle off Launch at login in the menu bar (if you enabled it) and quit the widget
Remove the package:

brew uninstall mole-widget

Optional cleanup — remove the tap and the saved settings:

brew untap bsnkhua/tap
defaults delete com.sbezbabnykh.mole-widget

Uninstalled while the widget was still running? The orphaned process keeps the widget on screen — quit it with:
pkill -f "Mole Widget"

Feedback

Found a bug or have an idea? Open an issue — bug reports and feature requests are both welcome. The widget's menu bar icon also has a Report an Issue shortcut.

Development

make run    # run a dev build
make test   # run the test suite (80 tests)

Important: run tests only via make test. On a machine without full Xcode a bare swift test silently runs zero tests and exits 0 — the Makefile passes the toolchain flags required for Swift Testing from Command Line Tools.

Architecture

Sources/MoleWidgetCore/    — library
  CPU|Memory|Disk|Power/   — one module per domain: pure math + collector
  Store/MetricsStore.swift — @Observable store, 2/30/60 s timers
  Views/                   — SwiftUI, terminal theme
Sources/MoleWidget/        — app shell: desktop-level window, MenuBarExtra

All computation is pure functions over raw snapshots (unit-tested); collectors are thin wrappers around mach APIs / IOKit with smoke tests.
