QuackOSM
An open-source tool for reading OpenStreetMap PBF files using DuckDB.
What is QuackOSM 🦆?
- Scalable reader for OpenStreetMap ProtoBuffer (
pbf) files. - Is based on top of
DuckDB[^1] with itsSpatial[^2] extension. - Saves files in the
GeoParquet[^3] file format for easier integration with modern cloud stacks. - Utilizes multithreading unlike GDAL that works in a single thread only.
- Can filter data based on geometry without the need for
ogr2ogrclipping before operation. - Can filter data based on OSM tags (with negations and wildcards).
- Can automatically download required PBF files for a given geometry.
- Utilizes caching to reduce repeatable computations.
- Can be used as Python module as well as a beautiful CLI based on
Typer[^4].
[^1]: DuckDB Website [^2]: DuckDB Spatial extension repository [^3]: GeoParquet data format [^4]: Typer docs
Installing
As pure Python module
pip install quackosm
# or
uv pip install quackosmWith beautiful CLI
pip install quackosm[cli]
# or
uv pip install quackosm[cli]From conda-forge
# Automatically installs with CLI
conda install conda-forge::quackosmRequired Python version?
QuackOSM supports Python >= 3.10
Dependencies
Required:
-
duckdb (>=1.1.2): For all DuckDB operations on PBF files and sorting result file (withspatialextension) -
pyarrow (>=16.0.0): For parquet files wrangling -
geoarrow-pyarrow (>=0.1.2): For GeoParquet IO operations and transforming Arrow data to Shapely objects -
geopandas (>=0.6): For returning GeoDataFrames and reading Geo files -
shapely (>=2.0): For parsing WKT and GeoJSON strings and fixing geometries -
typeguard (>=3.0): For internal validation of types -
psutil (>=5.6.2): For automatic scaling of parameters based on available resources -
pooch (>=1.6.0): For downloading*.osm.pbffiles and precalculated OSM indexes -
rich (>=12.0.0)&tqdm (>=4.42.0): For showing progress bars -
requests: For iterating OSM PBF files services -
beautifulsoup4: For parsing HTML files and scraping required information -
geopy (>=2.0.0): For geocoding of strings -
anyascii (>=0.3.3): For replacing special characters into ascii when generating OSM extract indexes
Optional:
-
typer (>=0.9.0)(click, colorama, rich, shellingham): Required in CLI -
h3extension forduckdb: For transforming H3 indexes into geometries. Required in CLI -
s2sphere (>=0.2.5): For transforming S2 indexes into geometries. Required in CLI
Usage
If you already have downloaded the PBF file 📁🗺️
Load data as a GeoDataFrame
>>> import quackosm as qosm
>>> qosm.convert_pbf_to_geodataframe(monaco_pbf_path)
tags geometry
feature_id
node/10005045289 {'shop': 'bakery'} POINT (7.42245 43.73105)
node/10020887517 {'leisure': 'swimming_pool', ... POINT (7.41316 43.73384)
node/10021298117 {'leisure': 'swimming_pool', ... POINT (7.42777 43.74277)
node/10021298717 {'leisure': 'swimming_pool', ... POINT (7.42630 43.74097)
node/10025656383 {'ferry': 'yes', 'name': 'Qua... POINT (7.42550 43.73690)
... ... ...
way/990669427 {'amenity': 'shelter', 'shelt... POLYGON ((7.41461 43.7338...
way/990669428 {'highway': 'secondary', 'jun... LINESTRING (7.41366 43.73...
way/990669429 {'highway': 'secondary', 'jun... LINESTRING (7.41376 43.73...
way/990848785 {'addr:city': 'Monaco', 'addr... POLYGON ((7.41426 43.7339...
way/993121275 {'building': 'yes', 'name': ... POLYGON ((7.43214 43.7481...
[7906 rows x 2 columns]Just convert PBF to GeoParquet
>>> import quackosm as qosm
>>> gpq_path = qosm.convert_pbf_to_parquet(monaco_pbf_path)
>>> gpq_path.as_posix()
'files/monaco_nofilter_noclip_compact.parquet'Inspect the file with duckdb
>>> import duckdb
>>> duckdb.load_extension('spatial')
>>> duckdb.read_parquet(str(gpq_path)).order("feature_id")
┌──────────────────┬──────────────────────┬──────────────────────────────────────────────┐
│ feature_id │ tags │ geometry │
│ varchar │ map(varchar, varch… │ geometry │
├──────────────────┼──────────────────────┼──────────────────────────────────────────────┤
│ node/10005045289 │ {shop=bakery} │ POINT (7.4224498 43.7310532) │
│ node/10020887517 │ {leisure=swimming_… │ POINT (7.4131561 43.7338391) │
│ node/10021298117 │ {leisure=swimming_… │ POINT (7.4277743 43.7427669) │
│ node/10021298717 │ {leisure=swimming_… │ POINT (7.4263029 43.7409734) │
│ node/10025656383 │ {ferry=yes, name=Q… │ POINT (7.4254971 43.7369002) │
│ node/10025656390 │ {amenity=restauran… │ POINT (7.4269287 43.7368818) │
│ node/10025656391 │ {name=Capitainerie… │ POINT (7.4272127 43.7359593) │
│ node/10025656392 │ {name=Direction de… │ POINT (7.4270392 43.7365262) │
│ node/10025656393 │ {name=IQOS, openin… │ POINT (7.4275175 43.7373195) │
│ node/10025656394 │ {artist_name=Anna … │ POINT (7.4293446 43.737448) │
│ · │ · │ · │
│ · │ · │ · │
│ · │ · │ · │
│ way/986864693 │ {natural=bare_rock} │ POLYGON ((7.4340482 43.745598, 7.4340263 4… │
│ way/986864694 │ {barrier=wall} │ LINESTRING (7.4327547 43.7445382, 7.432808… │
│ way/986864695 │ {natural=bare_rock} │ POLYGON ((7.4332994 43.7449315, 7.4332912 … │
│ way/986864696 │ {barrier=wall} │ LINESTRING (7.4356006 43.7464325, 7.435574… │
│ way/986864697 │ {natural=bare_rock} │ POLYGON ((7.4362767 43.74697, 7.4362983 43… │
│ way/990669427 │ {amenity=shelter, … │ POLYGON ((7.4146087 43.733883, 7.4146192 4… │
│ way/990669428 │ {highway=secondary… │ LINESTRING (7.4136598 43.7334433, 7.413640… │
│ way/990669429 │ {highway=secondary… │ LINESTRING (7.4137621 43.7334251, 7.413746… │
│ way/990848785 │ {addr:city=Monaco,… │ POLYGON ((7.4142551 43.7339622, 7.4143113 … │
│ way/993121275 │ {building=yes, nam… │ POLYGON ((7.4321416 43.7481309, 7.4321638 … │
├──────────────────┴──────────────────────┴──────────────────────────────────────────────┤
│ 7906 rows (20 shown) 3 columns │
└────────────────────────────────────────────────────────────────────────────────────────┘Use as CLI
$ quackosm monaco.osm.pbf
⠙ [ 1.1/16] Filtering: read nodes • 0:00:00
⠋ [ 1.2/16] Filtering: read nodes points • 0:00:00
⠋ [ 1.3/16] Filtering: read nodes tags • 0:00:00
⠋ [ 1.4/16] Filtering: read elements refs • 0:00:00
⠋ [ 1.5/16] Filtering: read ways refs • 0:00:00
⠋ [ 1.6/16] Filtering: read relations refs • 0:00:00
⠦ [ 1.7/16] Filtering: ways valid ids • 0:00:00
⠦ [ 1.8/16] Filtering: relations valid ids • 0:00:00
⠋ [ 1.9/16] Filtering: unnested relations • 0:00:00
⠋ [1.10/16] Filtering: ways required and valid • 0:00:00
⠋ [1.11/16] Filtering: unnested ways • 0:00:00
⠋ [1.12/16] Filtering: read elements tags • 0:00:00
⠋ [1.13/16] Filtering: read ways tags • 0:00:00
⠋ [1.14/16] Filtering: read relations tags • 0:00:00
⠋ [ 2/16] Saving filtered nodes with geometries • 0:00:00
⠋ [ 3.1/16] Grouping filtered ways - assigning groups • 0:00:00
⠦ [ 3.2/16] Grouping filtered ways - joining with nodes • 0:00:00
⠦ [ 3.3/16] Grouping filtered ways - partitioning by group • 0:00:00
[ 4/16] Saving filtered ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠋ [ 5.1/16] Grouping required ways - assigning groups • 0:00:00
⠦ [ 5.2/16] Grouping required ways - joining with nodes • 0:00:00
⠦ [ 5.3/16] Grouping required ways - partitioning by group • 0:00:00
[ 6/16] Saving required ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠋ [ 7/16] Saving filtered ways with geometries • 0:00:00
⠋ [ 8/16] Saving valid relations parts • 0:00:00
⠋ [ 9/16] Saving relations inner parts • 0:00:00
⠋ [ 10/16] Saving relations outer parts • 0:00:00
⠋ [ 11/16] Saving relations outer parts with holes • 0:00:00
⠋ [ 12/16] Saving relations outer parts without holes • 0:00:00
⠋ [ 13/16] Saving filtered relations with geometries • 0:00:00
⠋ [ 14/16] Saving all features • 0:00:00
⠹ [ 15/16] Saving final geoparquet file • 0:00:00
[ 16/16] Sorting result file by geometry 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 7906/7906 • 0:00:00 < 0:00:00 •
Finished operation in 0:00:06
files/monaco_nofilter_noclip_compact_sorted.parquetLet the QuackOSM automatically download the required OSM PBF files for you based on geometry 🔎🌍
Load data as a GeoDataFrame
>>> import quackosm as qosm
>>> geometry = qosm.geocode_to_geometry("Vatican City")
>>> qosm.convert_geometry_to_geodataframe(geometry)
tags geometry
feature_id
node/10253371713 {'crossing': 'uncontrolled',... POINT (12.45603 41.90454)
node/10253371714 {'highway': 'stop'} POINT (12.45705 41.90400)
node/10253371715 {'highway': 'stop'} POINT (12.45242 41.90164)
node/10253371720 {'artwork_type': 'statue',... POINT (12.45147 41.90484)
node/10253371738 {'natural': 'tree'} POINT (12.45595 41.90609)
... ... ...
way/983015528 {'barrier': 'hedge', 'height'... POLYGON ((12.45027 41.901...
way/983015529 {'barrier': 'hedge', 'height'... POLYGON ((12.45028 41.901...
way/983015530 {'barrier': 'hedge', 'height'... POLYGON ((12.45023 41.901...
way/998561138 {'barrier': 'bollard', 'bicyc... LINESTRING (12.45821 41.9...
way/998561139 {'barrier': 'bollard', 'bicyc... LINESTRING (12.45828 41.9...
[3286 rows x 2 columns]Just convert geometry to GeoParquet
>>> import quackosm as qosm
>>> from shapely import from_wkt
>>> geometry = from_wkt(
... "POLYGON ((14.4861 35.9107, 14.4861 35.8811, 14.5331 35.8811, 14.5331 35.9107, 14.4861 35.9107))"
... )
>>> gpq_path = qosm.convert_geometry_to_parquet(geometry)
>>> gpq_path.as_posix()
'files/4b2967088a8fe31cdc15401e29bff9b7b882565cd8143e90443f39f2dc5fe6de_nofilter_compact.parquet'Inspect the file with duckdb
>>> import duckdb
>>> duckdb.load_extension('spatial')
>>> duckdb.read_parquet(str(gpq_path)).order("feature_id")
┌──────────────────┬──────────────────────┬──────────────────────────────────────────────┐
│ feature_id │ tags │ geometry │
│ varchar │ map(varchar, varch… │ geometry │
├──────────────────┼──────────────────────┼──────────────────────────────────────────────┤
│ node/10001388317 │ {amenity=bench, ba… │ POINT (14.5093988 35.8936881) │
│ node/10001388417 │ {amenity=bench, ba… │ POINT (14.5094635 35.8937135) │
│ node/10001388517 │ {amenity=bench, ba… │ POINT (14.5095215 35.8937305) │
│ node/10018287160 │ {opening_hours=Mo-… │ POINT (14.5184916 35.8915925) │
│ node/10018287161 │ {defensive_works=b… │ POINT (14.5190093 35.8909471) │
│ node/10018287162 │ {defensive_works=h… │ POINT (14.5250094 35.8883199) │
│ node/10018742746 │ {defibrillator:loc… │ POINT (14.5094082 35.8965151) │
│ node/10018742747 │ {amenity=bank, nam… │ POINT (14.51329 35.8991614) │
│ node/10032244899 │ {amenity=restauran… │ POINT (14.4946298 35.8986226) │
│ node/10034853491 │ {amenity=pharmacy} │ POINT (14.4945884 35.9012758) │
│ · │ · │ · │
│ · │ · │ · │
│ · │ · │ · │
│ way/884730763 │ {highway=footway, … │ LINESTRING (14.5218277 35.8896022, 14.5218… │
│ way/884730764 │ {bridge=yes, highw… │ LINESTRING (14.5218054 35.8896015, 14.5218… │
│ way/884730765 │ {highway=footway, … │ LINESTRING (14.5204069 35.889924, 14.52044… │
│ way/884730766 │ {handrail=yes, hig… │ LINESTRING (14.5204375 35.8898663, 14.5204… │
│ way/884730767 │ {access=yes, handr… │ LINESTRING (14.5196113 35.8906142, 14.5196… │
│ way/884730768 │ {highway=steps, la… │ LINESTRING (14.5197226 35.890676, 14.51972… │
│ way/884730769 │ {access=yes, handr… │ LINESTRING (14.5197184 35.8906707, 14.5197… │
│ way/884738591 │ {highway=pedestria… │ LINESTRING (14.5204163 35.8897296, 14.5204… │
│ way/884744870 │ {highway=residenti… │ LINESTRING (14.5218931 35.8864046, 14.5221… │
│ way/884744871 │ {access=yes, handr… │ LINESTRING (14.5221083 35.8864287, 14.5221… │
├──────────────────┴──────────────────────┴──────────────────────────────────────────────┤
│ ? rows (>9999 rows, 20 shown) 3 columns │
└────────────────────────────────────────────────────────────────────────────────────────┘Use as CLI
$ quackosm --geom-filter-geocode "Shibuya, Tokyo"
100%|██████████████████████████████████████| 74.8M/74.8M [00:00<00:00, 321GB/s]
⠸ [ 1.1/16] Filtering: elements by tags • 0:00:00
⠹ [ 1.2/16] Filtering: unnesting relations • 0:00:00
⠋ [ 1.3/16] Filtering: ways required ids • 0:00:00
⠦ [ 1.4/16] Filtering: unnesting ways • 0:00:00
⠼ [ 1.5/16] Filtering: nodes required ids • 0:00:00
⠸ [ 1.6/16] Filtering: reading nodes points • 0:00:00
[ 1.7/16] Filtering: nodes by intersection 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6/6 • 0:00:01 < 0:00:00 •
⠙ [ 1.8/16] Filtering: ways by intersection • 0:00:00
⠋ [ 1.9/16] Filtering: relations by intersection • 0:00:00
⠋ [1.10/16] Filtering: unnested intersected relations • 0:00:00
⠋ [1.11/16] Filtering: ways required intersected ids • 0:00:00
⠋ [1.12/16] Filtering: unnested intersected ways • 0:00:00
⠼ [1.13/16] Filtering: nodes required intersected ids • 0:00:00
⠦ [1.14/16] Filtering: ways valid ids • 0:00:00
⠋ [1.15/16] Filtering: ways required and valid • 0:00:00
⠦ [1.16/16] Filtering: relations valid ids • 0:00:00
⠙ [1.17/16] Filtering: read elements tags • 0:00:00
⠋ [1.18/16] Filtering: read nodes tags • 0:00:00
⠋ [1.19/16] Filtering: read ways tags • 0:00:00
⠋ [1.20/16] Filtering: read relations tags • 0:00:00
⠋ [ 2/16] Saving filtered nodes with geometries • 0:00:00
⠋ [ 3.1/16] Grouping filtered ways - assigning groups • 0:00:00
⠦ [ 3.2/16] Grouping filtered ways - joining with nodes • 0:00:00
⠦ [ 3.3/16] Grouping filtered ways - partitioning by group • 0:00:00
[ 4/16] Saving filtered ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠋ [ 5.1/16] Grouping required ways - assigning groups • 0:00:00
⠦ [ 5.2/16] Grouping required ways - joining with nodes • 0:00:00
⠦ [ 5.3/16] Grouping required ways - partitioning by group • 0:00:00
[ 6/16] Saving required ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠙ [ 7/16] Saving filtered ways with geometries • 0:00:00
⠋ [ 8/16] Saving valid relations parts • 0:00:00
⠋ [ 9/16] Saving relations inner parts • 0:00:00
⠋ [ 10/16] Saving relations outer parts • 0:00:00
⠋ [ 11/16] Saving relations outer parts with holes • 0:00:00
⠋ [ 12/16] Saving relations outer parts without holes • 0:00:00
⠋ [ 13/16] Saving filtered relations with geometries • 0:00:00
⠋ [ 14/16] Saving all features • 0:00:00
⠼ [ 15/16] Saving final geoparquet file • 0:00:00
[ 16/16] Sorting result file by geometry 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 53085/53085 • 0:00:00 < 0:00:00 •
Finished operation in 0:00:11
files/b0089852_nofilter_compact_sorted.parquetLet the QuackOSM automatically find the required OSM PBF file for you based on text query 🔎📄
Load data as a GeoDataFrame
>>> import quackosm as qosm
>>> qosm.convert_osm_extract_to_geodataframe("Vatican City")
tags geometry
feature_id
node/4227893563 {'addr:housenumber': '139', ... POINT (12.45966 41.9039)
node/4227893564 {'amenity': 'fast_food', 'na... POINT (12.45952 41.90391)
node/4227893565 {'name': 'Ferramenta Pieroni... POINT (12.46042 41.90385)
node/4227893566 {'amenity': 'ice_cream', 'na... POINT (12.45912 41.90394)
node/4227893568 {'amenity': 'cafe', 'name': ... POINT (12.46112 41.90381)
... ... ...
relation/2939617 {'building': 'yes', 'type': ... POLYGON ((12.45269 41.908...
relation/11839271 {'building': 'yes', 'type': ... POLYGON ((12.44939 41.897...
relation/12988851 {'access': 'private', 'ameni... POLYGON ((12.45434 41.903...
relation/13571840 {'layer': '1', 'man_made': '... POLYGON ((12.45132 41.899...
relation/3256168 {'building': 'yes', 'type': ... POLYGON ((12.46061 41.907...
[8318 rows x 2 columns]Just convert OSM extract to GeoParquet
>>> import quackosm as qosm
>>> gpq_path = qosm.convert_osm_extract_to_parquet("Paris", osm_extract_source="OSMfr")
>>> gpq_path.as_posix()
'files/osmfr_europe_france_ile_de_france_paris_nofilter_noclip_compact.parquet'Inspect the file with duckdb
>>> import duckdb
>>> duckdb.load_extension('spatial')
>>> duckdb.read_parquet(str(gpq_path)).order("feature_id")
┌──────────────────┬────────────────────────────┬──────────────────────────────┐
│ feature_id │ tags │ geometry │
│ varchar │ map(varchar, varchar) │ geometry │
├──────────────────┼────────────────────────────┼──────────────────────────────┤
│ node/10000001235 │ {information=guidepost, … │ POINT (2.3423756 48.8635788) │
│ node/10000001236 │ {barrier=bollard} │ POINT (2.3423613 48.8635746) │
│ node/10000001237 │ {barrier=bollard} │ POINT (2.3423555 48.8635657) │
│ node/10000001238 │ {barrier=bollard} │ POINT (2.34235 48.8635575) │
│ node/10000001239 │ {barrier=bollard} │ POINT (2.3423438 48.8635481) │
│ node/10000005002 │ {amenity=vending_machine… │ POINT (2.3438906 48.8642058) │
│ node/10000005003 │ {addr:city=Paris, addr:h… │ POINT (2.3441257 48.8642723) │
│ node/10000005297 │ {emergency=fire_hydrant,… │ POINT (2.2943897 48.8356289) │
│ node/10000034353 │ {name=Elisa&Marie, shop=… │ POINT (2.3476407 48.8636628) │
│ node/10000079406 │ {emergency=fire_hydrant,… │ POINT (2.2951077 48.8349097) │
│ · │ · │ · │
│ · │ · │ · │
│ · │ · │ · │
│ node/10180452313 │ {highway=crossing} │ POINT (2.2668596 48.8351167) │
│ node/10180457217 │ {amenity=charging_statio… │ POINT (2.2996381 48.8654136) │
│ node/10180457222 │ {advertising=poster_box,… │ POINT (2.2996126 48.8651971) │
│ node/10180457223 │ {advertising=poster_box,… │ POINT (2.2990548 48.8651713) │
│ node/10180457224 │ {advertising=poster_box,… │ POINT (2.3002578 48.8651435) │
│ node/10180457225 │ {advertising=poster_box,… │ POINT (2.3001396 48.8649086) │
│ node/10180457226 │ {advertising=column, col… │ POINT (2.3002337 48.8648869) │
│ node/10180457227 │ {advertising=poster_box,… │ POINT (2.3004355 48.8648103) │
│ node/10180457247 │ {advertising=poster_box,… │ POINT (2.3006468 48.8647237) │
│ node/10180457248 │ {advertising=poster_box,… │ POINT (2.3008908 48.8643751) │
├──────────────────┴────────────────────────────┴──────────────────────────────┤
│ ? rows (>9999 rows, 20 shown) 3 columns │
└──────────────────────────────────────────────────────────────────────────────┘Use as CLI
$ quackosm --osm-extract-query "Gibraltar"
100%|███████████████████████████████████████| 761k/761k [00:00<00:00, 2.67GB/s]
⠋ [ 1.1/16] Filtering: read nodes • 0:00:00
⠋ [ 1.2/16] Filtering: read nodes points • 0:00:00
⠋ [ 1.3/16] Filtering: read nodes tags • 0:00:00
⠋ [ 1.4/16] Filtering: read elements refs • 0:00:00
⠋ [ 1.5/16] Filtering: read ways refs • 0:00:00
⠋ [ 1.6/16] Filtering: read relations refs • 0:00:00
⠦ [ 1.7/16] Filtering: ways valid ids • 0:00:00
⠦ [ 1.8/16] Filtering: relations valid ids • 0:00:00
⠋ [ 1.9/16] Filtering: unnested relations • 0:00:00
⠋ [1.10/16] Filtering: ways required and valid • 0:00:00
⠋ [1.11/16] Filtering: unnested ways • 0:00:00
⠋ [1.12/16] Filtering: read elements tags • 0:00:00
⠋ [1.13/16] Filtering: read ways tags • 0:00:00
⠋ [1.14/16] Filtering: read relations tags • 0:00:00
⠋ [ 2/16] Saving filtered nodes with geometries • 0:00:00
⠋ [ 3.1/16] Grouping filtered ways - assigning groups • 0:00:00
⠦ [ 3.2/16] Grouping filtered ways - joining with nodes • 0:00:00
⠦ [ 3.3/16] Grouping filtered ways - partitioning by group • 0:00:00
[ 4/16] Saving filtered ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠋ [ 5.1/16] Grouping required ways - assigning groups • 0:00:00
⠦ [ 5.2/16] Grouping required ways - joining with nodes • 0:00:00
⠦ [ 5.3/16] Grouping required ways - partitioning by group • 0:00:00
[ 6/16] Saving required ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠙ [ 7/16] Saving filtered ways with geometries • 0:00:00
⠋ [ 8/16] Saving valid relations parts • 0:00:00
⠋ [ 9/16] Saving relations inner parts • 0:00:00
⠋ [ 10/16] Saving relations outer parts • 0:00:00
⠋ [ 11/16] Saving relations outer parts with holes • 0:00:00
⠋ [ 12/16] Saving relations outer parts without holes • 0:00:00
⠋ [ 13/16] Saving filtered relations with geometries • 0:00:00
⠋ [ 14/16] Saving all features • 0:00:00
⠹ [ 15/16] Saving final geoparquet file • 0:00:00
[ 16/16] Sorting result file by geometry 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 10547/10547 • 0:00:00 < 0:00:00 •
Finished operation in 0:00:06
files/osmfr_europe_gibraltar_nofilter_noclip_compact_sorted.parquetLet the QuackOSM export data directly to a DuckDB database 🦆
Export existing PBF to a specific database file and table
>>> import quackosm as qosm
>>> import duckdb
>>> monaco_pbf_path = "monaco.osm.pbf"
>>> ddb_path = qosm.convert_pbf_to_duckdb(
... pbf_path=monaco_pbf_path,
... result_file_path="monaco_osm.duckdb",
... duckdb_table_name="osm"
... )
>>> ddb_path.as_posix()
'monaco_osm.duckdb'
>>> with duckdb.connect(str(ddb_path)) as con:
... con.load_extension('spatial')
... con.sql("SELECT * FROM osm ORDER BY feature_id;")Export geometry to DuckDB
>>> import quackosm as qosm
>>> from shapely import from_wkt
>>> wkt = (
... "POLYGON ((7.41644 43.73598, 7.41644 43.73142, 7.42378 43.73142,"
... " 7.42378 43.73598, 7.41644 43.73598))"
... )
>>> ddb_path = qosm.convert_geometry_to_duckdb(from_wkt(wkt))
>>> ddb_path.as_posix()
'files/bf4b33debfd6d3e605555340606df6ce7eea934958c1f3477aca0ccf79e7929f_nofilter_compact.duckdb'Extract OSM and save to DuckDB
>>> import quackosm as qosm
>>> ddb_path = qosm.convert_osm_extract_to_duckdb("monaco", osm_extract_source="geofabrik")
>>> db_path.as_posix()
'files/geofabrik_europe_monaco_nofilter_noclip_compact.duckdb'Use as CLI
$ quackosm monaco.osm.pbf --output monaco_osm.duckdb --duckdb-table-name 'osm'
⠋ [ 1.1/16] Filtering: read nodes • 0:00:00
⠋ [ 1.2/16] Filtering: read nodes points • 0:00:00
⠋ [ 1.3/16] Filtering: read nodes tags • 0:00:00
⠋ [ 1.4/16] Filtering: read elements refs • 0:00:00
⠋ [ 1.5/16] Filtering: read ways refs • 0:00:00
⠋ [ 1.6/16] Filtering: read relations refs • 0:00:00
⠦ [ 1.7/16] Filtering: ways valid ids • 0:00:00
⠦ [ 1.8/16] Filtering: relations valid ids • 0:00:00
⠋ [ 1.9/16] Filtering: unnested relations • 0:00:00
⠋ [1.10/16] Filtering: ways required and valid • 0:00:00
⠋ [1.11/16] Filtering: unnested ways • 0:00:00
⠋ [1.12/16] Filtering: read elements tags • 0:00:00
⠋ [1.13/16] Filtering: read ways tags • 0:00:00
⠋ [1.14/16] Filtering: read relations tags • 0:00:00
⠋ [ 2/16] Saving filtered nodes with geometries • 0:00:00
⠋ [ 3.1/16] Grouping filtered ways - assigning groups • 0:00:00
⠦ [ 3.2/16] Grouping filtered ways - joining with nodes • 0:00:00
⠦ [ 3.3/16] Grouping filtered ways - partitioning by group • 0:00:00
[ 4/16] Saving filtered ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠋ [ 5.1/16] Grouping required ways - assigning groups • 0:00:00
⠦ [ 5.2/16] Grouping required ways - joining with nodes • 0:00:00
⠦ [ 5.3/16] Grouping required ways - partitioning by group • 0:00:00
[ 6/16] Saving required ways with linestrings 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1/1 • 0:00:00 < 0:00:00 •
⠙ [ 7/16] Saving filtered ways with geometries • 0:00:00
⠋ [ 8/16] Saving valid relations parts • 0:00:00
⠋ [ 9/16] Saving relations inner parts • 0:00:00
⠋ [ 10/16] Saving relations outer parts • 0:00:00
⠋ [ 11/16] Saving relations outer parts with holes • 0:00:00
⠋ [ 12/16] Saving relations outer parts without holes • 0:00:00
⠋ [ 13/16] Saving filtered relations with geometries • 0:00:00
⠋ [ 14/16] Saving all features • 0:00:00
⠹ [ 15/16] Saving final geoparquet file • 0:00:00
[ 16/16] Sorting result file by geometry 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 7906/7906 • 0:00:00 < 0:00:00 •
Finished operation in 0:00:06
monaco_osm.duckdbCLI Help output (QuackOSM -h)
Usage: QuackOSM [OPTIONS] [PBF file path]
QuackOSM CLI.
Wraps convert_pbf_to_parquet, convert_geometry_to_parquet and convert_osm_extract_to_parquet
functions and prints final path to the saved geoparquet file at the end.
╭─ Arguments ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ pbf_file [PBF file path] PBF file to convert into GeoParquet. Can be an URL. │
╰─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ --osm-tags-filter TEXT (JSON) OSM tags used to filter the data in the JSON text form. Can take the form of a flat or grouped dict │
│ (look: OsmTagsFilter and GroupedOsmTagsFilter). Cannot be used together with osm-tags-filter-file. │
│ --osm-tags-filter-file PATH OSM tags used to filter the data in the JSON file form. Can take the form of a flat or grouped dict │
│ (look: OsmTagsFilter and GroupedOsmTagsFilter). Cannot be used together with osm-tags-filter. │
│ --keep-all-tags,--all-tags Whether to keep all tags while filtering with OSM tags. Doesn't work when there is no OSM tags filter │
│ applied (osm-tags-filter or osm-tags-filter-file). Will override grouping if GroupedOsmTagsFilter has │
│ been passed as a filter. │
│ --geom-filter-bbox BBOX Geometry to use as a filter in the bounding box format - 4 floating point numbers separated by commas. │
│ Cannot be used together with other geom-filter-... parameters. │
│ --geom-filter-file PATH Geometry to use as a filter in the file format - any that can be opened by GeoPandas. Will return the │
│ unary union of the geometries in the file. Cannot be used together with other geom-filter-... parameters. │
│ --geom-filter-geocode TEXT Geometry to use as a filter in the string to geocode format - it will be geocoded to the geometry using │
│ Nominatim API (GeoPy library). Cannot be used together with other geom-filter-... parameters. │
│ --geom-filter-geojson TEXT (GEOJSON) Geometry to use as a filter in the GeoJSON format. Cannot be used together with other geom-filter-... │
│ parameters. │
│ --geom-filter-index-geohash TEXT (GEOHASH) Geometry to use as a filter in the Geohash index format. Separate multiple values with a comma. Cannot be │
│ used together with other geom-filter-... parameters. │
│ --geom-filter-index-h3 TEXT (H3) Geometry to use as a filter in the H3 index format. Separate multiple values with a comma. Cannot be used │
│ together with other geom-filter-... parameters. │
│ --geom-filter-index-s2 TEXT (S2) Geometry to use as a filter in the S2 index format. Separate multiple values with a comma. Cannot be used │
│ together with other geom-filter-... parameters. │
│ --geom-filter-wkt TEXT (WKT) Geometry to use as a filter in the WKT format. Cannot be used together with other geom-filter-... │
│ parameters. │
│ --custom-sql-filter TEXT Allows users to pass custom SQL conditions used to filter OSM features. It will be embedded into │
│ predefined queries and requires DuckDB syntax to operate on tags map object. │
│ --osm-extract-query TEXT Query to find an OpenStreetMap extract from available sources. Will automatically find and download OSM │
│ extract. Can be used instead of PBF file path argument. │
│ --osm-extract-source,--pbf-download-source [any|geofabrik|osmfr|bbbike] Source where to download the PBF file from. Can be Geofabrik, BBBike, OSMfr (OpenStreetMap.fr) or any. │
│ [default: (any)] │
│ --explode-tags,--explode --compact-tags,--compact Whether to split tags into columns based on the OSM tag keys. If None, it will be set based on the │
│ osm-tags-filter/osm-tags-filter-file and keep-all-tags parameters. If there is a tags filter applied │
│ without keep-all-tags then it'll be set to explode-tags (True). Otherwise it'll be set to compact-tags │
│ (False). │
│ --output -o PATH Path where to save final result file. If not provided, it will be generated automatically based on the │
│ input pbf file name. Can be .parquet or .db or .duckdb extension. │
│ --duckdb Export to duckdb database. If not provided, data can still be exported if output has .db or .duckdb │
│ extension. │
│ --duckdb-table-name TEXT Table name which the data will be imported into in the DuckDB database. [default: quackosm] │
│ --compression TEXT Compression of the final parquet file. [default: zstd] │
│ --compression-level INTEGER Compression level of the final parquet file. Supported only for zstd compression. [default: 3] │
│ --row-group-size INTEGER Approximate number of rows per row group in the final parquet file. [default: 100000] │
│ --parquet-version TEXT Type of parquet version used to save final file. Supported options: v1 and v2. [default: v2] │
│ --ignore-cache,--no-cache Whether to ignore previously precalculated geoparquet files or not. │
│ --working-directory,--work-dir PATH Directory where to save the parsed parquet and geoparquet files. Will be created if doesn't exist. │
│ [default: files] │
│ --osm-way-polygon-config PATH Config where alternative OSM way polygon features config is defined. Will determine how to parse way │
│ features based on tags. Option is intended for experienced users. It's recommended to disable cache │
│ (no-cache) when using this option, since file names don't contain information what config file has been │
│ used for file generation. │
│ --filter-osm-ids TEXT List of OSM features IDs to read from the file. Have to be in the form of 'node/<id>', 'way/<id>' or │
│ 'relation/<id>'. Separate multiple values with a comma. │
│ --sort --no-sort Whether to sort the final geoparquet file by geometry or not. [default: sort] │
│ --ignore-metadata-tags --keep-metadata-tags Whether to remove metadata tags, based on the default GDAL config. [default: ignore-metadata-tags] │
│ --wkt-result,--wkt Whether to save the geometry as a WKT string instead of WKB blob. │
│ --silent Whether to disable progress reporting. │
│ --transient Whether to make more transient (concise) progress reporting. │
│ --iou-threshold FLOAT RANGE [0<=x<=1] Minimal value of the Intersection over Union metric for selecting the matching OSM extracts. Is best │
│ matching extract has value lower than the threshold, it is discarded (except the first one). Has to be in │
│ range between 0 and 1. Value of 0 will allow every intersected extract, value of 1 will only allow │
│ extracts that match the geometry exactly. Works only when PbfFileReader is asked to download OSM extracts │
│ automatically. │
│ [default: 0.01] │
│ --allow-uncovered-geometry Suppresses an error if some geometry parts aren't covered by any OSM extract. Works only when │
│ PbfFileReader is asked to download OSM extracts automatically. │
│ --cpu-limit INTEGER Max number of threads available for processing. By default, will use all available threads. │
│ --show-extracts,--show-osm-extracts Show available OSM extracts and exit. │
│ --version -v Show the application's version and exit. │
│ --install-completion Install completion for the current shell. │
│ --show-completion Show completion for the current shell, to copy it or customize the installation. │
│ --help -h Show this message and exit. │
╰─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯You can find full API + more examples in the docs.
How does it work?
Basic logic
QuackOSM utilizes ST_ReadOSM function from DuckDB's Spatial extension to read raw data from the PBF file:
- Nodes with coordinates and tags;
- Ways with nodes refs and tags;
- Relations with nodes and ways refs, ref roles and tags.
Library contains a logic to construct geometries (points, linestrings, polygons) from those raw features.
- Read nodes, ways, and relations from the PBF file into in-memory views, applying basic validity checks (nodes must have coordinates, ways must have ≥2 refs, relations must be of type
boundaryormultipolygon). - (Optional) Filter all elements — nodes, ways, and relations — in a single pass by tags filter, custom SQL filter, and/or explicit OSM IDs.
- Resolve relation → way dependencies:
- Unnest way refs from filtered relations.
- Collect ways required by those relations and merge them with the directly filtered ways.
- Resolve way → node dependencies:
- Unnest node refs from all filtered and required ways.
- Collect nodes required by those ways and merge them with the directly filtered nodes.
- Load coordinates for all filtered and required nodes.
- (Optional) Pre-filter by the bounding box of the geometry filter to reduce data volume.
- (Optional) Apply precise geometry filter:
- Intersect nodes with the geometry polygon.
- Filter ways: keep those with at least one intersecting node.
- Filter relations: keep those referencing at least one intersecting way.
- Re-derive required ways from intersecting relations; merge with directly intersecting ways.
- Trim unnested way refs to the intersecting set.
- Collect the final node set: directly intersecting nodes plus nodes required by intersecting ways.
- Validate ways: discard ways with any missing node refs.
- Validate relations: discard relations with any missing way refs.
- Load tags for all valid filtered elements (nodes, ways, relations).
- Save filtered nodes with point geometries.
- Group ways with node geometries and construct linestrings.
- Save filtered ways with linestring and polygon geometries (depending on tag values).
- Divide relation parts into inner and outer polygons.
- Group relation parts into full (multi)polygons and save them.
- Fix invalid geometries.
- Return final GeoParquet file.
Geometry validation
You might ask a question: How do I know that these geometries are reconstructed correctly?
To answer this question, the QuackOSM has implemented dedicated tests that validate the results of GDAL geometries vs QuackOSM.
This might come as a surprise, but since OSM geometries aren't always perfectly defined (especially relations), the QuackOSM can even fix geometries that are loaded with weird artifacts by GDAL.
You can inspect the comparison algorithm in the test_gdal_parity function from tests/base/test_pbf_file_reader.py file.
Caching
Library utilizes caching system to reduce repeatable computations.
By default, the library is saving results in the files directory created in the working directory. Result file name is generated based on the original *.osm.pbf file name.
Original file name to be converted: example.osm.pbf.
Default output without any filtering: example_nofilter_noclip_compact.parquet.
The nofilter part can be replaced by the hash of OSM tags provided for filtering.
example_a9dd1c3c_noclip_exploded.parquet
The noclip part can be replaced by the hash of geometry used for filtering.
example_nofilter_430020b6_compact.parquet
The compact part can also take the form of exploded, it represents the form of OSM tags - either kept together in a single dictionary or split into columns.
When filtering by selecting individual features IDs, an additional hash based on those IDs is appended to the file.
example_nofilter_noclip_compact_c740a159.parquet
When the keep_all_tags parameter is passed while filtering by OSM tags, and additional alltags component is added after the osm filter hash part.
example_a9dd1c3c_alltags_noclip_compact.parquet
General schema of multiple segments that are concatenated together:
pbf_file_name_(osm_filter_tags_hash_part/nofilter)(_alltags)_(clipping_geometry_hash_part/noclip)_(compact/exploded)(_filter_osm_ids_hash_part).parquet
If the WKT mode is turned on, then the result file will be saved with a
_wktsuffix.
Memory usage
DuckDB queries requiring JOIN, GROUP and ORDER BY operations are very memory intensive. Because of that, some steps are divided into chunks (groups) with a set number of rows per chunk. QuackOSM runs all expensive queries in a separate process and automatically reduces number of available CPU cores if there is not enough memory.
QuackOSM has been roughly tuned to different workloads. The rows_per_group variable is set based on an available memory in the system:
| Memory | Rows per group |
|---|---|
| < 1 GB | 10 000 |
| 1 - 2 GB | 50 000 |
| 2 - 4 GB | 100 000 |
| 4 - 8 GB | 1 000 000 |
| 8 - 16 GB | 4 000 000 |
| 16 - 32 GB | 16 000 000 |
| > 32 GB | 48 000 000 |
Resources usage
The algorithm depends on saving intermediate .parquet files between queries.
As a rule of thumb, when parsing a full file without filtering, you should have at least 10x more free space on disk than the base file size (100MB pbf file -> 1GB free space to parse it).
With filtering by tags or by geometry, the disk space usage drops significantly, because filtering happens during original PBF file scan.
Below you can see the chart of resources usage during operation. Generated on a Github Actions Ubuntu virtual machine with 4 threads and 16 GB of memory.

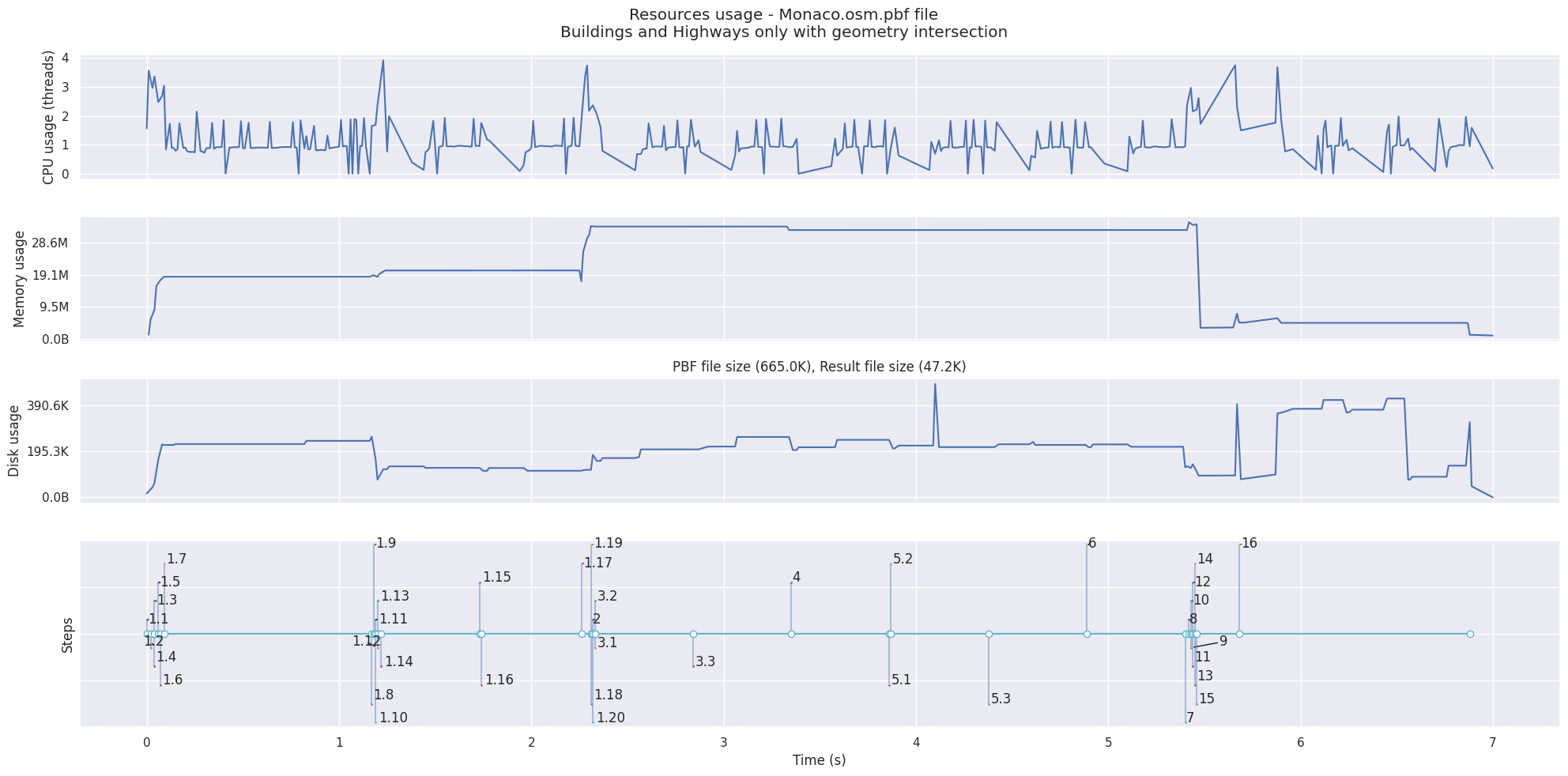

Monaco
PBF file size: <1MB

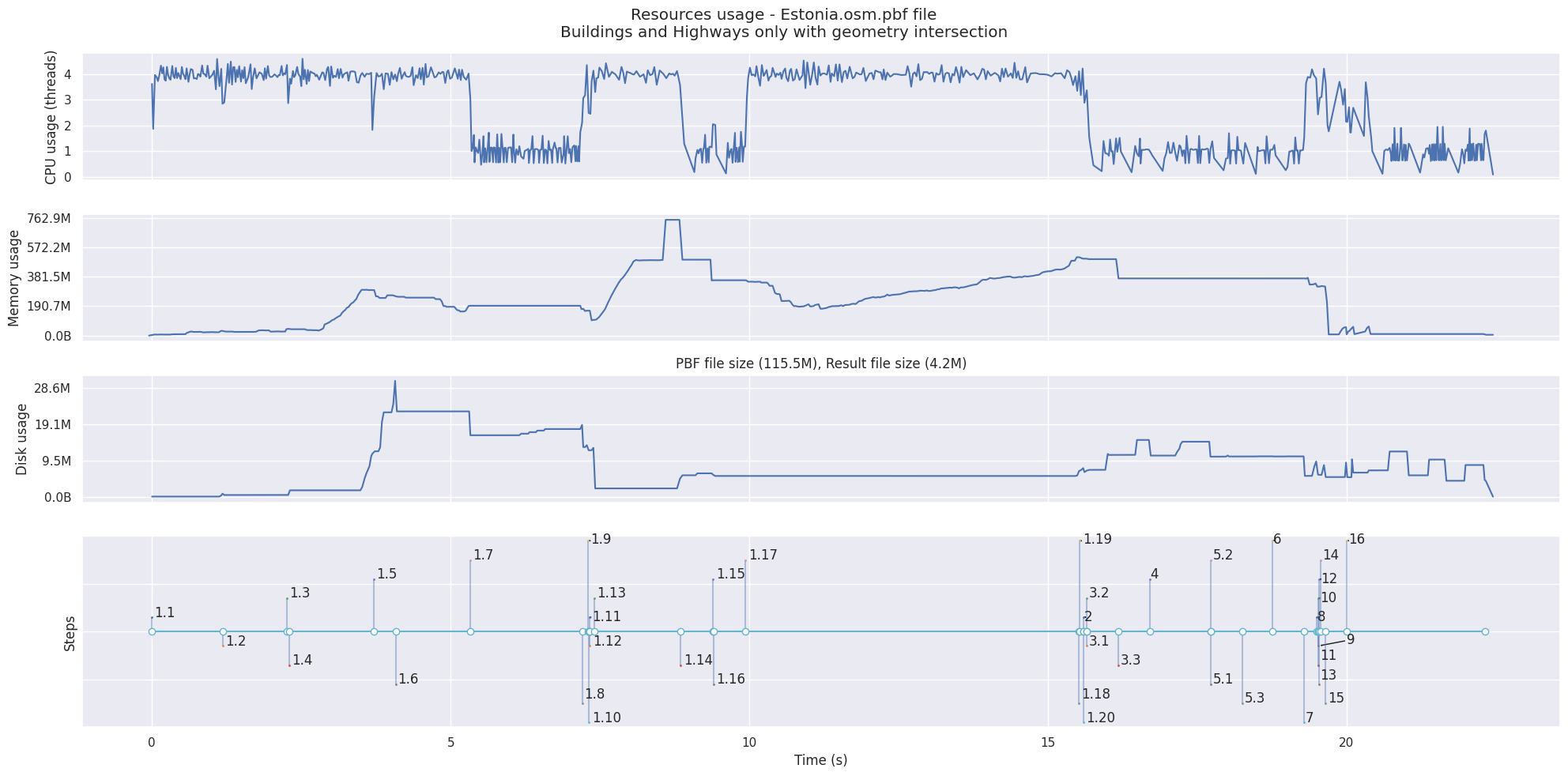

Estonia
PBF file size: ~100 MB

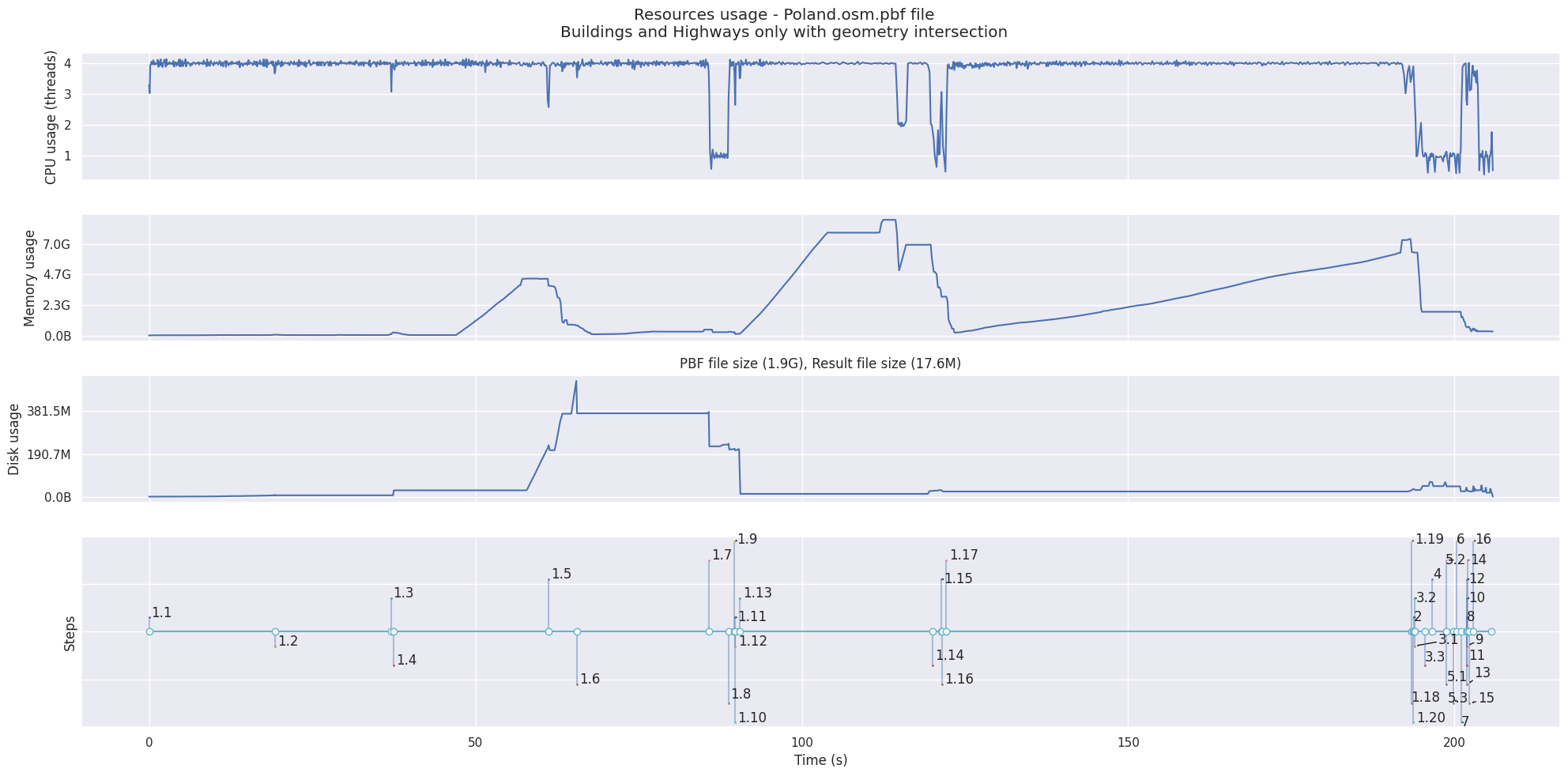

Poland
PBF file size: ~2 GB
License
The library is distributed under Apache-2.0 License.
The free OpenStreetMap data, which is used for the development of QuackOSM, is licensed under the Open Data Commons Open Database License (ODbL) by the OpenStreetMap Foundation (OSMF).
