About RvSystem-Monitor

Modern Android system monitoring app using Jetpack Compose and Rust

r

Published by

README.md

🚀 RvSystem Monitor

RvSystem Monitor is a high-performance system monitoring solution for Android, merging the expressive power of Jetpack Compose with the raw efficiency of Rust. It provides low-level hardware insights while maintaining a modern, buttery-smooth user experience.

🚀 Overview

RvSystem Monitor bridges the gap between high-level UI frameworks and low-level system APIs. By utilizing a Rust-based backend, it minimizes the performance overhead typically associated with frequent polling of kernel files like /proc and /sys. This hybrid approach allows for real-time monitoring of CPU frequencies, GPU drivers, battery health, and memory usage without compromising the device's responsiveness.

Built with Material 3 Expressive, the application offers a visually rich experience with adaptive layouts and sophisticated transitions, making system diagnostics both powerful and beautiful.

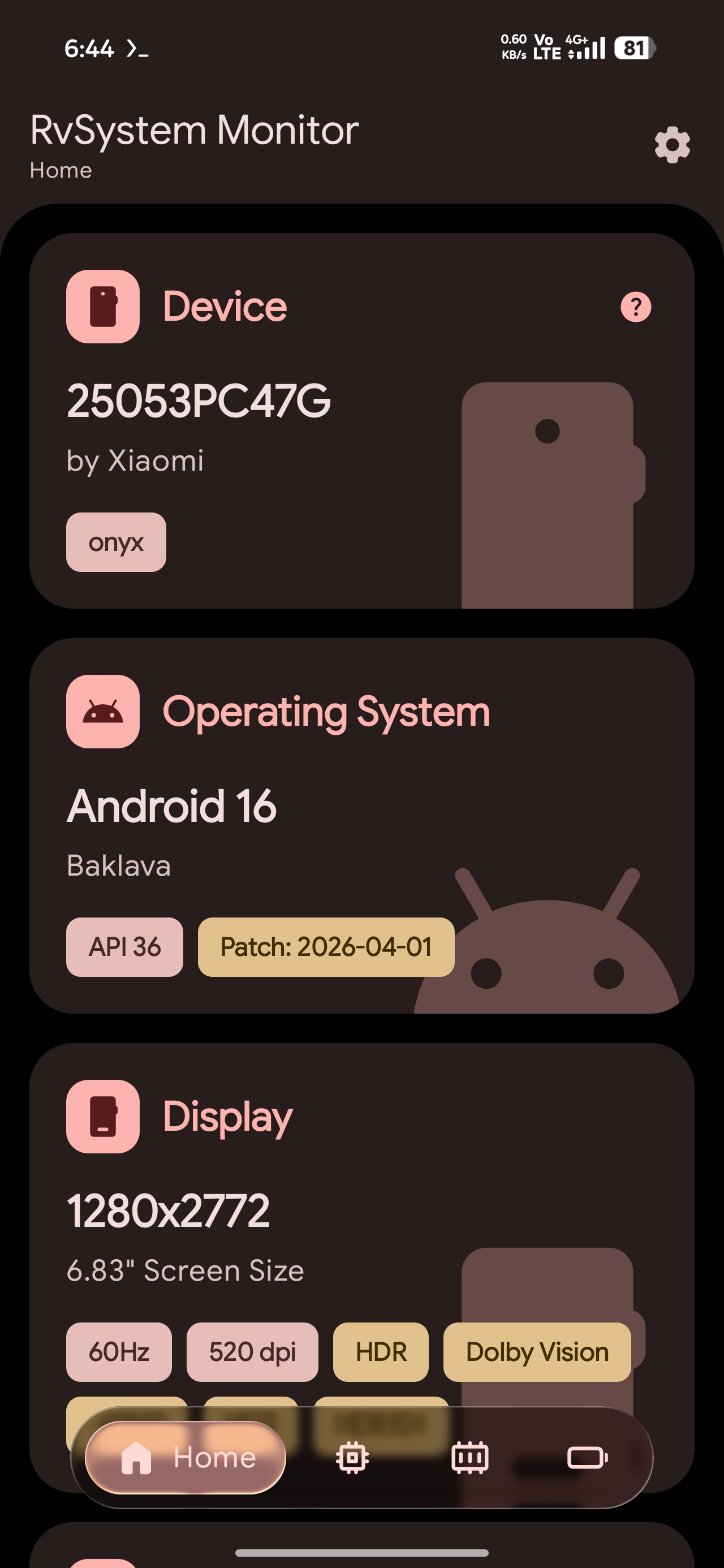

📸 Screenshots

✨ Key Features

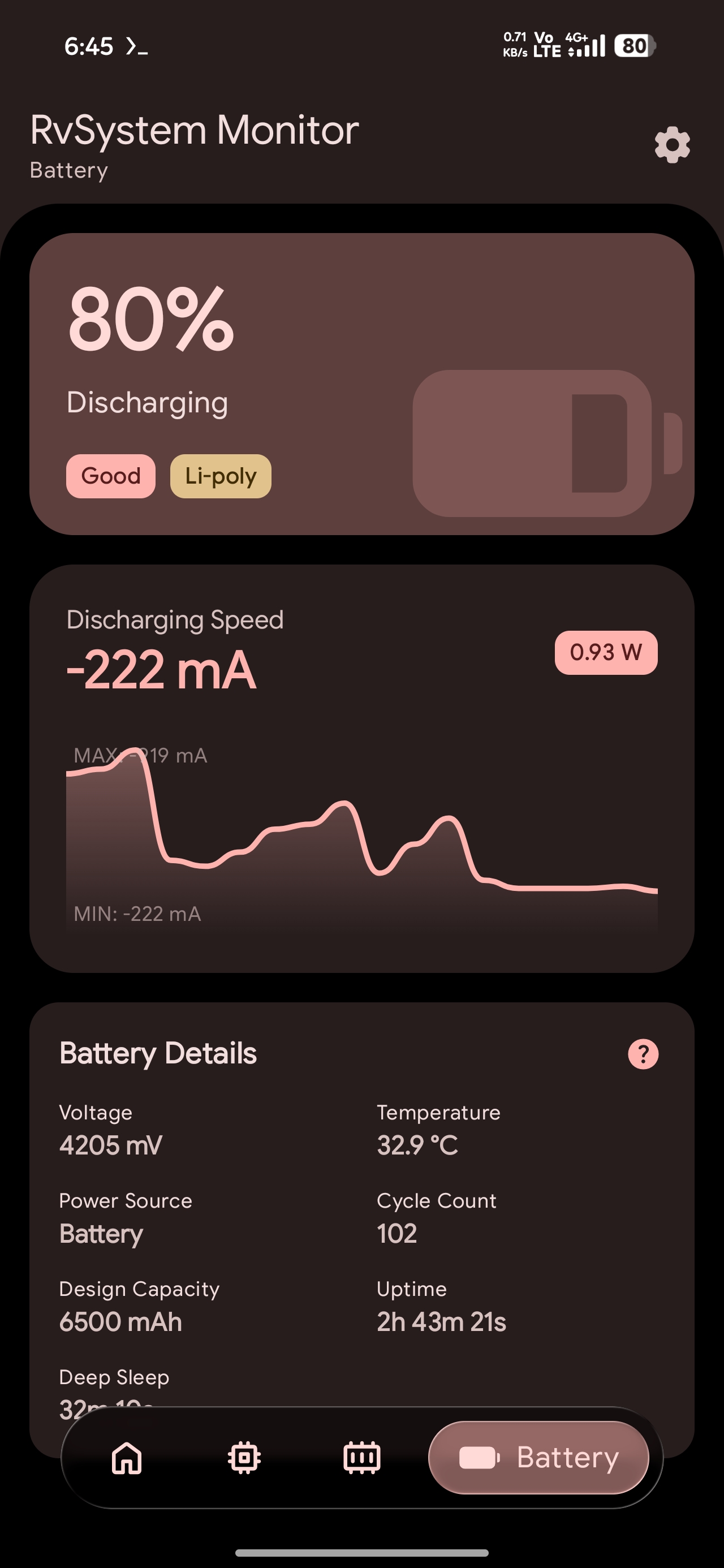

🔋 Battery Intelligence: Live tracking of Wattage (W), cycle counts (Android 14+), health percentage, and precise Deep Sleep vs. Uptime metrics.

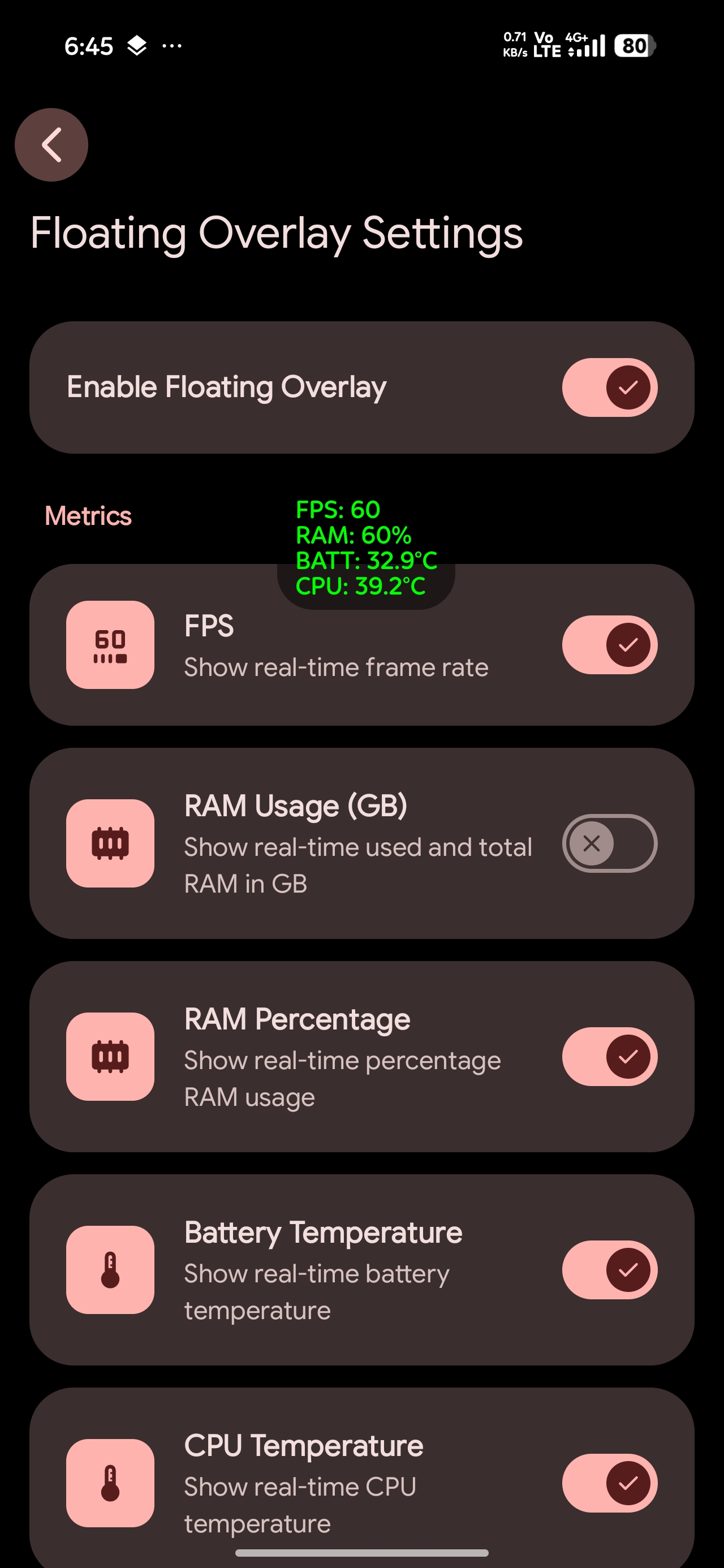

🖥️ Floating Overlay: A draggable, high-performance floating monitor powered by Android's Choreographer for accurate frame-timing.
- Metrics: Real-time FPS tracking, RAM usage (GB/Percentage), and live CPU & Battery temperatures.
- Customization: Fully configurable via dedicated settings including update intervals (down to 0.5s), text size, colors, background opacity, padding, and corner radius.
- Adaptive Layout: Supports both horizontal (piped) and vertical (stacked) orientations to fit any screen usage scenario.
🎮 GPU & Graphics: Retrieval of GPU renderer, vendor, and supported OpenGL ES & Vulkan versions directly through the EGL context and native drivers.

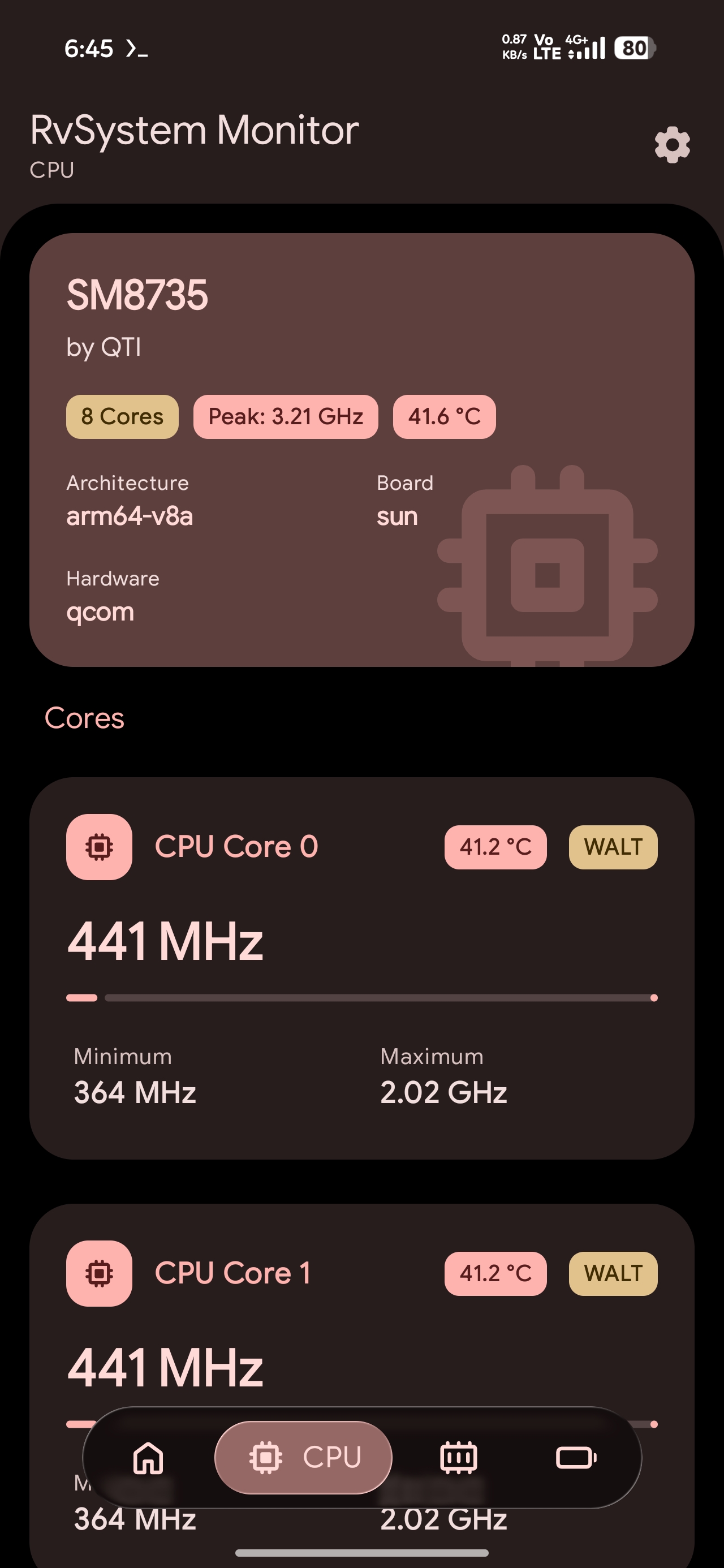

⚙️ CPU Dynamics: Detailed per-core monitoring including current, minimum, and maximum frequencies and scaling governors.

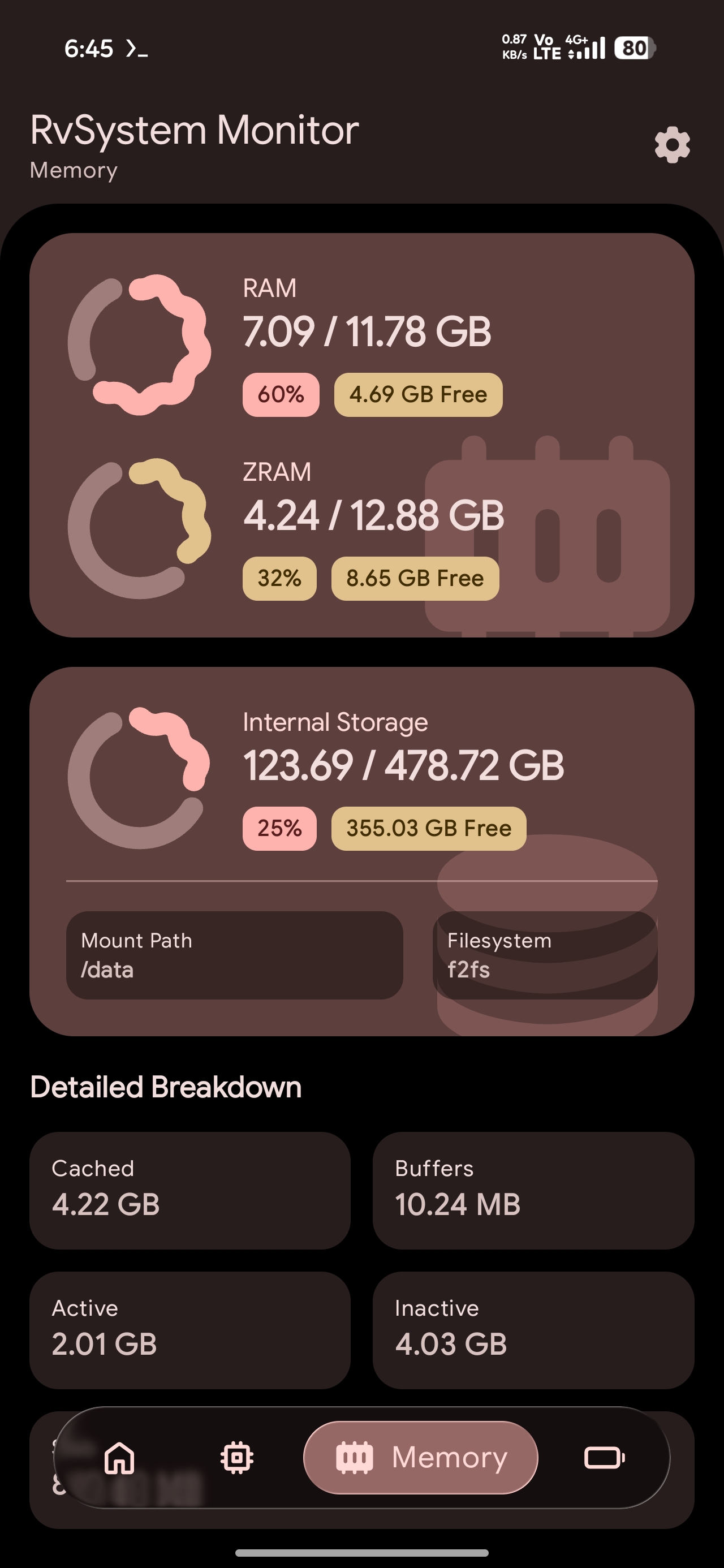

🧠 Memory & ZRAM: High-precision tracking of RAM and ZRAM usage, including cached, buffers, and kernel slab memory.
💾 Backup & Restore: Easily export and import your app settings and overlay configurations to keep your setup safe.
⚡ Native Performance: Optimized Rust backend that parses kernel files and interacts with hardware drivers directly with efficient JNI batching.

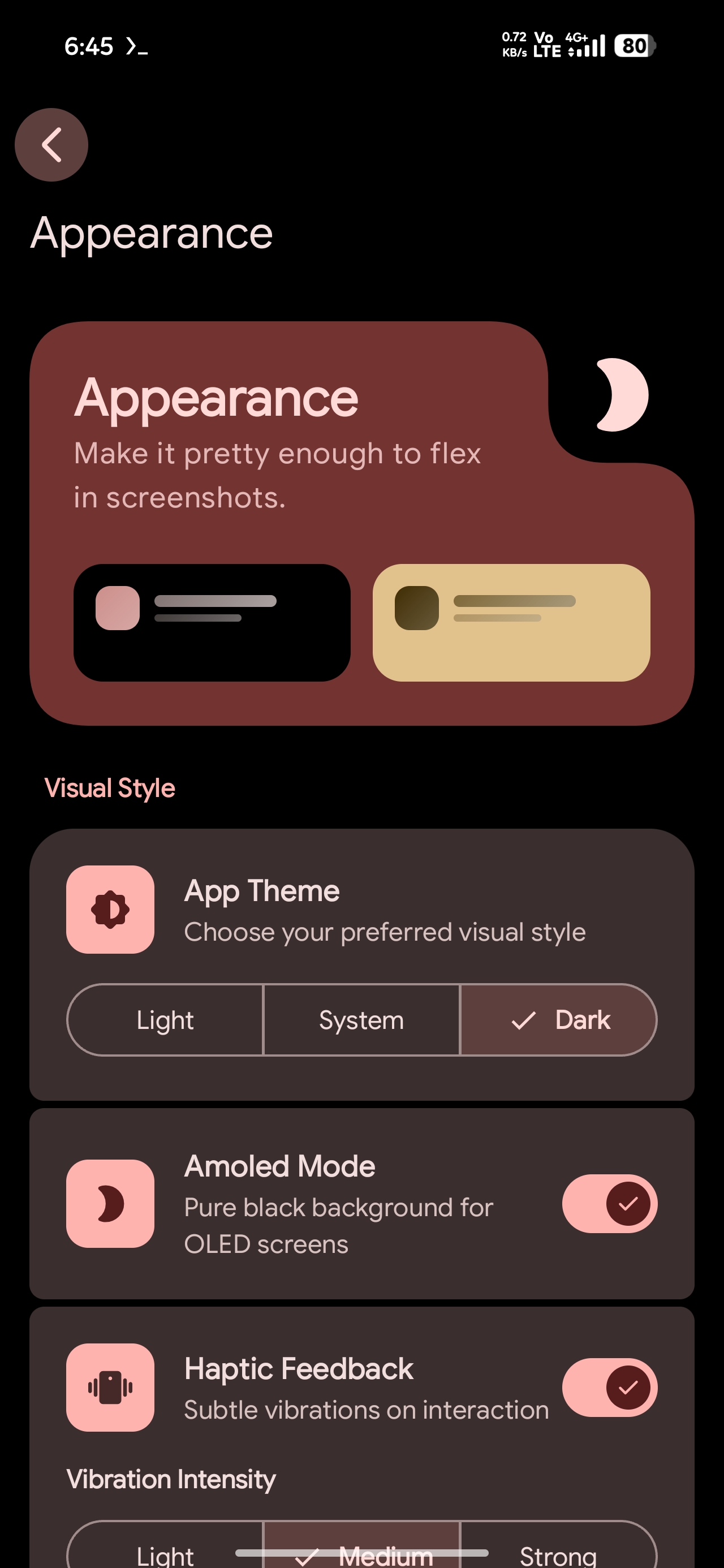

🎨 Expressive UI: Built with Material 3 Expressive, featuring adaptive layouts, sophisticated screen transitions (MD3 Expressive), and optimized recomposition.

🛠️ Tech Stack

Languages: Kotlin 2.4.0, Rust (Edition 2024), C (via libc).
Frameworks: Jetpack Compose (BOM 2026.05.00), Material 3 Expressive, Hilt DI.
Native Bridge: JNI via jni-rs, cargo-ndk.
Infrastructure: Gradle Kotlin DSL, Android NDK 30.0, Fastlane.
Distribution: Multiple flavors (GitHub, F-Droid) with toggleable update mechanisms.
Libraries: Retrofit 3.0, OkHttp 5.4, Coil 3.4, Jetpack DataStore.

📂 Project Structure

RvSystem-Monitor/
├── app/                  # Android application module (Kotlin)
│   ├── src/main/java/    # UI, ViewModels, and JNI bridge declarations
│   ├── src/main/jniLibs/ # Compiled native shared libraries (.so)
│   ├── src/main/res/     # App resources and icons
│   └── build.gradle.kts  # Gradle configuration for Android
├── rust/                 # Native monitoring backend (Rust)
│   ├── src/              # Kernel parsing, JNI implementation, and drivers
│   ├── Cargo.toml        # Rust package and dependency metadata
│   └── README.md         # Documentation for the Rust sub-system
├── gradle/               # Build system scripts and version catalogs
├── fastlane/             # Automation for screenshots and deployments
├── LICENSE               # GNU GPL v3.0
└── README.md             # This file

🏗️ Architecture

The project adheres to Clean Architecture principles, ensuring a strict separation of concerns and high maintainability.

The Hybrid Core

UI Orchestration: The Kotlin layer manages the application lifecycle and UI state. It uses ViewModels to expose reactive data streams from Hilt-injected repositories.
Native Data Source: The Rust layer handles the "heavy lifting". It parses system files and interacts with hardware drivers. By mirroring the Linux kernel's structure (kernel/ for CPU, mm/ for Memory, and drivers/ for GPU), it provides an idiomatic and high-performance data source.
Optimized JNI Bridge: Instead of frequent fine-grained calls, the bridge is designed for batch data retrieval. Single calls fetch complete data sets (e.g., all CPU metrics at once), significantly reducing context-switching overhead between the JVM and Native code.

⚙️ Getting Started

Prerequisites

Android Studio (Ladybug 2024.2.1 or newer)
Rust Toolchain (rustup.rs)
Android NDK (Version 30.0.14904198 configured)
cargo-ndk: cargo install cargo-ndk

Installation & Build

Clone the repository:

git clone https://github.com/Rve27/RvSystem-Monitor.git
cd RvSystem-Monitor

Build Native Libraries:
```
./gradlew :app:buildRustLibraries
```
Build the application: Choose the variant you want to build:
- GitHub Variant (Includes auto-updater):
```
./gradlew assembleGithubRelease
```
- F-Droid Variant (No updater):
```
./gradlew assembleFdroidRelease
```
Install and run (Debug): Connect an Android device (API 34+) and run:
```
./gradlew installGithubDebug
```

🤝 Contributing

We welcome contributions from the community! Whether you are fixing a bug, adding a feature, or improving documentation, please read our CONTRIBUTING.md to get started.

💬 Support

Issues: GitHub Issues for bug reports and feature requests.
Discussions: GitHub Discussions for questions and ideas.

📜 License

This project is licensed under the GNU General Public License v3.0. See the LICENSE file for details.

Built with ❤️ for the Android Community.
