TitanX

Enterprise AI Agent Orchestration Platform — Secure, Observable, Configurable ⚡

Your AI Digital Workforce with enterprise-grade security, n8n-inspired workflows, LangChain agent memory, LangSmith-compatible traces, and NemoClaw network policies — all in a beautiful desktop app.

Features · Fleet Mode · Screenshots · Security · Observability · Getting Started · Tech Stack

🎬 Demo Videos

App Navigation

Home → Governance → Observability → Home

https://github.com/CES-Ltd/TitanX/raw/main/docs/screenshots/demo-navigation.mp4

Security & Governance

Security Features → Blueprints → Audit Log

https://github.com/CES-Ltd/TitanX/raw/main/docs/screenshots/demo-security.mp4

TitanX is an enterprise-grade desktop application for AI agent orchestration. It transforms teams of AI agents into a fully governed digital workforce with comprehensive security, observability, and compliance built-in from day one.

Built on the open-source AionUI platform, TitanX adds enterprise security (inspired by NVIDIA NemoClaw), workflow automation (inspired by n8n), agent intelligence (inspired by LangChain and DeepAgents), and production observability (inspired by LangSmith) — turning a multi-agent chat interface into a complete AI company control plane.

🏗 Architecture

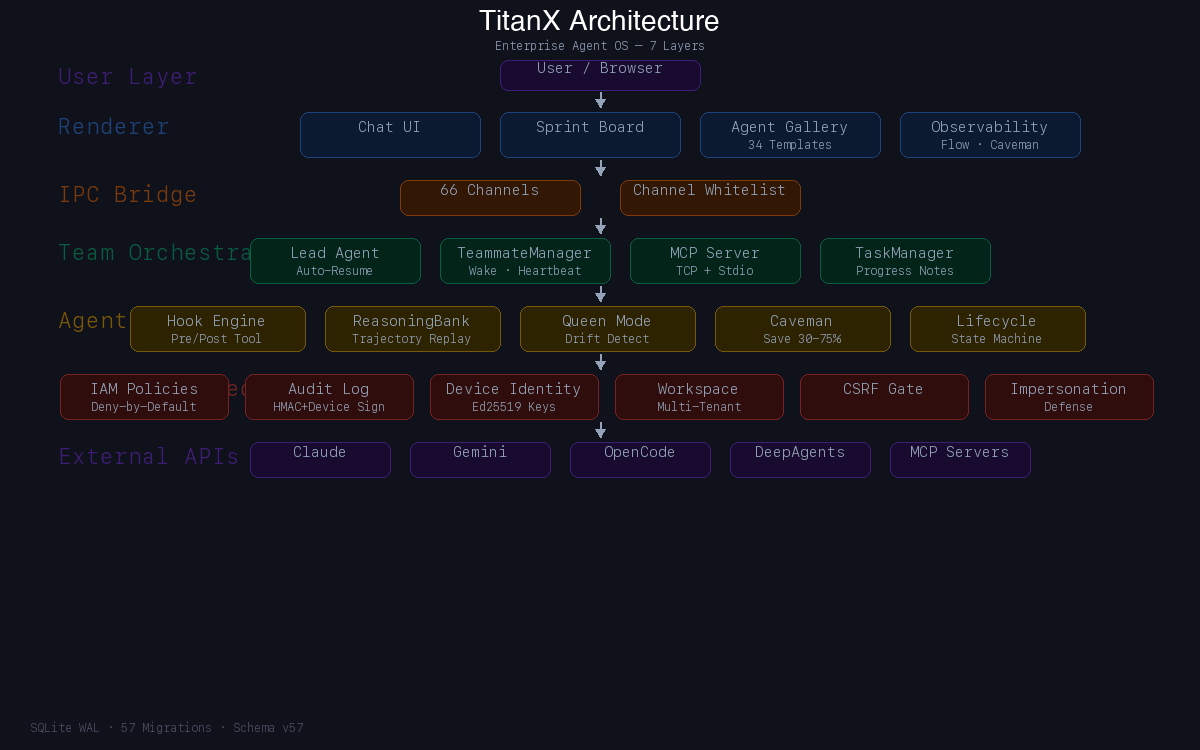

Animated architecture — User → Renderer (Chat, Sprint Board, Agent Gallery, Mission Control, Observability) → IPC Bridge (66 channels + whitelist) → Team Orchestration (Lead Auto-Resume, TeammateManager, MCP Server, TaskManager + Progress Notes) → Agent OS (Hook Engine, ReasoningBank, Queen Mode, Caveman, Task Lifecycle State Machine) → Enterprise Security (IAM, Audit Log + Device Signing, Workspace Isolation, CSRF Gate, Impersonation Defense) → External APIs (Claude, Gemini, OpenCode, DeepAgents, MCP Servers) · SQLite WAL · 58 Migrations

📸 Screenshots

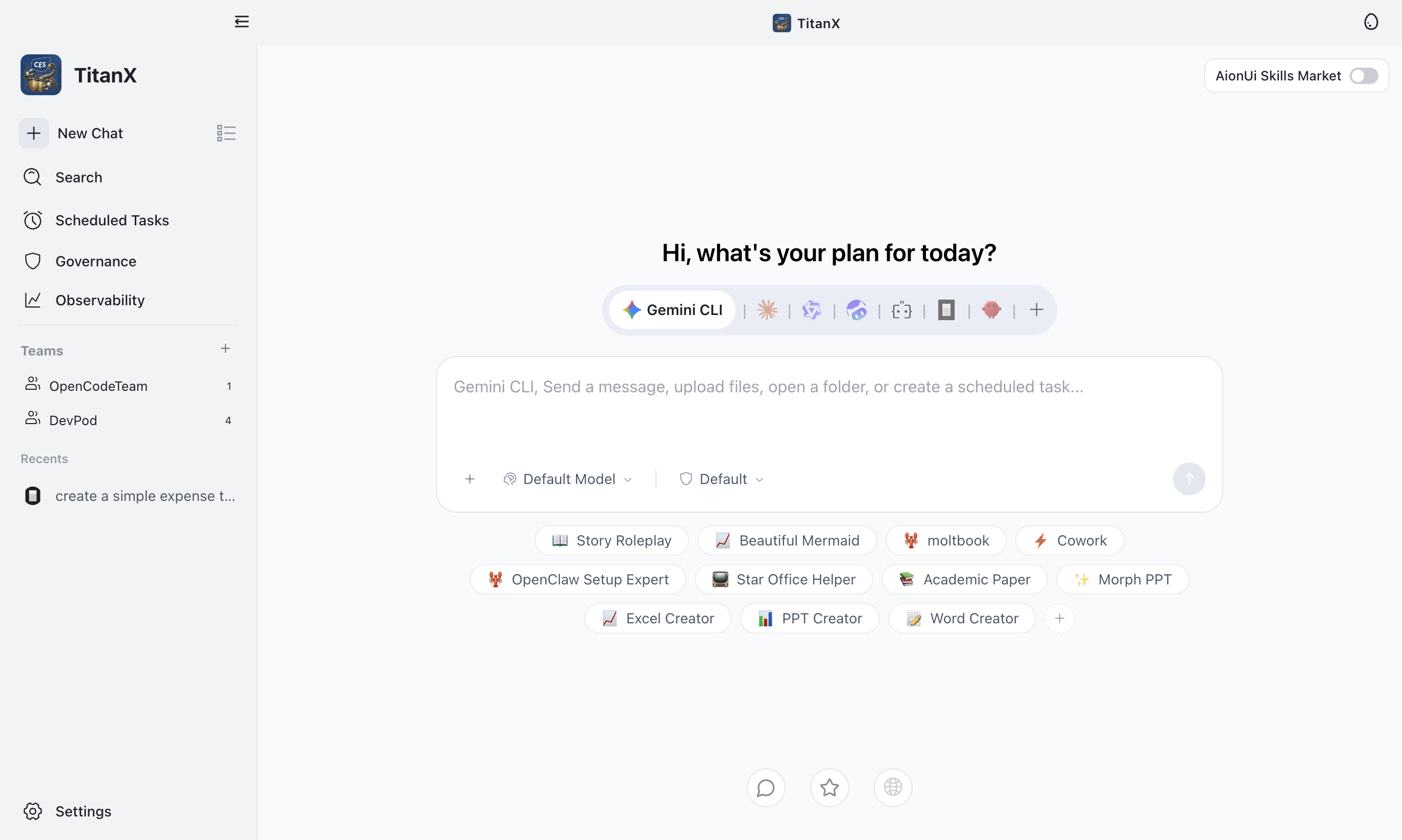

Home — Multi-agent chat with Gemini, Claude, OpenCode, and 20+ LLM providers

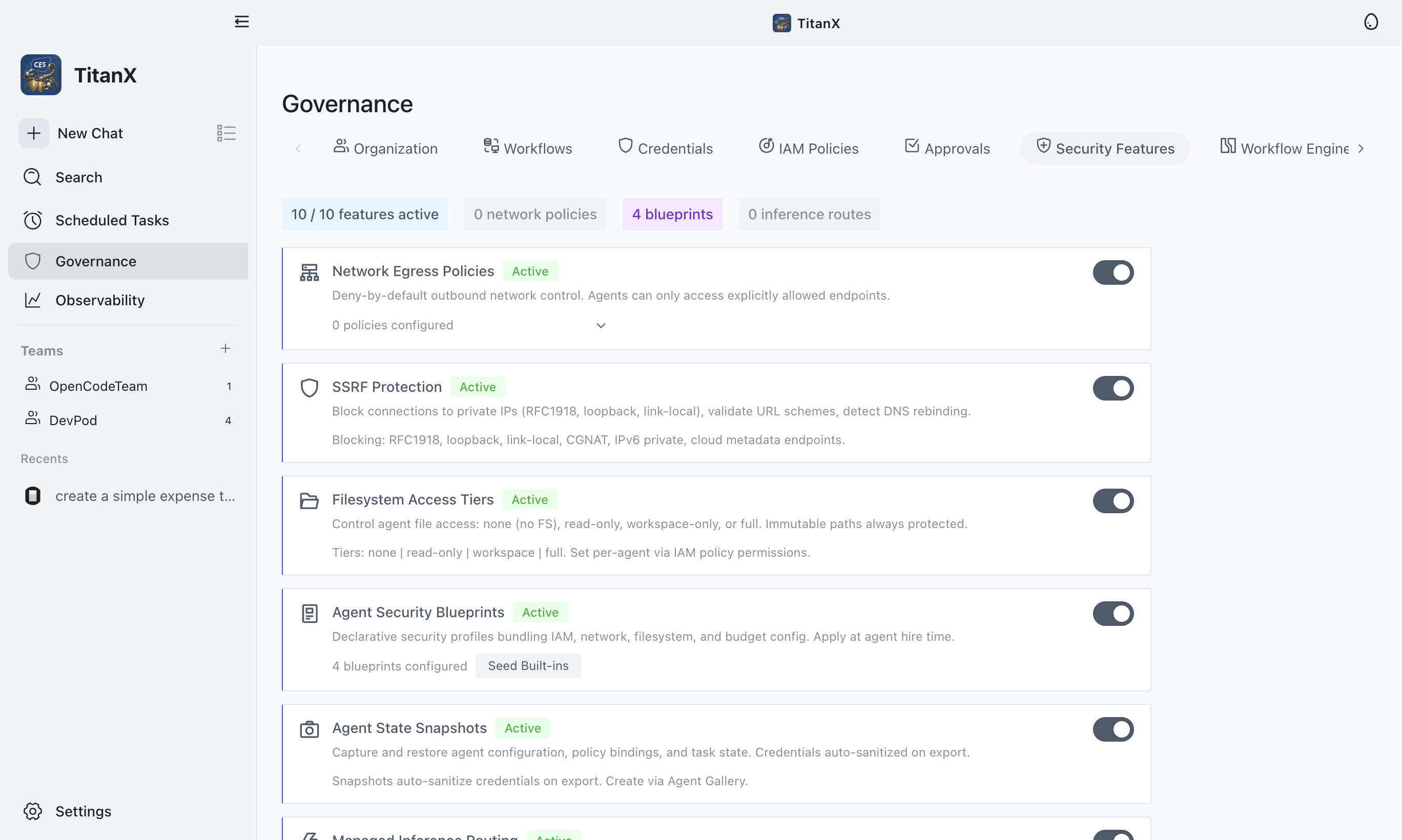

Security Features — 10 master toggles for NemoClaw-inspired security controls

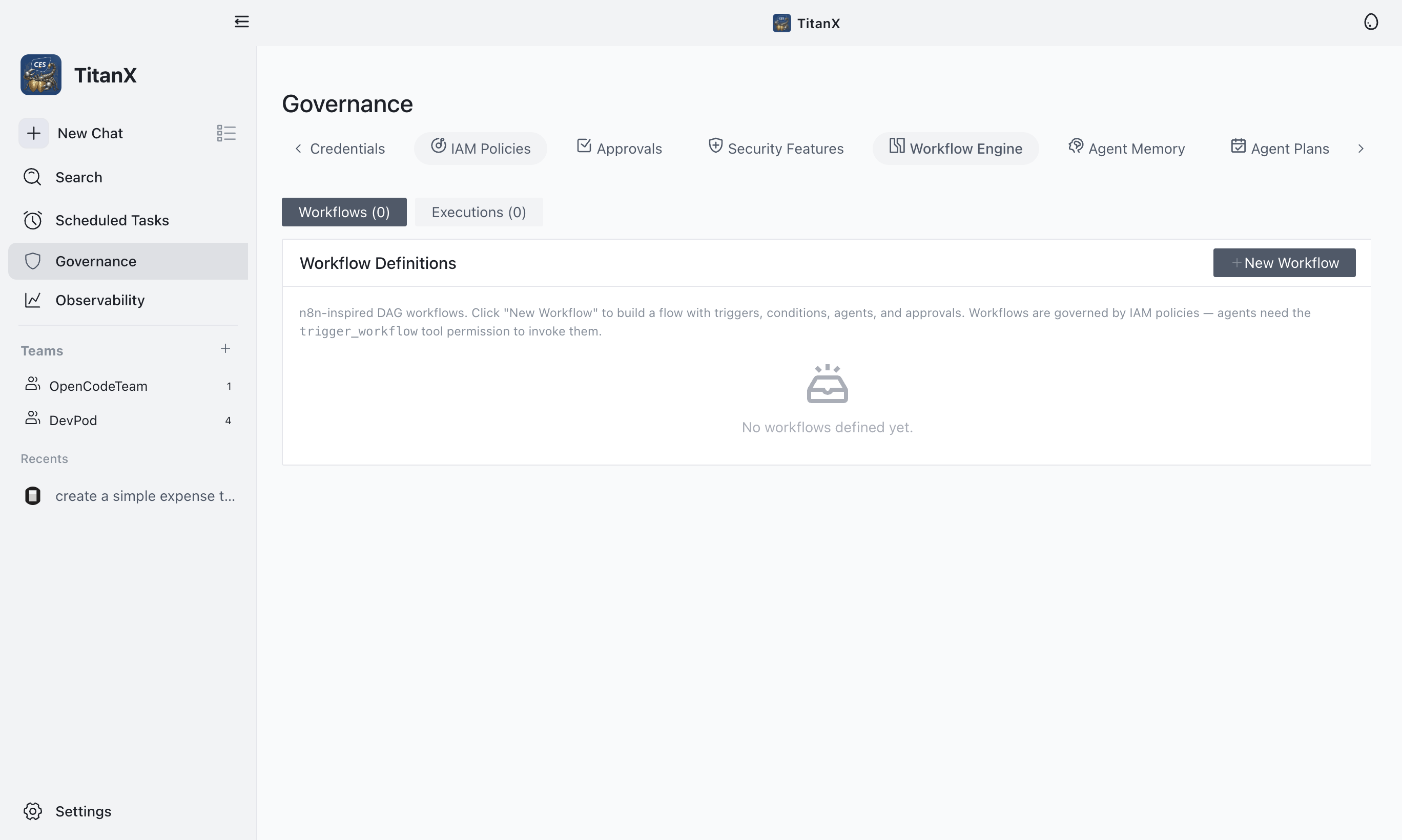

Workflow Engine — n8n-inspired DAG workflow builder with triggers, conditions, approvals

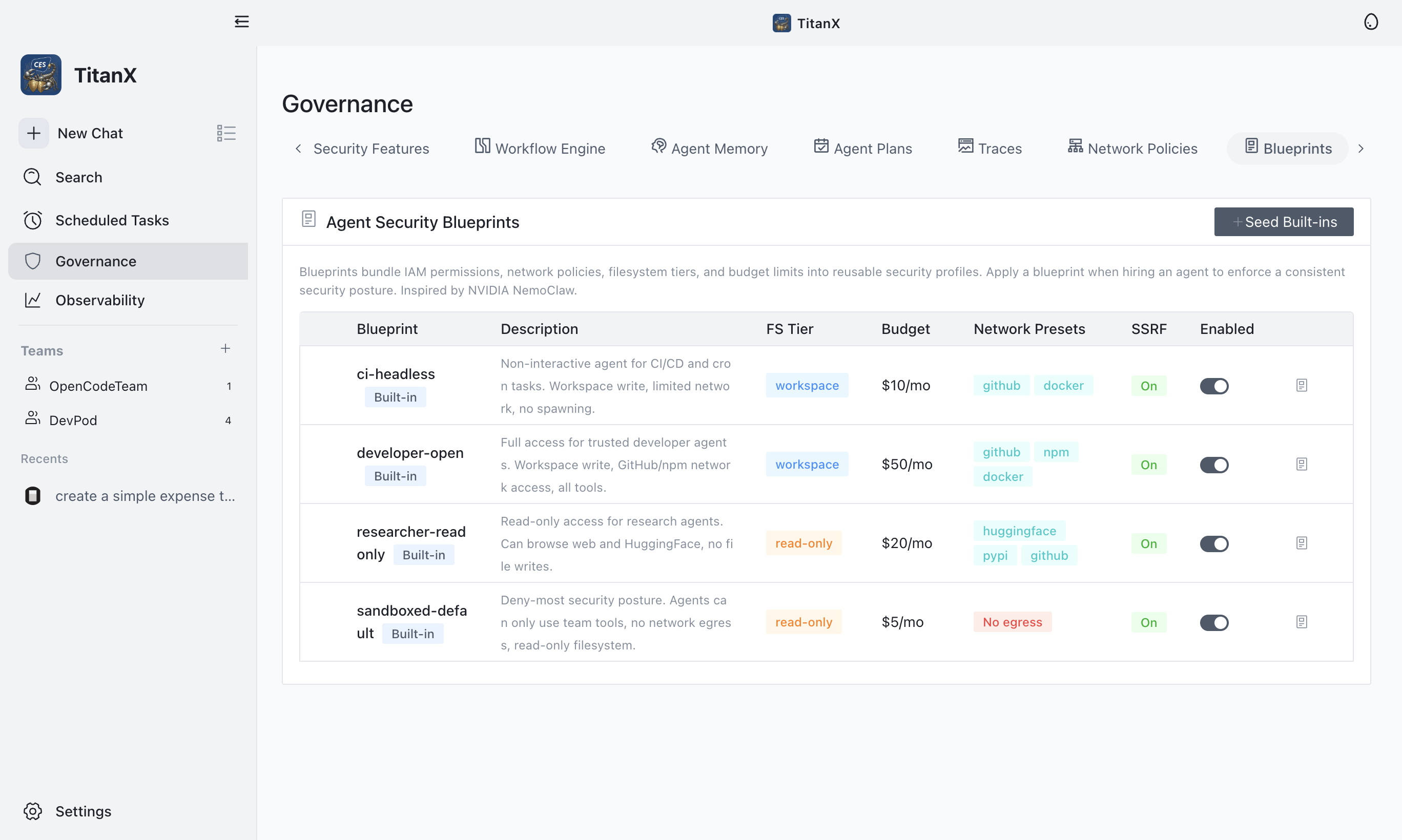

Agent Blueprints — 4 built-in security profiles (sandboxed, developer, researcher, CI)

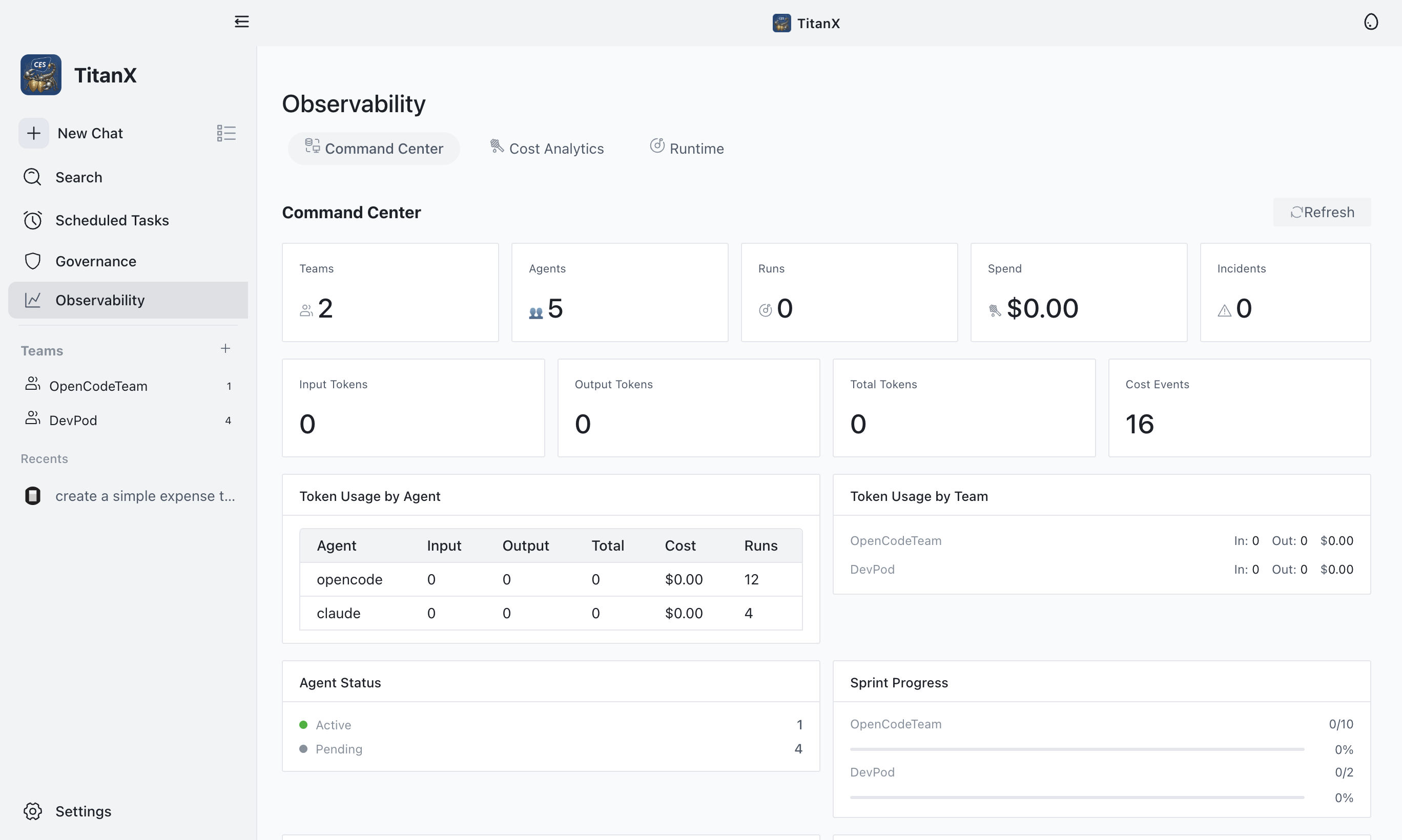

Command Center — KPIs, token usage, cost tracking, sprint progress, agent status

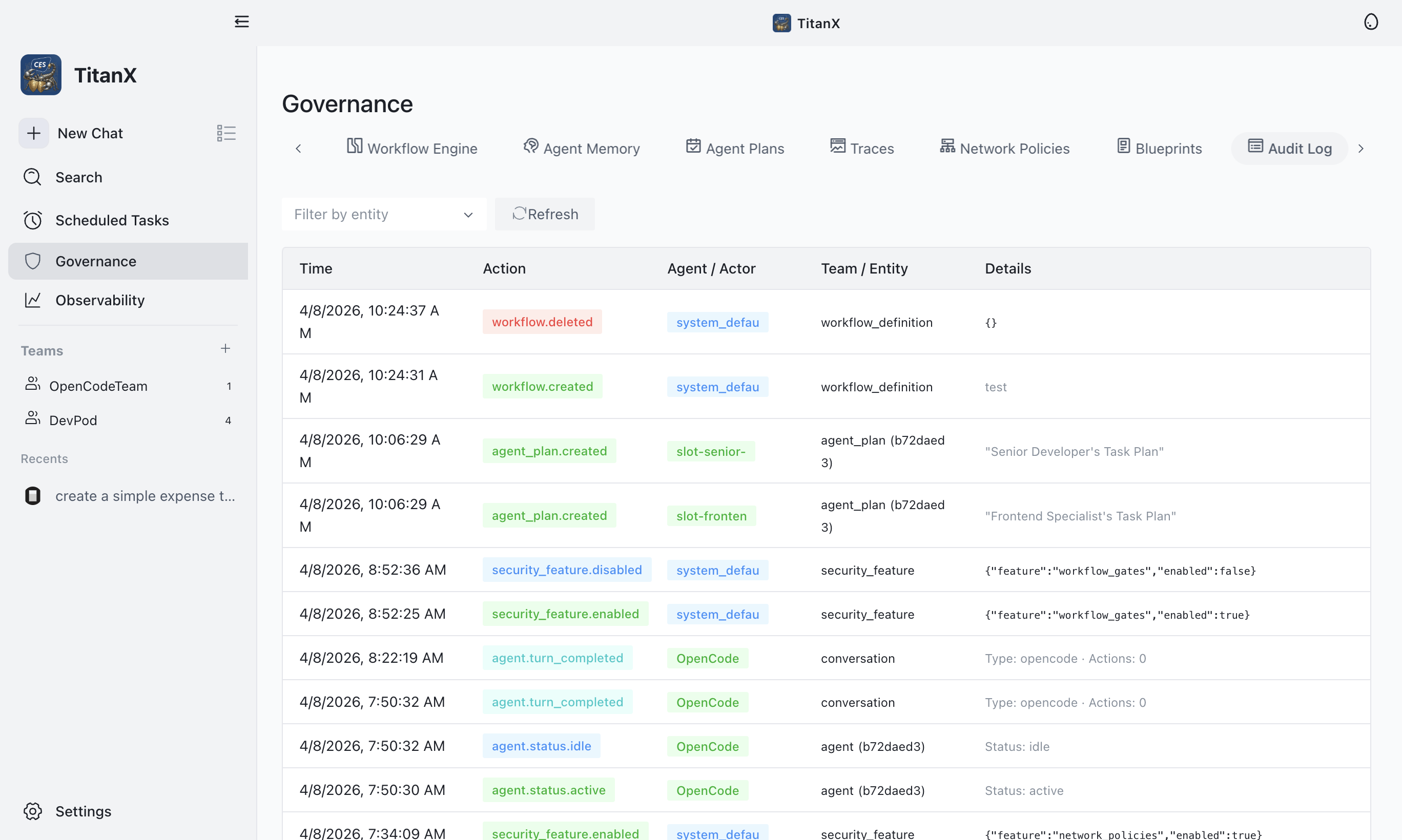

Audit Log — HMAC-signed immutable audit trail for every action in the system

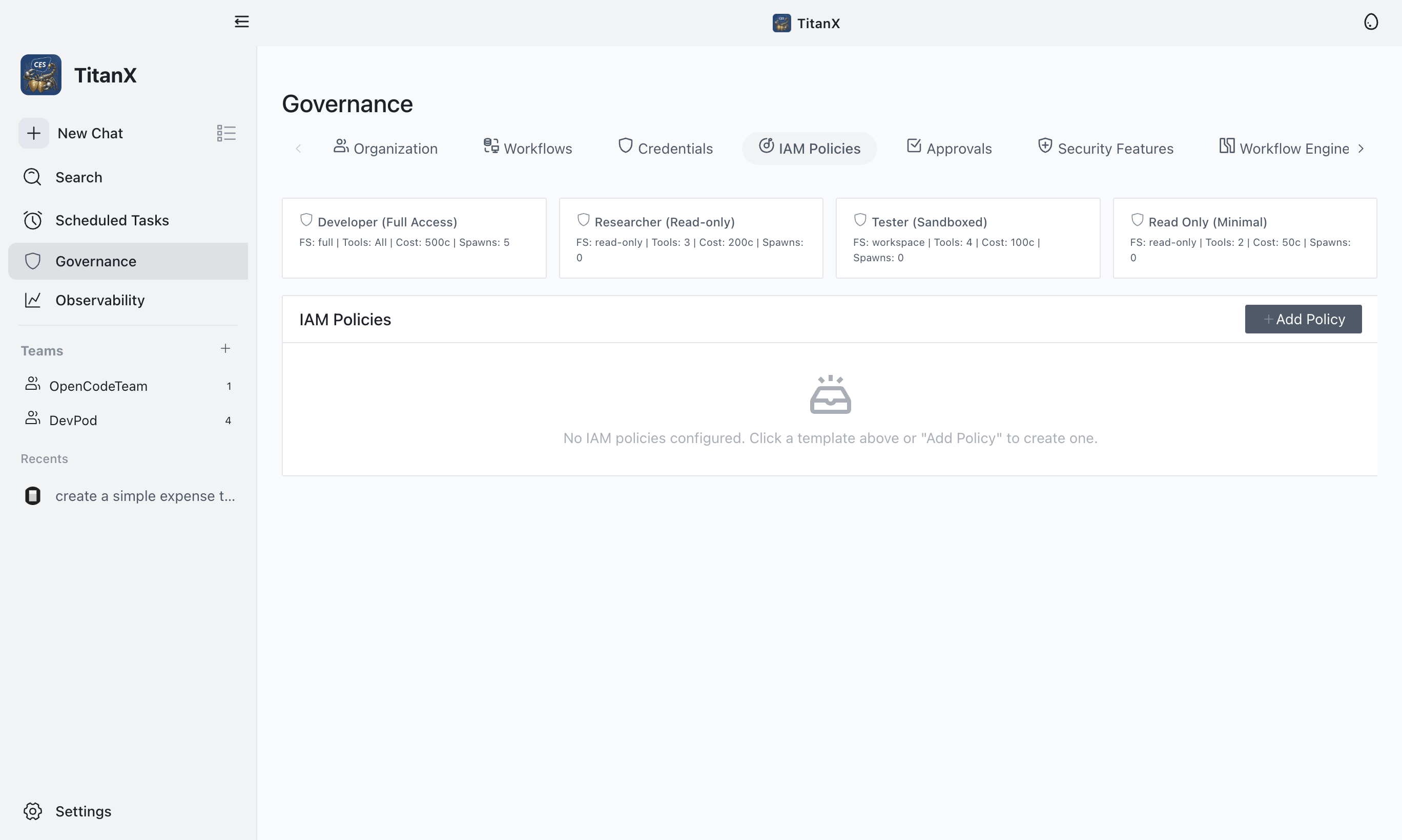

IAM Policies — 4 templates (Developer, Researcher, Tester, Minimal) with granular tool permissions

✨ Key Features

🏢 Multi-Agent Team Orchestration

• Lead agent architecture — lead agent coordinates teammates via mailbox + task board with auto-resume on restart
• Dynamic agent spawning — lead can recruit specialists at runtime
• MCP tool server — 9 built-in team coordination tools with rate limiting (30/min) and impersonation defense
• Multi-provider support — Claude, GPT, Gemini, Codex, OpenCode, Hermes, Ollama, and 20+ LLM providers
• Agent Gallery — 34 pre-built agent templates across 7 departments (Engineering, Product, QA, DevOps, Security, Data, Operations)
• Stable agent identity — task ownership by agent name (not volatile slotId), survives restarts without confusion
• Progress notes — agents save what was done and what remains on every task update, enabling seamless resume after restart
• Auto-re-wake — agents with in_progress tasks automatically continue working after each turn (no manual re-delegation needed)
• Mission Control — real-time task timeline with blinking status indicators, team health KPIs, agent utilization bars, and live activity feed in the side pane
• Live agent status — green glowing dots with rotating funny phrases ("Yak-shaving...", "Neuromancing...") for active agents in the Workforce panel
• Pixel-art office — animated visualization of agent activity with BFS pathfinding

🔄 Workflow Engine (n8n-Inspired)

• DAG execution engine — topological sort, parallel branches, retry with backoff, error routing
• 8 node types — trigger, action, condition (if/else with true/false branching), transform, loop, agent call, approval gate, error handler
• Visual workflow builder — full-width modal with node palette, inline parameter editors, connection management
• Execution history — full per-node input/output recording for debugging
• Agent-triggered workflows — agents can invoke workflows via <trigger_workflow> XML action

🧠 Agent Memory (LangChain-Inspired)

• 4 memory types — buffer, summary, entity, long-term
• Token-counted entries with relevance scoring
• Auto-pruning at configurable token threshold (default 8K)
• Automatic storage — every agent turn stores buffer memory
• Team-scoped — memories isolated per agent per team

🧪 Deep Agent — AG-UI Research Engine

• LangGraph research graph — planner → researcher (loop) → synthesizer, runs in-process
• 13+ inline visual types — chart (line/bar/pie/area/scatter/radar), kpi, metric grid, table, pivot, timeline, gauge, comparison, citation, plan — all rendered as interactive cards in chat
• Smart data auto-visualization — plain text with numbers, bullet lists, trends, percentages, and comparisons auto-detected and rendered as charts/metrics
• Human-in-the-Loop (HITL) — agent proposes research steps, user confirms/rejects via inline checkbox UI before execution
• AG-UI task progress — live step-by-step progress bar with status icons (pending/executing/completed)
• Subgraph status — multi-agent delegation display showing active sub-agent
• Tool card registry — rich visual cards for weather, web search, and URL fetch tool results
• Dual-render pipeline — fenced code blocks for agent-generated visuals + IPC message types for real-time interactive components
• Dynamic connector & MCP selection — inline chip selectors for backend providers and MCP servers
• Insights panel — extracted visuals displayed in a side panel for at-a-glance research overview

📋 Agent Planning (DeepAgents-Inspired)

• Structured task decomposition — ordered steps with progress tracking
• Delegation — steps can be delegated to subagents
• Self-reflection — agents rate their own output quality (0-1 score)
• Auto-plan creation — agents creating 2+ tasks automatically generate a plan
• Backfill from tasks — existing team_tasks synced to plans on startup

🧬 Agent OS Features

• Agent Hook System — 6 event types (PreToolUse, PostToolUse, Stop, etc.) with command/http/function hooks for extensible tool execution
• ReasoningBank — Store and replay successful execution trajectories (RETRIEVE → JUDGE → DISTILL pattern, ~32% token savings)
• Task Lifecycle State Machine — Enforced state transitions (queued → claimed → dispatched → running → completed/failed/cancelled) with full audit trail
• Micro-Compaction — Selective truncation of stale tool results to prevent context overflow without full conversation compaction
• Queen Mode — Hierarchical swarm coordinator role with drift detection and checkpoint gates
• Custom Agent Definitions — Load agent specs from .claude/agents/ (JSON/Markdown with YAML frontmatter)
• CLAUDE.md Chain Loading — Walk up parent directories for project-level system prompt rules
• Caveman Mode — Token-saving prompt injection (Lite/Full/Ultra, 30-75% reduction) with observability tracking
• Live Flow Visualizer — Real-time interactive SVG graph of agent execution events with zoom/pan/click-to-inspect
• Sprint Analytics — Burndown charts, agent utilization, velocity tracking
• Cost Projections — Token usage over time, multi-provider cost estimates, caveman savings comparison
• Chat De-Stutter — Automatic removal of repeated phrases, malformed XML tags, and streaming artifacts from agent output
• Database Auto-Pruning — Periodic cleanup of stale data (activity log >30d, messages >14d inactive, done tasks >7d, unused trajectories >14d) for long-running stability

📊 Trace System (LangSmith-Compatible)

• Hierarchical parent-child traces — root runs with nested child runs
• Token attribution — exact input/output token counts per trace run
• Cost tracking — per-run cost in cents
• OTel correlation — trace runs linked to OpenTelemetry spans via IDs
• User feedback — thumbs up/down + comments on any trace run
• 6 run types — chain, agent, tool, llm, retriever, workflow

📋 Sprint Board (JIRA-like)

• Swimlane view — Kanban board: Backlog → Todo → In Progress → Review → Done
• List view — sortable table with priority tags, assignee avatars, status badges
• Auto-generated IDs — sequential TASK-001, TASK-002 per team
• Real-time sync — agent task creation via MCP tools instantly appears on the board
• Task dependencies — block/unblock relationships with automatic cascade

🌐 Fleet Mode

⚠️ Alpha — v2.4.x. The Master / Slave / Farm stack was validated end-to-end (two physical machines, hire-to-reply round-trip) but is still iterating. Expect breaking changes through the v2.x cycle: envelope fields may gain required params, command types may rename, telemetry shape may widen. Pin both master and slave to the same minor version. Production rollouts should pilot with a small slave cohort before going fleet-wide.

TitanX v2.4 ships Fleet Mode — a control-plane extension that lets one install coordinate many. A device boots in one of four flavors, switchable from the titlebar without editing config files:

Mode matrix

Master publishes signed config bundles (IAM, templates, managed keys); slaves poll every 30s, apply, and stream telemetry + command acks back.

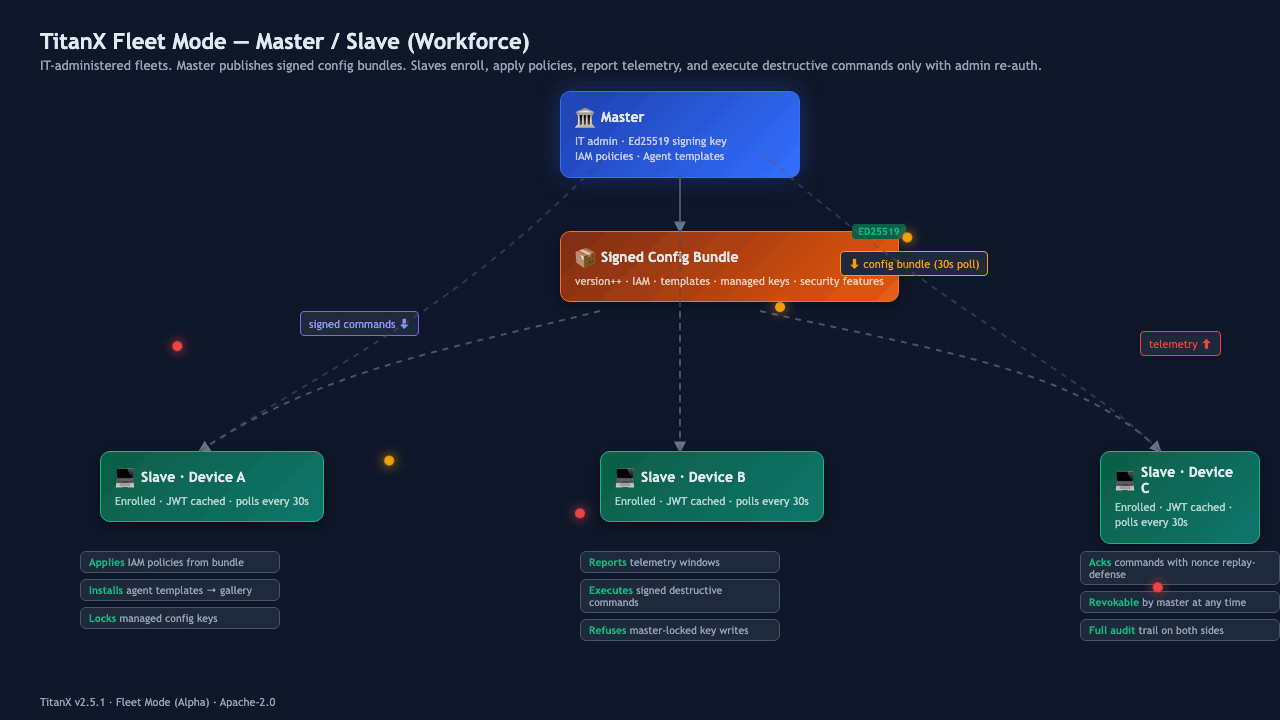

🏛 Master Mode

• Fleet Dashboard — device roster, heartbeat freshness, enrollment tokens, revocation forensics
• Signed command envelopes — Ed25519 signing with replay nonces + admin re-auth for destructive tiers
• Config bundle publishing — IAM policies, security-feature toggles, and agent templates roll out to every slave on the next 30s poll
• Device telemetry — per-slave cost, activity, tool calls, policy violations, and detected ACP runtimes (Claude Code CLI, OpenCode, Codex, Gemini, Qwen, Goose, and 13 more — auto-refreshed when slaves push)
• Command Center — target-confirmation modal + admin-password gate + multi-device broadcasts
• Farm hire modal — editable runtime picker with green "on device" tags, runtime fallback list even before telemetry lands
• Dream Mode (Phase C) — nightly cross-slave learning consolidation with redaction + per-device opt-in

👷 Slave / Workforce

• Managed endpoint — slave operator sees a slim UI; IT-controlled policies lock sensitive settings with a padlock icon
• Auto-enrollment via JWT — device fingerprint + Ed25519 key pair bound at first enrollment, persisted encrypted
• Heartbeat + config-sync loops — idempotent, 5s heartbeat, 30s config poll, exponential backoff on master unreachable
• Telemetry push — every 60s: cost, activity, agent counts, detected ACP runtimes (no API keys, shape only)
• Destructive command receiver — verifies signed envelope (signature + replay nonce), executes with audit trail, acks with granular reason codes

Hybrid teams: the master's Team chat dispatches signed agent.execute envelopes to farm slaves; each slave runs a cached ACP session and streams the turn back through the mirrored mailbox.

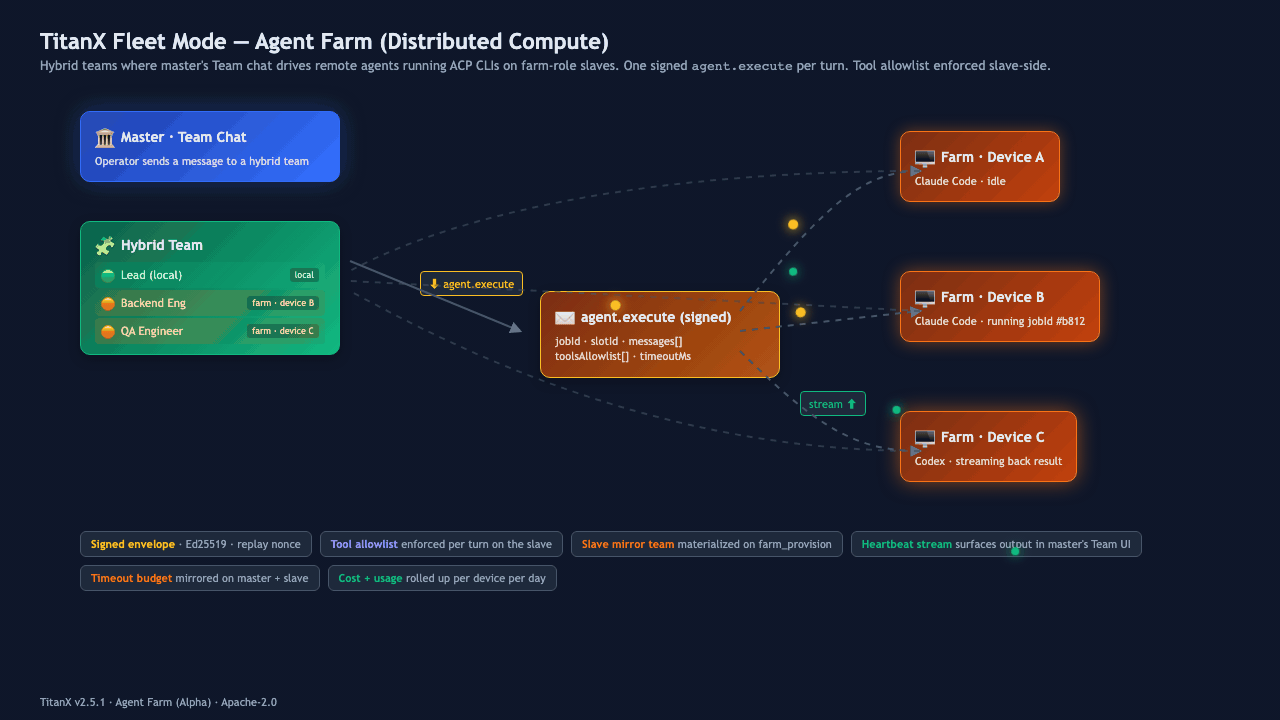

🚜 Slave / Farm

Farm mode is everything Workforce does, plus the slave acts as a remote-compute node for master's teams.

• Hire-time mirror provisioning — team.farm_provision fires the moment master clicks Hire; slave creates a mirror team with a local Lead ACP session (using the operator's chosen runtime) + the farm teammate, and the team shows up immediately in the slave's Teams UI
• Persistent Lead CLI session — 30min idle-cached ACP agent per team; multi-turn conversations preserve context without respawning the CLI every message (2–5s saved per turn)
• 17 supported ACP runtimes — Claude Code CLI, OpenCode, Codex, Gemini, Qwen, Goose, Auggie, Kimi, OpenCode, GitHub Copilot, CodeBuddy, Factory Droid, Cursor, Kiro, iFlow, Mistral Vibe, Qoder, nanobot, Aion, DeepAgents
• Signed agent.execute envelopes — master dispatches per-turn via the same Ed25519 channel; slave routes through the cached Lead session; response flows back through the master team's mailbox exactly like a local teammate's reply
• Slave-side Teams UI — the mirrored team renders read-only on the slave (blue "Mirror of master's farm slot" badge) with live message history; slave operator can see what master's orchestration is doing without interfering
• Mailbox round-trip — farm teammate's reply is routed back through the team mailbox + wakes the master Lead, same loop as a local teammate using the MCP send_message tool
• Defense-in-depth enrollment gate — workforce slaves that accidentally receive a farm command fast-skip with reason: 'not_farm_role'

Visual mode switcher

Switch modes without a restart: click the fleet icon in the titlebar, pick Regular / Master / Slave, paste the master URL + enrollment token if joining a fleet. Slaves can additionally flip between Workforce ↔ Farm via a second titlebar button — the role change re-enrolls automatically.

See docs/feature/fleet/ for the full operator guide: enrollment flow, command types, telemetry shape, Lead-session lifecycle, and troubleshooting by ack reason code.

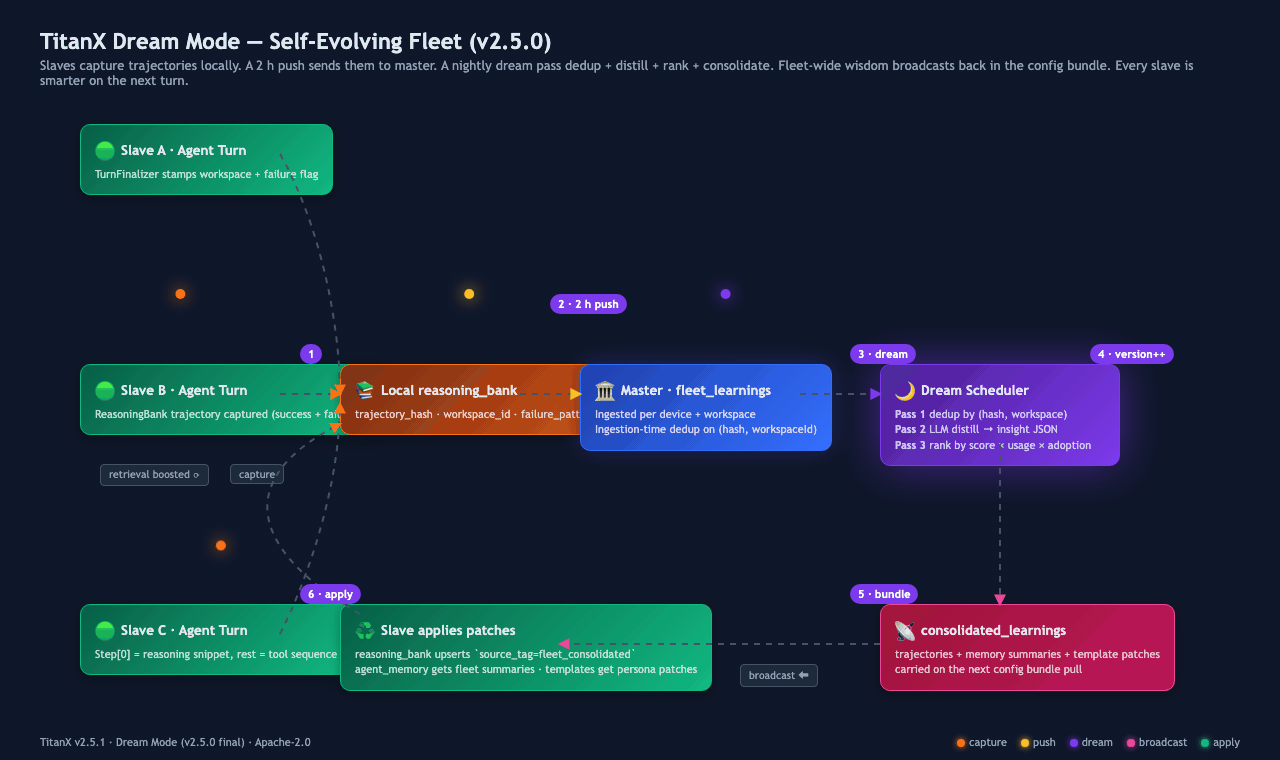

🌙 Dream Mode

The fleet gets smarter on its own. Every slave's agent turns become training signal; a nightly LLM pass consolidates fleet-wide wisdom; every slave benefits on the next turn.

Capture → push → dream → broadcast → apply. Six steps, closed loop, workspace-scoped, with per-stage failure instrumentation and exponential backoff on transient failures.

• Step 1 — Capture · TurnFinalizer stamps every agent turn with workspace_id + failure_pattern flag; successful and failed trajectories both land in the local reasoning_bank. Step[0] carries a 1KB reasoning snippet so downstream distillation has context beyond tool names.
• Step 2 — Push (every 2h) · Slave builds an envelope (trajectories, memorySummaries, consumptionFeedback), deep-scrubs for secrets, audits for high-entropy leaks, and POSTs to master over the same JWT channel as telemetry. Exponential backoff (1×→8×) on consecutive failures.
• Step 3 — Dream pass · Master's nightly scheduler (03:00 local + threshold-triggered) deduplicates clusters by (trajectoryHash, workspaceId), runs an LLM distillation pass (structured JSON insight: taskShape, preferredPath, avoidancePath, triggerCondition), and ranks by score × usage × adoption. Per-stage failure counters expose partial degradation; retry wrapper handles transient throws.
• Step 4 — Version++ · Consolidated output writes to consolidated_learnings with a monotonically-bumped version + contributing_devices provenance.
• Step 5 — Broadcast · The next config bundle pull carries trajectories, memory summaries, and template persona patches. Pre-v2.5 slaves safely ignore the new fields.
• Step 6 — Apply · Slaves upsert consolidated trajectories into local reasoning_bank with source_tag='fleet_consolidated'; memory summaries land in agent_memory keyed by agentSlotHash; template patches merge into agent_gallery persona on the next spawn. Retrieval prefers fleet-consolidated + workspace-matching rows over locally-minted ones.

Opt-in per device. Admin toggles fleet.learning.enabled on the FleetDashboard; global kill switch lives in the secrets vault. Learning envelopes are rate-limited (500 trajectories/device/24h default) and never logged verbatim to the activity log.

🔒 Security & Governance

Runtime IAM Policy Enforcement

• Granular tool permissions — multi-select checkboxes for 9 MCP tools + 7 agent actions
• Per-tool allow/deny — or wildcard * for full access
• Agent binding — bind policies to specific agents via multi-select dropdown
• Filesystem access tiers — none / read-only / workspace / full
• Cost limits — max cost per turn (cents) + max agent spawns
• SSRF protection toggle — block private IPs, DNS rebinding, cloud metadata
• TTL-based expiration — policies auto-expire after 1h, 24h, 7d, 30d, or permanent
• Every tool call checked — evaluateToolAccess() runs before every MCP dispatch

Network Egress Policies (NemoClaw-Inspired)

• Deny-by-default — all outbound blocked unless explicitly allowed
• 11 service presets — Telegram, Slack, Discord, Docker, HuggingFace, PyPI, npm, Brew, Jira, Outlook, GitHub
• Rule matching — host wildcards, port, path prefix, HTTP methods, TLS enforcement
• Tool-scoped — restrict which tools can access which endpoints
• Hot-toggleable — enable/disable without restart

SSRF Protection

• Private IP blocking — RFC1918, loopback, link-local, CGNAT, IPv6 private ranges
• URL scheme validation — only http/https allowed
• DNS rebinding detection — resolves hostnames and validates all returned IPs
• Cloud metadata blocking — blocks 169.254.169.254 and metadata endpoints

Agent Security Blueprints

Secrets Management (AES-256-GCM)

• Encrypted vault with per-secret random IVs and authentication tags
• Policy-driven access tokens — SHA-256 hashed, TTL-bound, timing-safe comparison
• Session tokens — per-agent delegated tokens with policy snapshots
• Auto-revocation — tokens invalidated on agent completion/failure
• Periodic cleanup — expired tokens purged every 60 seconds

Comprehensive Audit Logging

• HMAC-SHA256 signed — every log entry tamper-detectable
• Device Identity Signing — Ed25519 hardware-bound key pairs for non-repudiable audit trails (per-install device fingerprint)
• 100+ action types — security toggles, policy changes, agent lifecycle, tool calls, workflow executions
• Real-time UI — audit log auto-refreshes on new entries
• Entity type filtering — 19 entity types for precise querying
• Color-coded actions — green for enabled/created, red for denied/deleted, blue for disabled
• Retention-aware pruning — entries older than 30 days auto-pruned, recent 7 days immutable via trigger

Workspace Isolation (Multi-Tenant)

• Strict mode — database-level row isolation with scoped queries
• Soft mode — application-level filtering for backward compatibility
• Cross-workspace blocked — queries crossing workspace boundaries are rejected and logged
• Member management — owner, admin, member, viewer roles with RBAC

Additional Security Hardening

• Agent Impersonation Defense — cross-validates agent identity on task mutations (only task owner or lead can modify)
• IPC Channel Whitelist — preload bridge validates all IPC channels, rejects unknown channels
• CSRF Content-Type Gate — requires application/json for all mutation requests, forces CORS preflight
• TCP Socket Hardening — 30s idle timeout, 10MB buffer cap, socket.destroy() on timeout
• Heap Management — 4GB max heap, periodic manual GC every 30 minutes

📊 Observability

Command Center Dashboard

• KPI strip — Teams, Agents, Runs, Spend, Incidents at a glance
• Token usage — by agent + by team with cost breakdown
• Sprint progress — per-team completion rates
• Budget health — utilization gauge with incident alerts
• Activity stream — live audit trail

OpenTelemetry Integration

• Configurable exporters — OTLP (HTTP/gRPC), Console, or disabled
• Span instrumentation — agent turns, MCP tool calls, workflow executions
• Metrics — counters for tool calls, turns, policy evaluations, feature toggles
• Histograms — tool call duration tracking
• Settings UI — toggle traces/metrics, set endpoint, sample rate, log level

Cost Tracking & Budgets

• Per-agent cost tracking — input/output tokens, estimated costs
• Per-provider breakdown — cost by LLM provider and model
• Budget policies — global, per-agent-type limits with auto-pause
• Budget incidents — alerts with resolve/dismiss workflow

🎮 Easter Eggs & Fun Features

Desktop Pet (5 Themes)

🟣 Default · 🐱 Cat · 🧙 Wizard · 🤖 Robot · 🥷 Ninja — with comic speech bubbles, idle chatter, and AI-aware animations.

🌍 Internationalization

10 languages: 🇺🇸 English · 🇨🇳 简体中文 · 🇹🇼 繁體中文 · 🇯🇵 日本語 · 🇰🇷 한국어 · 🇪🇸 Español · 🇫🇷 Français · 🇮🇹 Italiano · 🇮🇳 हिन्दी · 🇹🇷 Türkçe

🛠 Tech Stack

🚀 Getting Started

# Clone
git clone https://github.com/CES-Ltd/TitanX.git
cd TitanX

# Install dependencies
bun install

# Rebuild native modules for Electron
bun run postinstall

# Start in development mode
bun start

# Build for production
bun run dist:mac    # macOS
bun run dist:win    # Windows
bun run dist:linux  # Linux

📁 Project Structure

TitanX/
├── src/
│   ├── renderer/               # React UI (Electron window)
│   │   ├── pages/
│   │   │   ├── governance/     # IAM, Workflows, Security, Blueprints, Traces, Audit
│   │   │   ├── observability/  # Command Center, Cost Analytics, Runtime
│   │   │   ├── team/           # Team Chat, Sprint, Gallery, Live, Planner
│   │   │   ├── conversation/   # Chat messages, markdown, tool calls
│   │   │   └── deepAgent/     # AG-UI research engine with inline visuals
│   │   └── components/         # Shared UI + Easter Eggs
│   ├── process/                # Main process (backend)
│   │   ├── services/
│   │   │   ├── policyEnforcement/  # Runtime IAM decision point
│   │   │   ├── networkPolicy/      # Deny-by-default egress + 11 presets
│   │   │   ├── ssrfProtection/     # IP/DNS/scheme validation
│   │   │   ├── blueprints/         # Declarative security profiles
│   │   │   ├── workspace/          # Multi-tenant workspace isolation
│   │   │   ├── deviceIdentity/     # Ed25519 hardware-bound key pairs
│   │   │   ├── taskLifecycle/      # Task state machine + transitions
│   │   │   ├── agentMemory/        # LangChain-inspired memory
│   │   │   ├── agentPlanning/      # DeepAgents-inspired planning
│   │   │   ├── reasoningBank/      # Trajectory storage + replay
│   │   │   ├── hooks/              # Agent hook system (Pre/PostToolUse)
│   │   │   ├── caveman/            # Token-saving Caveman Mode
│   │   │   ├── deepAgent/          # LangGraph research graph + AG-UI protocol
│   │   │   ├── tracing/            # LangSmith-compatible traces
│   │   │   ├── workflows/          # n8n-inspired DAG engine
│   │   │   ├── telemetry/          # OpenTelemetry SDK
│   │   │   ├── secrets/            # AES-256-GCM vault
│   │   │   ├── activityLog/        # HMAC + Ed25519 signed audit trail
│   │   │   └── database/pruning    # Auto-pruning for long-running stability
│   │   ├── bridge/             # 30+ IPC handler files
│   │   └── team/               # Team orchestration engine
│   └── common/                 # Shared types, IPC bridge definitions
├── docs/screenshots/           # Application screenshots
└── resources/                  # App icons, logos

Database Schema

TitanX adds 40+ tables via 71 migrations on top of AionUI's base schema:

Category	Tables
Security	iam_policies, agent_policy_bindings, credential_access_tokens, agent_session_tokens, network_policies, network_policy_rules, security_feature_toggles, agent_blueprints
Multi-Tenant	workspaces, workspace_members
Workflows	workflow_definitions, workflow_executions, workflow_node_executions
Intelligence	agent_memory, agent_plans, reasoning_bank, caveman_savings
Traces	trace_runs, trace_feedback
Operations	activity_log (HMAC + device signed), secrets, secret_versions, cost_events, budget_policies, budget_incidents, agent_runs, approvals, workflow_rules
Teams	teams, team_tasks (with progress_notes + lifecycle_state), sprint_tasks, sprint_counters, agent_gallery, agent_snapshots, inference_routing_rules, project_plans
Fleet	fleet_enrollments, fleet_config_version, fleet_telemetry_reports, fleet_telemetry_state, fleet_commands, fleet_command_acks, fleet_farm_devices, fleet_agent_jobs, fleet_learnings, consolidated_learnings, learning_exports

🔑 Keywords

ai-agents multi-agent-orchestration enterprise-security agent-os iam rbac audit-logging device-identity workspace-isolation opentelemetry langchain langsmith n8n-workflows nemoclaw electron-app react typescript sqlite desktop-app ai-governance llm-orchestration agent-memory agent-planning reasoning-bank caveman-mode network-policies ssrf-protection workflow-automation sprint-board cost-tracking mission-control auto-pruning fleet-mode master-slave agent-farm acp-runtime distributed-agents signed-commands

License

Apache-2.0 — see LICENSE for details.

Attribution

TitanX is built on AionUI — the open-source AI cowork platform by iOfficeAI.
We gratefully acknowledge the AionUI team for their foundational work that makes TitanX possible.

Security patterns inspired by NVIDIA NemoClaw · Workflows inspired by n8n · Agent intelligence inspired by LangChain & DeepAgents · Observability inspired by LangSmith · Chat UI patterns inspired by CopilotKit

CES Ltd
cesltd.com · GitHub
