Case Study - To Do List with Spring Boot and Couchbase

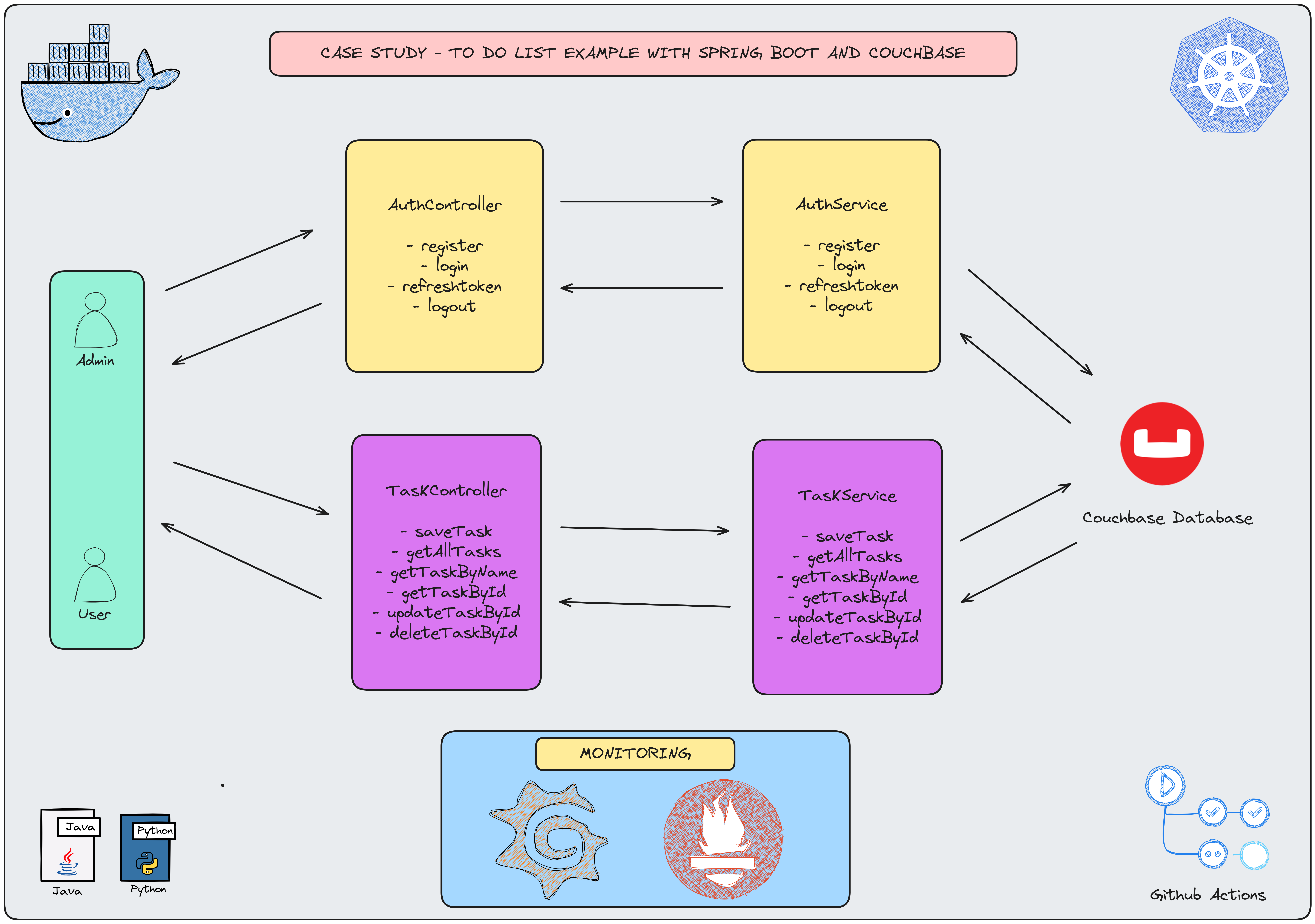

Main Information

📖 Information

This project provides a Spring Boot API for managing user authentication and task management functionalities. It also includes advanced logging and security features.
User Authentication:
- User Registration: Register users with an email and password.
- User Login: Authenticate users with email and password, generating access and refresh tokens
- Token Refresh: Refresh expired access tokens using refresh tokens
- User Logout: Invalidate tokens to log users out
Task Management :
- Create Tasks: Accessible only to ADMIN users
- Retrieve Tasks: Paginated task list retrieval, accessible to both ADMIN and USER roles
- Retrieve Tasks: Paginated task list retrieval, accessible to both ADMIN and USER roles
- Retrieve Specific Task: Search by task name or ID, accessible to both ADMIN and USER role
- Update Tasks: Modify an existing task by ID, accessible only to ADMIN users
- Delete Tasks: Remove tasks by ID, accessible only to ADMIN users
Security :
- User Roles: ADMIN and USER roles implemented using Spring Security
- JWT Authentication: Secure endpoints with JSON Web Tokens
Logging :
- Custom Logging Aspect: Logs details of REST controller method calls and exceptions, including
Python :
- setup-couchbase image used in Docker is handled with Kubernetes process to defnie cluster, scope, collection and indexes

Explore Rest APIs

Endpoints Summary

Method	Url	Description	Request Body	Path Variable	Response
POST	/api/v1/authentication/user/register	Register for Admin or User	RegisterRequest		CustomResponse<Void>
POST	/api/v1/authentication/user/login	Login for Admin or User	LoginRequest		CustomResponse<TokenResponse>
POST	/api/v1/authentication/user/refresh-token	Refresh Token for Admin or User	TokenRefreshRequest		CustomResponse<TokenResponse>
POST	/api/v1/authentication/user/logout	Logout for Admin or User	TokenInvalidateRequest		CustomResponse<Void>
POST	api/v1/tasks	Create a new Task	SaveTaskRequest		CustomResponse<String>
GET	api/v1/tasks	Get all Tasks	TaskPagingRequest		CustomResponse<CustomPagingResponse<TaskResponse>>
POST	api/v1/tasks/getByName	Get Task by name	GetTaskByNameRequest		CustomResponse<TaskResponse>
GET	api/v1/tasks/{id}	Get Task by ID		UUID	CustomResponse<TaskResponse>
PUT	api/v1/tasks/{id}	Update a Task	UpdateTaskRequest	UUID	CustomResponse<TaskResponse>
DELETE	api/v1/tasks/{id}	Delete a Task		UUID	CustomResponse<String>

Technologies

Java 21
Spring Boot 3.0
Restful API
Mapstruct
Open Api (Swagger)
Maven
Junit5
Mockito
Integration Tests
Docker
Docker Compose
CI/CD (Github Actions)
Postman
TestContainer
Couchbase
Prometheus
Grafana
Kubernetes
Python

Postman

Import postman collection under postman_collection folder

Prerequisites

Define Variable in .env file

COUCHBASE_USERNAME={COUCHBASE_USERNAME}
COUCHBASE_PASSWORD={COUCHBASE_PASSWORD}
COUCHBASE_BUCKET=todo_list
COUCHBASE_HOST=127.0.0.1

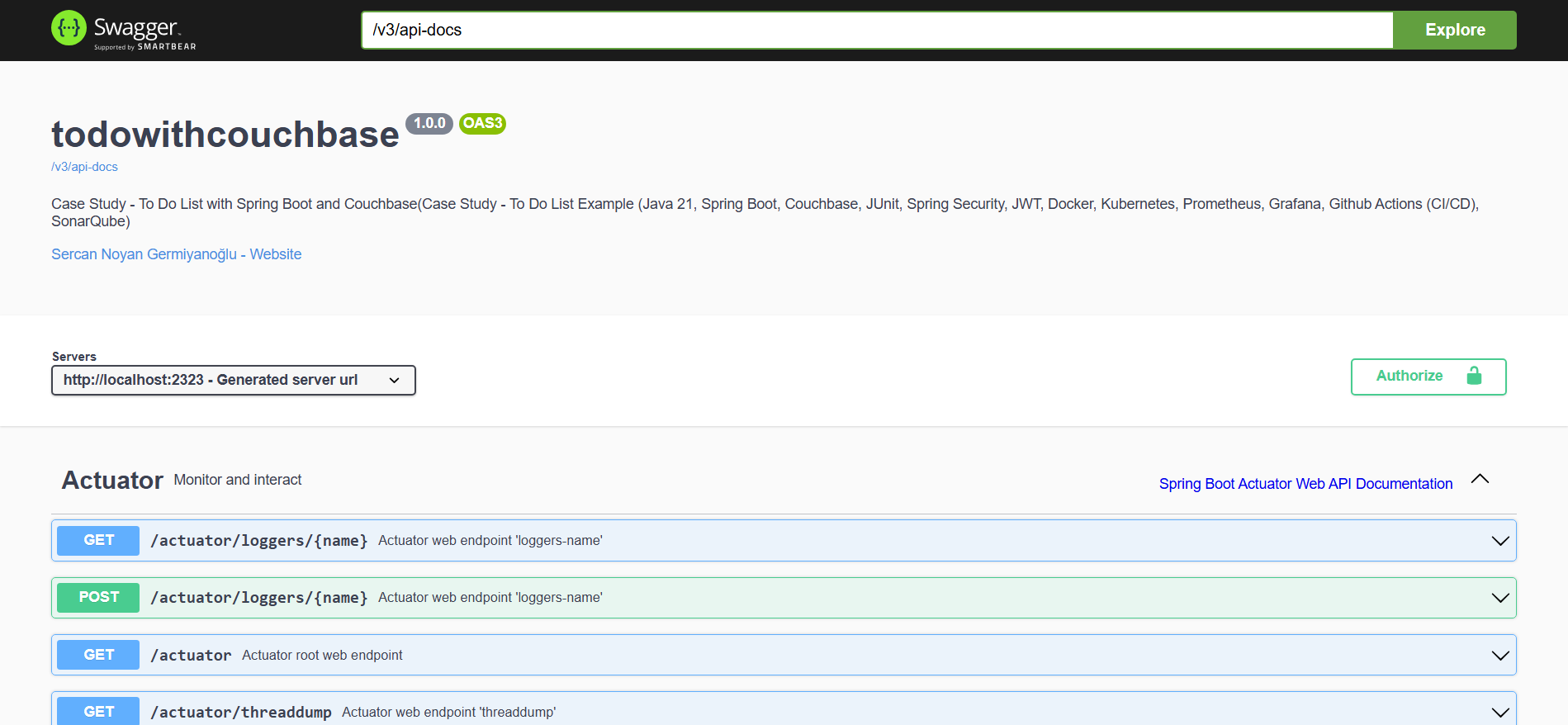

Open Api (Swagger)

http://localhost:2323/swagger-ui/index.html

Maven, Docker and Kubernetes Running Process

Maven Run

To build and run the application with Maven, please follow the directions shown below;

$ cd todowithcouchbase
$ mvn clean install
$ mvn spring-boot:run

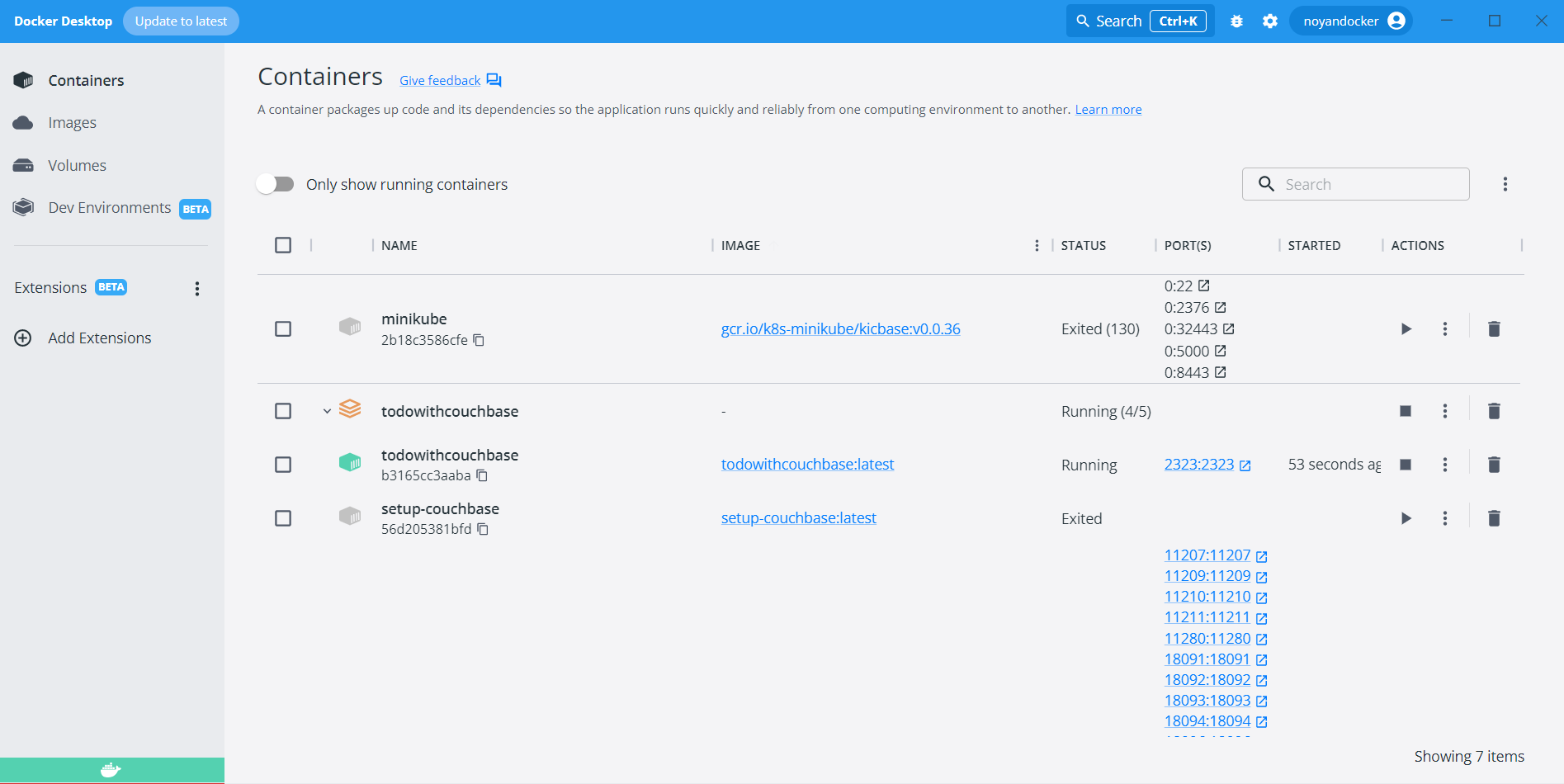

Docker Run

The application can be built and run by the Docker engine. The Dockerfile has multistage build, so you do not need to build and run separately.

Please follow directions shown below in order to build and run the application with Docker Compose file;

$ cd todowithcouchbase
$ docker-compose up -d

If you change anything in the project and run it on Docker, you can also use this command shown below

$ cd todowithcouchbase
$ docker-compose up --build

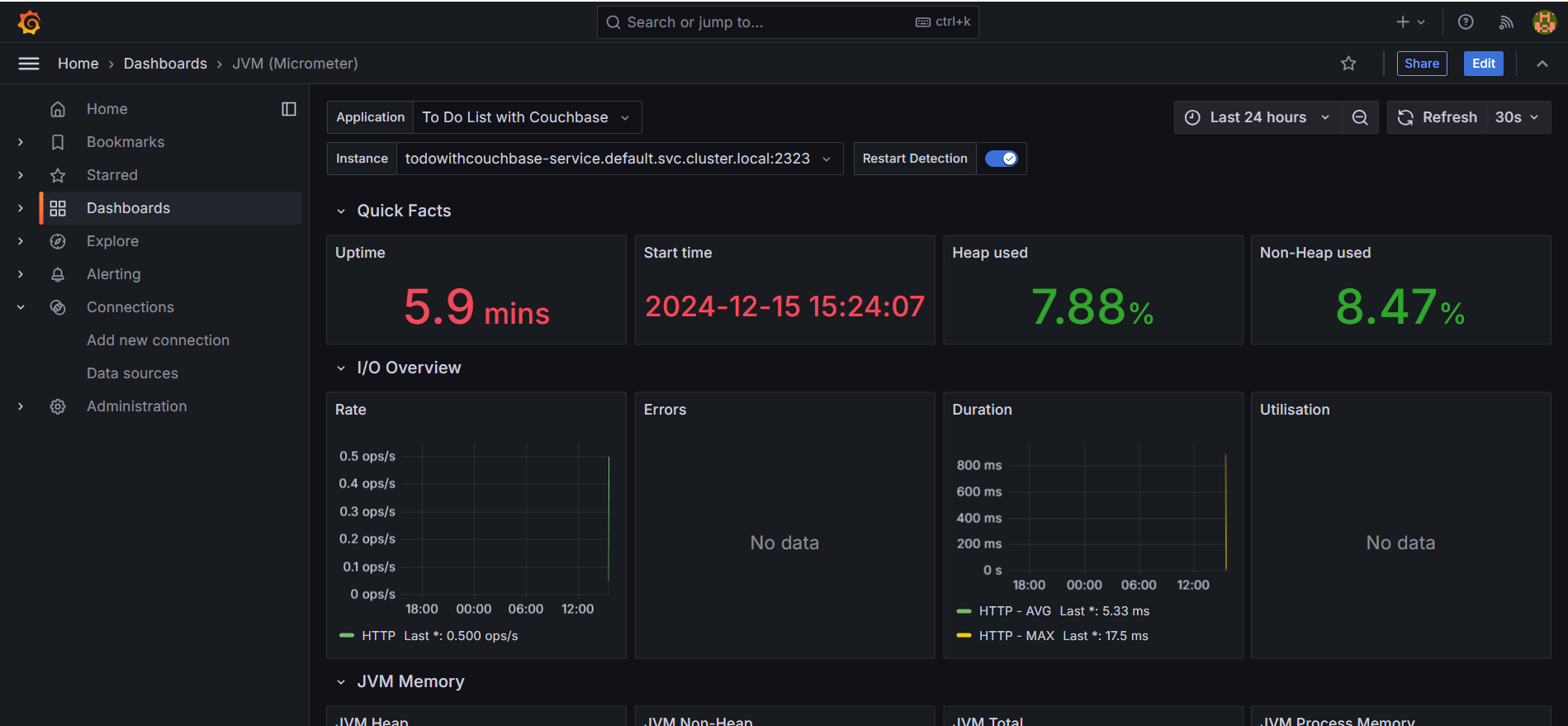

To monitor the application, you can use the following tools:

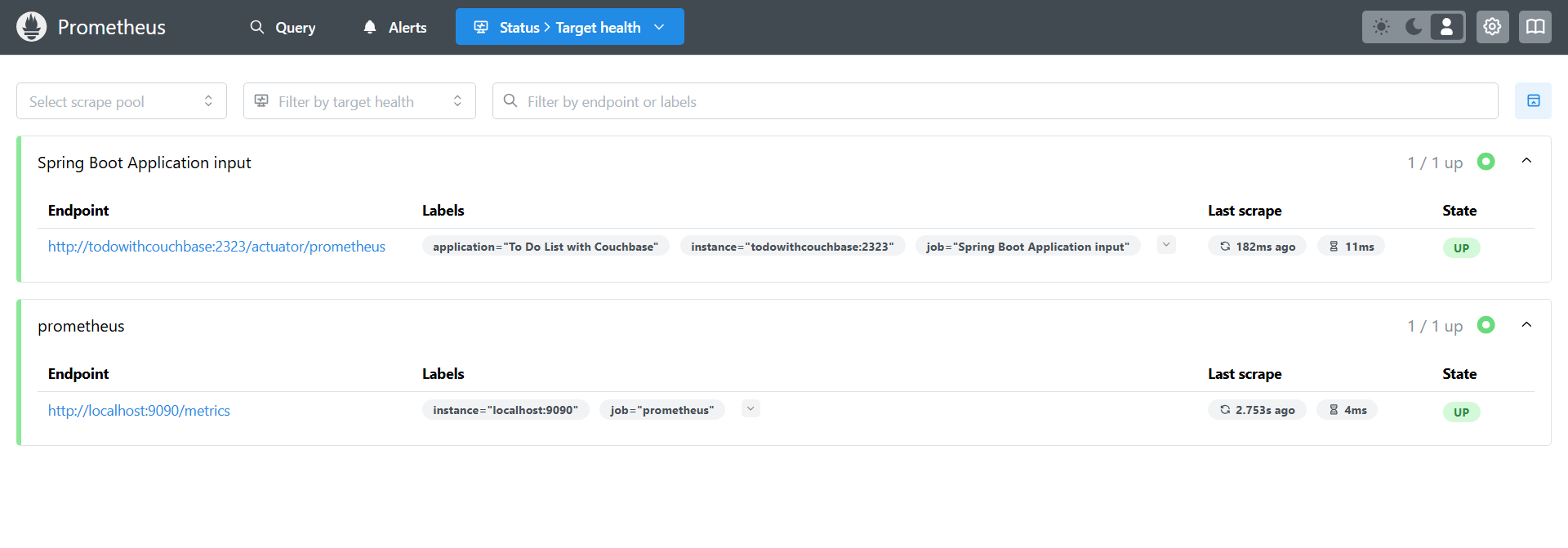

Prometheus:
Open in your browser at http://localhost:9090
Prometheus collects and stores application metrics.

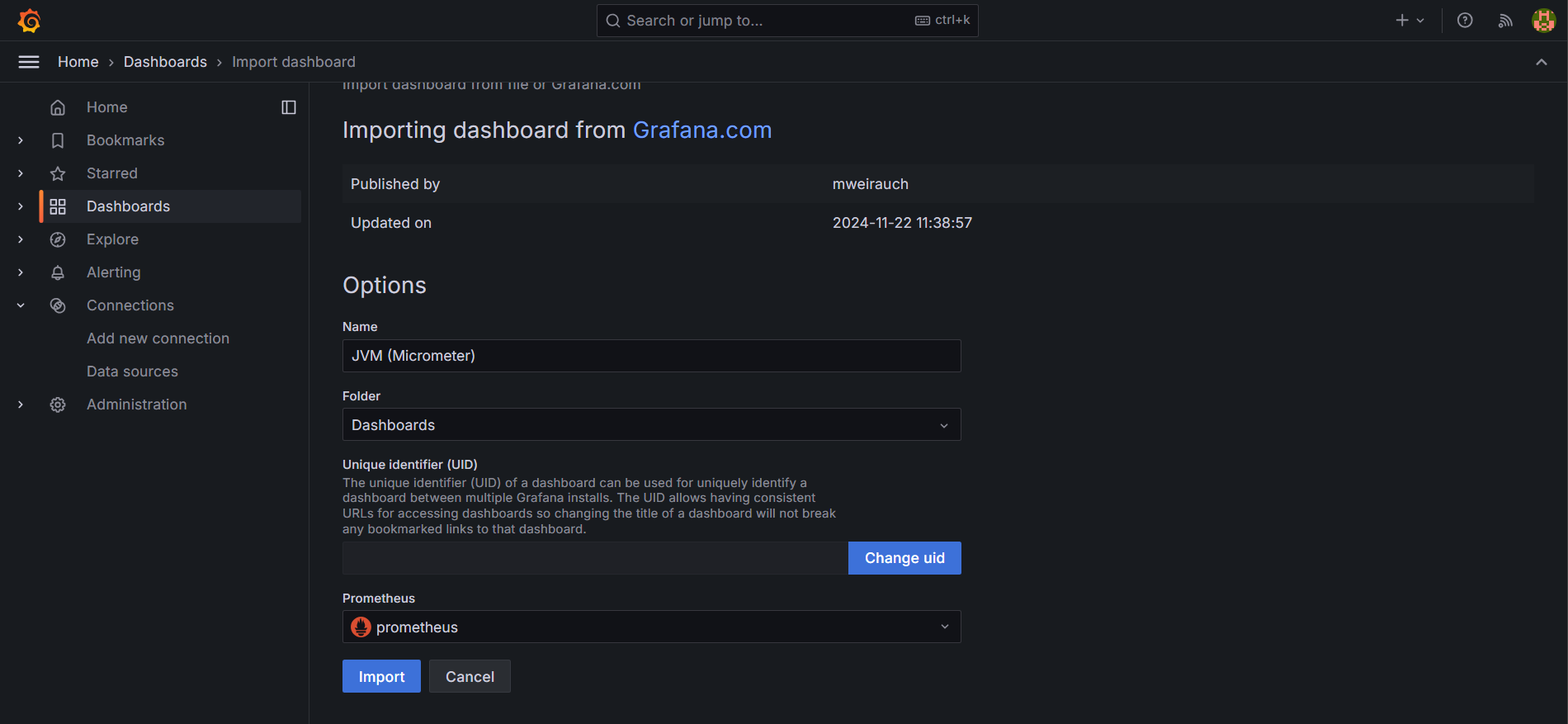

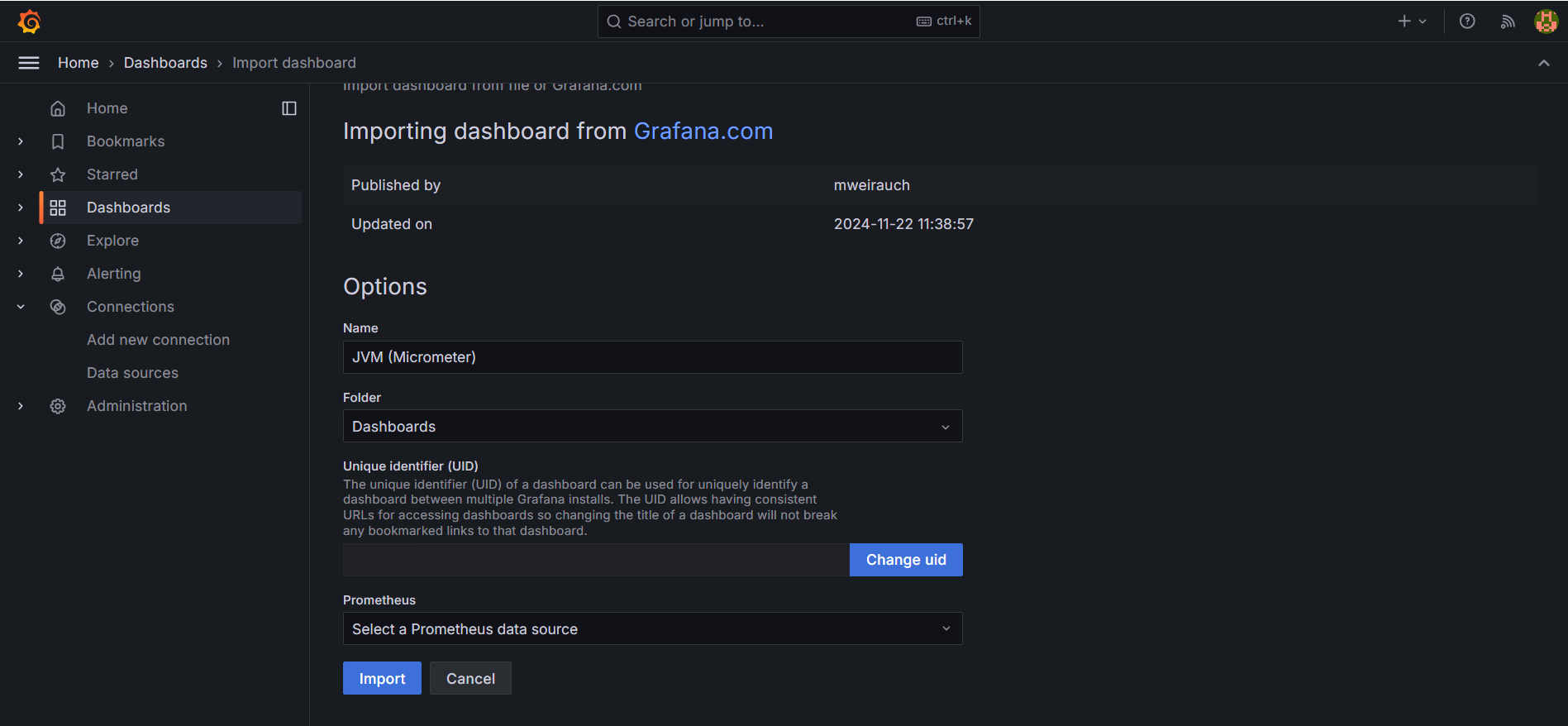

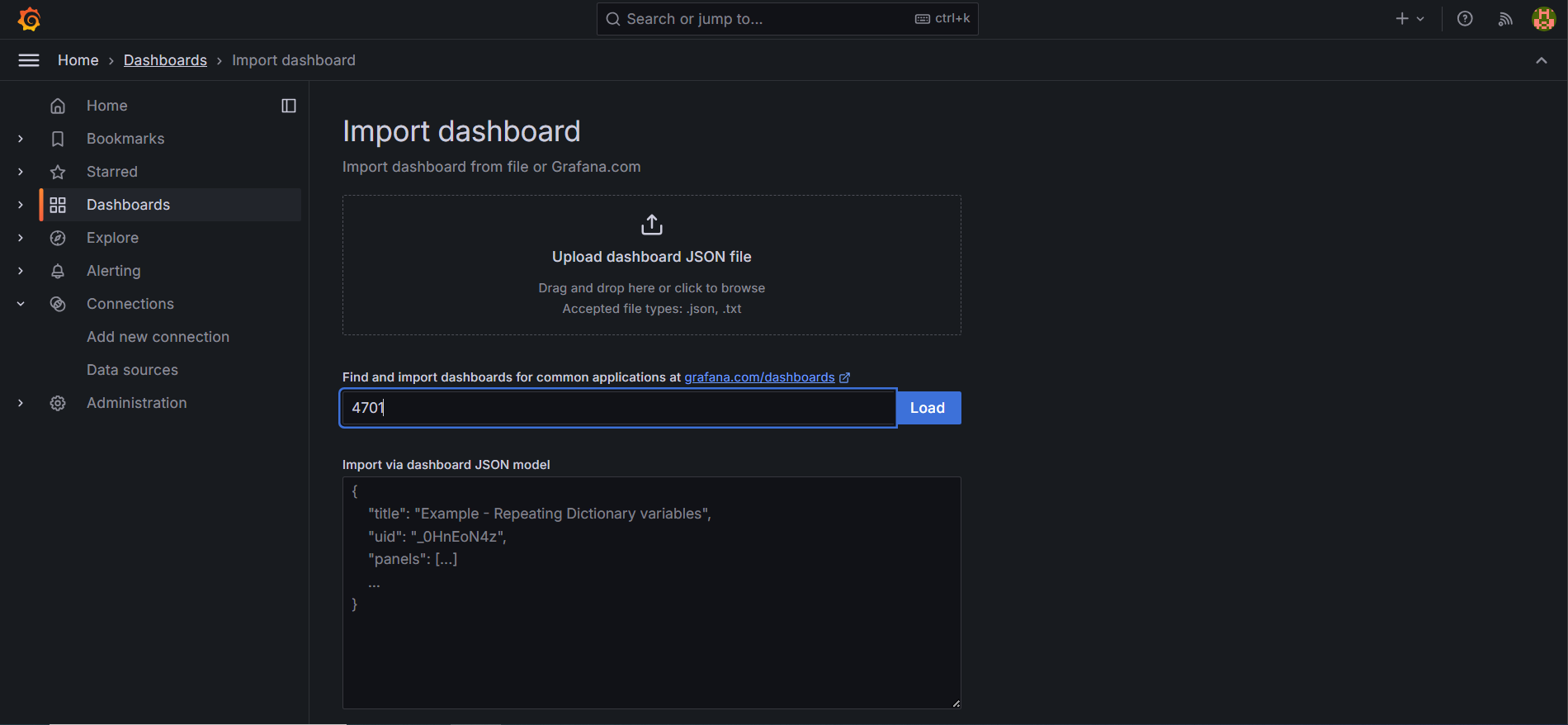

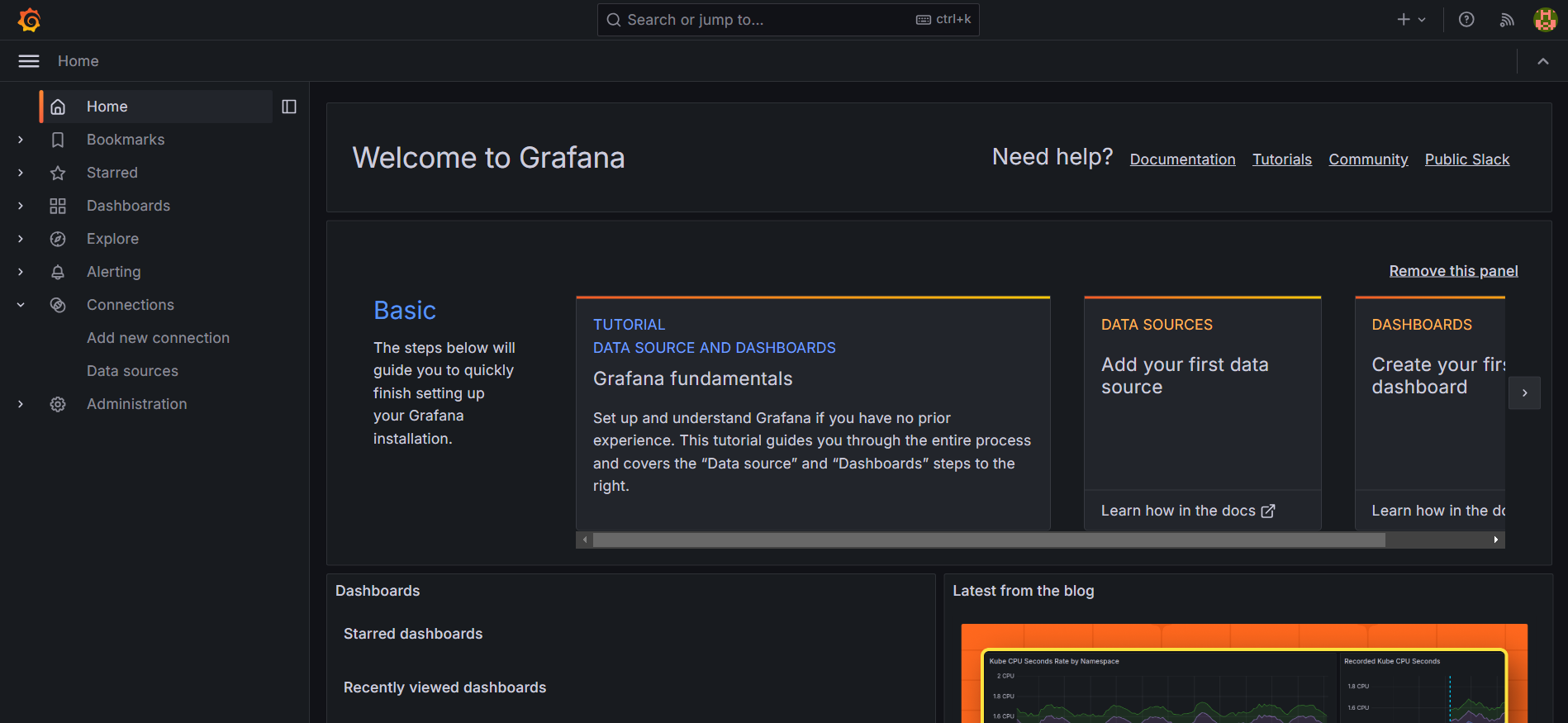

Grafana:
Open in your browser at http://localhost:3000

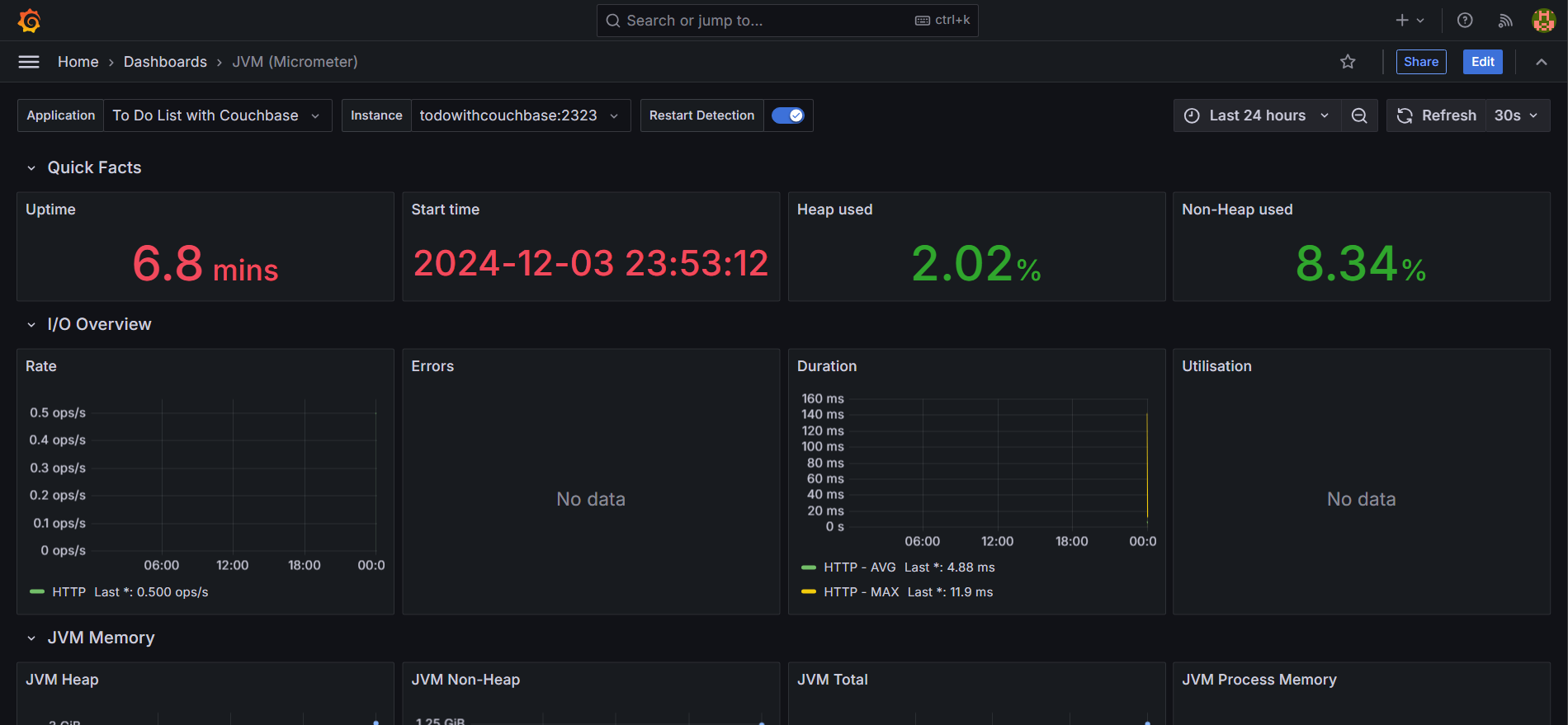

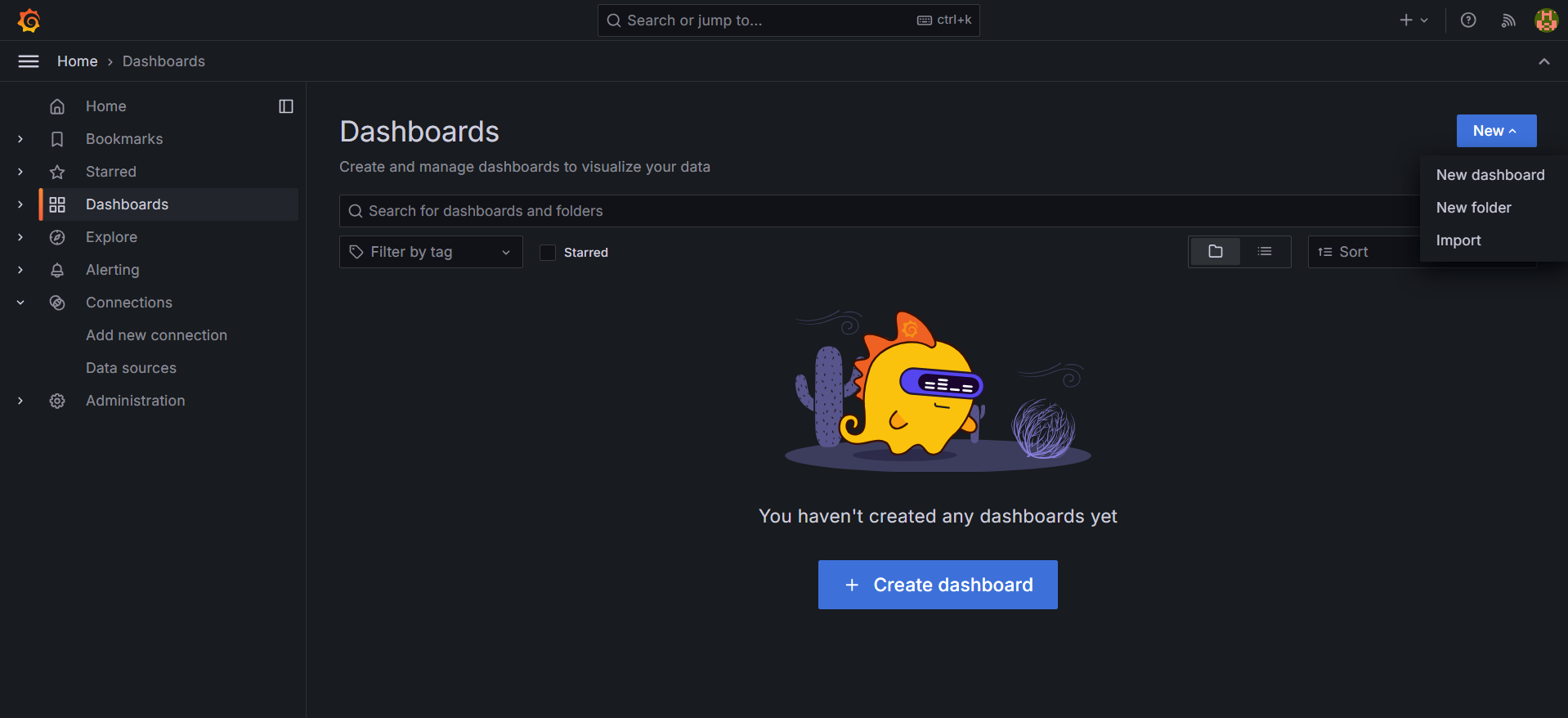

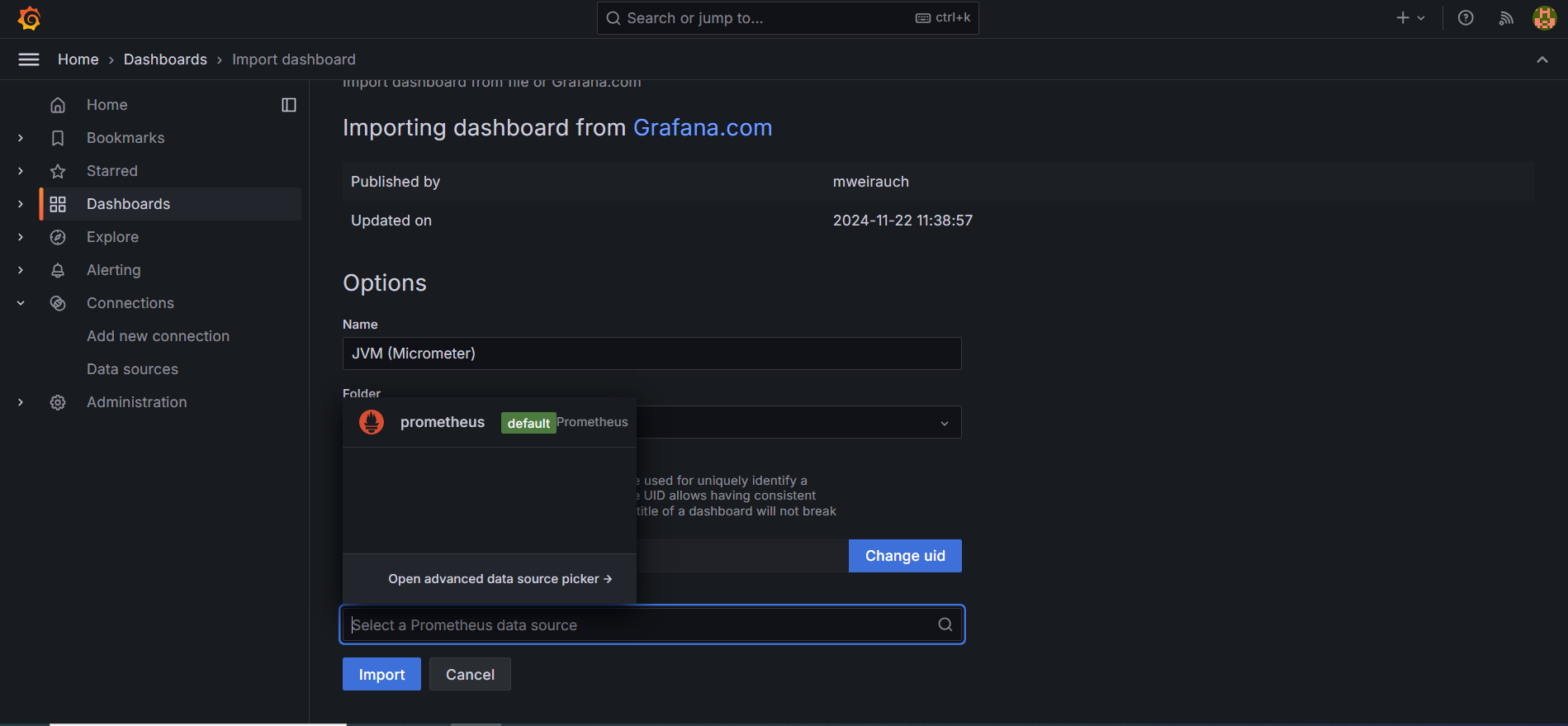

Grafana provides a dashboard for visualizing the metrics.
Default credentials:
- Username: admin
- Password: admin

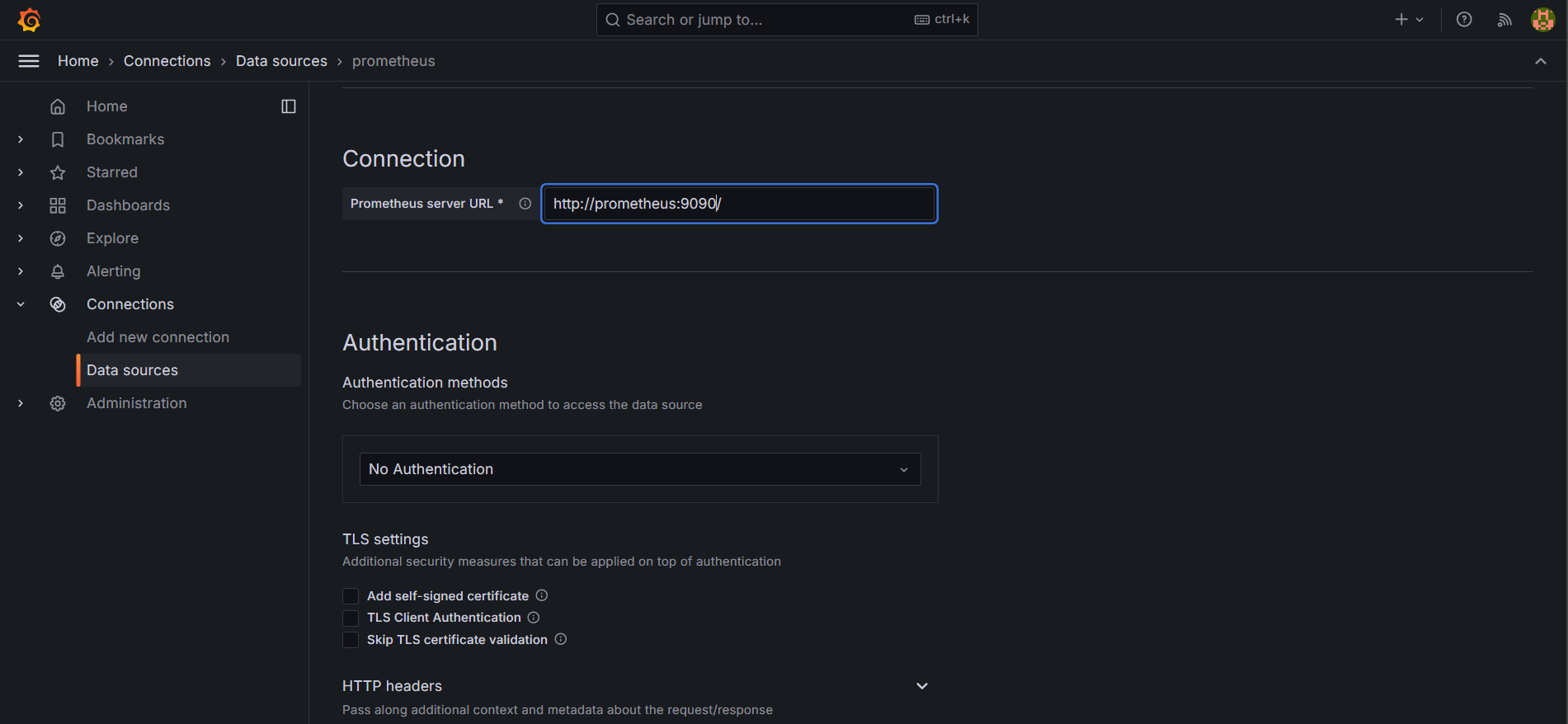

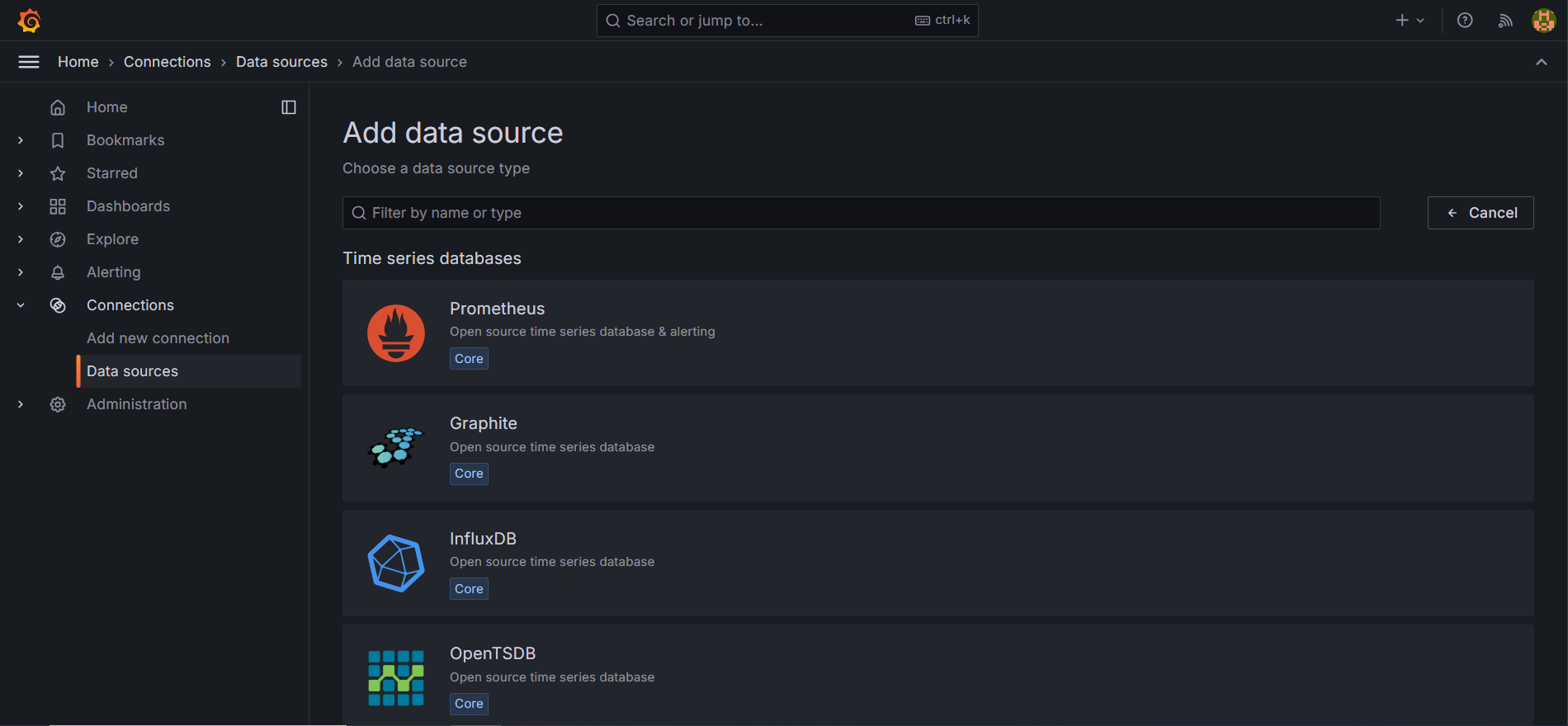

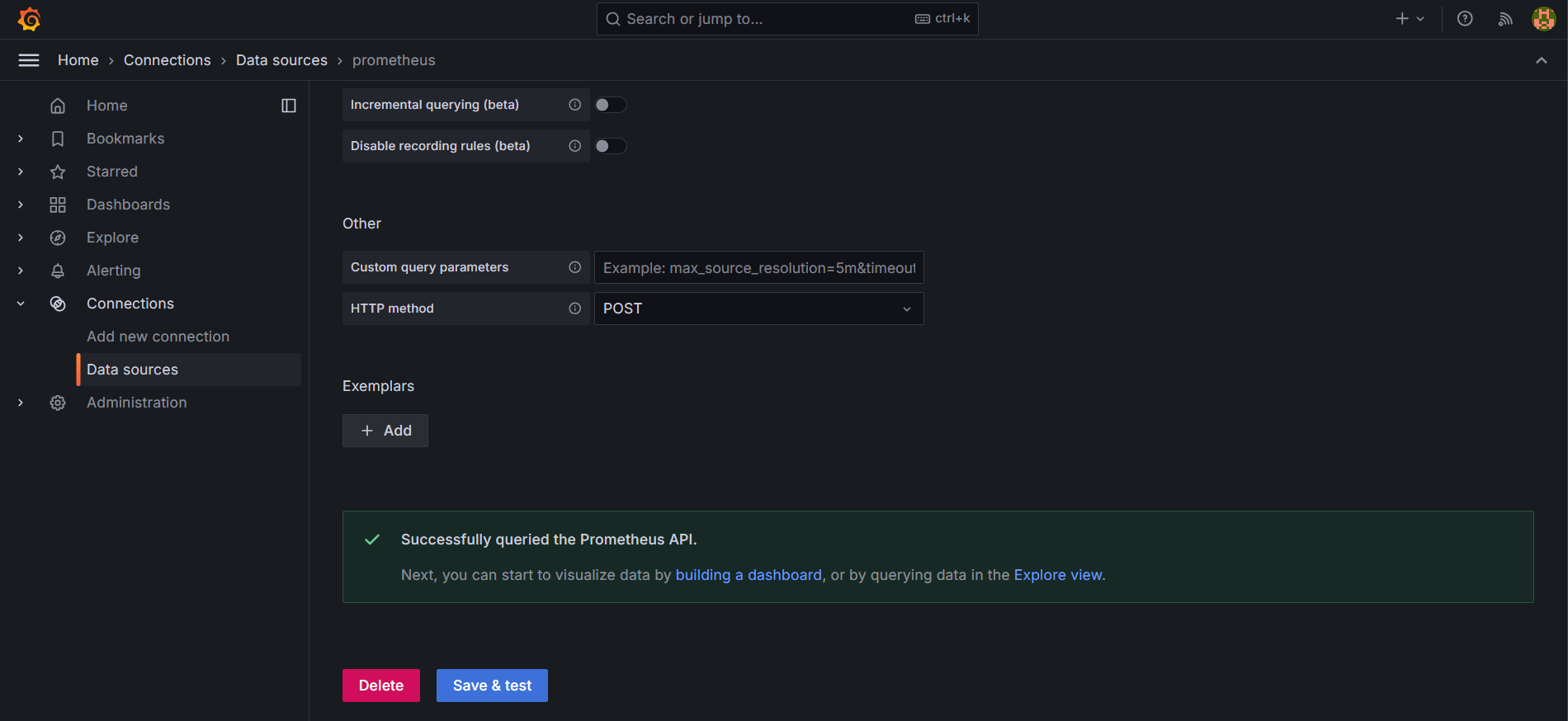

Define prometheus data source url, use this link shown below

http://prometheus:9090

Kubernetes Run

To build and run the application with Maven, please follow the directions shown below;

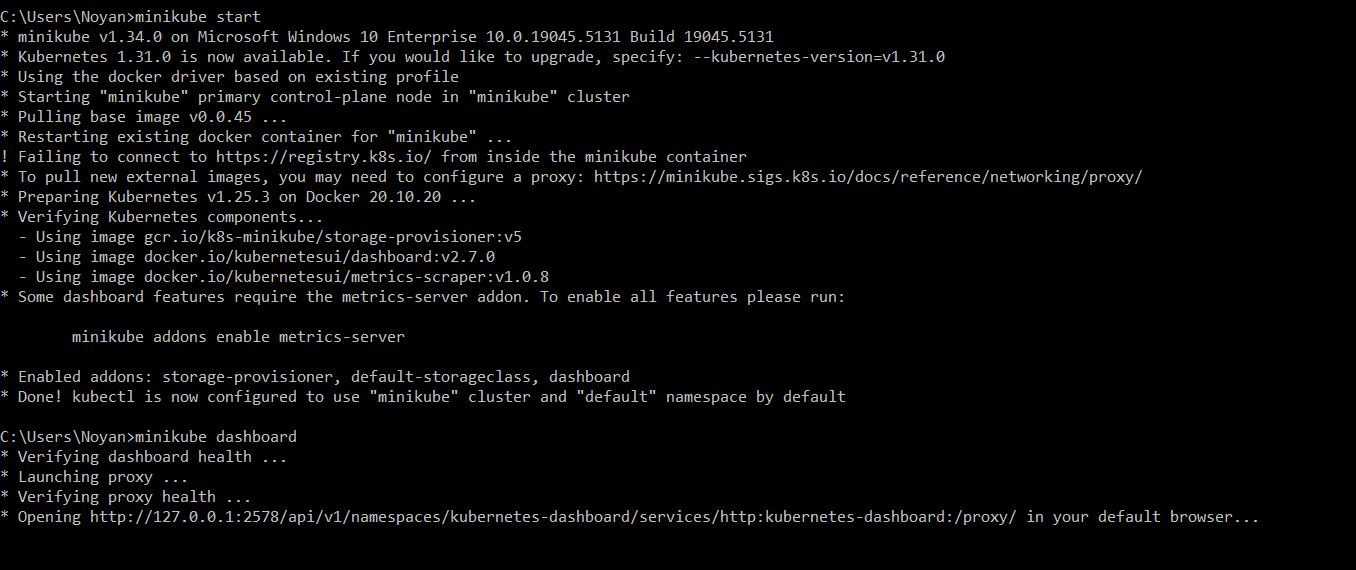

Start Minikube

$ minikube start

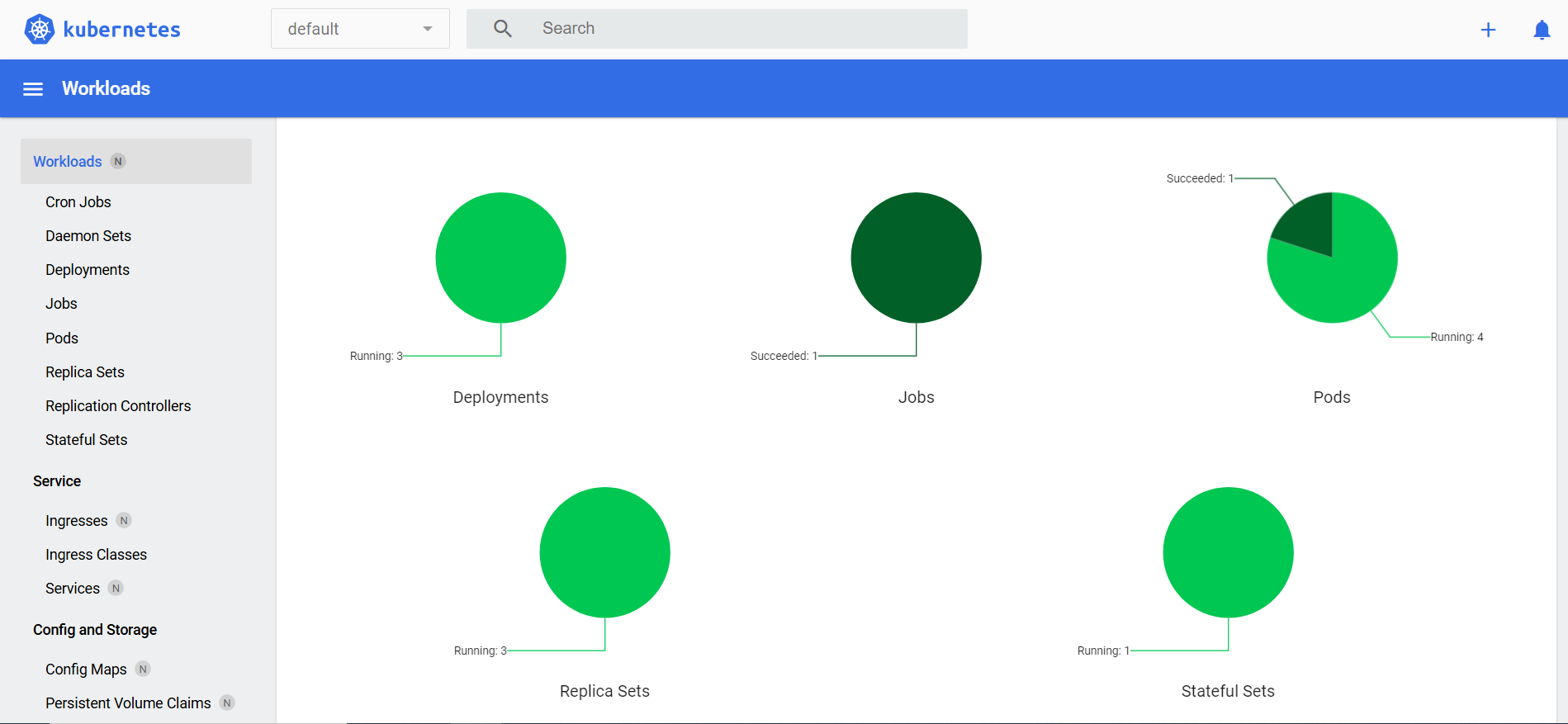

Open Minikube Dashboard

$ minikube dashboard

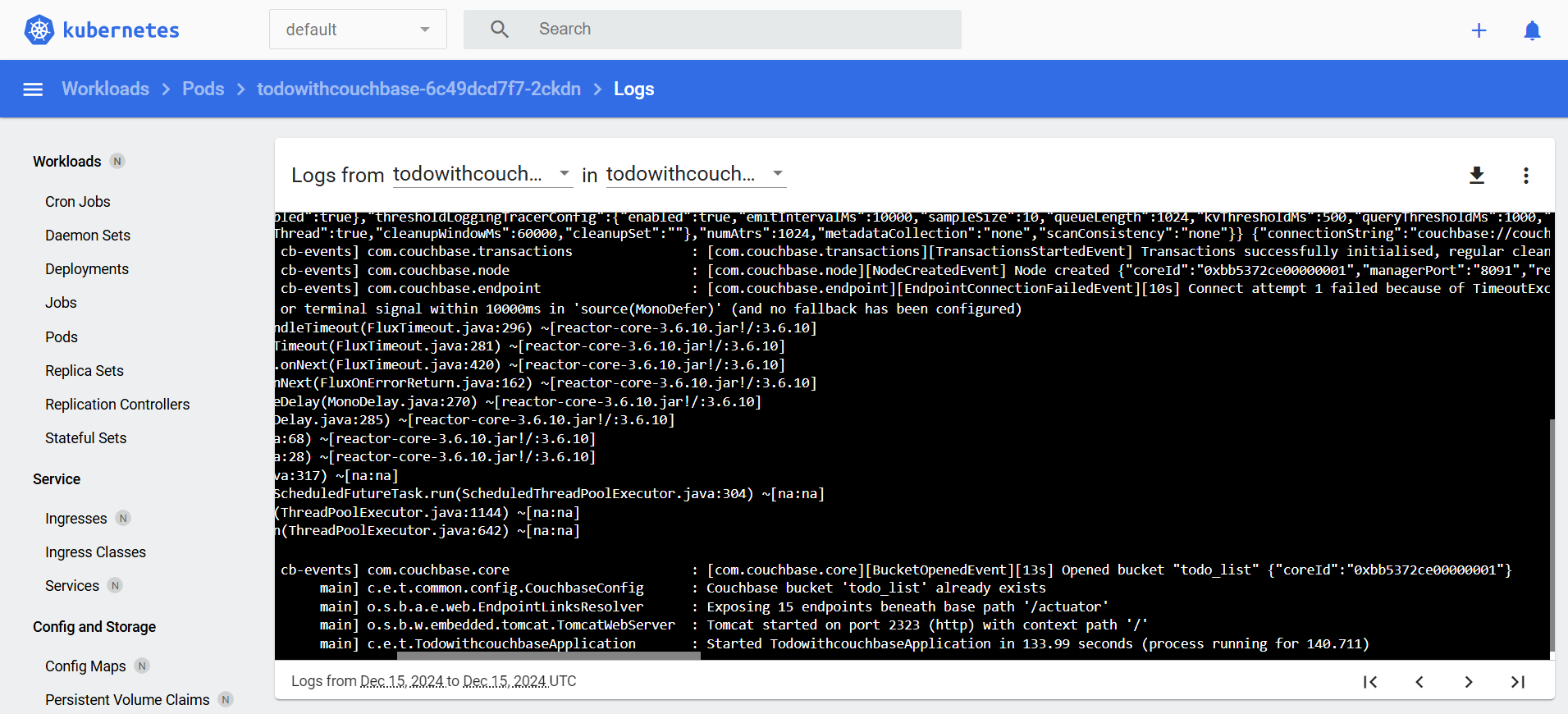

To deploy the application on Kubernetes, apply the Kubernetes configuration file underneath k8s folder

$ kubectl apply -f k8s

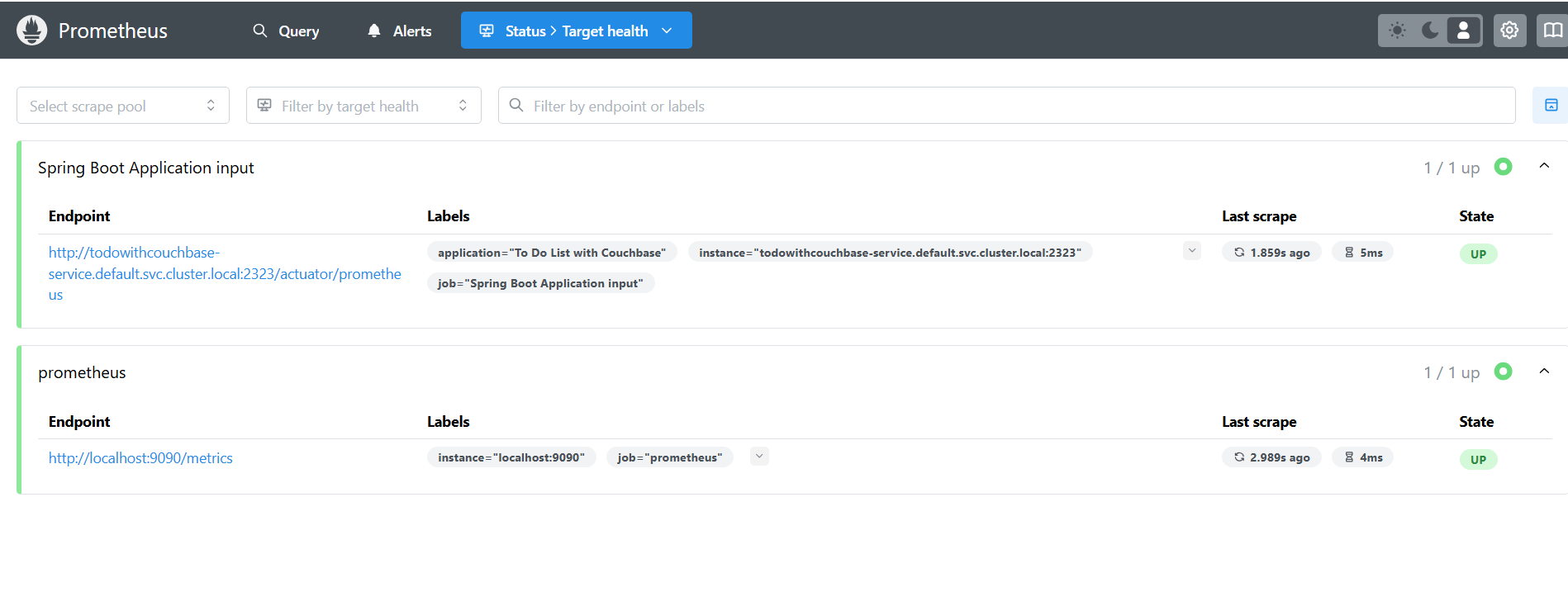

To open Prometheus, click tunnel url link provided by the command shown below to reach out Prometheus

minikube service prometheus-service

To open Grafana, click tunnel url link provided by the command shown below to reach out Prometheus

minikube service grafana-service

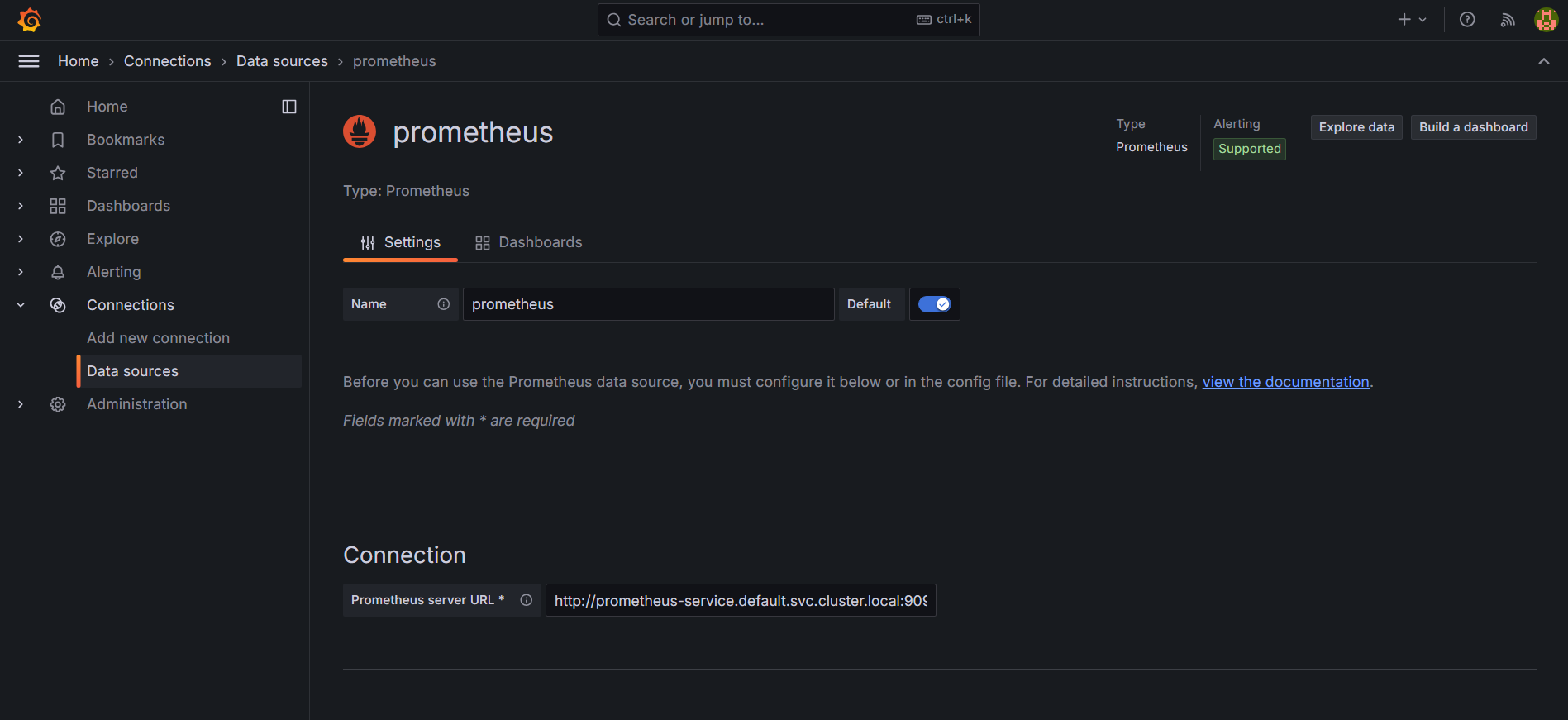

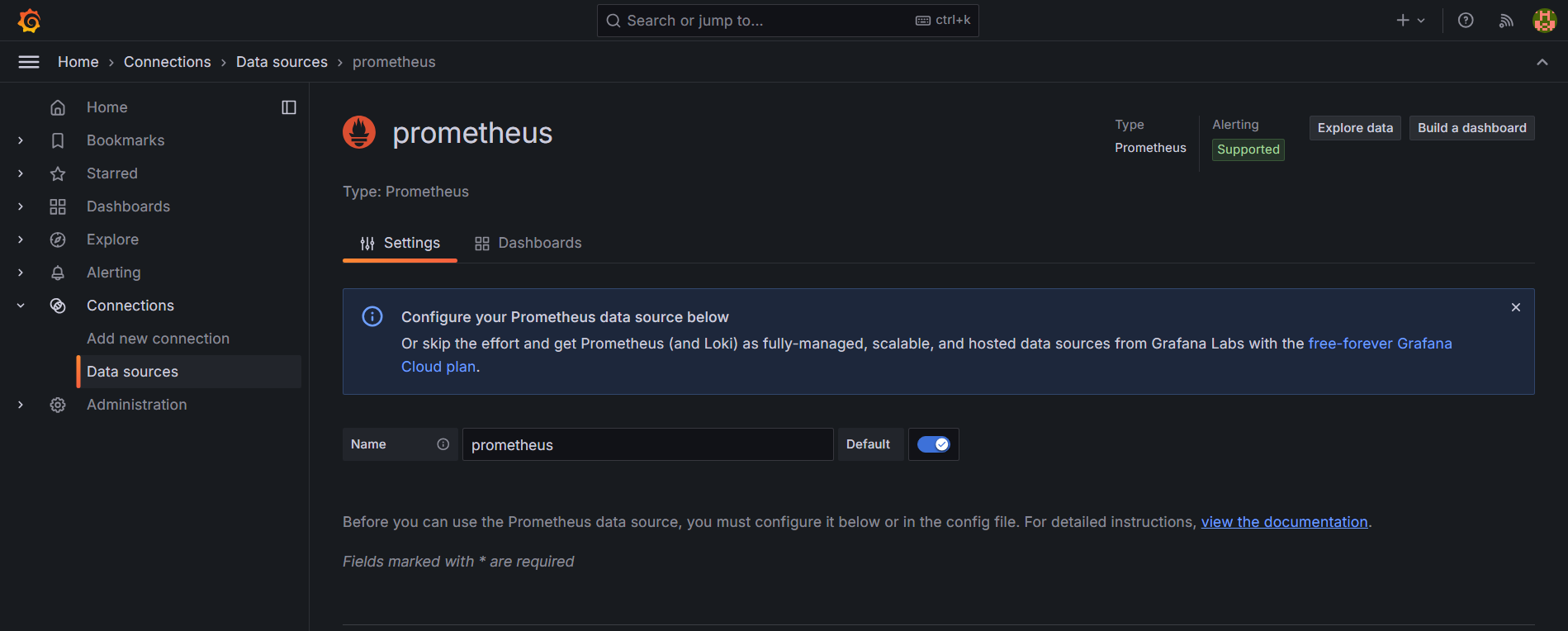

Define prometheus data source url, use this link shown below

http://prometheus-service.default.svc.cluster.local:9090

Docker Image Location

https://hub.docker.com/repository/docker/noyandocker/todowithcouchbase/general
https://hub.docker.com/repository/docker/noyandocker/setup-couchbase/general
