Vyshyvanka

A workflow automation platform built on .NET 10. Users create automated workflows through a visual node-based designer, connect nodes to define data flow, and execute workflows triggered by webhooks, schedules, or manual actions.

[!WARNING] This project is under heavy development and is not suitable for production use. APIs, data formats, and features may change without notice.

Why "Vyshyvanka"?

Vyshyvanka (Вишиванка) is a traditional Ukrainian embroidered shirt. Each pattern is crafted by weaving threads through fabric — every stitch deliberate, every connection meaningful. The same idea drives this project: workflows are patterns woven from nodes and connections, each one carrying data from one point to the next. The name reflects both the craft of building something intricate from simple elements and the Ukrainian roots of the team behind it.

Screenshots

Light Theme

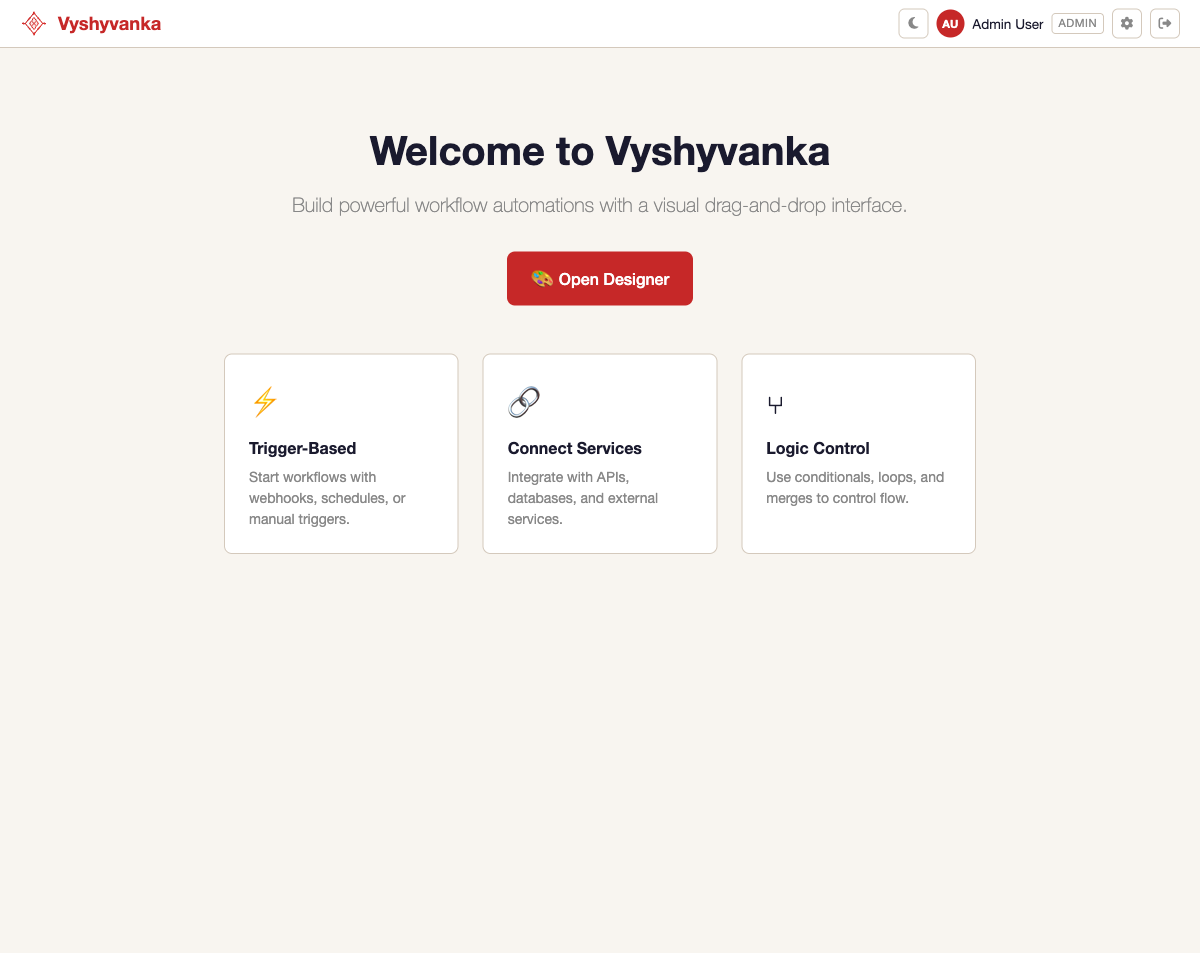

Designer	Home

Dark Theme (Vyshyvanka Red)

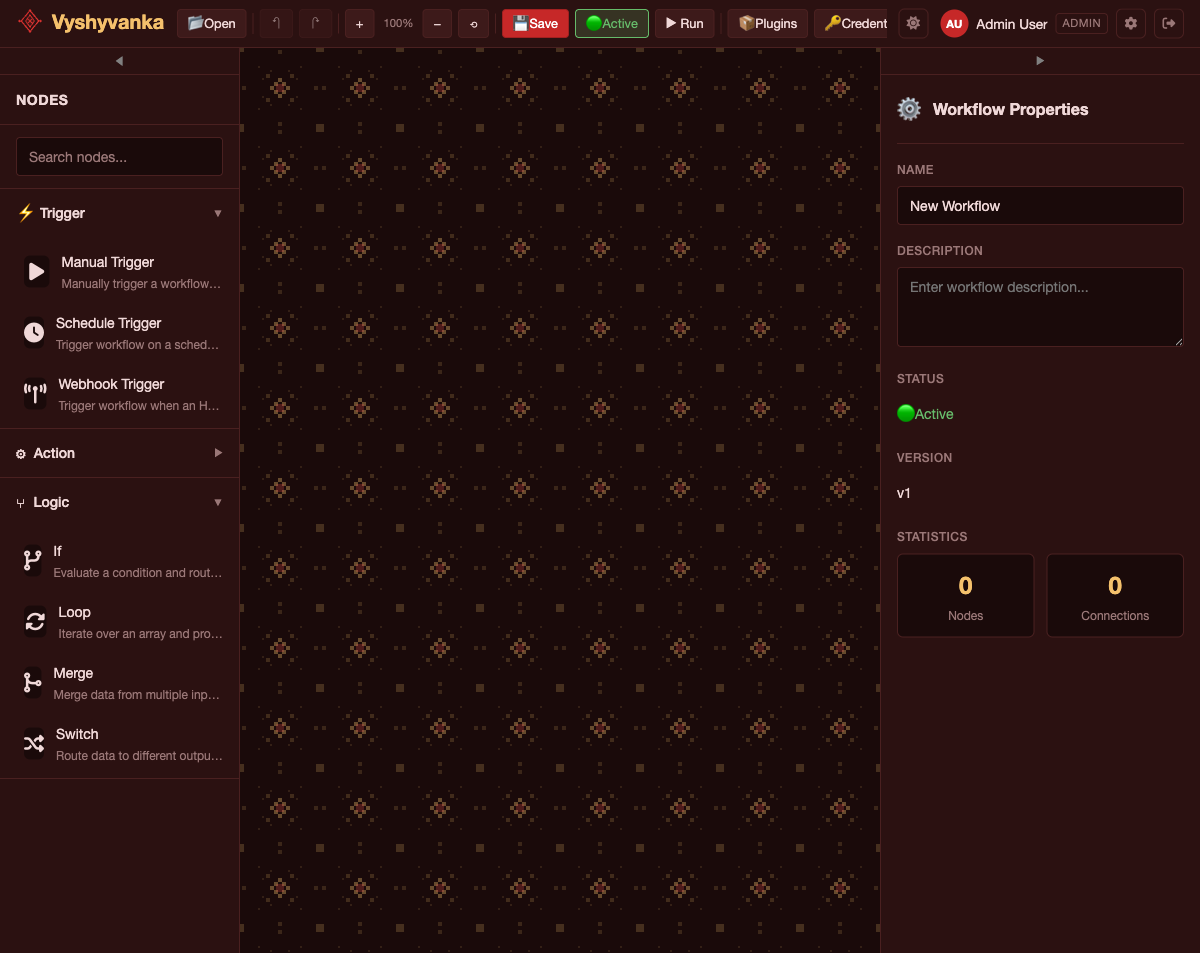

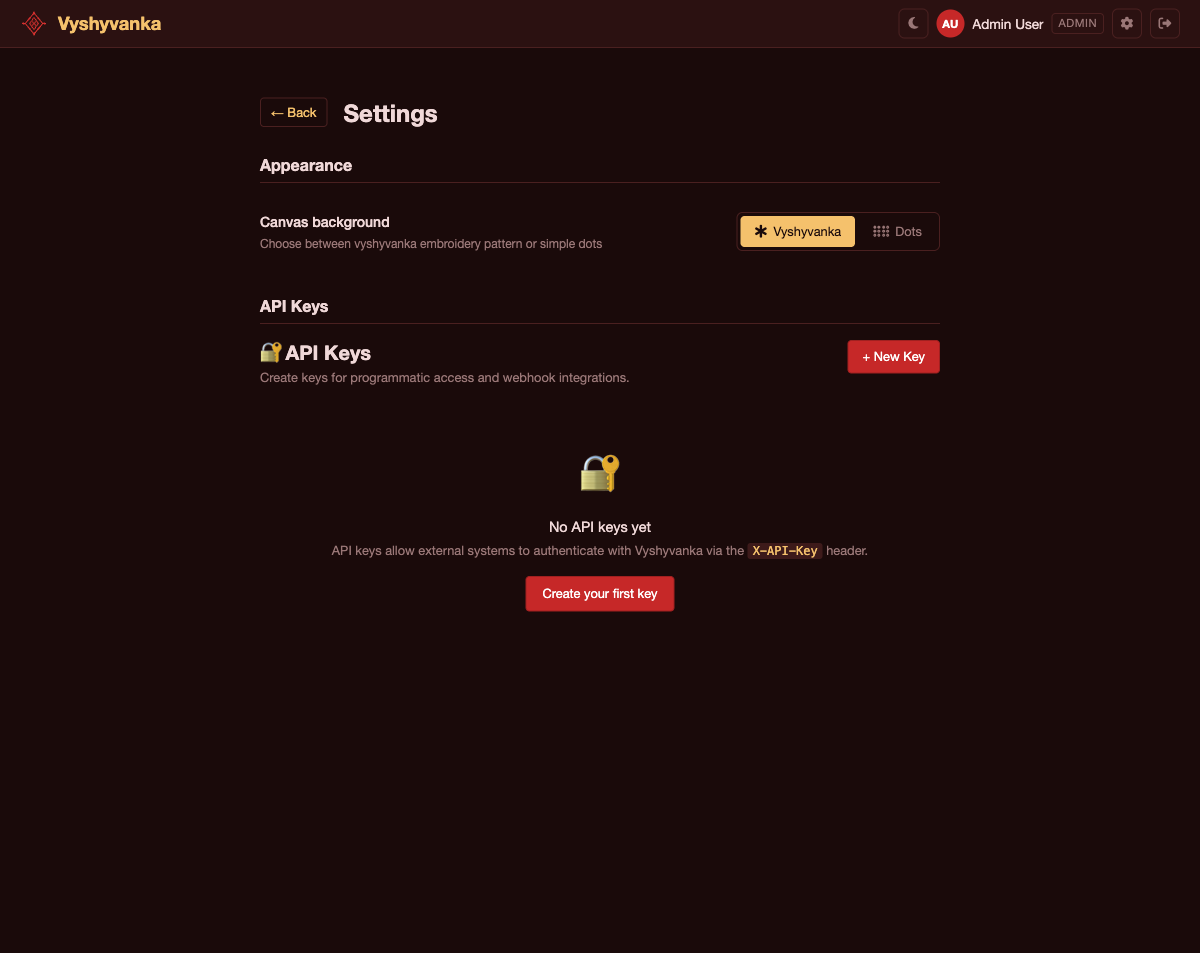

Designer	Settings

Architecture

graph TD
    Designer["Designer\n(Blazor WASM)"] -->|HTTP| API["API\n(ASP.NET Core)"]
    API --> Engine["Engine\n(Execution, Persistence, Plugins)"]
    Engine --> Core["Core\n(Domain Models, Interfaces)"]

Dependencies flow downward only. The Designer communicates with the API exclusively over HTTP.

Tech Stack

Prerequisites

• .NET 10 SDK
• .NET Aspire workload (dotnet workload install aspire)
• Docker (optional, for PostgreSQL via Aspire)

Getting Started

Clone the repo and restore dependencies:

git clone <repository-url>
cd Vyshyvanka
dotnet restore Vyshyvanka.slnx

Run with Aspire (recommended)

Starts both the API and Designer with service discovery:

dotnet run --project src/Vyshyvanka.AppHost

This uses SQLite by default. To use PostgreSQL instead (requires Docker):

USE_POSTGRES=true dotnet run --project src/Vyshyvanka.AppHost

Run individual projects

# API only
dotnet run --project src/Vyshyvanka.Api

# Designer only
dotnet run --project src/Vyshyvanka.Designer

Build & Test

dotnet build
dotnet test

Project Structure

Key Concepts

Workflows

A workflow is a directed graph of nodes connected through typed ports. Every workflow must have exactly one trigger node as its entry point.

Nodes

Nodes are the building blocks of workflows. Three categories:

Executions

When a trigger fires, an execution is created and moves through: Pending → Running → Completed / Failed / Cancelled. Node outputs are stored during execution for use in expressions.

Expressions

Reference data from previous nodes using double-brace syntax. Nodes are referenced by their ID (GUID):

{{ nodes.<nodeId>.propertyName }}
{{ nodes.<nodeId>.response.body.users[0].email }}
{{ variables.executionId }}
{{ variables.workflowId }}

The Designer's autocomplete shows node names but inserts their IDs automatically.

Plugins

Extend Vyshyvanka by creating plugin projects that reference Vyshyvanka.Core and implement custom nodes.

Authentication

Vyshyvanka supports four authentication providers, configured via Authentication:Provider in appsettings.json:

API key authentication (X-API-Key header) is always available for webhooks and external integrations, regardless of the active provider.

Built-in (default)

Works out of the box. Users register and log in with email/password. Development seeds three users automatically ([email protected], [email protected], [email protected]).

Keycloak / Authentik

Configure the OIDC authority and role mappings. The API validates tokens issued by the external provider and auto-provisions local users on first login.

{
  "Authentication": {
    "Provider": "Keycloak",
    "Authority": "https://keycloak.example.com/realms/vyshyvanka",
    "ClientId": "vyshyvanka-api",
    "Audience": "vyshyvanka-api",
    "RoleClaimType": "realm_access",
    "RoleMappings": {
      "vyshyvanka-admin": "Admin",
      "vyshyvanka-editor": "Editor"
    }
  }
}

See appsettings.Keycloak.json and appsettings.Authentik.json for full examples.

LDAP

Credentials are verified against the LDAP directory. Sessions use locally-issued JWT tokens. Users are provisioned on first login with roles mapped from LDAP group memberships.

{
  "Authentication": {
    "Provider": "Ldap",
    "Ldap": {
      "Host": "ldap.example.com",
      "Port": 389,
      "UseStartTls": true,
      "BindDn": "cn=readonly,dc=example,dc=com",
      "BindPassword": "...",
      "SearchBase": "ou=users,dc=example,dc=com",
      "UserSearchFilter": "(mail={0})",
      "RoleMappings": {
        "Vyshyvanka-Admins": "Admin",
        "Vyshyvanka-Editors": "Editor"
      }
    }
  }
}

See appsettings.Ldap.json for the full example.

Auth Discovery

The GET /api/auth/config endpoint (anonymous) returns the active provider and OIDC settings so the Designer can configure its auth flow at runtime.

Credential Storage

Vyshyvanka supports three credential storage backends, configured via CredentialStorage:Provider in appsettings.json:

Built-in (default)

Credential values are encrypted with AES-256 and stored alongside metadata in the database. Configure the encryption key via Vyshyvanka:EncryptionKey.

HashiCorp Vault / OpenBao

Metadata (name, type, owner) stays in the local database. Secret values are stored in Vault/OpenBao via the KV v2 API.

{
  "CredentialStorage": {
    "Provider": "HashiCorpVault",
    "Url": "https://vault.example.com:8200",
    "MountPath": "secret",
    "PathPrefix": "vyshyvanka/credentials"
  }
}

The Vault token can be set via CredentialStorage:Token or the VAULT_TOKEN environment variable.

See appsettings.Vault.json and appsettings.OpenBao.json for full examples.

Documentation

Detailed design docs and architectural decisions live in the docs/ folder.

License

MIT
